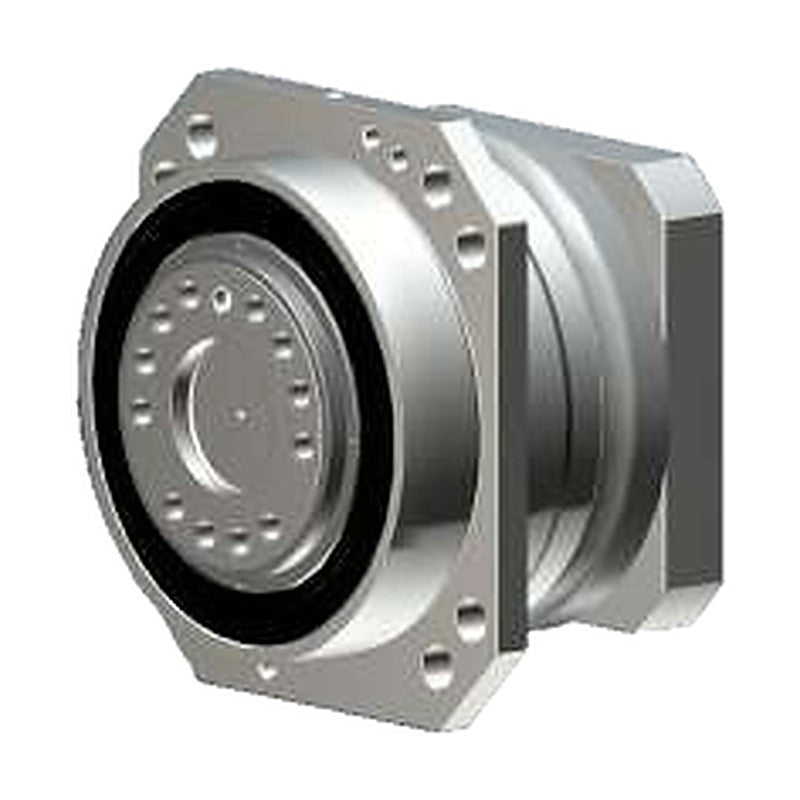

Apex Dynamics MGOH Extra High Torque Planetary Gearboxes (115-320)

Apex Dynamics MGOH Extra High Torque Planetary Gearboxes (115-320)

The APEX Dynamics MGOH series is an extra-high-torque inline planetary gearbox with standard flange output, designed for heavy rack-and-pinion and high-load axis drives.

Key features

  • Extra high torque: up to 5,840 Nm nominal output torque (frame 320)
  • Enhanced axial and radial load capacity; enlarged flange holes for easy installation
  • Backlash <=3 arcmin (1-stage) and <=4 arcmin (2/3-stage)
  • Torsional rigidity 42 to 1,800 Nm/arcmin
  • Standard flange output, same frame family as curvic-output MGOHC
  • IP67 protection, lubricated for life, any mounting position

Specifications

Frame sizes 115, 140, 170, 240, 285, 320
Ratios 1-stage i=4-5.5; 2-stage i=16-55; 3-stage i=64-400
Output standard flange output
Emergency stop torque T2NOT 3x nominal output torque T2N
Torsional rigidity 42 / 95 / 205 / 650 / 1,200 / 1,800 Nm/arcmin (115-320)
Max. axial load F2a 2,900 / 4,070 / 13,700 / 29,000 / 40,000 / 46,000 N
Efficiency >=97% / >=94% / >=92% (1/2/3-stage)
Operating temperature -10 to +90 C
Protection IP67
Lubrication Lubricant, all mounting positions
Ordering Code + "/" motor make and model (e.g. MGOH115-004 / MOTOR); anti-rust cover optional
Source APEX Dynamics MGOH/MGOHK catalog, p. 18-24
MGOH115-004 Frame: 115 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 205 Nm
MGOH115-005.5 Frame: 115 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 230 Nm
MGOH115-016 Frame: 115 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 255 Nm
MGOH115-020 Frame: 115 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 245 Nm
MGOH115-022 Frame: 115 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 240 Nm
MGOH115-027.5 Frame: 115 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 240 Nm
MGOH115-028 Frame: 115 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 235 Nm
MGOH115-038.5 Frame: 115 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 245 Nm
MGOH115-040 Frame: 115 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 96 Nm
MGOH115-055 Frame: 115 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 130 Nm
MGOH115-064 Frame: 115 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 210 Nm
MGOH115-088 Frame: 115 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 250 Nm
MGOH115-100 Frame: 115 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 215 Nm
MGOH115-110 Frame: 115 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 250 Nm
MGOH115-140 Frame: 115 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 220 Nm
MGOH115-154 Frame: 115 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 250 Nm
MGOH115-160 Frame: 115 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 210 Nm
MGOH115-200 Frame: 115 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 225 Nm
MGOH115-220 Frame: 115 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 255 Nm
MGOH115-280 Frame: 115 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 230 Nm
MGOH115-400 Frame: 115 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 100 Nm
MGOH140-004 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 505 Nm
MGOH140-005.5 Frame: 140 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 435 Nm
MGOH140-016 Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 485 Nm
MGOH140-020 Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 470 Nm
MGOH140-022 Frame: 140 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 460 Nm
MGOH140-027.5 Frame: 140 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 460 Nm
MGOH140-028 Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 445 Nm
MGOH140-038.5 Frame: 140 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 465 Nm
MGOH140-040 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 225 Nm
MGOH140-055 Frame: 140 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 315 Nm
MGOH140-064 Frame: 140 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 400 Nm
MGOH140-088 Frame: 140 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 470 Nm
MGOH140-100 Frame: 140 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 380 Nm
MGOH140-110 Frame: 140 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 475 Nm
MGOH140-140 Frame: 140 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 365 Nm
MGOH140-154 Frame: 140 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 480 Nm
MGOH140-160 Frame: 140 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 370 Nm
MGOH140-200 Frame: 140 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 375 Nm
MGOH140-220 Frame: 140 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 480 Nm
MGOH140-280 Frame: 140 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 385 Nm
MGOH140-400 Frame: 140 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 235 Nm
MGOH170-004 Frame: 170 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 790 Nm
MGOH170-005.5 Frame: 170 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 735 Nm
MGOH170-016 Frame: 170 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 890 Nm
MGOH170-020 Frame: 170 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 860 Nm
MGOH170-022 Frame: 170 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 770 Nm
MGOH170-027.5 Frame: 170 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 775 Nm
MGOH170-028 Frame: 170 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 820 Nm
MGOH170-038.5 Frame: 170 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 785 Nm
MGOH170-040 Frame: 170 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 650 Nm
MGOH170-055 Frame: 170 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 795 Nm
MGOH170-064 Frame: 170 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 745 Nm
MGOH170-088 Frame: 170 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 800 Nm
MGOH170-100 Frame: 170 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 705 Nm
MGOH170-110 Frame: 170 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 810 Nm
MGOH170-140 Frame: 170 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 680 Nm
MGOH170-154 Frame: 170 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 815 Nm
MGOH170-160 Frame: 170 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 670 Nm
MGOH170-200 Frame: 170 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 655 Nm
MGOH170-220 Frame: 170 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 825 Nm
MGOH170-280 Frame: 170 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 655 Nm
MGOH170-400 Frame: 170 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 675 Nm
MGOH240-004 Frame: 240 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 1,885 Nm
MGOH240-005.5 Frame: 240 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 1,635 Nm
MGOH240-016 Frame: 240 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,980 Nm
MGOH240-020 Frame: 240 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,995 Nm
MGOH240-022 Frame: 240 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,710 Nm
MGOH240-027.5 Frame: 240 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,720 Nm
MGOH240-028 Frame: 240 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,015 Nm
MGOH240-038.5 Frame: 240 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,740 Nm
MGOH240-040 Frame: 240 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,610 Nm
MGOH240-055 Frame: 240 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,740 Nm
MGOH240-064 Frame: 240 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,850 Nm
MGOH240-088 Frame: 240 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,780 Nm
MGOH240-100 Frame: 240 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,760 Nm
MGOH240-110 Frame: 240 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,790 Nm
MGOH240-140 Frame: 240 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,700 Nm
MGOH240-154 Frame: 240 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,805 Nm
MGOH240-160 Frame: 240 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,680 Nm
MGOH240-200 Frame: 240 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,645 Nm
MGOH240-220 Frame: 240 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,820 Nm
MGOH240-280 Frame: 240 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,595 Nm
MGOH240-400 Frame: 240 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,590 Nm
MGOH285-004 Frame: 285 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 2,920 Nm
MGOH285-005.5 Frame: 285 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 2,535 Nm
MGOH285-016 Frame: 285 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,055 Nm
MGOH285-020 Frame: 285 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,080 Nm
MGOH285-022 Frame: 285 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,640 Nm
MGOH285-027.5 Frame: 285 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,660 Nm
MGOH285-028 Frame: 285 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,110 Nm
MGOH285-038.5 Frame: 285 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,690 Nm
MGOH285-040 Frame: 285 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,145 Nm
MGOH285-055 Frame: 285 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,715 Nm
MGOH285-064 Frame: 285 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 3,040 Nm
MGOH285-088 Frame: 285 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,720 Nm
MGOH285-100 Frame: 285 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,900 Nm
MGOH285-110 Frame: 285 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,760 Nm
MGOH285-140 Frame: 285 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,810 Nm
MGOH285-154 Frame: 285 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,785 Nm
MGOH285-160 Frame: 285 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,775 Nm
MGOH285-200 Frame: 285 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,715 Nm
MGOH285-220 Frame: 285 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,810 Nm
MGOH285-280 Frame: 285 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,640 Nm
MGOH285-400 Frame: 285 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,645 Nm
MGOH320-004 Frame: 320 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 5,380 Nm
MGOH320-005.5 Frame: 320 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 4,580 Nm
MGOH320-016 Frame: 320 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,615 Nm
MGOH320-020 Frame: 320 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,660 Nm
MGOH320-022 Frame: 320 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,755 Nm
MGOH320-027.5 Frame: 320 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,785 Nm
MGOH320-028 Frame: 320 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,720 Nm
MGOH320-038.5 Frame: 320 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,830 Nm
MGOH320-040 Frame: 320 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,780 Nm
MGOH320-055 Frame: 320 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,875 Nm
MGOH320-064 Frame: 320 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,840 Nm
MGOH320-088 Frame: 320 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 4,920 Nm
MGOH320-100 Frame: 320 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,780 Nm
MGOH320-110 Frame: 320 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 4,945 Nm
MGOH320-140 Frame: 320 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,595 Nm
MGOH320-154 Frame: 320 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 4,980 Nm
MGOH320-160 Frame: 320 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,530 Nm
MGOH320-200 Frame: 320 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,420 Nm
MGOH320-220 Frame: 320 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,020 Nm
MGOH320-280 Frame: 320 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,265 Nm
MGOH320-400 Frame: 320 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,375 Nm
Planetary GearboxesApex Dynamics
126 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics MGOH Extra High Torque Planetary Gearboxes (115-320)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (126)

MGOH115-004, MGOH115-005.5, MGOH115-016, MGOH115-020, MGOH115-022, MGOH115-027.5, MGOH115-028, MGOH115-038.5, MGOH115-040, MGOH115-055 + 116 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MGOH115-004Frame: 115 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 205 Nm
MGOH115-005.5Frame: 115 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 230 Nm
MGOH115-016Frame: 115 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 255 Nm
MGOH115-020Frame: 115 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 245 Nm
MGOH115-022Frame: 115 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 240 Nm
MGOH115-027.5Frame: 115 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 240 Nm
MGOH115-028Frame: 115 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 235 Nm
MGOH115-038.5Frame: 115 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 245 Nm
MGOH115-040Frame: 115 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 96 Nm
MGOH115-055Frame: 115 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 130 Nm
MGOH115-064Frame: 115 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 210 Nm
MGOH115-088Frame: 115 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 250 Nm
MGOH115-100Frame: 115 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 215 Nm
MGOH115-110Frame: 115 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 250 Nm
MGOH115-140Frame: 115 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 220 Nm
MGOH115-154Frame: 115 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 250 Nm
MGOH115-160Frame: 115 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 210 Nm
MGOH115-200Frame: 115 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 225 Nm
MGOH115-220Frame: 115 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 255 Nm
MGOH115-280Frame: 115 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 230 Nm
MGOH115-400Frame: 115 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 100 Nm
MGOH140-004Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 505 Nm
MGOH140-005.5Frame: 140 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 435 Nm
MGOH140-016Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 485 Nm
MGOH140-020Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 470 Nm
MGOH140-022Frame: 140 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 460 Nm
MGOH140-027.5Frame: 140 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 460 Nm
MGOH140-028Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 445 Nm
MGOH140-038.5Frame: 140 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 465 Nm
MGOH140-040Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 225 Nm
MGOH140-055Frame: 140 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 315 Nm
MGOH140-064Frame: 140 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 400 Nm
MGOH140-088Frame: 140 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 470 Nm
MGOH140-100Frame: 140 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 380 Nm
MGOH140-110Frame: 140 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 475 Nm
MGOH140-140Frame: 140 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 365 Nm
MGOH140-154Frame: 140 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 480 Nm
MGOH140-160Frame: 140 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 370 Nm
MGOH140-200Frame: 140 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 375 Nm
MGOH140-220Frame: 140 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 480 Nm
MGOH140-280Frame: 140 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 385 Nm
MGOH140-400Frame: 140 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 235 Nm
MGOH170-004Frame: 170 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 790 Nm
MGOH170-005.5Frame: 170 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 735 Nm
MGOH170-016Frame: 170 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 890 Nm
MGOH170-020Frame: 170 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 860 Nm
MGOH170-022Frame: 170 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 770 Nm
MGOH170-027.5Frame: 170 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 775 Nm
MGOH170-028Frame: 170 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 820 Nm
MGOH170-038.5Frame: 170 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 785 Nm
MGOH170-040Frame: 170 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 650 Nm
MGOH170-055Frame: 170 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 795 Nm
MGOH170-064Frame: 170 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 745 Nm
MGOH170-088Frame: 170 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 800 Nm
MGOH170-100Frame: 170 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 705 Nm
MGOH170-110Frame: 170 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 810 Nm
MGOH170-140Frame: 170 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 680 Nm
MGOH170-154Frame: 170 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 815 Nm
MGOH170-160Frame: 170 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 670 Nm
MGOH170-200Frame: 170 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 655 Nm
MGOH170-220Frame: 170 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 825 Nm
MGOH170-280Frame: 170 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 655 Nm
MGOH170-400Frame: 170 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 675 Nm
MGOH240-004Frame: 240 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 1,885 Nm
MGOH240-005.5Frame: 240 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 1,635 Nm
MGOH240-016Frame: 240 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,980 Nm
MGOH240-020Frame: 240 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,995 Nm
MGOH240-022Frame: 240 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,710 Nm
MGOH240-027.5Frame: 240 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,720 Nm
MGOH240-028Frame: 240 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,015 Nm
MGOH240-038.5Frame: 240 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,740 Nm
MGOH240-040Frame: 240 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,610 Nm
MGOH240-055Frame: 240 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,740 Nm
MGOH240-064Frame: 240 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,850 Nm
MGOH240-088Frame: 240 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,780 Nm
MGOH240-100Frame: 240 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,760 Nm
MGOH240-110Frame: 240 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,790 Nm
MGOH240-140Frame: 240 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,700 Nm
MGOH240-154Frame: 240 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,805 Nm
MGOH240-160Frame: 240 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,680 Nm
MGOH240-200Frame: 240 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,645 Nm
MGOH240-220Frame: 240 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,820 Nm
MGOH240-280Frame: 240 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,595 Nm
MGOH240-400Frame: 240 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,590 Nm
MGOH285-004Frame: 285 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 2,920 Nm
MGOH285-005.5Frame: 285 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 2,535 Nm
MGOH285-016Frame: 285 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,055 Nm
MGOH285-020Frame: 285 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,080 Nm
MGOH285-022Frame: 285 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,640 Nm
MGOH285-027.5Frame: 285 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,660 Nm
MGOH285-028Frame: 285 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,110 Nm
MGOH285-038.5Frame: 285 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,690 Nm
MGOH285-040Frame: 285 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,145 Nm
MGOH285-055Frame: 285 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,715 Nm
MGOH285-064Frame: 285 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 3,040 Nm
MGOH285-088Frame: 285 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,720 Nm
MGOH285-100Frame: 285 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,900 Nm
MGOH285-110Frame: 285 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,760 Nm
MGOH285-140Frame: 285 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,810 Nm
MGOH285-154Frame: 285 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,785 Nm
MGOH285-160Frame: 285 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,775 Nm
MGOH285-200Frame: 285 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,715 Nm
MGOH285-220Frame: 285 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,810 Nm
MGOH285-280Frame: 285 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,640 Nm
MGOH285-400Frame: 285 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,645 Nm
MGOH320-004Frame: 320 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 5,380 Nm
MGOH320-005.5Frame: 320 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 4,580 Nm
MGOH320-016Frame: 320 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,615 Nm
MGOH320-020Frame: 320 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,660 Nm
MGOH320-022Frame: 320 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,755 Nm
MGOH320-027.5Frame: 320 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,785 Nm
MGOH320-028Frame: 320 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,720 Nm
MGOH320-038.5Frame: 320 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,830 Nm
MGOH320-040Frame: 320 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,780 Nm
MGOH320-055Frame: 320 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,875 Nm
MGOH320-064Frame: 320 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,840 Nm
MGOH320-088Frame: 320 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 4,920 Nm
MGOH320-100Frame: 320 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,780 Nm
MGOH320-110Frame: 320 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 4,945 Nm
MGOH320-140Frame: 320 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,595 Nm
MGOH320-154Frame: 320 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 4,980 Nm
MGOH320-160Frame: 320 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,530 Nm
MGOH320-200Frame: 320 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,420 Nm
MGOH320-220Frame: 320 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,020 Nm
MGOH320-280Frame: 320 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,265 Nm
MGOH320-400Frame: 320 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,375 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
