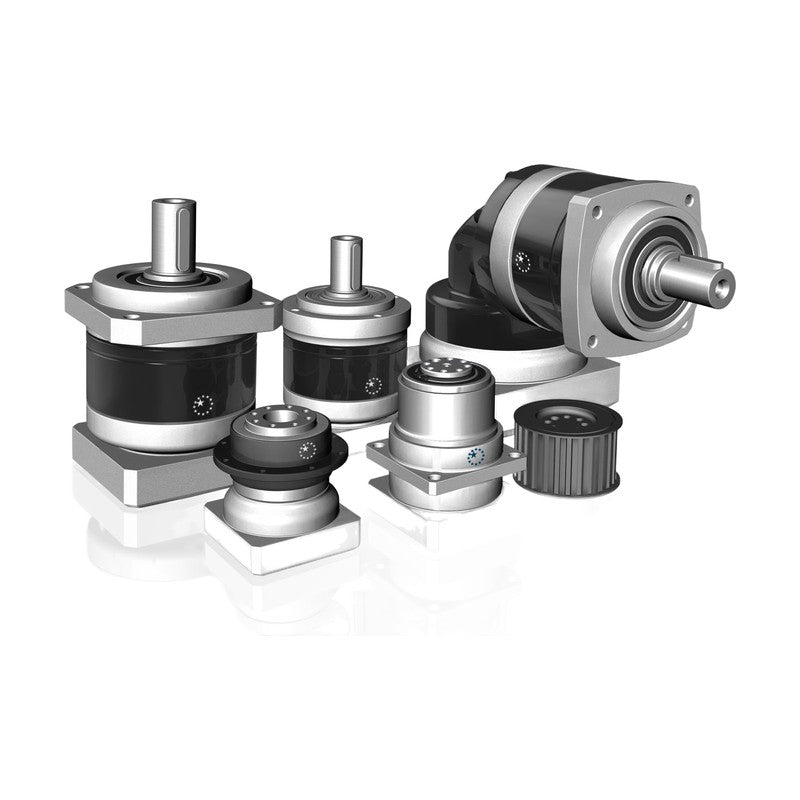

Apex Dynamics PEII Planetary Gearboxes (050-155)

Apex Dynamics PEII inline economic servo planetary gearboxes with square output flange and keyed output shaft, frame sizes 050-155 in 1- and 2-stage ratios 3-100.

Key features

New Generation P series: economic, high efficiency, low noise, reduced backlash, compact and light
Square output flange 50-155 mm with keyed (S2) output shaft as standard
Ratios 3-10 single stage and 12-100 two-stage; nominal output torque 10-459 Nm
Efficiency >=97% (1-stage) / >=94% (2-stage)
Motor adapter (input hub) matched to the servo motor; specify motor make and model when ordering
Input shaft version PEIIS available as an option instead of the input hub

Specifications

Series	PEII
Output shaft	S2 keyed (standard)
Emergency stop torque T2NOT	3 x T2N
Max. acceleration torque T2B	60% of T2NOT
Nominal input speed n1N	4,500 (050) to 2,500 (155) rpm
Max. input speed n1B	8,000 (050) to 3,600 (155) rpm
Torsional rigidity	0.9 to 16 Nm/arcmin
Efficiency	>=97% / >=94%
Protection	IP65
Operating temperature	0 to +90 C
Source	APEX Dynamics PII/PIIR catalog, p. 03-06

PEII050-003		Frame: 050 \| Ratio i: 3 \| Stages: 1 \| Backlash: <=8 arcmin \| Nominal torque T2N: 16 Nm
PEII050-004		Frame: 050 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=8 arcmin \| Nominal torque T2N: 16 Nm
PEII050-005		Frame: 050 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=8 arcmin \| Nominal torque T2N: 15 Nm
PEII050-007		Frame: 050 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=8 arcmin \| Nominal torque T2N: 12 Nm
PEII050-010		Frame: 050 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=8 arcmin \| Nominal torque T2N: 10 Nm
PEII050-012		Frame: 050 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=10 arcmin \| Nominal torque T2N: 16 Nm
PEII050-015		Frame: 050 \| Ratio i: 15 \| Stages: 2 \| Backlash: <=10 arcmin \| Nominal torque T2N: 15 Nm
PEII050-016		Frame: 050 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=10 arcmin \| Nominal torque T2N: 16 Nm
PEII050-020		Frame: 050 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=10 arcmin \| Nominal torque T2N: 16 Nm
PEII050-025		Frame: 050 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=10 arcmin \| Nominal torque T2N: 15 Nm
PEII050-030		Frame: 050 \| Ratio i: 30 \| Stages: 2 \| Backlash: <=10 arcmin \| Nominal torque T2N: 15 Nm
PEII050-035		Frame: 050 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=10 arcmin \| Nominal torque T2N: 12 Nm
PEII050-040		Frame: 050 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=10 arcmin \| Nominal torque T2N: 16 Nm
PEII050-050		Frame: 050 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=10 arcmin \| Nominal torque T2N: 15 Nm
PEII050-070		Frame: 050 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=10 arcmin \| Nominal torque T2N: 12 Nm
PEII050-100		Frame: 050 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=10 arcmin \| Nominal torque T2N: 10 Nm
PEII070-003		Frame: 070 \| Ratio i: 3 \| Stages: 1 \| Backlash: <=7 arcmin \| Nominal torque T2N: 42 Nm
PEII070-004		Frame: 070 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=7 arcmin \| Nominal torque T2N: 42 Nm
PEII070-005		Frame: 070 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=7 arcmin \| Nominal torque T2N: 40 Nm
PEII070-007		Frame: 070 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=7 arcmin \| Nominal torque T2N: 35 Nm
PEII070-010		Frame: 070 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=7 arcmin \| Nominal torque T2N: 27 Nm
PEII070-012		Frame: 070 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=9 arcmin \| Nominal torque T2N: 42 Nm
PEII070-015		Frame: 070 \| Ratio i: 15 \| Stages: 2 \| Backlash: <=9 arcmin \| Nominal torque T2N: 40 Nm
PEII070-016		Frame: 070 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=9 arcmin \| Nominal torque T2N: 42 Nm
PEII070-020		Frame: 070 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=9 arcmin \| Nominal torque T2N: 42 Nm
PEII070-025		Frame: 070 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=9 arcmin \| Nominal torque T2N: 40 Nm
PEII070-030		Frame: 070 \| Ratio i: 30 \| Stages: 2 \| Backlash: <=9 arcmin \| Nominal torque T2N: 40 Nm
PEII070-035		Frame: 070 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=9 arcmin \| Nominal torque T2N: 35 Nm
PEII070-040		Frame: 070 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=9 arcmin \| Nominal torque T2N: 43 Nm
PEII070-050		Frame: 070 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=9 arcmin \| Nominal torque T2N: 40 Nm
PEII070-070		Frame: 070 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=9 arcmin \| Nominal torque T2N: 35 Nm
PEII070-100		Frame: 070 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=9 arcmin \| Nominal torque T2N: 27 Nm
PEII090-003		Frame: 090 \| Ratio i: 3 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 110 Nm
PEII090-004		Frame: 090 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 113 Nm
PEII090-005		Frame: 090 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 118 Nm
PEII090-007		Frame: 090 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 96 Nm
PEII090-010		Frame: 090 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 68 Nm
PEII090-012		Frame: 090 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 110 Nm
PEII090-015		Frame: 090 \| Ratio i: 15 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 109 Nm
PEII090-016		Frame: 090 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 116 Nm
PEII090-020		Frame: 090 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 116 Nm
PEII090-025		Frame: 090 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 123 Nm
PEII090-030		Frame: 090 \| Ratio i: 30 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 108 Nm
PEII090-035		Frame: 090 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 100 Nm
PEII090-040		Frame: 090 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 117 Nm
PEII090-050		Frame: 090 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 123 Nm
PEII090-070		Frame: 090 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 100 Nm
PEII090-100		Frame: 090 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 70 Nm
PEII120-003		Frame: 120 \| Ratio i: 3 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 217 Nm
PEII120-004		Frame: 120 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 223 Nm
PEII120-005		Frame: 120 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 220 Nm
PEII120-007		Frame: 120 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 198 Nm
PEII120-010		Frame: 120 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 155 Nm
PEII120-012		Frame: 120 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 217 Nm
PEII120-015		Frame: 120 \| Ratio i: 15 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 213 Nm
PEII120-016		Frame: 120 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 228 Nm
PEII120-020		Frame: 120 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 230 Nm
PEII120-025		Frame: 120 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 228 Nm
PEII120-030		Frame: 120 \| Ratio i: 30 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 212 Nm
PEII120-035		Frame: 120 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 206 Nm
PEII120-040		Frame: 120 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 232 Nm
PEII120-050		Frame: 120 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 228 Nm
PEII120-070		Frame: 120 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 206 Nm
PEII120-100		Frame: 120 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 162 Nm
PEII155-003		Frame: 155 \| Ratio i: 3 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 430 Nm
PEII155-004		Frame: 155 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 440 Nm
PEII155-005		Frame: 155 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 435 Nm
PEII155-007		Frame: 155 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 366 Nm
PEII155-010		Frame: 155 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=6 arcmin \| Nominal torque T2N: 295 Nm
PEII155-012		Frame: 155 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 430 Nm
PEII155-015		Frame: 155 \| Ratio i: 15 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 424 Nm
PEII155-016		Frame: 155 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 452 Nm
PEII155-020		Frame: 155 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 454 Nm
PEII155-025		Frame: 155 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 450 Nm
PEII155-030		Frame: 155 \| Ratio i: 30 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 422 Nm
PEII155-035		Frame: 155 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 382 Nm
PEII155-040		Frame: 155 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 459 Nm
PEII155-050		Frame: 155 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 450 Nm
PEII155-070		Frame: 155 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 382 Nm
PEII155-100		Frame: 155 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=8 arcmin \| Nominal torque T2N: 308 Nm
