Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|

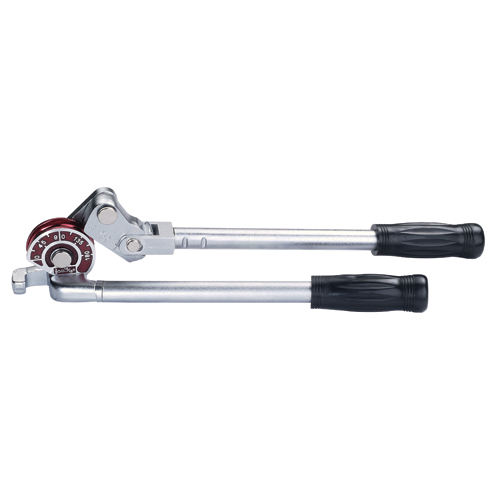

| 250-0522 | 3/8 inch tube bender with gauge | Model: CT-365A-06, Size: 3/8 inch, Bending radius: 15/16 inch, Max bending angle: 180 deg, With pressure gauge | ||
| 250-0531 | 1/2 inch tube bender with gauge | Model: CT-365A-08, Size: 1/2 inch, Bending radius: 1 1/2 inch, Max bending angle: 180 deg, With pressure gauge | ||
| 250-0540 | 5/8 inch tube bender with gauge | Model: CT-365A-10, Size: 5/8 inch, Bending radius: 2 1/4 inch, Max bending angle: 180 deg, With pressure gauge | ||
| 250-0559 | 3/4 inch tube bender with gauge | Model: CT-365A-12, Size: 3/4 inch, Bending radius: 3 inch, Max bending angle: 180 deg, With pressure gauge |
Need a different model, or a part not listed here? Send us your parts list →
