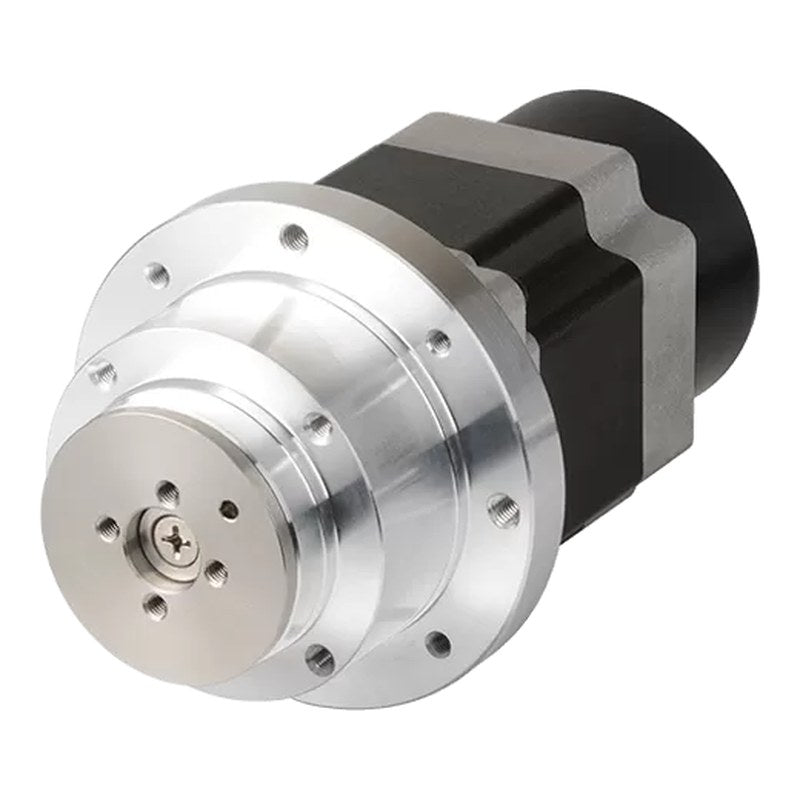

The AK-RB series rotary actuator type 5-phase stepper motors are ideal for applications requiring high torque.

Key features

• Compact, space-saving design ideal for building compact-sized systems
• Low, economical prices for improved cost efficiency
• Backlash (frame size) : 60mm : ±20’ (0.33˚)
• Basic step angle - 1:5 → 0.144˚, 1:7.2 → 0.1˚, 1:10 → 0.072˚
• - 1:5 → 0.144˚, 1:7.2 → 0.1˚, 1:10 → 0.072˚
• Allowed speed - 1:5 → 0 to 360rpm, 1:7.2 → 0 to 250rpm, 1:10 → 0 to 180rpm

Specifications
