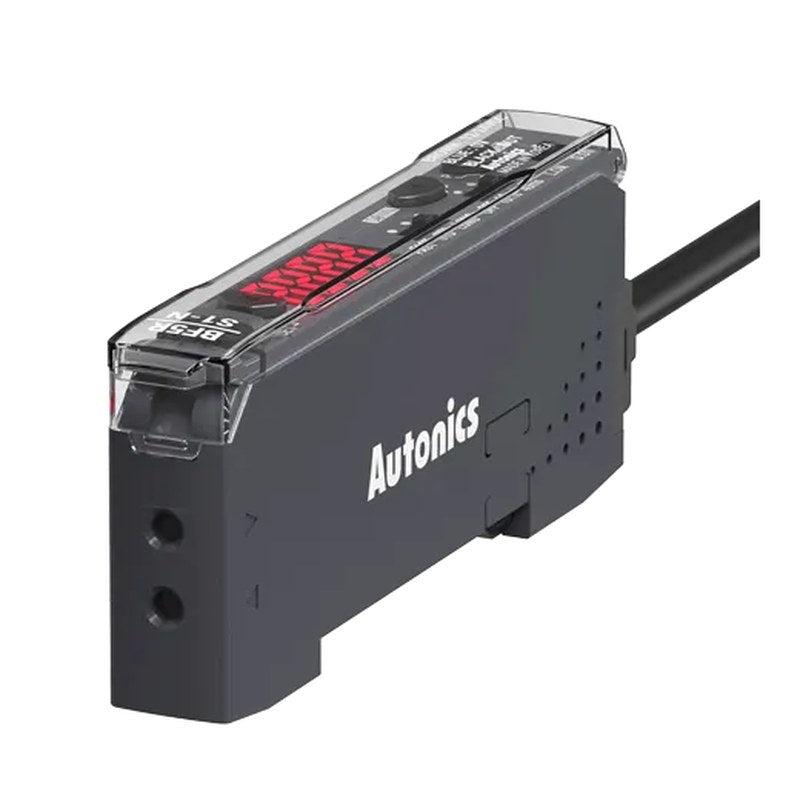

Autonics BF5 Series Single/Dual Display Fiber Optic Amplifiers

Autonics BF5 Series Single/Dual Display Fiber Optic Amplifiers

The BF5 series fiber optic amplifiers are available in single and dual display models. This series is discontinued by Autonics; contact us for availability or a replacement.

Key features

  • Available in dual and single display models
  • Dual digital display for displaying current value and set value (BF5-D)
  • 5 response speeds - Ultra-fast mode (50㎲), fast mode (150㎲), standard mode (500㎲), long-distance mode (4ms), ultra-long-distance mode (10ms)
  • Display range : 0-4000 (standard mode), 0-9999 (long-distance mode)
  • Saturation prevention function : prevent errors from saturation of received light
  • Inverted display : invert displays depending on installation for easier reading

Specifications

Brand Autonics (Korea)
Series BF5
Display method 4-digit 7-segment LED
Power voltage 12-24VDC DC ±10%(ripple P-P: max. 10%)
Source Autonics official model list (autonics.com, BF5 series page)
BF5B-D1-N Type: Dual display | Light source: Blue LED(470nm) | Response time: 50㎲, 150㎲, 500㎲, 4ms, 10ms
BF5B-D1-P Type: Dual display | Light source: Blue LED(470nm) | Response time: 50㎲, 150㎲, 500㎲, 4ms, 10ms
BF5G-D1-N Type: Dual display | Light source: Green LED(530nm) | Response time: 50㎲, 150㎲, 500㎲, 4ms, 10ms
BF5G-D1-P Type: Dual display | Light source: Green LED(530nm) | Response time: 50㎲, 150㎲, 500㎲, 4ms, 10ms
BF5R-D1-N Type: Dual display | Light source: Red LED(660nm) | Response time: 50㎲, 150㎲, 500㎲, 4ms, 10ms
BF5R-D1-P Type: Dual display | Light source: Red LED(660nm) | Response time: 50㎲, 150㎲, 500㎲, 4ms, 10ms
BF5R-S1-N Type: Single display | Light source: Red LED(660nm) | Response time: 150㎲, 500㎲, 4ms
BF5R-S1-P Type: Single display | Light source: Red LED(660nm) | Response time: 150㎲, 500㎲, 4ms
Fiber OpticAutonics
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics BF5 Series Single/Dual Display Fiber Optic Amplifiers

Brand Autonics·Fiber Optic

Available part numbers (8)

BF5B-D1-N, BF5B-D1-P, BF5G-D1-N, BF5G-D1-P, BF5R-D1-N, BF5R-D1-P, BF5R-S1-N, BF5R-S1-P

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BF5B-D1-NType: Dual display | Light source: Blue LED(470nm) | Response time: 50㎲, 150㎲, 500㎲, 4ms, 10ms
BF5B-D1-PType: Dual display | Light source: Blue LED(470nm) | Response time: 50㎲, 150㎲, 500㎲, 4ms, 10ms
BF5G-D1-NType: Dual display | Light source: Green LED(530nm) | Response time: 50㎲, 150㎲, 500㎲, 4ms, 10ms
BF5G-D1-PType: Dual display | Light source: Green LED(530nm) | Response time: 50㎲, 150㎲, 500㎲, 4ms, 10ms
BF5R-D1-NType: Dual display | Light source: Red LED(660nm) | Response time: 50㎲, 150㎲, 500㎲, 4ms, 10ms
BF5R-D1-PType: Dual display | Light source: Red LED(660nm) | Response time: 50㎲, 150㎲, 500㎲, 4ms, 10ms
BF5R-S1-NType: Single display | Light source: Red LED(660nm) | Response time: 150㎲, 500㎲, 4ms
BF5R-S1-PType: Single display | Light source: Red LED(660nm) | Response time: 150㎲, 500㎲, 4ms
