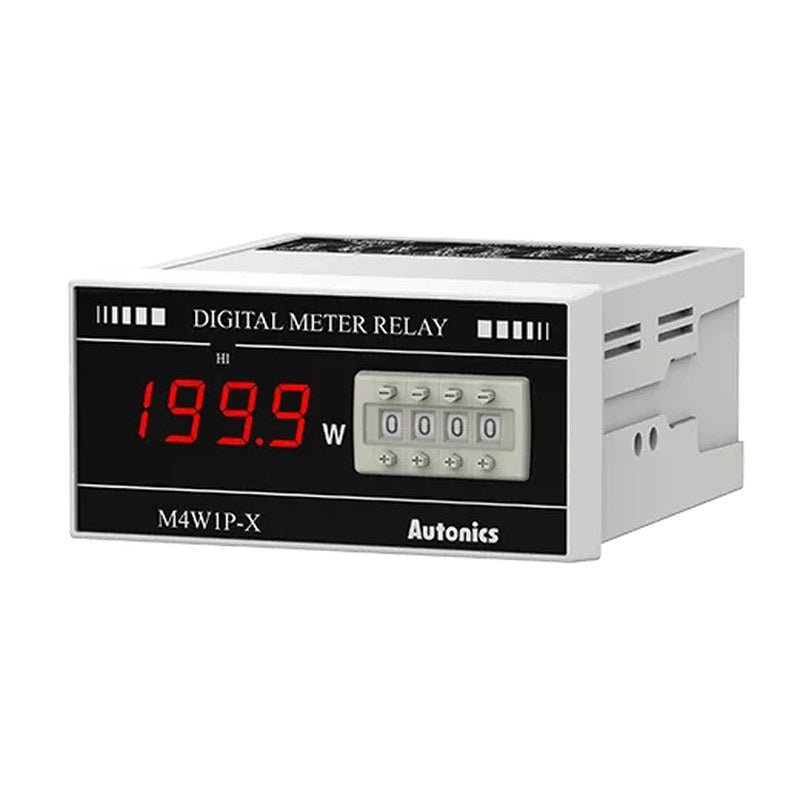

Autonics M4Y/M5W/M4W/M4M Series Digital Wattmeters

Autonics M4Y/M5W/M4W/M4M Series Digital Wattmeters

The M4Y/M4W/M5W/M4M series digital wattmeters can measure the electric power in watts and display the values in numeric form.

Key features

  • Max display value : 19999 (M5W), 1999 (all other models)
  • Display output values (0-10VDC) from power converters (options available for DC 4-20mA, 1-5VDC)
  • Auto-zero adjustment and hold display value function (except M5W)
  • Output options : indicator only, single setting output, dual setting output

Specifications

Brand Autonics (Korea)
Series M4Y, M5W, M4W, M4M (Wattmeter)
Measurement AC electric power
Source Autonics official model list (autonics.com, M4Y, M5W, M4W, M4M (Wattmeter) series page)
M5W-W-1 Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 199.99W | Max. display Range: 0 to 199.99
M5W-W-2 Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 1.9999kW | Max. display Range: 0 to 1.9999
M5W-W-3 Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 19.999kW | Max. display Range: 0 to 19.999
M5W-W-4 Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 199.99kW | Max. display Range: 0 to 199.99
M5W-W-5 Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 1999.9kW | Max. display Range: 0 to 1999.9
M5W-W-XX Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: Option | Max. display Range: 0 to 19999
M4Y-W-1 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 199.9W | Max. display Range: 0 to 199.9
M4Y-W-2 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 1.999kW | Max. display Range: 0 to 1.999
M4Y-W-3 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 19.99kW | Max. display Range: 0 to 19.99
M4Y-W-4 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 199.9kW | Max. display Range: 0 to 199.9
M4Y-W-XX Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: Option | Max. display Range: 0 to 1999
M4W-W-1 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 199.9W | Max. display Range: 0 to 199.9
M4W-W-2 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 1.999kW | Max. display Range: 0 to 1.999
M4W-W-3 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 19.99kW | Max. display Range: 0 to 19.99
M4W-W-4 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 199.9kW | Max. display Range: 0 to 199.9
M4W-W-5 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 1999kW | Max. display Range: 0 to 1999
M4W-W-XX Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: Option | Max. display Range: 0 to 1999
M4W2P-W-2 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 1.999kW | Max. display Range: 0 to 1.999
M4W2P-W-4 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 199.9kW | Max. display Range: 0 to 199.9
M4W2P-W-XX Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: Option | Max. display Range: 0 to 1999
M4W2P-W-1 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 199.9W | Max. display Range: 0 to 199.9
M4W1P-W-3 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 19.99kW | Max. display Range: 0 to 19.99
M4W1P-W-4 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 199.9kW | Max. display Range: 0 to 199.9
M4W1P-W-5 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 1999kW | Max. display Range: 0 to 1999
M4W1P-W-1 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 199.9W | Max. display Range: 0 to 199.9
Panel MeterAutonics
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics M4Y/M5W/M4W/M4M Series Digital Wattmeters

Brand Autonics·Panel Meter

Available part numbers (25)

M5W-W-1, M5W-W-2, M5W-W-3, M5W-W-4, M5W-W-5, M5W-W-XX, M4Y-W-1, M4Y-W-2, M4Y-W-3, M4Y-W-4 + 15 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M5W-W-1Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 199.99W | Max. display Range: 0 to 199.99
M5W-W-2Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 1.9999kW | Max. display Range: 0 to 1.9999
M5W-W-3Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 19.999kW | Max. display Range: 0 to 19.999
M5W-W-4Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 199.99kW | Max. display Range: 0 to 199.99
M5W-W-5Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 1999.9kW | Max. display Range: 0 to 1999.9
M5W-W-XXDisplay method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: Option | Max. display Range: 0 to 19999
M4Y-W-1Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 199.9W | Max. display Range: 0 to 199.9
M4Y-W-2Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 1.999kW | Max. display Range: 0 to 1.999
M4Y-W-3Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 19.99kW | Max. display Range: 0 to 19.99
M4Y-W-4Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 199.9kW | Max. display Range: 0 to 199.9
M4Y-W-XXDisplay method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: Option | Max. display Range: 0 to 1999
M4W-W-1Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 199.9W | Max. display Range: 0 to 199.9
M4W-W-2Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 1.999kW | Max. display Range: 0 to 1.999
M4W-W-3Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 19.99kW | Max. display Range: 0 to 19.99
M4W-W-4Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 199.9kW | Max. display Range: 0 to 199.9
M4W-W-5Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 1999kW | Max. display Range: 0 to 1999
M4W-W-XXDisplay method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: Option | Max. display Range: 0 to 1999
M4W2P-W-2Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 1.999kW | Max. display Range: 0 to 1.999
M4W2P-W-4Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 199.9kW | Max. display Range: 0 to 199.9
M4W2P-W-XXDisplay method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: Option | Max. display Range: 0 to 1999
M4W2P-W-1Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 199.9W | Max. display Range: 0 to 199.9
M4W1P-W-3Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 19.99kW | Max. display Range: 0 to 19.99
M4W1P-W-4Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 199.9kW | Max. display Range: 0 to 199.9
M4W1P-W-5Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 1999kW | Max. display Range: 0 to 1999
M4W1P-W-1Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 199.9W | Max. display Range: 0 to 199.9
