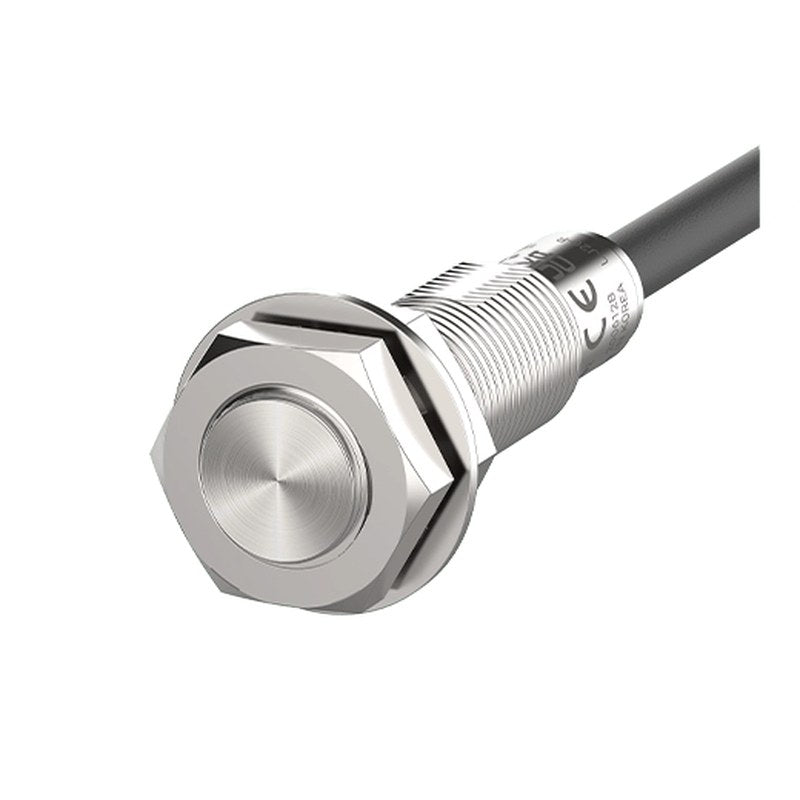

Autonics PRFD-K Series Full-Metal Long-Range Proximity Sensors

Autonics PRFD-K Series Full-Metal Long-Range Proximity Sensors

The PRFD-K series full-metal cylindrical inductive proximity sensors feature factor 1 sensing to ensure equal sensing distances for iron and aluminum.

Key features

  • Factor 1 sensing with equal detection distance for iron, aluminum and brass M30 models offer factor 1 sensing for aluminum, iron and brass.
  • High durability against contact with workpieces or wire brushes (sensor head/housing: stainless steel)
  • Reduced risk of malfunction caused by aluminum chips
  • 2-color LED indicator for easy status monitoring
  • Protection structure - Cable type, cable connector type: IP66, IP67 - Connector type: IP66, IP67, IP67G, IP68
  • - Cable type, cable connector type: IP66, IP67

Specifications

Brand Autonics (Korea)
Series PRFD-K
Installation Flush
Hysteresis(distance) Max. 15% of sensing distance
Source Autonics official model list (autonics.com, PRFD-K series page)
PRFDACM12-3DP-K Sensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDACM18-7DP-K Sensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDACM30-12DP-K Sensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDAW12-3DP-V-K Sensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDAW18-7DP-V-K Sensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDAW30-12DP-V-K Sensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDCM12-3DP-K Sensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDCM18-7DP-K Sensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDCM30-12DP-K Sensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDW18-7DP-V-K Sensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDW30-12DP-V-K Sensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFD12-3DP-V-K Sensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFD18-7DP-V-K Sensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFD30-12DP-V-K Sensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDA12-3DP-V-K Sensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDA18-7DP-V-K Sensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDA30-12DP-V-K Sensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDACM12-3DN-K Sensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDACM18-7DN-K Sensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDACM30-12DN-K Sensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDCM12-3DN-K Sensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDCM18-7DN-K Sensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDCM30-12DN-K Sensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDW12-3DP-V-K Sensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFD12-3DN-V-K Sensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFD18-7DN-V-K Sensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFD30-12DN-V-K Sensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDA12-3DN-V-K Sensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDA18-7DN-V-K Sensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDA30-12DN-V-K Sensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDAW12-3DN-V-K Sensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDAW18-7DN-V-K Sensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDAW30-12DN-V-K Sensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDW12-3DN-V-K Sensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDW18-7DN-V-K Sensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDW30-12DN-V-K Sensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
ProximityAutonics
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics PRFD-K Series Full-Metal Long-Range Proximity Sensors

Brand Autonics·Proximity

Available part numbers (36)

PRFDACM12-3DP-K, PRFDACM18-7DP-K, PRFDACM30-12DP-K, PRFDAW12-3DP-V-K, PRFDAW18-7DP-V-K, PRFDAW30-12DP-V-K, PRFDCM12-3DP-K, PRFDCM18-7DP-K, PRFDCM30-12DP-K, PRFDW18-7DP-V-K + 26 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PRFDACM12-3DP-KSensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDACM18-7DP-KSensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDACM30-12DP-KSensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDAW12-3DP-V-KSensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDAW18-7DP-V-KSensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDAW30-12DP-V-KSensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDCM12-3DP-KSensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDCM18-7DP-KSensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDCM30-12DP-KSensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDW18-7DP-V-KSensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDW30-12DP-V-KSensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFD12-3DP-V-KSensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFD18-7DP-V-KSensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFD30-12DP-V-KSensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDA12-3DP-V-KSensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDA18-7DP-V-KSensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDA30-12DP-V-KSensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDACM12-3DN-KSensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDACM18-7DN-KSensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDACM30-12DN-KSensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDCM12-3DN-KSensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDCM18-7DN-KSensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDCM30-12DN-KSensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDW12-3DP-V-KSensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFD12-3DN-V-KSensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFD18-7DN-V-KSensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFD30-12DN-V-KSensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDA12-3DN-V-KSensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDA18-7DN-V-KSensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDA30-12DN-V-KSensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDAW12-3DN-V-KSensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDAW18-7DN-V-KSensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDAW30-12DN-V-KSensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
PRFDW12-3DN-V-KSensing side diameter: Ø12mm | Sensing distance: 3mm | Standard sensing target: 21×21×1mm(iron)
PRFDW18-7DN-V-KSensing side diameter: Ø18mm | Sensing distance: 7mm | Standard sensing target: 30×30×1mm(iron)
PRFDW30-12DN-V-KSensing side diameter: Ø30mm | Sensing distance: 12mm | Standard sensing target: 54×54×1mm(iron)
