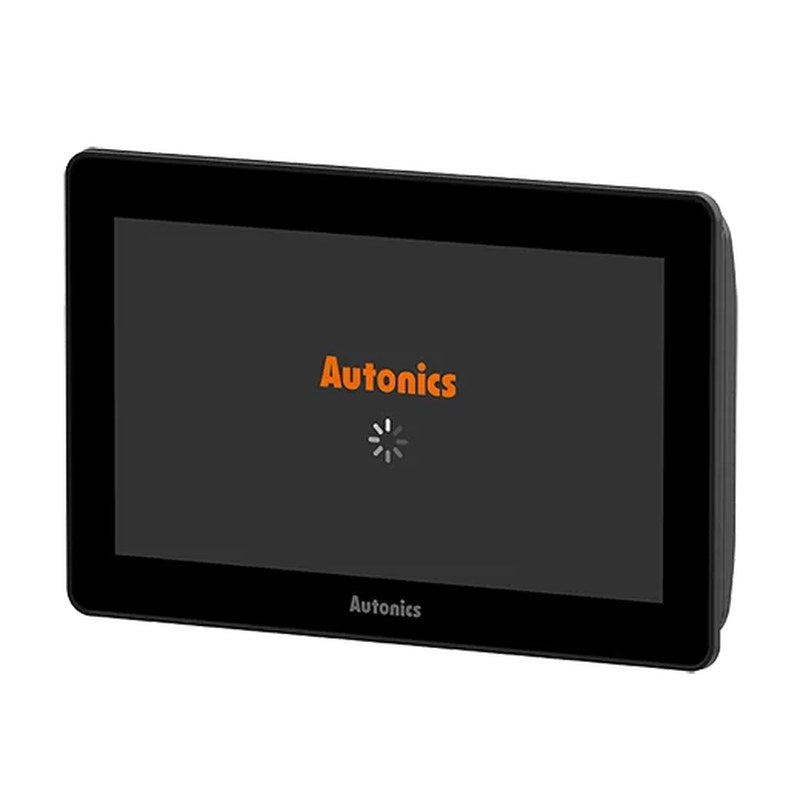

Autonics TP Series Standard Graphic Panels

Autonics TP Series Standard Graphic Panels

The TP series standard graphic panels feature a quad-core CPU for fast processing performance and is available in various sizes, including 4.3-inch, 7-inch, and 10.1-inch models.

Key features

  • Quad-core CPU, 1GB RAM, 8GB Flash
  • Various size with 4.3/7.0/10.1-inch models
  • Monitoring connected devices without screen data
  • Communication Protocols - Industrial standard : OPC UA - Semiconductor industry communication protocols : HSMS, SECS/GEM
  • Communication interfaces: RS232C, RS422/485, Ethernet
  • Screen editor software : atDesigner-TP

Specifications

Brand Autonics (Korea)
Series TP
Display Specifications LCD Type TFT Color LCD
Source Autonics official model list (autonics.com, TP series page)
TP-043 Monitor size: 4.3 inch | Display Specifications Resolution: 480 x 272 pixel | LCD view angle (top/bottom/left/right): Within 50˚ / 60˚ / 60˚ / 60˚ of each | Serial interface (COM1/2): COM1: RS-232C; COM2: RS-422/485
TP-070 Monitor size: 7.0 inch | Display Specifications Resolution: 800×480pixel | LCD view angle (top/bottom/left/right): Within 50˚ / 70˚ / 70˚ / 70˚ of each | Serial interface (COM1/2): COM1: RS-232C; COM2: RS-232C,…
TP-101 Monitor size: 10.1 inch | Display Specifications Resolution: 1024 x 600 pixel | LCD view angle (top/bottom/left/right): Within 60˚ / 70˚ / 70˚ / 70˚ of each | Serial interface (COM1/2): COM1: RS-232C; COM2: RS-232C,…
HMIAutonics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics TP Series Standard Graphic Panels

Brand Autonics·HMI

Available part numbers (3)

TP-043, TP-070, TP-101

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TP-043Monitor size: 4.3 inch | Display Specifications Resolution: 480 x 272 pixel | LCD view angle (top/bottom/left/right): Within 50˚ / 60˚ / 60˚ / 60˚ of each | Serial interface (COM1/2): COM1: RS-232C; COM2: RS-422/485
TP-070Monitor size: 7.0 inch | Display Specifications Resolution: 800×480pixel | LCD view angle (top/bottom/left/right): Within 50˚ / 70˚ / 70˚ / 70˚ of each | Serial interface (COM1/2): COM1: RS-232C; COM2: RS-232C,…
TP-101Monitor size: 10.1 inch | Display Specifications Resolution: 1024 x 600 pixel | LCD view angle (top/bottom/left/right): Within 60˚ / 70˚ / 70˚ / 70˚ of each | Serial interface (COM1/2): COM1: RS-232C; COM2: RS-232C,…
