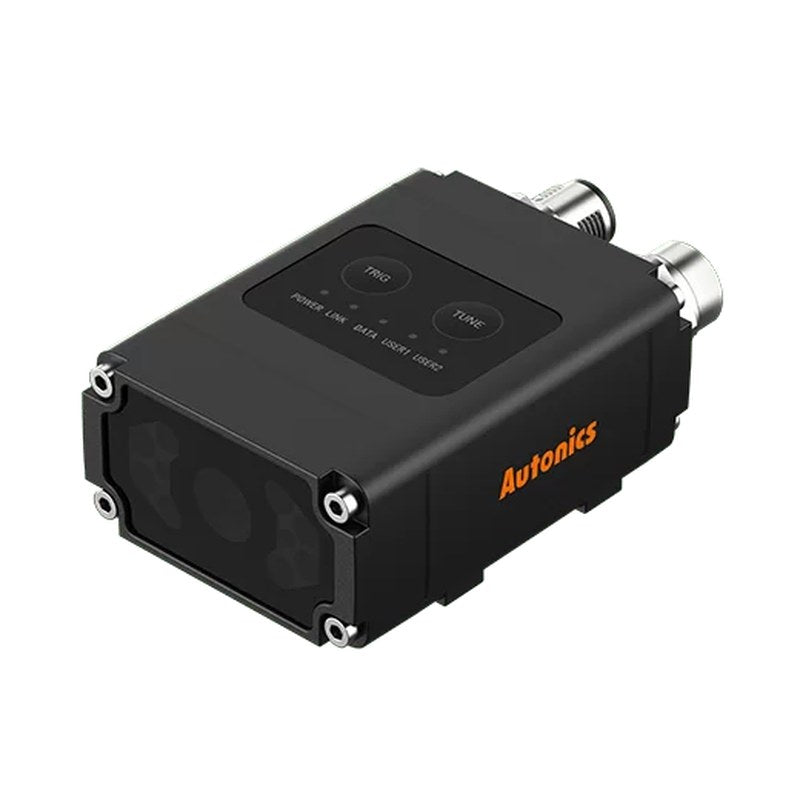

Autonics VG2 Series 0.3M, 1.2M Color/ Monochrome Vision Sensors

Autonics VG2 Series 0.3M, 1.2M Color/ Monochrome Vision Sensors

The VG2 series vision sensors determine the shape, size, characters, and patterns of target objects as the industrial camera.

Key features

  • Vision sensors with built-in LED lighting and lens
  • 0.3MP, 1.2MP resolution models
  • Auto-tuning function that automatically optimizes focus, brightness, and exposure
  • Global shutter method for accurate image capturing with minimal motion blur
  • Setting up to 64 separate workgroups available for flexible response
  • Support Gigabit Ethernet and RS232 (Modbus RTU method)

Specifications

Brand Autonics (Korea)
Series VG2
Inspection Work group 64 (simultaneous inspection: 32)
Source Autonics official model list (autonics.com, VG2 series page)
VG2-C03B-16E Effective focal length: 16mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-C03B-8E Effective focal length: 8mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-C03R-16E Effective focal length: 16mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-C03R-8E Effective focal length: 8mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-C03W-16E Effective focal length: 16mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-C03W-8E Effective focal length: 8mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-C12B-16E Effective focal length: 16mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-C12B-8E Effective focal length: 8mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-C12R-16E Effective focal length: 16mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-C12R-8E Effective focal length: 8mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-C12W-16E Effective focal length: 16mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-C12W-8E Effective focal length: 8mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-M03B-16E Effective focal length: 16mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-M03B-8E Effective focal length: 8mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-M03R-16E Effective focal length: 16mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-M03R-8E Effective focal length: 8mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-M03W-16E Effective focal length: 16mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-M03W-8E Effective focal length: 8mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-M12B-16E Effective focal length: 16mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-M12B-8E Effective focal length: 8mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-M12R-16E Effective focal length: 16mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-M12R-8E Effective focal length: 8mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-M12W-16E Effective focal length: 16mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-M12W-8E Effective focal length: 8mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
Vision SensorAutonics
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics VG2 Series 0.3M, 1.2M Color/ Monochrome Vision Sensors

Brand Autonics·Vision Sensor

Available part numbers (24)

VG2-C03B-16E, VG2-C03B-8E, VG2-C03R-16E, VG2-C03R-8E, VG2-C03W-16E, VG2-C03W-8E, VG2-C12B-16E, VG2-C12B-8E, VG2-C12R-16E, VG2-C12R-8E + 14 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VG2-C03B-16EEffective focal length: 16mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-C03B-8EEffective focal length: 8mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-C03R-16EEffective focal length: 16mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-C03R-8EEffective focal length: 8mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-C03W-16EEffective focal length: 16mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-C03W-8EEffective focal length: 8mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-C12B-16EEffective focal length: 16mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-C12B-8EEffective focal length: 8mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-C12R-16EEffective focal length: 16mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-C12R-8EEffective focal length: 8mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-C12W-16EEffective focal length: 16mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-C12W-8EEffective focal length: 8mm | Image snap Image element: 1/2.9 inch color CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-M03B-16EEffective focal length: 16mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-M03B-8EEffective focal length: 8mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-M03R-16EEffective focal length: 16mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-M03R-8EEffective focal length: 8mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-M03W-16EEffective focal length: 16mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-M03W-8EEffective focal length: 8mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 0.3 MP (640 × 480 pixel)
VG2-M12B-16EEffective focal length: 16mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-M12B-8EEffective focal length: 8mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-M12R-16EEffective focal length: 16mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-M12R-8EEffective focal length: 8mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-M12W-16EEffective focal length: 16mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f16 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
VG2-M12W-8EEffective focal length: 8mm | Image snap Image element: 1/2.9 inch mono CMOS | Lens type: f8 mm Board Lens | Image snap Resolution: 1.2 MP (1,280 × 960 pixel)
