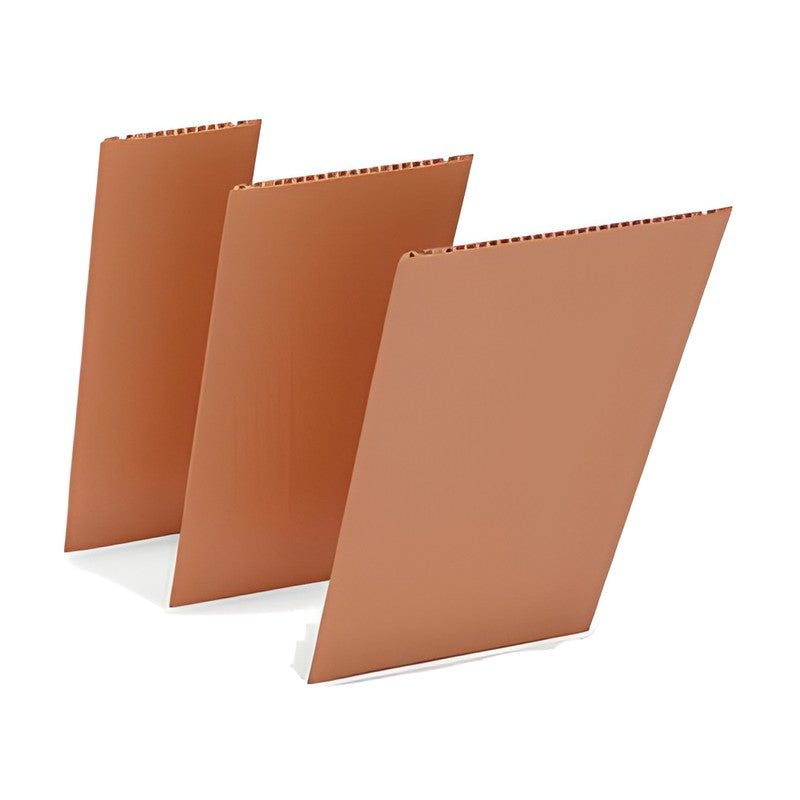

Byucksan Terasolid Terracotta Panel - Flat (20/24 mm, W200-400)

Terasolid Flat is an open-joint dry-hung terracotta facade panel with a smooth or rough surface, basic size 300 x 1200 mm.

Key features

Open-joint dry terracotta panel fired from harmless pure clay above 1200 C
Impact resistant with almost no discolouration, shrinkage, expansion or warping
Natural colours and textures harmonise with metal and concrete
Stainless-steel ST rail and clip fixing (general and vertical ST systems)
Mock-up tested for wind pressure (ASTM E 330) and seismic movement (AAMA 501.4)

Specifications

Material	Pure clay fired above 1200 C
Water absorption	4.40% (ISO 13006, 3.0-6.0%)
Breaking strength	1809 N (req. >= 950 N)
Modulus of rupture	338 N/cm (req. >= 200 N/cm)
Standards	ISO 10545 / ISO 13006, KS F 5602
Mock-up tests	ASTM E 330, AAMA 501.4 passed
Standard colours	Natural: Light Red 302, Cappuccino 303, Spain Red 308, Burgundy 305, Chocolate 309; Prime (glazed): Snow White M 502, Ice Sandy M 522, Cream Sandy M 509, Light Gray M 523, Gray M 525, Dark Gray M 528
Source	Byucksan Terasolid Terracotta Panel System Catalogue 2024.12 (Korean ed.), p. 3, 6, 10, 12

TERASOLID FLAT SMOOTH 20T 200x600		Surface: Smooth \| Thickness: 20 mm \| Width: 200 mm \| Length: 600 mm
TERASOLID FLAT SMOOTH 20T 200x900		Surface: Smooth \| Thickness: 20 mm \| Width: 200 mm \| Length: 900 mm
TERASOLID FLAT SMOOTH 20T 200x1200		Surface: Smooth \| Thickness: 20 mm \| Width: 200 mm \| Length: 1200 mm
TERASOLID FLAT SMOOTH 20T 300x600		Surface: Smooth \| Thickness: 20 mm \| Width: 300 mm \| Length: 600 mm
TERASOLID FLAT SMOOTH 20T 300x900		Surface: Smooth \| Thickness: 20 mm \| Width: 300 mm \| Length: 900 mm
TERASOLID FLAT SMOOTH 20T 300x1200		Surface: Smooth \| Thickness: 20 mm \| Width: 300 mm \| Length: 1200 mm
TERASOLID FLAT SMOOTH 20T 400x600		Surface: Smooth \| Thickness: 20 mm \| Width: 400 mm \| Length: 600 mm
TERASOLID FLAT SMOOTH 20T 400x900		Surface: Smooth \| Thickness: 20 mm \| Width: 400 mm \| Length: 900 mm
TERASOLID FLAT SMOOTH 20T 400x1200		Surface: Smooth \| Thickness: 20 mm \| Width: 400 mm \| Length: 1200 mm
TERASOLID FLAT SMOOTH 24T 200x600		Surface: Smooth \| Thickness: 24 mm \| Width: 200 mm \| Length: 600 mm
TERASOLID FLAT SMOOTH 24T 200x900		Surface: Smooth \| Thickness: 24 mm \| Width: 200 mm \| Length: 900 mm
TERASOLID FLAT SMOOTH 24T 200x1200		Surface: Smooth \| Thickness: 24 mm \| Width: 200 mm \| Length: 1200 mm
TERASOLID FLAT SMOOTH 24T 300x600		Surface: Smooth \| Thickness: 24 mm \| Width: 300 mm \| Length: 600 mm
TERASOLID FLAT SMOOTH 24T 300x900		Surface: Smooth \| Thickness: 24 mm \| Width: 300 mm \| Length: 900 mm
TERASOLID FLAT SMOOTH 24T 300x1200		Surface: Smooth \| Thickness: 24 mm \| Width: 300 mm \| Length: 1200 mm
TERASOLID FLAT SMOOTH 24T 400x600		Surface: Smooth \| Thickness: 24 mm \| Width: 400 mm \| Length: 600 mm
TERASOLID FLAT SMOOTH 24T 400x900		Surface: Smooth \| Thickness: 24 mm \| Width: 400 mm \| Length: 900 mm
TERASOLID FLAT SMOOTH 24T 400x1200		Surface: Smooth \| Thickness: 24 mm \| Width: 400 mm \| Length: 1200 mm
TERASOLID FLAT ROUGH 20T 200x600		Surface: Rough \| Thickness: 20 mm \| Width: 200 mm \| Length: 600 mm
TERASOLID FLAT ROUGH 20T 200x900		Surface: Rough \| Thickness: 20 mm \| Width: 200 mm \| Length: 900 mm
TERASOLID FLAT ROUGH 20T 200x1200		Surface: Rough \| Thickness: 20 mm \| Width: 200 mm \| Length: 1200 mm
TERASOLID FLAT ROUGH 20T 300x600		Surface: Rough \| Thickness: 20 mm \| Width: 300 mm \| Length: 600 mm
TERASOLID FLAT ROUGH 20T 300x900		Surface: Rough \| Thickness: 20 mm \| Width: 300 mm \| Length: 900 mm
TERASOLID FLAT ROUGH 20T 300x1200		Surface: Rough \| Thickness: 20 mm \| Width: 300 mm \| Length: 1200 mm
TERASOLID FLAT ROUGH 20T 400x600		Surface: Rough \| Thickness: 20 mm \| Width: 400 mm \| Length: 600 mm
TERASOLID FLAT ROUGH 20T 400x900		Surface: Rough \| Thickness: 20 mm \| Width: 400 mm \| Length: 900 mm
TERASOLID FLAT ROUGH 20T 400x1200		Surface: Rough \| Thickness: 20 mm \| Width: 400 mm \| Length: 1200 mm
TERASOLID FLAT ROUGH 24T 200x600		Surface: Rough \| Thickness: 24 mm \| Width: 200 mm \| Length: 600 mm
TERASOLID FLAT ROUGH 24T 200x900		Surface: Rough \| Thickness: 24 mm \| Width: 200 mm \| Length: 900 mm
TERASOLID FLAT ROUGH 24T 200x1200		Surface: Rough \| Thickness: 24 mm \| Width: 200 mm \| Length: 1200 mm
TERASOLID FLAT ROUGH 24T 300x600		Surface: Rough \| Thickness: 24 mm \| Width: 300 mm \| Length: 600 mm
TERASOLID FLAT ROUGH 24T 300x900		Surface: Rough \| Thickness: 24 mm \| Width: 300 mm \| Length: 900 mm
TERASOLID FLAT ROUGH 24T 300x1200		Surface: Rough \| Thickness: 24 mm \| Width: 300 mm \| Length: 1200 mm
TERASOLID FLAT ROUGH 24T 400x600		Surface: Rough \| Thickness: 24 mm \| Width: 400 mm \| Length: 600 mm
TERASOLID FLAT ROUGH 24T 400x900		Surface: Rough \| Thickness: 24 mm \| Width: 400 mm \| Length: 900 mm
TERASOLID FLAT ROUGH 24T 400x1200		Surface: Rough \| Thickness: 24 mm \| Width: 400 mm \| Length: 1200 mm
