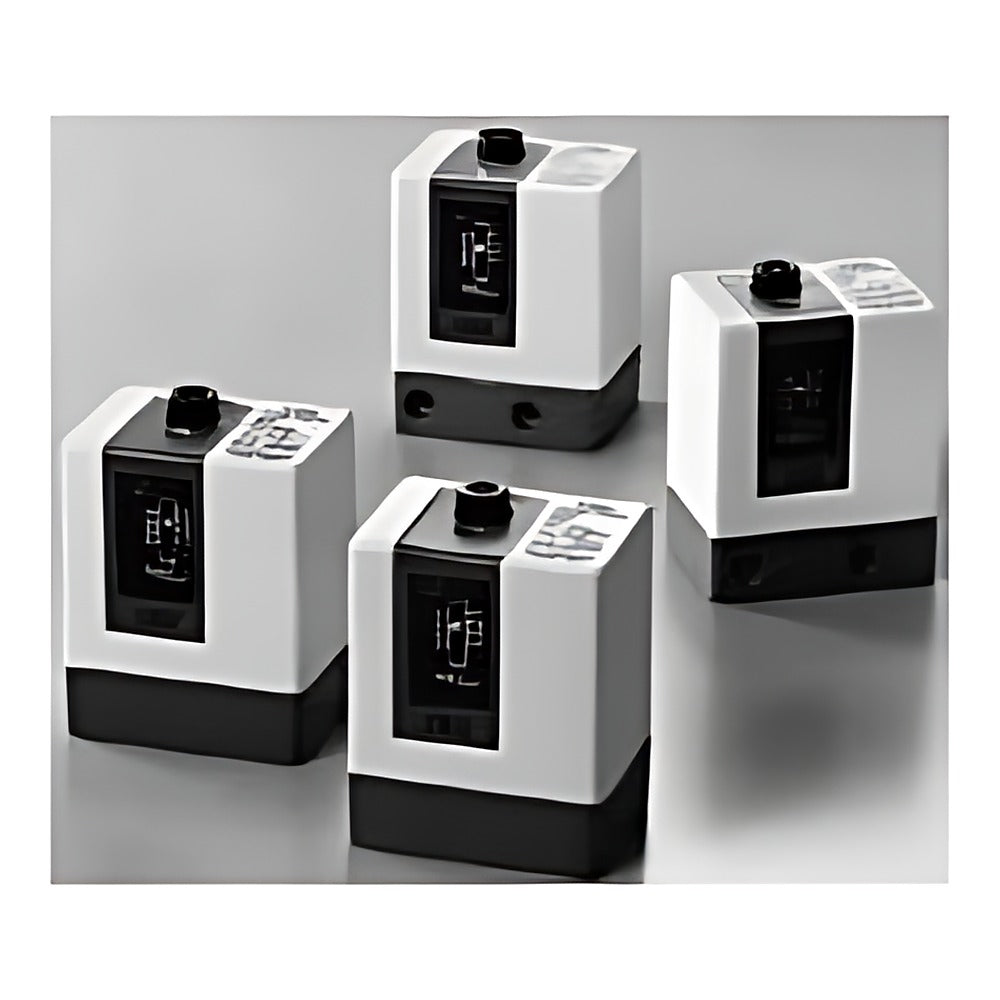

CKD APE Mechanical Pressure Switch (0.1 to 0.8 MPa, Rc1/4)

CKD APE series mechanical pressure switch with microswitch output, repeatability within +-0.02 MPa and setting range 0.1 to 0.8 MPa.

Key features

Setting pressure 0.1 to 0.8 MPa, repeatability within +-0.02 MPa
OMRON Z-15GD-B microswitch, 1C contact
Port Rc1/4 (NPT1/4 by adding N) with G1/2 or 10 mm conduit outlet, or O-ring mount (8F)
Optional indicator lamp AC100/200V (1N) or DC24V (3N)
APE-8F supplied with O-ring (JIS B2401 P10) and two M5x55 hex socket bolts

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Setting pressure	0.1 to 0.8 MPa
Fluid temperature	5 to 60 C
Contact	1C (OMRON Z-15GD-B)
Mass	0.57 kg
Source	CKD Korea catalog CB-024SK-9, p. 242-245

APE-8T		Port and wiring: Rc1/4, conduit G1/2 \| Lamp: Without lamp
APE-8T-1N		Port and wiring: Rc1/4, conduit G1/2 \| Lamp: Lamp AC100/200V
APE-8T-3N		Port and wiring: Rc1/4, conduit G1/2 \| Lamp: Lamp DC24V
APE-8N		Port and wiring: Rc1/4, conduit 10 mm \| Lamp: Without lamp
APE-8N-1N		Port and wiring: Rc1/4, conduit 10 mm \| Lamp: Lamp AC100/200V
APE-8N-3N		Port and wiring: Rc1/4, conduit 10 mm \| Lamp: Lamp DC24V
APE-8F		Port and wiring: O-ring, conduit 10 mm \| Lamp: Without lamp
APE-8F-1N		Port and wiring: O-ring, conduit 10 mm \| Lamp: Lamp AC100/200V
APE-8F-3N		Port and wiring: O-ring, conduit 10 mm \| Lamp: Lamp DC24V
APE-8NT		Port and wiring: NPT1/4, conduit G1/2 \| Lamp: Without lamp
APE-8NT-1N		Port and wiring: NPT1/4, conduit G1/2 \| Lamp: Lamp AC100/200V
APE-8NT-3N		Port and wiring: NPT1/4, conduit G1/2 \| Lamp: Lamp DC24V
APE-8NN		Port and wiring: NPT1/4, conduit 10 mm \| Lamp: Without lamp
APE-8NN-1N		Port and wiring: NPT1/4, conduit 10 mm \| Lamp: Lamp AC100/200V
APE-8NN-3N		Port and wiring: NPT1/4, conduit 10 mm \| Lamp: Lamp DC24V
