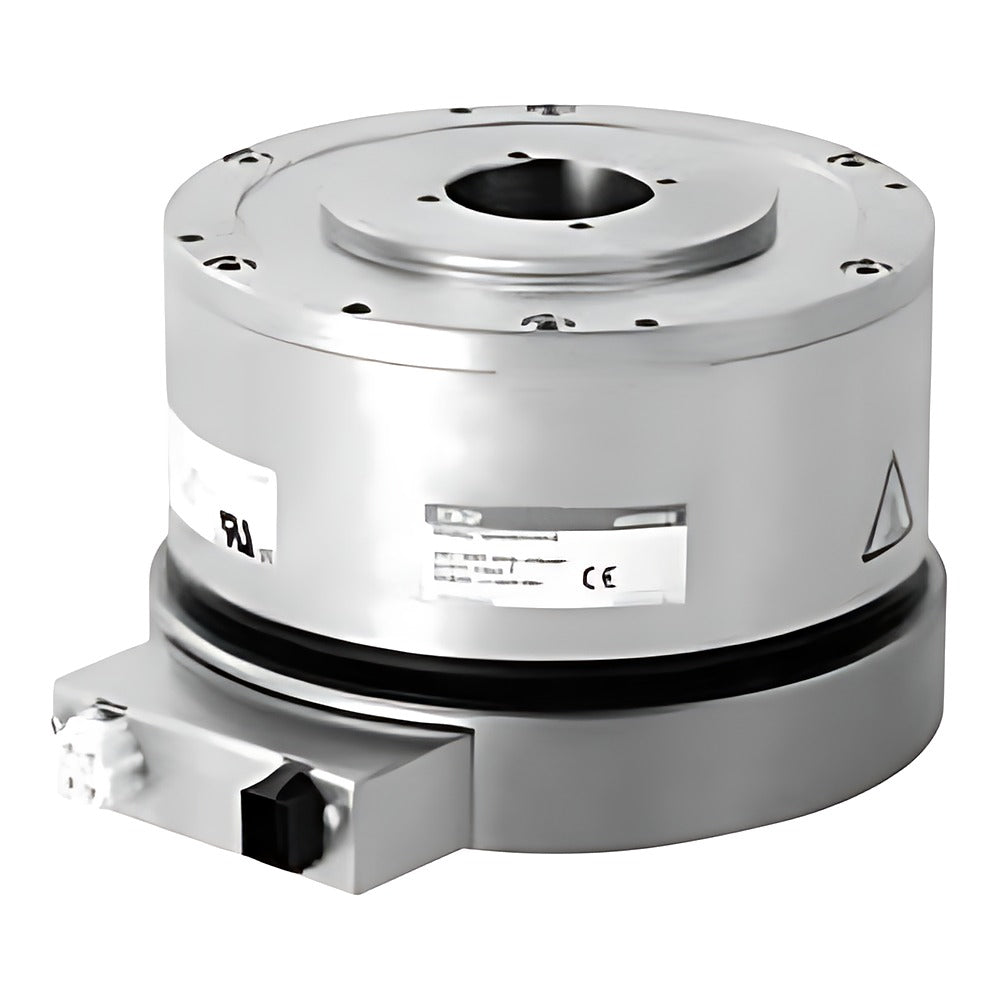

CKD AX2000T ABSODEX Direct Drive Actuator (High Speed, 6-18 N·m)

CKD AX2000T ABSODEX Direct Drive Actuator (High Speed, 6-18 N·m)

CKD ABSODEX AX2000T is a compact high-speed direct drive indexing actuator (300 rpm, 30 mm hollow bore) supplied as a set with TS type driver and cables.

Key features

  • Three sizes: 6, 12 and 18 N·m max output torque
  • High speed up to 300 rpm; small outside diameter with large 30 mm hollow bore
  • Index accuracy ±30 s, repeatability ±5 s
  • TS type driver, AC200-230V standard or AC100-115V (J1)
  • Optional mounting base (BS); seven fieldbus / I/O interfaces
  • Set codes listed with the standard 4 m cable (DM04); DM00 (no cable), DM02, DM06, DM08, DM10, DM15, DM20 also available

Specifications

Max rotation speed 300 rpm (continuous rotation 80 rpm max.)
Allowable axial load 1000 N
Allowable moment load 40 N·m
Index accuracy / repeatability ±30 s / ±5 s
Resolution 540,672 P/rev
Mass 4.7 kg (AX2006T) to 7.5 kg (AX2018T)
Operating temperature 0 to 45°C (40°C for UL)
Protection IP20
Cables AX-CBLM6 motor / AX-CBLR6 resolver cable
Source CKD Korea catalog CB-054K-4, p. 30-33
AX2006TS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX2006TS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX2006TS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC200-230V | Interface: CC-Link
AX2006TS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC200-230V | Interface: PROFIBUS-DP
AX2006TS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC200-230V | Interface: DeviceNet
AX2006TS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC200-230V | Interface: EtherCAT
AX2006TS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC200-230V | Interface: EtherNet/IP
AX2006TS-DM04-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX2006TS-DM04-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX2006TS-DM04-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: CC-Link
AX2006TS-DM04-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX2006TS-DM04-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: DeviceNet
AX2006TS-DM04-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: EtherCAT
AX2006TS-DM04-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX2006TS-BS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX2006TS-BS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX2006TS-BS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: CC-Link
AX2006TS-BS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: PROFIBUS-DP
AX2006TS-BS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: DeviceNet
AX2006TS-BS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: EtherCAT
AX2006TS-BS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: EtherNet/IP
AX2006TS-BS-DM04-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX2006TS-BS-DM04-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX2006TS-BS-DM04-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: CC-Link
AX2006TS-BS-DM04-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX2006TS-BS-DM04-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: DeviceNet
AX2006TS-BS-DM04-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: EtherCAT
AX2006TS-BS-DM04-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 6 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX2012TS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX2012TS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX2012TS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC200-230V | Interface: CC-Link
AX2012TS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC200-230V | Interface: PROFIBUS-DP
AX2012TS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC200-230V | Interface: DeviceNet
AX2012TS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC200-230V | Interface: EtherCAT
AX2012TS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC200-230V | Interface: EtherNet/IP
AX2012TS-DM04-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX2012TS-DM04-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX2012TS-DM04-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: CC-Link
AX2012TS-DM04-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX2012TS-DM04-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: DeviceNet
AX2012TS-DM04-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: EtherCAT
AX2012TS-DM04-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX2012TS-BS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX2012TS-BS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX2012TS-BS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: CC-Link
AX2012TS-BS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: PROFIBUS-DP
AX2012TS-BS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: DeviceNet
AX2012TS-BS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: EtherCAT
AX2012TS-BS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: EtherNet/IP
AX2012TS-BS-DM04-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX2012TS-BS-DM04-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX2012TS-BS-DM04-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: CC-Link
AX2012TS-BS-DM04-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX2012TS-BS-DM04-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: DeviceNet
AX2012TS-BS-DM04-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: EtherCAT
AX2012TS-BS-DM04-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 12 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX2018TS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX2018TS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX2018TS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC200-230V | Interface: CC-Link
AX2018TS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC200-230V | Interface: PROFIBUS-DP
AX2018TS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC200-230V | Interface: DeviceNet
AX2018TS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC200-230V | Interface: EtherCAT
AX2018TS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC200-230V | Interface: EtherNet/IP
AX2018TS-DM04-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX2018TS-DM04-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX2018TS-DM04-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: CC-Link
AX2018TS-DM04-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX2018TS-DM04-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: DeviceNet
AX2018TS-DM04-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: EtherCAT
AX2018TS-DM04-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: Without | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX2018TS-BS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX2018TS-BS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX2018TS-BS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: CC-Link
AX2018TS-BS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: PROFIBUS-DP
AX2018TS-BS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: DeviceNet
AX2018TS-BS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: EtherCAT
AX2018TS-BS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC200-230V | Interface: EtherNet/IP
AX2018TS-BS-DM04-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX2018TS-BS-DM04-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX2018TS-BS-DM04-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: CC-Link
AX2018TS-BS-DM04-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX2018TS-BS-DM04-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: DeviceNet
AX2018TS-BS-DM04-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: EtherCAT
AX2018TS-BS-DM04-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 18 N·m | Mounting base: With (BS) | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX2006T-P3-S Item: Actuator only | Max torque: 6 N·m | Mounting base: Without | Supply: N/A | Interface: N/A
AX2006T-BS-P3-S Item: Actuator only | Max torque: 6 N·m | Mounting base: With (BS) | Supply: N/A | Interface: N/A
AX2012T-P3-S Item: Actuator only | Max torque: 12 N·m | Mounting base: Without | Supply: N/A | Interface: N/A
AX2012T-BS-P3-S Item: Actuator only | Max torque: 12 N·m | Mounting base: With (BS) | Supply: N/A | Interface: N/A
AX2018T-P3-S Item: Actuator only | Max torque: 18 N·m | Mounting base: Without | Supply: N/A | Interface: N/A
AX2018T-BS-P3-S Item: Actuator only | Max torque: 18 N·m | Mounting base: With (BS) | Supply: N/A | Interface: N/A
Electric ActuatorsCKD
90 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AX2000T ABSODEX Direct Drive Actuator (High Speed, 6-18 N·m)

Brand CKD·Electric Actuators

Available part numbers (90)

AX2006TS-DM04-P3-S-U0, AX2006TS-DM04-P3-S-U1, AX2006TS-DM04-P3-S-U2, AX2006TS-DM04-P3-S-U3, AX2006TS-DM04-P3-S-U4, AX2006TS-DM04-P3-S-U5, AX2006TS-DM04-P3-S-U6, AX2006TS-DM04-J1-P3-S-U0, AX2006TS-DM04-J1-P3-S-U1, AX2006TS-DM04-J1-P3-S-U2 + 80 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
