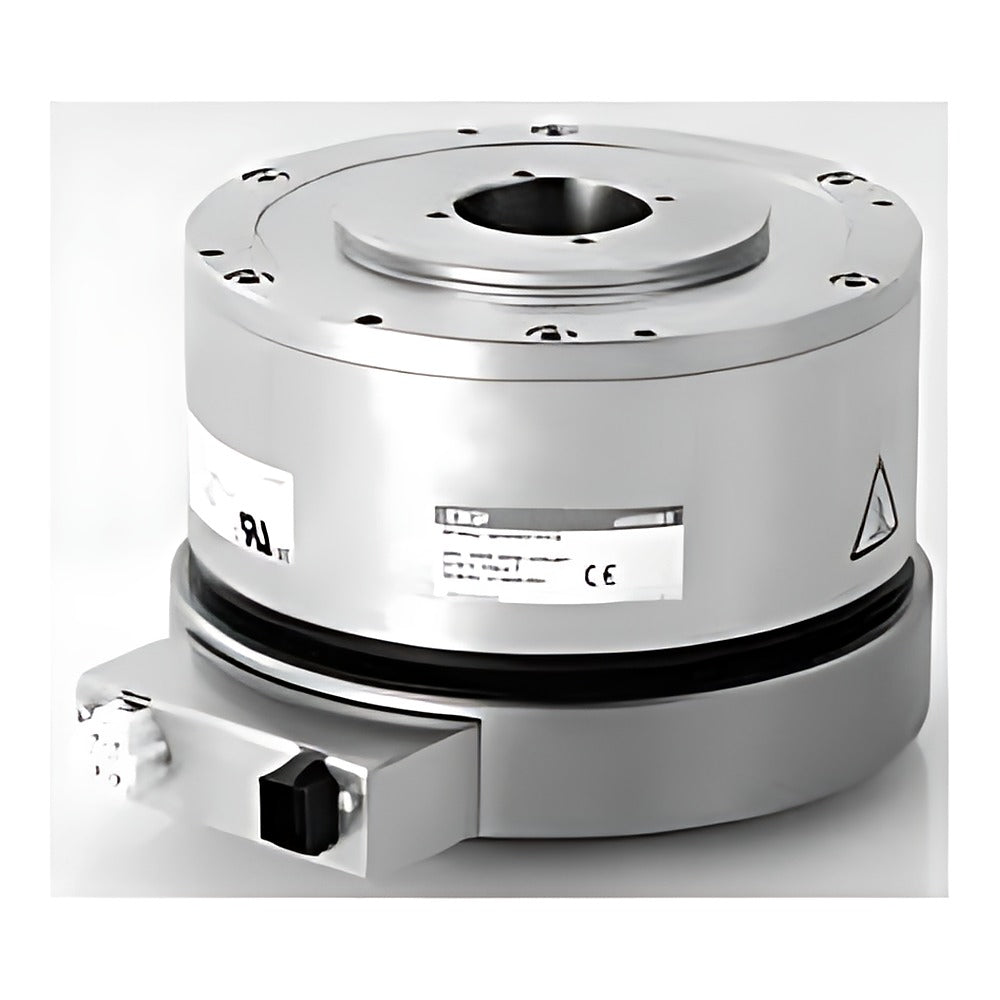

CKD AX4000T ABSODEX Direct Drive Actuator (Large Inertia, 9-1000 N·m)

CKD AX4000T ABSODEX Direct Drive Actuator (Large Inertia, 9-1000 N·m)

CKD ABSODEX AX4000T is a direct drive indexing actuator for large load inertia with a large hollow bore, from 9 to 1000 N·m, supplied as a set with TS or TH type driver and cables.

Key features

  • Eight sizes: 9, 22, 45, 75 N·m (TS driver) and 150, 300, 500, 1000 N·m (TH driver)
  • Allowable load inertia up to 600 kg·m² (AX410WT); index accuracy ±30 s, repeatability ±5 s
  • Optional non-backlash electromagnetic brake (EB) on 22-75 and 150/300 N·m models
  • Optional mounting base (BS) on all sizes except AX4009T
  • AC100-115V (J1) available for 9-45 N·m; seven fieldbus / I/O interfaces
  • Set codes listed with the standard 4 m cable (DM04); DM00 (no cable), DM02, DM06, DM08, DM10, DM15, DM20 also available

Specifications

Max rotation speed 240 rpm (9-45) to 30 rpm (1000 N·m)
Allowable axial load 800 N (AX4009T) to 20000 N (45 N·m and up)
Index accuracy / repeatability ±30 s / ±5 s
Resolution 540,672 P/rev
Brake Non-backlash dry de-energized type, DC24V
Mass 5.5 kg (AX4009T) to 198 kg (AX410WT)
Operating temperature 0 to 45°C (40°C for UL)
Protection IP20
Cables AX-CBLM6 motor / AX-CBLR6 resolver cable
Source CKD Korea catalog CB-054K-4, p. 34-49
AX4009TS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4009TS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4009TS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4009TS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4009TS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4009TS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4009TS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4009TS-DM04-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4009TS-DM04-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4009TS-DM04-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: CC-Link
AX4009TS-DM04-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4009TS-DM04-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4009TS-DM04-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4009TS-DM04-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4022TS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4022TS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4022TS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4022TS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4022TS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4022TS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4022TS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4022TS-DM04-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4022TS-DM04-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4022TS-DM04-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: CC-Link
AX4022TS-DM04-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4022TS-DM04-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4022TS-DM04-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4022TS-DM04-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4022TS-DM04-EB-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4022TS-DM04-EB-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4022TS-DM04-EB-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: CC-Link
AX4022TS-DM04-EB-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4022TS-DM04-EB-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: DeviceNet
AX4022TS-DM04-EB-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: EtherCAT
AX4022TS-DM04-EB-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4022TS-DM04-EB-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4022TS-DM04-EB-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4022TS-DM04-EB-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: CC-Link
AX4022TS-DM04-EB-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4022TS-DM04-EB-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4022TS-DM04-EB-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4022TS-DM04-EB-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4022TS-BS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4022TS-BS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4022TS-BS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX4022TS-BS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4022TS-BS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX4022TS-BS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX4022TS-BS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX4022TS-BS-DM04-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4022TS-BS-DM04-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4022TS-BS-DM04-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: CC-Link
AX4022TS-BS-DM04-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4022TS-BS-DM04-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4022TS-BS-DM04-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4022TS-BS-DM04-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4022TS-BS-DM04-EB-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4022TS-BS-DM04-EB-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4022TS-BS-DM04-EB-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: CC-Link
AX4022TS-BS-DM04-EB-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4022TS-BS-DM04-EB-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: DeviceNet
AX4022TS-BS-DM04-EB-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: EtherCAT
AX4022TS-BS-DM04-EB-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4022TS-BS-DM04-EB-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4022TS-BS-DM04-EB-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4022TS-BS-DM04-EB-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: CC-Link
AX4022TS-BS-DM04-EB-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4022TS-BS-DM04-EB-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4022TS-BS-DM04-EB-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4022TS-BS-DM04-EB-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4045TS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4045TS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4045TS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4045TS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4045TS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4045TS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4045TS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4045TS-DM04-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4045TS-DM04-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4045TS-DM04-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: CC-Link
AX4045TS-DM04-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4045TS-DM04-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4045TS-DM04-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4045TS-DM04-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4045TS-DM04-EB-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4045TS-DM04-EB-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4045TS-DM04-EB-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: CC-Link
AX4045TS-DM04-EB-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4045TS-DM04-EB-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: DeviceNet
AX4045TS-DM04-EB-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: EtherCAT
AX4045TS-DM04-EB-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4045TS-DM04-EB-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4045TS-DM04-EB-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4045TS-DM04-EB-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: CC-Link
AX4045TS-DM04-EB-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4045TS-DM04-EB-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4045TS-DM04-EB-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4045TS-DM04-EB-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4045TS-BS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4045TS-BS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4045TS-BS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX4045TS-BS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4045TS-BS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX4045TS-BS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX4045TS-BS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX4045TS-BS-DM04-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4045TS-BS-DM04-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4045TS-BS-DM04-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: CC-Link
AX4045TS-BS-DM04-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4045TS-BS-DM04-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4045TS-BS-DM04-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4045TS-BS-DM04-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4045TS-BS-DM04-EB-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4045TS-BS-DM04-EB-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4045TS-BS-DM04-EB-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: CC-Link
AX4045TS-BS-DM04-EB-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4045TS-BS-DM04-EB-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: DeviceNet
AX4045TS-BS-DM04-EB-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: EtherCAT
AX4045TS-BS-DM04-EB-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4045TS-BS-DM04-EB-J1-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4045TS-BS-DM04-EB-J1-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4045TS-BS-DM04-EB-J1-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: CC-Link
AX4045TS-BS-DM04-EB-J1-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4045TS-BS-DM04-EB-J1-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4045TS-BS-DM04-EB-J1-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4045TS-BS-DM04-EB-J1-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4075TS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4075TS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4075TS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4075TS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4075TS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4075TS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4075TS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4075TS-DM04-EB-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4075TS-DM04-EB-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4075TS-DM04-EB-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: CC-Link
AX4075TS-DM04-EB-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4075TS-DM04-EB-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: DeviceNet
AX4075TS-DM04-EB-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: EtherCAT
AX4075TS-DM04-EB-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4075TS-BS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4075TS-BS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4075TS-BS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX4075TS-BS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4075TS-BS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX4075TS-BS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX4075TS-BS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX4075TS-BS-DM04-EB-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4075TS-BS-DM04-EB-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4075TS-BS-DM04-EB-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: CC-Link
AX4075TS-BS-DM04-EB-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4075TS-BS-DM04-EB-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: DeviceNet
AX4075TS-BS-DM04-EB-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: EtherCAT
AX4075TS-BS-DM04-EB-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4150TH-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4150TH-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4150TH-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4150TH-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4150TH-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4150TH-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4150TH-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4150TH-DM04-EB-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4150TH-DM04-EB-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4150TH-DM04-EB-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: CC-Link
AX4150TH-DM04-EB-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4150TH-DM04-EB-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: DeviceNet
AX4150TH-DM04-EB-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: EtherCAT
AX4150TH-DM04-EB-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4150TH-BS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4150TH-BS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4150TH-BS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX4150TH-BS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4150TH-BS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX4150TH-BS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX4150TH-BS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX4150TH-BS-DM04-EB-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4150TH-BS-DM04-EB-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4150TH-BS-DM04-EB-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: CC-Link
AX4150TH-BS-DM04-EB-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4150TH-BS-DM04-EB-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: DeviceNet
AX4150TH-BS-DM04-EB-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: EtherCAT
AX4150TH-BS-DM04-EB-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4300TH-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4300TH-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4300TH-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4300TH-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4300TH-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4300TH-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4300TH-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4300TH-DM04-EB-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4300TH-DM04-EB-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4300TH-DM04-EB-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: CC-Link
AX4300TH-DM04-EB-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4300TH-DM04-EB-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: DeviceNet
AX4300TH-DM04-EB-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: EtherCAT
AX4300TH-DM04-EB-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4300TH-BS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4300TH-BS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4300TH-BS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX4300TH-BS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4300TH-BS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX4300TH-BS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX4300TH-BS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX4300TH-BS-DM04-EB-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4300TH-BS-DM04-EB-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4300TH-BS-DM04-EB-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: CC-Link
AX4300TH-BS-DM04-EB-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4300TH-BS-DM04-EB-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: DeviceNet
AX4300TH-BS-DM04-EB-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: EtherCAT
AX4300TH-BS-DM04-EB-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4500TH-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4500TH-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4500TH-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4500TH-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4500TH-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4500TH-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4500TH-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4500TH-BS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4500TH-BS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4500TH-BS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX4500TH-BS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4500TH-BS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX4500TH-BS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX4500TH-BS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX410WTH-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX410WTH-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX410WTH-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX410WTH-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX410WTH-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX410WTH-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX410WTH-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX410WTH-BS-DM04-P3-S-U0 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX410WTH-BS-DM04-P3-S-U1 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX410WTH-BS-DM04-P3-S-U2 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX410WTH-BS-DM04-P3-S-U3 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX410WTH-BS-DM04-P3-S-U4 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX410WTH-BS-DM04-P3-S-U5 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX410WTH-BS-DM04-P3-S-U6 Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX4009T-P3-S Item: Actuator only | Max torque: 9 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4022T-P3-S Item: Actuator only | Max torque: 22 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4022T-EB-P3-S Item: Actuator only | Max torque: 22 N·m | Driver: None | Options: Brake | Supply: N/A | Interface: N/A
AX4022T-BS-P3-S Item: Actuator only | Max torque: 22 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A
AX4022T-BS-EB-P3-S Item: Actuator only | Max torque: 22 N·m | Driver: None | Options: Base + brake | Supply: N/A | Interface: N/A
AX4045T-P3-S Item: Actuator only | Max torque: 45 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4045T-EB-P3-S Item: Actuator only | Max torque: 45 N·m | Driver: None | Options: Brake | Supply: N/A | Interface: N/A
AX4045T-BS-P3-S Item: Actuator only | Max torque: 45 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A
AX4045T-BS-EB-P3-S Item: Actuator only | Max torque: 45 N·m | Driver: None | Options: Base + brake | Supply: N/A | Interface: N/A
AX4075T-P3-S Item: Actuator only | Max torque: 75 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4075T-EB-P3-S Item: Actuator only | Max torque: 75 N·m | Driver: None | Options: Brake | Supply: N/A | Interface: N/A
AX4075T-BS-P3-S Item: Actuator only | Max torque: 75 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A
AX4075T-BS-EB-P3-S Item: Actuator only | Max torque: 75 N·m | Driver: None | Options: Base + brake | Supply: N/A | Interface: N/A
AX4150T-P3-S Item: Actuator only | Max torque: 150 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4150T-EB-P3-S Item: Actuator only | Max torque: 150 N·m | Driver: None | Options: Brake | Supply: N/A | Interface: N/A
AX4150T-BS-P3-S Item: Actuator only | Max torque: 150 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A
AX4150T-BS-EB-P3-S Item: Actuator only | Max torque: 150 N·m | Driver: None | Options: Base + brake | Supply: N/A | Interface: N/A
AX4300T-P3-S Item: Actuator only | Max torque: 300 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4300T-EB-P3-S Item: Actuator only | Max torque: 300 N·m | Driver: None | Options: Brake | Supply: N/A | Interface: N/A
AX4300T-BS-P3-S Item: Actuator only | Max torque: 300 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A
AX4300T-BS-EB-P3-S Item: Actuator only | Max torque: 300 N·m | Driver: None | Options: Base + brake | Supply: N/A | Interface: N/A
AX4500T-P3-S Item: Actuator only | Max torque: 500 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4500T-BS-P3-S Item: Actuator only | Max torque: 500 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A
AX410WT-P3-S Item: Actuator only | Max torque: 1000 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX410WT-BS-P3-S Item: Actuator only | Max torque: 1000 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A
Electric ActuatorsCKD
263 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AX4000T ABSODEX Direct Drive Actuator (Large Inertia, 9-1000 N·m)

Brand CKD·Electric Actuators

Available part numbers (263)

AX4009TS-DM04-P3-S-U0, AX4009TS-DM04-P3-S-U1, AX4009TS-DM04-P3-S-U2, AX4009TS-DM04-P3-S-U3, AX4009TS-DM04-P3-S-U4, AX4009TS-DM04-P3-S-U5, AX4009TS-DM04-P3-S-U6, AX4009TS-DM04-J1-P3-S-U0, AX4009TS-DM04-J1-P3-S-U1, AX4009TS-DM04-J1-P3-S-U2 + 253 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AX4009TS-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4009TS-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4009TS-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4009TS-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4009TS-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4009TS-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4009TS-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4009TS-DM04-J1-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4009TS-DM04-J1-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4009TS-DM04-J1-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: CC-Link
AX4009TS-DM04-J1-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4009TS-DM04-J1-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4009TS-DM04-J1-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4009TS-DM04-J1-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 9 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4022TS-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4022TS-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4022TS-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4022TS-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4022TS-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4022TS-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4022TS-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4022TS-DM04-J1-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4022TS-DM04-J1-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4022TS-DM04-J1-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: CC-Link
AX4022TS-DM04-J1-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4022TS-DM04-J1-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4022TS-DM04-J1-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4022TS-DM04-J1-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4022TS-DM04-EB-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4022TS-DM04-EB-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4022TS-DM04-EB-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: CC-Link
AX4022TS-DM04-EB-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4022TS-DM04-EB-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: DeviceNet
AX4022TS-DM04-EB-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: EtherCAT
AX4022TS-DM04-EB-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4022TS-DM04-EB-J1-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4022TS-DM04-EB-J1-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4022TS-DM04-EB-J1-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: CC-Link
AX4022TS-DM04-EB-J1-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4022TS-DM04-EB-J1-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4022TS-DM04-EB-J1-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4022TS-DM04-EB-J1-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4022TS-BS-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4022TS-BS-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4022TS-BS-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX4022TS-BS-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4022TS-BS-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX4022TS-BS-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX4022TS-BS-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX4022TS-BS-DM04-J1-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4022TS-BS-DM04-J1-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4022TS-BS-DM04-J1-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: CC-Link
AX4022TS-BS-DM04-J1-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4022TS-BS-DM04-J1-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4022TS-BS-DM04-J1-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4022TS-BS-DM04-J1-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4022TS-BS-DM04-EB-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4022TS-BS-DM04-EB-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4022TS-BS-DM04-EB-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: CC-Link
AX4022TS-BS-DM04-EB-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4022TS-BS-DM04-EB-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: DeviceNet
AX4022TS-BS-DM04-EB-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: EtherCAT
AX4022TS-BS-DM04-EB-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4022TS-BS-DM04-EB-J1-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4022TS-BS-DM04-EB-J1-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4022TS-BS-DM04-EB-J1-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: CC-Link
AX4022TS-BS-DM04-EB-J1-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4022TS-BS-DM04-EB-J1-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4022TS-BS-DM04-EB-J1-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4022TS-BS-DM04-EB-J1-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 22 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4045TS-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4045TS-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4045TS-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4045TS-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4045TS-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4045TS-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4045TS-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4045TS-DM04-J1-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4045TS-DM04-J1-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4045TS-DM04-J1-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: CC-Link
AX4045TS-DM04-J1-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4045TS-DM04-J1-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4045TS-DM04-J1-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4045TS-DM04-J1-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: None | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4045TS-DM04-EB-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4045TS-DM04-EB-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4045TS-DM04-EB-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: CC-Link
AX4045TS-DM04-EB-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4045TS-DM04-EB-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: DeviceNet
AX4045TS-DM04-EB-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: EtherCAT
AX4045TS-DM04-EB-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4045TS-DM04-EB-J1-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4045TS-DM04-EB-J1-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4045TS-DM04-EB-J1-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: CC-Link
AX4045TS-DM04-EB-J1-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4045TS-DM04-EB-J1-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4045TS-DM04-EB-J1-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4045TS-DM04-EB-J1-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Brake | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4045TS-BS-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4045TS-BS-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4045TS-BS-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX4045TS-BS-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4045TS-BS-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX4045TS-BS-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX4045TS-BS-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX4045TS-BS-DM04-J1-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4045TS-BS-DM04-J1-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4045TS-BS-DM04-J1-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: CC-Link
AX4045TS-BS-DM04-J1-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4045TS-BS-DM04-J1-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4045TS-BS-DM04-J1-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4045TS-BS-DM04-J1-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Mounting base | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4045TS-BS-DM04-EB-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4045TS-BS-DM04-EB-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4045TS-BS-DM04-EB-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: CC-Link
AX4045TS-BS-DM04-EB-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4045TS-BS-DM04-EB-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: DeviceNet
AX4045TS-BS-DM04-EB-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: EtherCAT
AX4045TS-BS-DM04-EB-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4045TS-BS-DM04-EB-J1-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (NPN)
AX4045TS-BS-DM04-EB-J1-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: Parallel I/O (PNP)
AX4045TS-BS-DM04-EB-J1-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: CC-Link
AX4045TS-BS-DM04-EB-J1-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: PROFIBUS-DP
AX4045TS-BS-DM04-EB-J1-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: DeviceNet
AX4045TS-BS-DM04-EB-J1-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: EtherCAT
AX4045TS-BS-DM04-EB-J1-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 45 N·m | Driver: TS type | Options: Base + brake | Supply: AC100-115V (J1) | Interface: EtherNet/IP
AX4075TS-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4075TS-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4075TS-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4075TS-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4075TS-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4075TS-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4075TS-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4075TS-DM04-EB-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4075TS-DM04-EB-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4075TS-DM04-EB-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: CC-Link
AX4075TS-DM04-EB-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4075TS-DM04-EB-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: DeviceNet
AX4075TS-DM04-EB-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: EtherCAT
AX4075TS-DM04-EB-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4075TS-BS-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4075TS-BS-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4075TS-BS-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX4075TS-BS-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4075TS-BS-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX4075TS-BS-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX4075TS-BS-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX4075TS-BS-DM04-EB-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4075TS-BS-DM04-EB-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4075TS-BS-DM04-EB-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: CC-Link
AX4075TS-BS-DM04-EB-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4075TS-BS-DM04-EB-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: DeviceNet
AX4075TS-BS-DM04-EB-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: EtherCAT
AX4075TS-BS-DM04-EB-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 75 N·m | Driver: TS type | Options: Base + brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4150TH-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4150TH-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4150TH-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4150TH-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4150TH-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4150TH-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4150TH-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4150TH-DM04-EB-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4150TH-DM04-EB-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4150TH-DM04-EB-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: CC-Link
AX4150TH-DM04-EB-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4150TH-DM04-EB-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: DeviceNet
AX4150TH-DM04-EB-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: EtherCAT
AX4150TH-DM04-EB-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4150TH-BS-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4150TH-BS-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4150TH-BS-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX4150TH-BS-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4150TH-BS-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX4150TH-BS-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX4150TH-BS-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX4150TH-BS-DM04-EB-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4150TH-BS-DM04-EB-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4150TH-BS-DM04-EB-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: CC-Link
AX4150TH-BS-DM04-EB-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4150TH-BS-DM04-EB-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: DeviceNet
AX4150TH-BS-DM04-EB-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: EtherCAT
AX4150TH-BS-DM04-EB-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 150 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4300TH-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4300TH-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4300TH-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4300TH-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4300TH-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4300TH-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4300TH-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4300TH-DM04-EB-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4300TH-DM04-EB-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4300TH-DM04-EB-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: CC-Link
AX4300TH-DM04-EB-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4300TH-DM04-EB-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: DeviceNet
AX4300TH-DM04-EB-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: EtherCAT
AX4300TH-DM04-EB-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4300TH-BS-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4300TH-BS-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4300TH-BS-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX4300TH-BS-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4300TH-BS-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX4300TH-BS-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX4300TH-BS-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX4300TH-BS-DM04-EB-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4300TH-BS-DM04-EB-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4300TH-BS-DM04-EB-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: CC-Link
AX4300TH-BS-DM04-EB-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4300TH-BS-DM04-EB-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: DeviceNet
AX4300TH-BS-DM04-EB-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: EtherCAT
AX4300TH-BS-DM04-EB-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 300 N·m | Driver: TH type | Options: Base + brake | Supply: AC200-230V | Interface: EtherNet/IP
AX4500TH-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4500TH-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4500TH-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX4500TH-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4500TH-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX4500TH-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX4500TH-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX4500TH-BS-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX4500TH-BS-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX4500TH-BS-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX4500TH-BS-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX4500TH-BS-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX4500TH-BS-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX4500TH-BS-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 500 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX410WTH-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX410WTH-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX410WTH-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: CC-Link
AX410WTH-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: PROFIBUS-DP
AX410WTH-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: DeviceNet
AX410WTH-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherCAT
AX410WTH-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: None | Supply: AC200-230V | Interface: EtherNet/IP
AX410WTH-BS-DM04-P3-S-U0Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (NPN)
AX410WTH-BS-DM04-P3-S-U1Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: Parallel I/O (PNP)
AX410WTH-BS-DM04-P3-S-U2Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: CC-Link
AX410WTH-BS-DM04-P3-S-U3Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: PROFIBUS-DP
AX410WTH-BS-DM04-P3-S-U4Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: DeviceNet
AX410WTH-BS-DM04-P3-S-U5Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherCAT
AX410WTH-BS-DM04-P3-S-U6Item: Set (actuator+driver+cable) | Max torque: 1000 N·m | Driver: TH type | Options: Mounting base | Supply: AC200-230V | Interface: EtherNet/IP
AX4009T-P3-SItem: Actuator only | Max torque: 9 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4022T-P3-SItem: Actuator only | Max torque: 22 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4022T-EB-P3-SItem: Actuator only | Max torque: 22 N·m | Driver: None | Options: Brake | Supply: N/A | Interface: N/A
AX4022T-BS-P3-SItem: Actuator only | Max torque: 22 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A
AX4022T-BS-EB-P3-SItem: Actuator only | Max torque: 22 N·m | Driver: None | Options: Base + brake | Supply: N/A | Interface: N/A
AX4045T-P3-SItem: Actuator only | Max torque: 45 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4045T-EB-P3-SItem: Actuator only | Max torque: 45 N·m | Driver: None | Options: Brake | Supply: N/A | Interface: N/A
AX4045T-BS-P3-SItem: Actuator only | Max torque: 45 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A
AX4045T-BS-EB-P3-SItem: Actuator only | Max torque: 45 N·m | Driver: None | Options: Base + brake | Supply: N/A | Interface: N/A
AX4075T-P3-SItem: Actuator only | Max torque: 75 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4075T-EB-P3-SItem: Actuator only | Max torque: 75 N·m | Driver: None | Options: Brake | Supply: N/A | Interface: N/A
AX4075T-BS-P3-SItem: Actuator only | Max torque: 75 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A
AX4075T-BS-EB-P3-SItem: Actuator only | Max torque: 75 N·m | Driver: None | Options: Base + brake | Supply: N/A | Interface: N/A
AX4150T-P3-SItem: Actuator only | Max torque: 150 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4150T-EB-P3-SItem: Actuator only | Max torque: 150 N·m | Driver: None | Options: Brake | Supply: N/A | Interface: N/A
AX4150T-BS-P3-SItem: Actuator only | Max torque: 150 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A
AX4150T-BS-EB-P3-SItem: Actuator only | Max torque: 150 N·m | Driver: None | Options: Base + brake | Supply: N/A | Interface: N/A
AX4300T-P3-SItem: Actuator only | Max torque: 300 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4300T-EB-P3-SItem: Actuator only | Max torque: 300 N·m | Driver: None | Options: Brake | Supply: N/A | Interface: N/A
AX4300T-BS-P3-SItem: Actuator only | Max torque: 300 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A
AX4300T-BS-EB-P3-SItem: Actuator only | Max torque: 300 N·m | Driver: None | Options: Base + brake | Supply: N/A | Interface: N/A
AX4500T-P3-SItem: Actuator only | Max torque: 500 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX4500T-BS-P3-SItem: Actuator only | Max torque: 500 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A
AX410WT-P3-SItem: Actuator only | Max torque: 1000 N·m | Driver: None | Options: None | Supply: N/A | Interface: N/A
AX410WT-BS-P3-SItem: Actuator only | Max torque: 1000 N·m | Driver: None | Options: Mounting base | Supply: N/A | Interface: N/A

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
