CKD AX6000M ABSODEX Direct Drive Actuator (Compact, 1.2-3 N·m)

CKD AX6000M ABSODEX Direct Drive Actuator (Compact, 1.2-3 N·m)

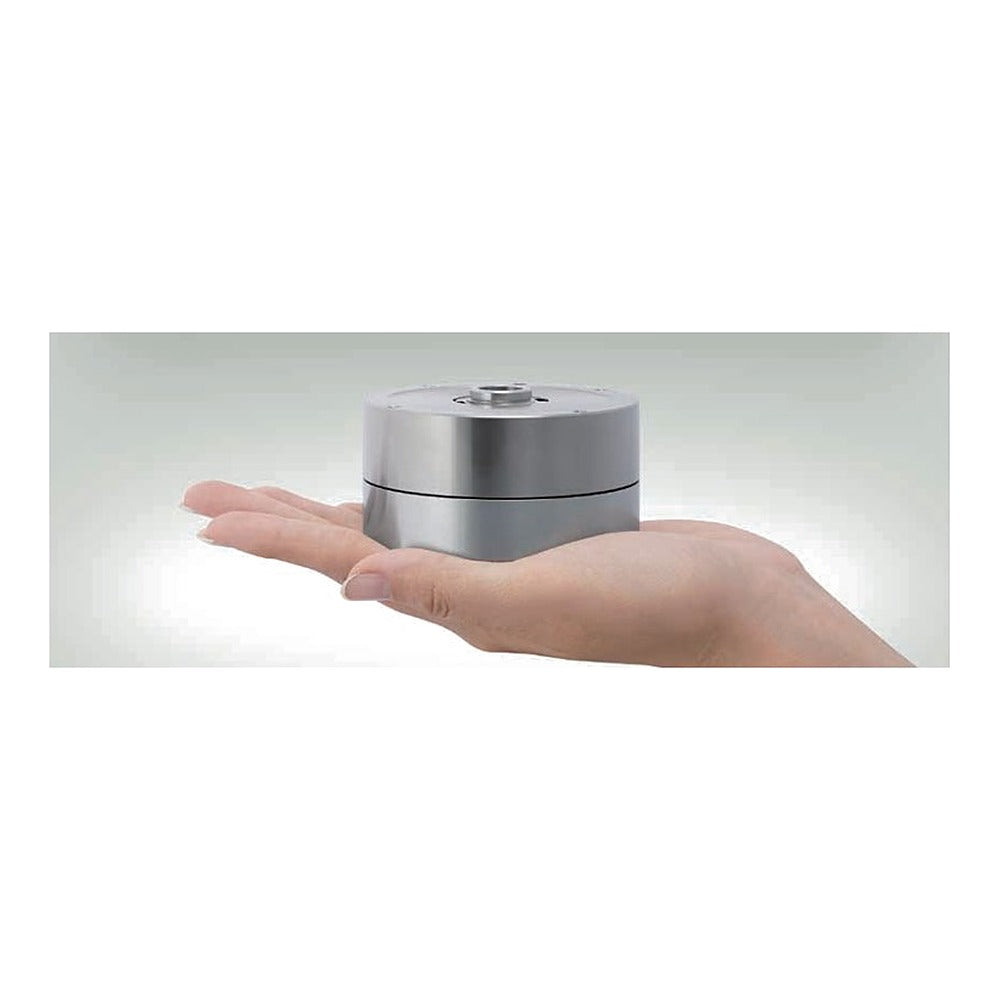

CKD ABSODEX AX6000M is the smallest direct drive indexing actuator (diameter 80 mm) driven by the DC24V MU type driver, for compact pick-and-place and indexing.

Key features

  • Diameter 80 mm, height 47 mm; AX6001M weighs only 1.2 kg
  • Max output torque 1.2 N·m (AX6001M) or 3.0 N·m (AX6003M)
  • Index accuracy ±90 s, repeatability ±10 s, resolution 540,672 pulses/rev
  • AX9000MU driver: DC24V supply, resin body approx. 0.5 kg, parallel I/O NPN (U0) or PNP (U1)
  • Optional mounting base (BS); actuator, driver and cables freely interchangeable
  • Set codes listed with the standard 4 m cable (DM04); DM00, DM02, DM06, DM08, DM10 also available

Specifications

Max rotation speed 240 rpm (continuous rotation 80 rpm max.)
Allowable axial load 600 N
Allowable moment load 5 N·m
Index accuracy / repeatability ±90 s / ±10 s
Resolution 540,672 P/rev
Driver power supply DC24V ±10% (main and control)
Operating temperature 0 to 40°C (actuator), 0 to 50°C (driver)
Protection IP20 (actuator), IP2X (driver)
Cables AX-CBLM8 motor / AX-CBLR8 resolver cable
Source CKD Korea catalog CB-054K-4, p. 14-22
AX6001MU-DM04-U0 Item: Set (actuator+driver+cable) | Max torque: 1.2 N·m | Mounting base: Without | Interface: Parallel I/O (NPN)
AX6001MU-DM04-U1 Item: Set (actuator+driver+cable) | Max torque: 1.2 N·m | Mounting base: Without | Interface: Parallel I/O (PNP)
AX6001MU-BS-DM04-U0 Item: Set (actuator+driver+cable) | Max torque: 1.2 N·m | Mounting base: With (BS) | Interface: Parallel I/O (NPN)
AX6001MU-BS-DM04-U1 Item: Set (actuator+driver+cable) | Max torque: 1.2 N·m | Mounting base: With (BS) | Interface: Parallel I/O (PNP)
AX6003MU-DM04-U0 Item: Set (actuator+driver+cable) | Max torque: 3.0 N·m | Mounting base: Without | Interface: Parallel I/O (NPN)
AX6003MU-DM04-U1 Item: Set (actuator+driver+cable) | Max torque: 3.0 N·m | Mounting base: Without | Interface: Parallel I/O (PNP)
AX6003MU-BS-DM04-U0 Item: Set (actuator+driver+cable) | Max torque: 3.0 N·m | Mounting base: With (BS) | Interface: Parallel I/O (NPN)
AX6003MU-BS-DM04-U1 Item: Set (actuator+driver+cable) | Max torque: 3.0 N·m | Mounting base: With (BS) | Interface: Parallel I/O (PNP)
AX6001M Item: Actuator only | Max torque: 1.2 N·m | Mounting base: Without | Interface: N/A
AX6001M-BS Item: Actuator only | Max torque: 1.2 N·m | Mounting base: With (BS) | Interface: N/A
AX6003M Item: Actuator only | Max torque: 3.0 N·m | Mounting base: Without | Interface: N/A
AX6003M-BS Item: Actuator only | Max torque: 3.0 N·m | Mounting base: With (BS) | Interface: N/A
AX9000MU-U0 Item: MU driver only | Max torque: N/A | Mounting base: N/A | Interface: Parallel I/O (NPN)
AX9000MU-U1 Item: MU driver only | Max torque: N/A | Mounting base: N/A | Interface: Parallel I/O (PNP)
