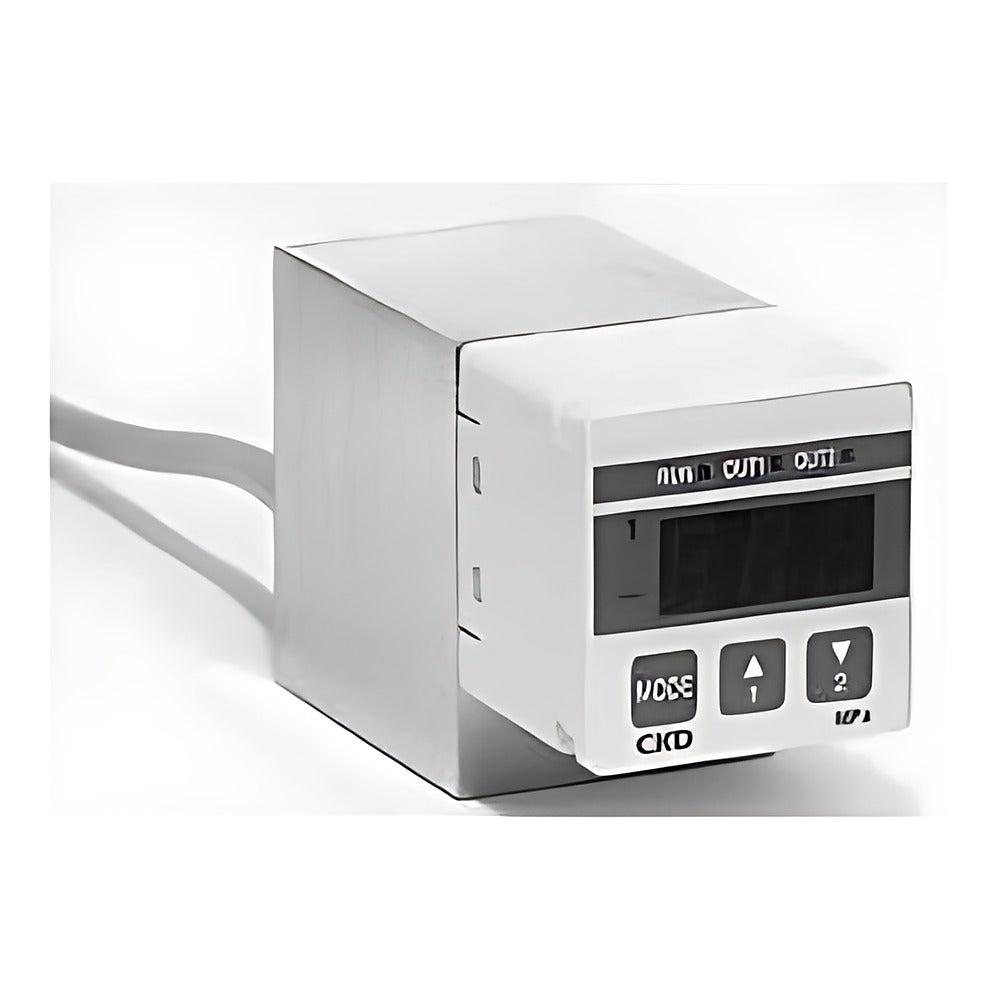

CKD CPD Electronic Coolant Pressure Switch (Digital Display)

CKD CPD electronic pressure switch with 3-digit LED display for monitoring coolant and other non-corrosive liquids up to 7 MPa.

Key features

Stainless steel diaphragm pressure sensor for coolant and non-corrosive liquids
Rated pressure 0 to 7 MPa, proof pressure 10.5 MPa (hydraulic)
3-digit LED display (8 mm character height), 2 NPN open-collector switch outputs
Settings retained in EEPROM; peak hold and zero adjustment functions
IP65 equivalent (jet-proof, dust-proof) construction, any mounting orientation

Specifications

Rated pressure	0 to 7 MPa
Proof pressure	10.5 MPa
Port	Rc1/4, bottom outlet
Switch output	2 x NPN open collector, max. 50 mA
Display accuracy	+/-2% F.S. (25 C)
Power supply	12 to 24 VDC +/-10%
Fluid / ambient temperature	0 to 50 C
Lead wire	Oil-resistant vinyl cord, 4-core, 1 m
Mass	0.36 kg
Protection	IP65 equivalent
Source	CKD Korea catalog CB-024SK-9, p. 1412-1417

CPD-P70N-8

Rated pressure: 0-7 MPa (P70) | Switch output: 2 x NPN | Port: Rc1/4 bottom outlet

Pressure SwitchesCKD

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CPD Electronic Coolant Pressure Switch (Digital Display)

Brand CKD·Pressure Switches

Available part numbers (1)

CPD-P70N-8

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
