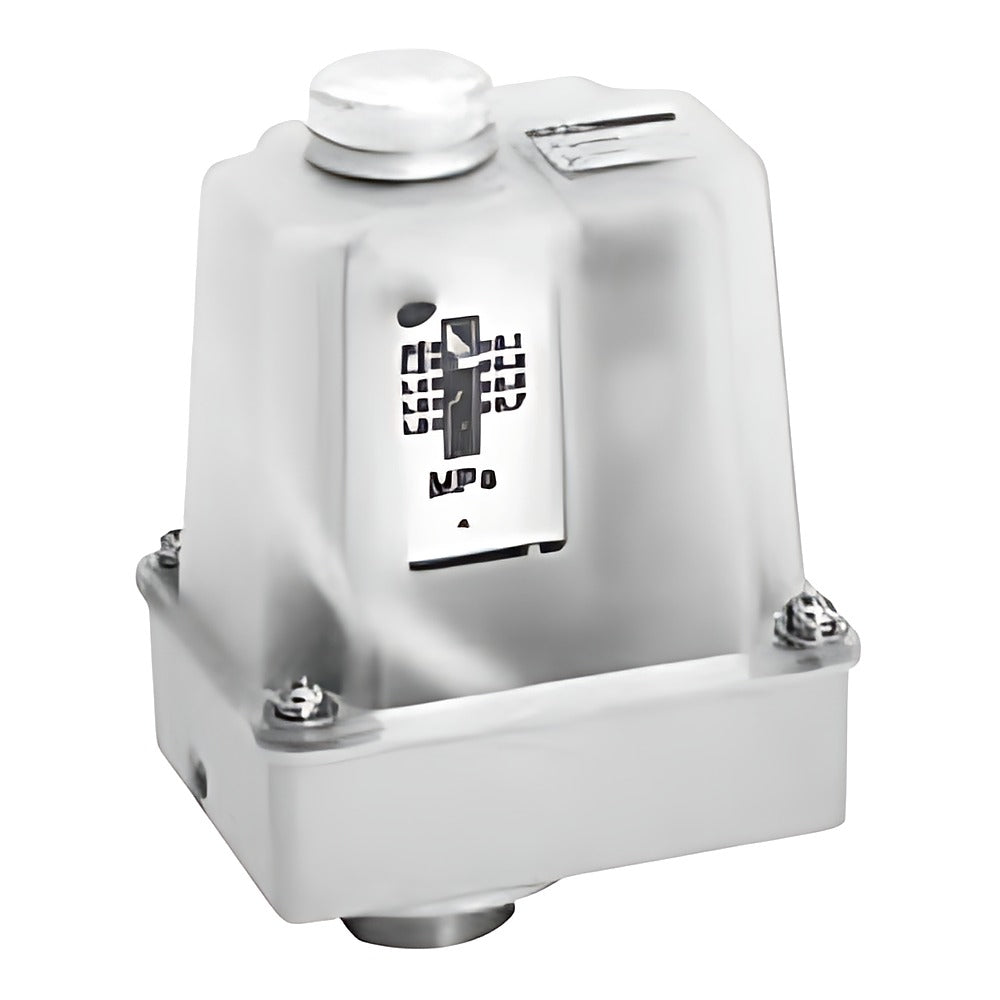

CKD CPE Mechanical Coolant Pressure Switch (Low Pressure)

CKD CPE mechanical pressure switch for coolant and other non-corrosive liquids and gases, adjustable 0.05-0.8 MPa.

Key features

Pressure adjustment range 0.05-0.8 MPa; rated 0-1.0 MPa
OMRON Z-15GD-B micro switch, 1ab contact
Nitrile or fluoro rubber seal; indicator lamp for AC100/200V or DC24V
IP65 (drip and jet proof) equivalent
Rc1/4 port downward, G1/2 electrical entry

Specifications

Fluid	Coolant, air, non-corrosive
Proof pressure	1.5 MPa (water)
Fluid/ambient temp.	0-50 C
Repeatability	+/-0.02 MPa
Rated voltage	AC100V, AC200V, DC24V
Port	Rc1/4 (downward)
Mass	0.58 kg
Code format	CPE-8-<seal>G-<lamp>
Source	CKD Korea catalog CB-024SK-9, p. 1410-1411

CPE-8-0G-1		Seal: Nitrile rubber \| Lamp: AC100/200V
CPE-8-0G-3		Seal: Nitrile rubber \| Lamp: DC24V
CPE-8-BG-1		Seal: Fluoro rubber \| Lamp: AC100/200V
CPE-8-BG-3		Seal: Fluoro rubber \| Lamp: DC24V

Pressure SwitchesCKD

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CPE Mechanical Coolant Pressure Switch (Low Pressure)

Brand CKD·Pressure Switches

Available part numbers (4)

CPE-8-0G-1, CPE-8-0G-3, CPE-8-BG-1, CPE-8-BG-3
