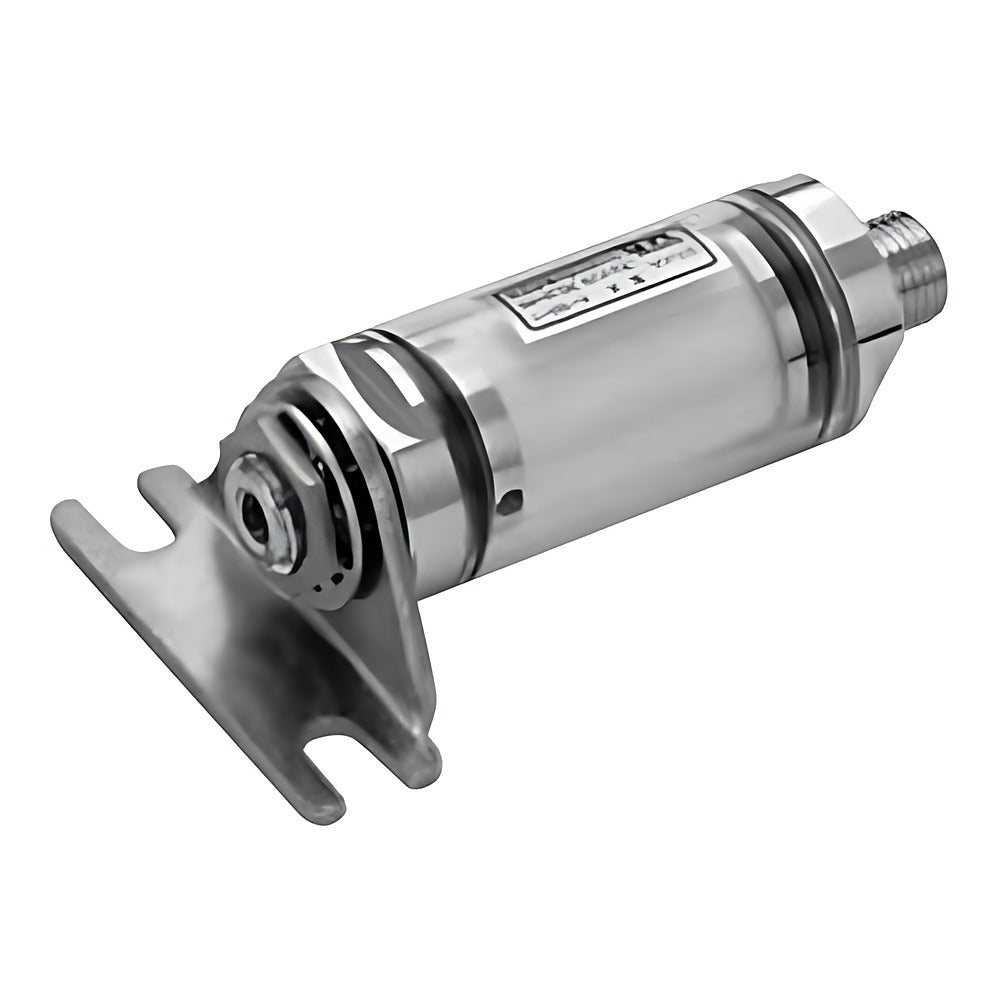

CKD DPS SEPEL Switch (Suction Confirmation Air Sensor)

CKD DPS SEPEL Switch (Suction Confirmation Air Sensor)

CKD DPS SEPEL switch that inserts a micro differential pressure sensor into an air bridge circuit to confirm vacuum suction of small nozzles.

Key features

  • Confirms suction with nozzles as small as dia. 0.15 mm
  • Detects suction even when the workpiece leaks
  • Selection: DPS-05-05 for nozzle 0.15-0.5, -07 for 0.5-1.0, -10 for 0.7-1.4 mm
  • Fast response 5 ms (sensor body)
  • NPN open collector output, DC30 V 60 mA

Specifications

Fluid Non-corrosive gas
Operating pressure -20 to -101 kPa
Differential pressure 5 kPa
Power supply DC12-25 V, 30 mA max
Accuracy +/-0.05 kPa (DC12V)
Tube I.D. dia. 2.5-4 mm
Lead wire Shielded 4-core, 1 m
Code format DPS-05-<orifice>[-<needle>]
Source CKD Korea catalog CB-024SK-9, p. 1400-1401
DPS-05-05 Detection method: Air bridge, 0.5 mm | Adjust needle: Built-in
DPS-05-05-LN Detection method: Air bridge, 0.5 mm | Adjust needle: Built-in, lock nut
DPS-05-05-AK Detection method: Air bridge, 0.5 mm | Adjust needle: None
DPS-05-07 Detection method: Air bridge, 0.7 mm | Adjust needle: Built-in
DPS-05-07-LN Detection method: Air bridge, 0.7 mm | Adjust needle: Built-in, lock nut
DPS-05-07-AK Detection method: Air bridge, 0.7 mm | Adjust needle: None
DPS-05-10 Detection method: Air bridge, 1.0 mm | Adjust needle: Built-in
DPS-05-10-LN Detection method: Air bridge, 1.0 mm | Adjust needle: Built-in, lock nut
DPS-05-10-AK Detection method: Air bridge, 1.0 mm | Adjust needle: None
DPS-05-00 Detection method: Micro diff. pressure, 0.5 mm | Adjust needle: None
Pneumatic SensorsCKD
10 product codes available in this family
