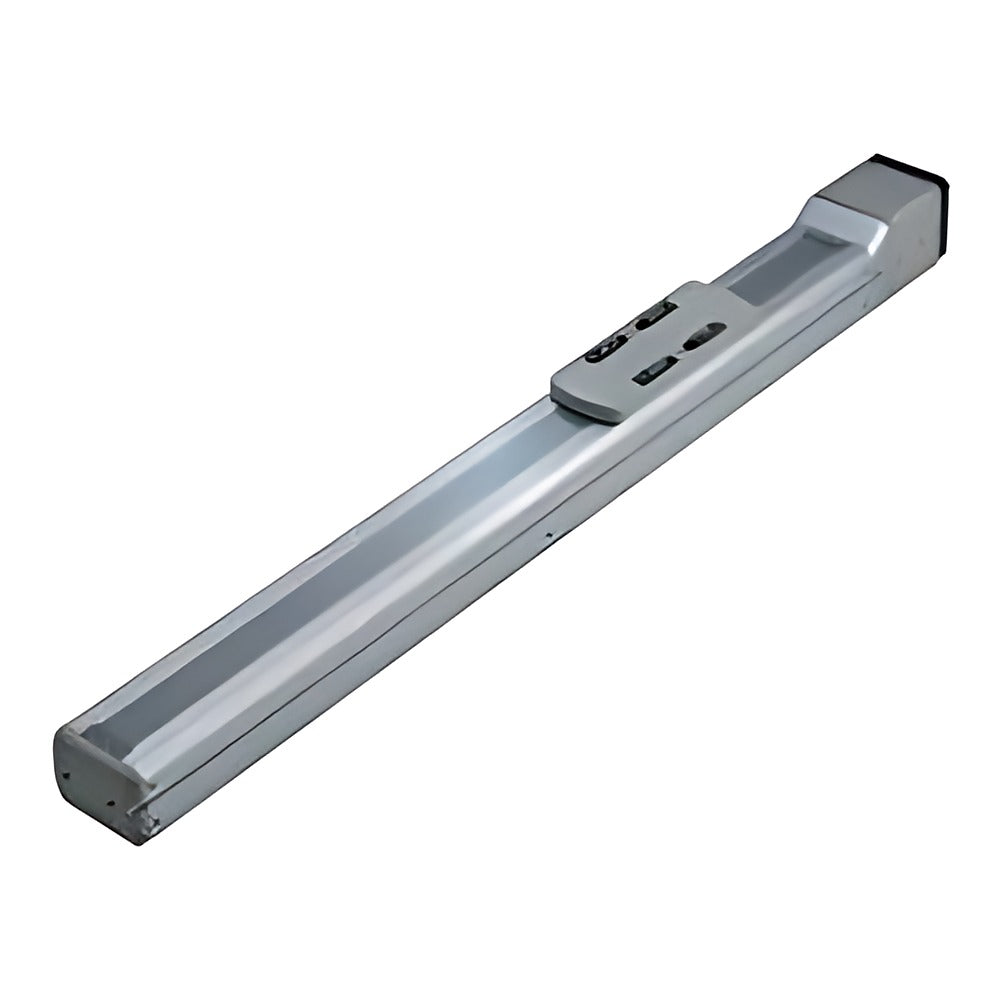

CKD ECS-05/06 Electric Slider, Low Dust (Stepping Motorless)

CKD ECS-05 and ECS-06 are compact low-dust ball-screw slider actuators supplied without a motor, prepared for a customer-mounted 42 mm square stepping motor.

Key features

Magnet slider method (-M) for low particle generation, ECS-05 51 mm and ECS-06 65 mm body width
12 mm ball screw with 2, 5 or 10 mm lead; strokes 50-800 mm in 50 mm steps
Straight motor mounting or motor folded right, down or left (timing belt and pulley supplied)
Motorless: actuator and motor mounting parts only; stepping motor and driver supplied by the user
Order code fixed here with brake N, origin/limit sensors N, grease nipple N and positioning pin hole N; sensor, grease nipple and pin hole options are orderable per the chart
Repeatability +/-0.01 mm, lost motion 0.1 mm or less, C7 ball screw
Mounting motor spec letter (A/B/C) selects the coupling or pulley interface for the motor maker

Specifications

Drive	Ball screw dia. 12 mm, C7
Applicable motor	42 mm sq. stepping motor (not included)
Max. speed	100 / 250 / 500 mm/s (lead 2 / 5 / 10)
Max. payload, horizontal	05: 10/10/5 kg; 06: 30/30/15 kg
Max. payload, vertical	05: 7/3/1.5 kg; 06: 15/10/5 kg
Rated thrust	05: 825/330/165 N; 06: 854/341/170 N
Repeatability	+/-0.01 mm
Ambient	0-40 C, 35-80% RH, no condensation
Code format	ECS-06-05040-EAANCBDP-M
Source	CKD Korea catalog CB-055K-1, p. 647-695

ECS-05-02005-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02005-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02005-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02005-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02005-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02005-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02005-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02005-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02010-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02010-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02010-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02010-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02010-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02010-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02010-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02010-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02015-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02015-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02015-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02015-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02015-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02015-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02015-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02015-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02020-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02020-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02020-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02020-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02020-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02020-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02020-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02020-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02025-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02025-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02025-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02025-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02025-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02025-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02025-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02025-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02030-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02030-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02030-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02030-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02030-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02030-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02030-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02030-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02035-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02035-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02035-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02035-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02035-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02035-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02035-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02035-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02040-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02040-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02040-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02040-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02040-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02040-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02040-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02040-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02045-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02045-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02045-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02045-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02045-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02045-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02045-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02045-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02050-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02050-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02050-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02050-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02050-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02050-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02050-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02050-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02055-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02055-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02055-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02055-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02055-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02055-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02055-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02055-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02060-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02060-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02060-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02060-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02060-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02060-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02060-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02060-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02065-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02065-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02065-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02065-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02065-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02065-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02065-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02065-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02070-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02070-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02070-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02070-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02070-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02070-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02070-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02070-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02075-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02075-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02075-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02075-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02075-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02075-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02075-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02075-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02080-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02080-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02080-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02080-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02080-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02080-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-02080-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-02080-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05005-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05005-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05005-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05005-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05005-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05005-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05005-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05005-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05010-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05010-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05010-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05010-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05010-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05010-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05010-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05010-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05015-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05015-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05015-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05015-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05015-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05015-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05015-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05015-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05020-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05020-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05020-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05020-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05020-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05020-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05020-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05020-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05025-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05025-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05025-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05025-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05025-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05025-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05025-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05025-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05030-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05030-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05030-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05030-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05030-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05030-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05030-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05030-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05035-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05035-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05035-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05035-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05035-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05035-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05035-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05035-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05040-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05040-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05040-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05040-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05040-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05040-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05040-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05040-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05045-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05045-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05045-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05045-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05045-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05045-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05045-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05045-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05050-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05050-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05050-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05050-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05050-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05050-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05050-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05050-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05055-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05055-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05055-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05055-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05055-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05055-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05055-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05055-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05060-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05060-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05060-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05060-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05060-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05060-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05060-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05060-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05065-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05065-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05065-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05065-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05065-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05065-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05065-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05065-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05070-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05070-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05070-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05070-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05070-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05070-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05070-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05070-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05075-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05075-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05075-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05075-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05075-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05075-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05075-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05075-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05080-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05080-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05080-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05080-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05080-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05080-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-05080-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-05080-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10005-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10005-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10005-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10005-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10005-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10005-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10005-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10005-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10010-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10010-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10010-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10010-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10010-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10010-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10010-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10010-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10015-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10015-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10015-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10015-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10015-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10015-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10015-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10015-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10020-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10020-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10020-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10020-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10020-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10020-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10020-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10020-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10025-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10025-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10025-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10025-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10025-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10025-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10025-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10025-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10030-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10030-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10030-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10030-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10030-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10030-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10030-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10030-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10035-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10035-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10035-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10035-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10035-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10035-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10035-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10035-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10040-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10040-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10040-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10040-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10040-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10040-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10040-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10040-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10045-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10045-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10045-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10045-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10045-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10045-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10045-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10045-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10050-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10050-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10050-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10050-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10050-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10050-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10050-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10050-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10055-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10055-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10055-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10055-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10055-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10055-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10055-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10055-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10060-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10060-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10060-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10060-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10060-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10060-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10060-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10060-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10065-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10065-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10065-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10065-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10065-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10065-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10065-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10065-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10070-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10070-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10070-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10070-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10070-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10070-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10070-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10070-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10075-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10075-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10075-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10075-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10075-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10075-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10075-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10075-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10080-EAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10080-EBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10080-RAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10080-RBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10080-DAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10080-DBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-05-10080-LAANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-05-10080-LBANNNNN-M		Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02005-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02005-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02005-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02005-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02005-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02005-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02005-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02005-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02010-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02010-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02010-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02010-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02010-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02010-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02010-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02010-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02015-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02015-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02015-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02015-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02015-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02015-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02015-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02015-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02020-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02020-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02020-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02020-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02020-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02020-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02020-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02020-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02025-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02025-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02025-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02025-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02025-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02025-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02025-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02025-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02030-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02030-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02030-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02030-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02030-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02030-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02030-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02030-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02035-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02035-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02035-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02035-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02035-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02035-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02035-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02035-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02040-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02040-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02040-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02040-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02040-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02040-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02040-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02040-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02045-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02045-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02045-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02045-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02045-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02045-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02045-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02045-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02050-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02050-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02050-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02050-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02050-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02050-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02050-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02050-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02055-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02055-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02055-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02055-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02055-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02055-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02055-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02055-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02060-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02060-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02060-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02060-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02060-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02060-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02060-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02060-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02065-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02065-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02065-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02065-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02065-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02065-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02065-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02065-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02070-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02070-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02070-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02070-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02070-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02070-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02070-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02070-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02075-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02075-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02075-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02075-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02075-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02075-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02075-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02075-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02080-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02080-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02080-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02080-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02080-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02080-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-02080-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-02080-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05005-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05005-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05005-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05005-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05005-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05005-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05005-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05005-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05010-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05010-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05010-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05010-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05010-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05010-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05010-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05010-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05015-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05015-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05015-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05015-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05015-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05015-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05015-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05015-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05020-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05020-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05020-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05020-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05020-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05020-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05020-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05020-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05025-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05025-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05025-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05025-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05025-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05025-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05025-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05025-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05030-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05030-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05030-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05030-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05030-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05030-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05030-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05030-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05035-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05035-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05035-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05035-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05035-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05035-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05035-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05035-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05040-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05040-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05040-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05040-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05040-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05040-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05040-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05040-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05045-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05045-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05045-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05045-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05045-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05045-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05045-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05045-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05050-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05050-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05050-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05050-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05050-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05050-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05050-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05050-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05055-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05055-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05055-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05055-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05055-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05055-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05055-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05055-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05060-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05060-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05060-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05060-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05060-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05060-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05060-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05060-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05065-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05065-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05065-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05065-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05065-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05065-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05065-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05065-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05070-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05070-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05070-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05070-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05070-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05070-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05070-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05070-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05075-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05075-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05075-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05075-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05075-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05075-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05075-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05075-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05080-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05080-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05080-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05080-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05080-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05080-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-05080-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-05080-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10005-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10005-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10005-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10005-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10005-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10005-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10005-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10005-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10010-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10010-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10010-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10010-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10010-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10010-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10010-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10010-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10015-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10015-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10015-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10015-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10015-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10015-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10015-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10015-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10020-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10020-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10020-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10020-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10020-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10020-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10020-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10020-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10025-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10025-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10025-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10025-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10025-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10025-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10025-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10025-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10030-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10030-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10030-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10030-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10030-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10030-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10030-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10030-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10035-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10035-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10035-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10035-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10035-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10035-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10035-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10035-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10040-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10040-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10040-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10040-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10040-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10040-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10040-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10040-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10045-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10045-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10045-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10045-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10045-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10045-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10045-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10045-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10050-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10050-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10050-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10050-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10050-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10050-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10050-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10050-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10055-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10055-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10055-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10055-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10055-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10055-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10055-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10055-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10060-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10060-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10060-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10060-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10060-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10060-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10060-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10060-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10065-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10065-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10065-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10065-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10065-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10065-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10065-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10065-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10070-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10070-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10070-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10070-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10070-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10070-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10070-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10070-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10075-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10075-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10075-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10075-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10075-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10075-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10075-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10075-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10080-EAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10080-EBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10080-RAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10080-RBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10080-DAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10080-DBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
ECS-06-10080-LAANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
ECS-06-10080-LBANNNNN-M		Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)

Electric ActuatorsCKD

768 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD ECS-05/06 Electric Slider, Low Dust (Stepping Motorless)

Brand CKD·Electric Actuators

Available part numbers (768)

ECS-05-02005-EAANNNNN-M, ECS-05-02005-EBANNNNN-M, ECS-05-02005-RAANNNNN-M, ECS-05-02005-RBANNNNN-M, ECS-05-02005-DAANNNNN-M, ECS-05-02005-DBANNNNN-M, ECS-05-02005-LAANNNNN-M, ECS-05-02005-LBANNNNN-M, ECS-05-02010-EAANNNNN-M, ECS-05-02010-EBANNNNN-M + 758 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ECS-05-02005-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02005-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02005-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02005-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02005-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02005-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02005-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02005-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02010-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02010-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02010-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02010-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02010-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02010-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02010-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02010-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02015-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02015-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02015-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02015-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02015-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02015-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02015-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02015-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02020-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02020-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02020-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02020-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02020-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02020-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02020-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02020-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02025-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02025-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02025-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02025-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02025-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02025-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02025-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02025-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02030-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02030-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02030-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02030-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02030-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02030-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02030-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02030-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02035-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02035-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02035-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02035-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02035-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02035-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02035-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02035-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02040-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02040-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02040-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02040-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02040-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02040-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02040-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02040-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02045-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02045-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02045-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02045-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02045-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02045-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02045-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02045-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02050-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02050-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02050-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02050-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02050-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02050-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02050-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02050-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02055-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02055-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02055-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02055-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02055-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02055-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02055-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02055-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02060-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02060-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02060-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02060-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02060-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02060-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02060-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02060-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02065-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02065-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02065-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02065-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02065-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02065-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02065-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02065-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02070-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02070-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02070-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02070-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02070-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02070-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02070-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02070-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02075-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02075-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02075-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02075-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02075-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02075-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02075-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02075-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02080-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02080-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02080-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02080-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02080-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02080-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-02080-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-02080-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05005-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05005-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05005-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05005-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05005-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05005-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05005-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05005-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05010-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05010-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05010-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05010-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05010-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05010-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05010-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05010-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05015-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05015-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05015-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05015-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05015-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05015-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05015-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05015-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05020-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05020-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05020-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05020-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05020-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05020-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05020-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05020-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05025-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05025-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05025-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05025-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05025-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05025-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05025-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05025-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05030-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05030-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05030-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05030-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05030-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05030-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05030-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05030-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05035-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05035-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05035-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05035-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05035-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05035-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05035-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05035-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05040-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05040-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05040-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05040-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05040-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05040-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05040-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05040-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05045-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05045-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05045-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05045-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05045-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05045-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05045-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05045-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05050-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05050-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05050-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05050-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05050-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05050-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05050-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05050-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05055-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05055-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05055-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05055-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05055-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05055-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05055-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05055-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05060-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05060-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05060-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05060-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05060-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05060-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05060-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05060-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05065-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05065-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05065-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05065-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05065-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05065-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05065-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05065-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05070-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05070-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05070-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05070-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05070-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05070-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05070-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05070-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05075-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05075-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05075-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05075-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05075-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05075-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05075-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05075-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05080-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05080-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05080-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05080-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05080-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05080-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-05080-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-05080-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10005-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10005-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10005-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10005-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10005-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10005-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10005-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10005-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10010-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10010-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10010-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10010-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10010-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10010-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10010-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10010-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10015-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10015-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10015-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10015-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10015-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10015-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10015-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10015-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10020-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10020-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10020-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10020-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10020-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10020-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10020-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10020-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10025-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10025-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10025-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10025-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10025-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10025-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10025-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10025-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10030-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10030-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10030-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10030-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10030-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10030-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10030-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10030-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10035-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10035-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10035-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10035-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10035-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10035-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10035-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10035-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10040-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10040-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10040-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10040-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10040-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10040-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10040-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10040-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10045-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10045-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10045-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10045-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10045-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10045-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10045-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10045-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10050-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10050-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10050-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10050-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10050-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10050-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10050-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10050-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10055-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10055-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10055-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10055-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10055-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10055-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10055-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10055-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10060-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10060-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10060-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10060-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10060-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10060-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10060-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10060-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10065-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10065-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10065-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10065-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10065-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10065-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10065-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10065-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10070-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10070-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10070-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10070-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10070-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10070-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10070-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10070-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10075-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10075-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10075-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10075-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10075-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10075-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10075-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10075-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10080-EAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10080-EBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10080-RAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10080-RBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10080-DAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10080-DBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-05-10080-LAANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-05-10080-LBANNNNN-M	Size: ECS-05 (51 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02005-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02005-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02005-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02005-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02005-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02005-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02005-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02005-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02010-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02010-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02010-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02010-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02010-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02010-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02010-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02010-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02015-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02015-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02015-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02015-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02015-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02015-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02015-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02015-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02020-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02020-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02020-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02020-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02020-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02020-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02020-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02020-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02025-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02025-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02025-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02025-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02025-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02025-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02025-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02025-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02030-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02030-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02030-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02030-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02030-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02030-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02030-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02030-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02035-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02035-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02035-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02035-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02035-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02035-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02035-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02035-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02040-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02040-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02040-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02040-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02040-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02040-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02040-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02040-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02045-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02045-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02045-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02045-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02045-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02045-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02045-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02045-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02050-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02050-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02050-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02050-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02050-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02050-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02050-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02050-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02055-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02055-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02055-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02055-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02055-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02055-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02055-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02055-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02060-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02060-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02060-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02060-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02060-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02060-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02060-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02060-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02065-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02065-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02065-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02065-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02065-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02065-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02065-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02065-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02070-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02070-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02070-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02070-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02070-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02070-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02070-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02070-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02075-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02075-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02075-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02075-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02075-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02075-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02075-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02075-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02080-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02080-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02080-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02080-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02080-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02080-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-02080-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-02080-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 2 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05005-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05005-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05005-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05005-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05005-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05005-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05005-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05005-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05010-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05010-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05010-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05010-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05010-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05010-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05010-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05010-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05015-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05015-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05015-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05015-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05015-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05015-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05015-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05015-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05020-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05020-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05020-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05020-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05020-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05020-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05020-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05020-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05025-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05025-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05025-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05025-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05025-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05025-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05025-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05025-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05030-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05030-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05030-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05030-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05030-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05030-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05030-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05030-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05035-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05035-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05035-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05035-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05035-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05035-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05035-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05035-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05040-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05040-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05040-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05040-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05040-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05040-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05040-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05040-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05045-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05045-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05045-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05045-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05045-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05045-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05045-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05045-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05050-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05050-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05050-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05050-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05050-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05050-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05050-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05050-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05055-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05055-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05055-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05055-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05055-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05055-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05055-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05055-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05060-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05060-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05060-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05060-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05060-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05060-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05060-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05060-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05065-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05065-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05065-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05065-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05065-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05065-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05065-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05065-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05070-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05070-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05070-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05070-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05070-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05070-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05070-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05070-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05075-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05075-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05075-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05075-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05075-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05075-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05075-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05075-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05080-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05080-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05080-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05080-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05080-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05080-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-05080-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-05080-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10005-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10005-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10005-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10005-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10005-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10005-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10005-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10005-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10010-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10010-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10010-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10010-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10010-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10010-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10010-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10010-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10015-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10015-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10015-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10015-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10015-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10015-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10015-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10015-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10020-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10020-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10020-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10020-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10020-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10020-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10020-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10020-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10025-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10025-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10025-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10025-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10025-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10025-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10025-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10025-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10030-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10030-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10030-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10030-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10030-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10030-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10030-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10030-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10035-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10035-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10035-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10035-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10035-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10035-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10035-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10035-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10040-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10040-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10040-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10040-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10040-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10040-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10040-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10040-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10045-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10045-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10045-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10045-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10045-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10045-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10045-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10045-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10050-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10050-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10050-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10050-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10050-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10050-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10050-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10050-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10055-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10055-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10055-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10055-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10055-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10055-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10055-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10055-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10060-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10060-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10060-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10060-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10060-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10060-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10060-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10060-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10065-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10065-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10065-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10065-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10065-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10065-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10065-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10065-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10070-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10070-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10070-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10070-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10070-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10070-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10070-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10070-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10075-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10075-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10075-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10075-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10075-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10075-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10075-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10075-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10080-EAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10080-EBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10080-RAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10080-RBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10080-DAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10080-DBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 42 mm sq. (Minebea/Dyadic)
	ECS-06-10080-LAANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Oriental Motor)
	ECS-06-10080-LBANNNNN-M	Size: ECS-06 (65 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 42 mm sq. (Minebea/Dyadic)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

CKD ECS-05/06 Electric Slider, Low Dust (Stepping Motorless)
