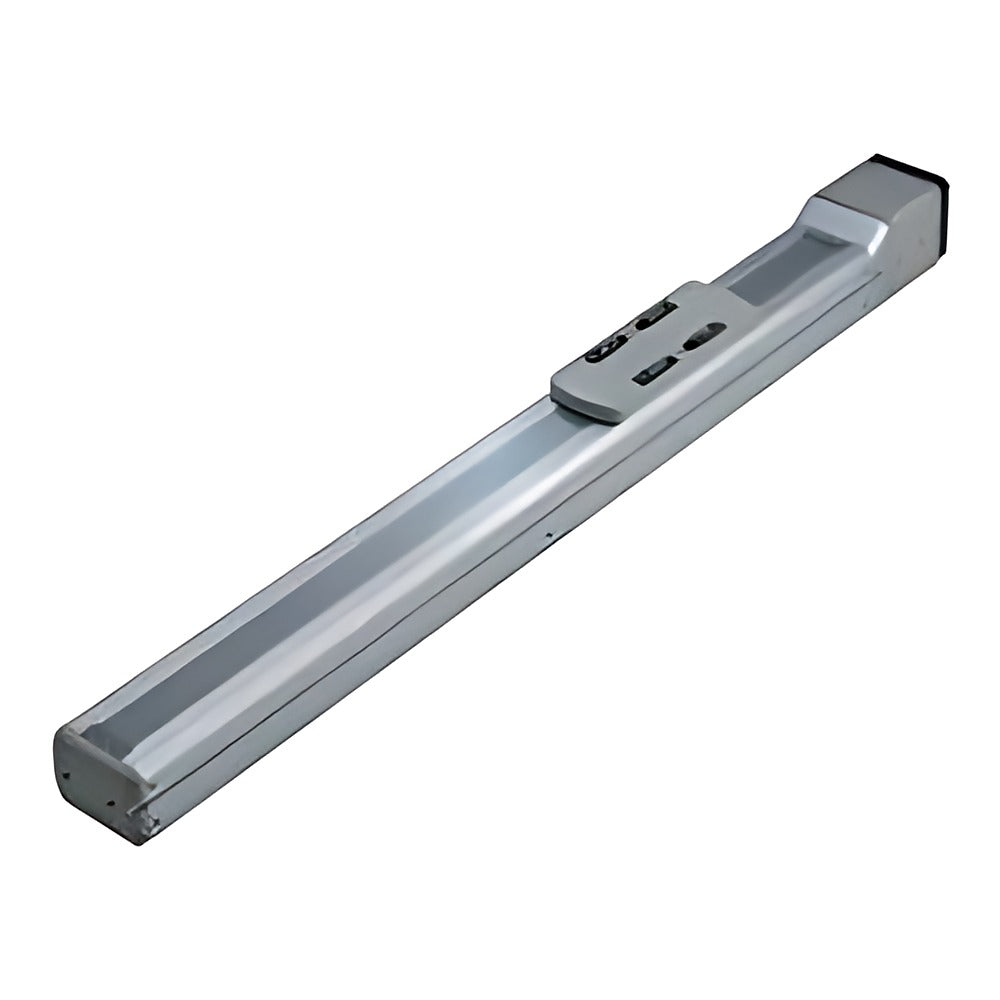

CKD ECS-12 Electric Slider, Low Dust (Stepping Motorless)

CKD ECS-12 is a 102 mm wide low-dust ball-screw slider actuator supplied without a motor, prepared for a customer-mounted 56 or 60 mm square stepping motor.

Key features

102 mm body width, 16 mm ball screw with 5, 10, 16 or 20 mm lead
Strokes 50-1050 mm in 50 mm steps; speed derated above 750 mm stroke
Straight motor mounting or motor folded right, down or left (timing belt and pulley supplied)
Motorless: actuator and motor mounting parts only; stepping motor and driver supplied by the user
Order code fixed here with brake N, origin/limit sensors N, grease nipple N and positioning pin hole N; sensor, grease nipple and pin hole options are orderable per the chart
Repeatability +/-0.01 mm, lost motion 0.1 mm or less, C7 ball screw
Mounting motor spec letter (A/B/C) selects the coupling or pulley interface for the motor maker

Specifications

Drive	Ball screw dia. 16 mm, C7
Applicable motor	56 / 60 mm sq. stepping motor (not included)
Max. speed	250 / 500 / 800 / 1000 mm/s (lead 5/10/16/20)
Max. payload, horizontal	50 / 30 / 22 / 18 kg
Max. payload, vertical	12 / 8 / 5 / 3 kg
Rated thrust	683 / 341 / 213 / 174 N
Repeatability	+/-0.01 mm
Ambient	0-40 C, 35-80% RH, no condensation
Code format	ECS-12-20040-EACNNNNN
Source	CKD Korea catalog CB-055K-1, p. 647-651, 670-675, 682-695

ECS-12-05005-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05005-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05005-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05005-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05005-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05005-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05005-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05005-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05005-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05005-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05005-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05005-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05010-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05010-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05010-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05010-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05010-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05010-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05010-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05010-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05010-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05010-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05010-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05010-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05015-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05015-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05015-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05015-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05015-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05015-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05015-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05015-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05015-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05015-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05015-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05015-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05020-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05020-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05020-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05020-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05020-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05020-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05020-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05020-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05020-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05020-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05020-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05020-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05025-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05025-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05025-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05025-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05025-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05025-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05025-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05025-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05025-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05025-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05025-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05025-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05030-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05030-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05030-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05030-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05030-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05030-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05030-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05030-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05030-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05030-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05030-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05030-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05035-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05035-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05035-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05035-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05035-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05035-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05035-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05035-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05035-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05035-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05035-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05035-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05040-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05040-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05040-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05040-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05040-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05040-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05040-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05040-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05040-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05040-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05040-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05040-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05045-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05045-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05045-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05045-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05045-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05045-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05045-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05045-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05045-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05045-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05045-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05045-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05050-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05050-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05050-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05050-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05050-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05050-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05050-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05050-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05050-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05050-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05050-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05050-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05055-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05055-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05055-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05055-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05055-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05055-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05055-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05055-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05055-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05055-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05055-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05055-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05060-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05060-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05060-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05060-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05060-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05060-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05060-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05060-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05060-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05060-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05060-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05060-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05065-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05065-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05065-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05065-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05065-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05065-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05065-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05065-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05065-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05065-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05065-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05065-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05070-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05070-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05070-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05070-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05070-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05070-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05070-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05070-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05070-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05070-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05070-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05070-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05075-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05075-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05075-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05075-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05075-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05075-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05075-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05075-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05075-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05075-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05075-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05075-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05080-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05080-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05080-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05080-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05080-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05080-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05080-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05080-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05080-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05080-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05080-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05080-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05085-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05085-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05085-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05085-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05085-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05085-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05085-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05085-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05085-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05085-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05085-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05085-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05090-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05090-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05090-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05090-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05090-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05090-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05090-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05090-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05090-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05090-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05090-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05090-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05095-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05095-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05095-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05095-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05095-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05095-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05095-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05095-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05095-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05095-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05095-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05095-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05100-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05100-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05100-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05100-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05100-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05100-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05100-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05100-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05100-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05100-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05100-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05100-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05105-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05105-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05105-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05105-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05105-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05105-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05105-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05105-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05105-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-05105-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-05105-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-05105-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10005-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10005-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10005-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10005-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10005-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10005-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10005-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10005-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10005-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10005-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10005-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10005-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10010-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10010-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10010-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10010-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10010-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10010-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10010-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10010-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10010-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10010-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10010-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10010-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10015-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10015-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10015-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10015-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10015-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10015-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10015-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10015-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10015-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10015-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10015-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10015-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10020-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10020-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10020-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10020-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10020-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10020-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10020-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10020-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10020-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10020-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10020-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10020-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10025-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10025-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10025-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10025-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10025-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10025-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10025-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10025-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10025-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10025-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10025-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10025-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10030-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10030-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10030-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10030-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10030-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10030-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10030-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10030-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10030-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10030-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10030-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10030-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10035-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10035-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10035-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10035-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10035-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10035-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10035-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10035-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10035-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10035-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10035-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10035-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10040-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10040-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10040-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10040-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10040-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10040-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10040-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10040-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10040-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10040-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10040-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10040-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10045-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10045-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10045-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10045-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10045-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10045-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10045-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10045-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10045-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10045-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10045-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10045-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10050-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10050-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10050-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10050-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10050-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10050-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10050-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10050-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10050-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10050-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10050-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10050-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10055-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10055-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10055-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10055-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10055-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10055-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10055-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10055-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10055-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10055-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10055-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10055-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10060-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10060-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10060-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10060-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10060-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10060-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10060-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10060-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10060-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10060-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10060-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10060-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10065-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10065-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10065-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10065-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10065-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10065-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10065-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10065-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10065-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10065-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10065-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10065-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10070-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10070-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10070-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10070-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10070-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10070-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10070-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10070-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10070-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10070-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10070-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10070-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10075-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10075-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10075-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10075-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10075-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10075-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10075-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10075-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10075-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10075-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10075-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10075-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10080-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10080-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10080-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10080-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10080-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10080-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10080-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10080-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10080-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10080-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10080-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10080-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10085-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10085-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10085-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10085-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10085-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10085-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10085-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10085-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10085-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10085-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10085-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10085-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10090-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10090-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10090-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10090-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10090-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10090-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10090-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10090-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10090-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10090-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10090-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10090-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10095-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10095-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10095-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10095-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10095-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10095-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10095-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10095-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10095-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10095-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10095-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10095-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10100-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10100-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10100-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10100-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10100-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10100-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10100-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10100-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10100-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10100-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10100-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10100-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10105-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10105-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10105-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10105-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10105-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10105-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10105-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10105-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10105-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-10105-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-10105-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-10105-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16005-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16005-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16005-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16005-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16005-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16005-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16005-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16005-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16005-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16005-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16005-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16005-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16010-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16010-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16010-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16010-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16010-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16010-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16010-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16010-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16010-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16010-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16010-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16010-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16015-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16015-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16015-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16015-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16015-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16015-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16015-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16015-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16015-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16015-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16015-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16015-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16020-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16020-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16020-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16020-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16020-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16020-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16020-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16020-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16020-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16020-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16020-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16020-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16025-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16025-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16025-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16025-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16025-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16025-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16025-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16025-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16025-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16025-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16025-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16025-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16030-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16030-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16030-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16030-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16030-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16030-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16030-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16030-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16030-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16030-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16030-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16030-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16035-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16035-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16035-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16035-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16035-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16035-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16035-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16035-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16035-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16035-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16035-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16035-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16040-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16040-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16040-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16040-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16040-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16040-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16040-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16040-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16040-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16040-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16040-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16040-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16045-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16045-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16045-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16045-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16045-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16045-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16045-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16045-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16045-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16045-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16045-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16045-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16050-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16050-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16050-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16050-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16050-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16050-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16050-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16050-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16050-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16050-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16050-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16050-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16055-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16055-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16055-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16055-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16055-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16055-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16055-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16055-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16055-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16055-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16055-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16055-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16060-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16060-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16060-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16060-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16060-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16060-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16060-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16060-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16060-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16060-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16060-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16060-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16065-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16065-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16065-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16065-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16065-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16065-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16065-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16065-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16065-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16065-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16065-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16065-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16070-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16070-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16070-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16070-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16070-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16070-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16070-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16070-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16070-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16070-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16070-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16070-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16075-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16075-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16075-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16075-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16075-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16075-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16075-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16075-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16075-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16075-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16075-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16075-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16080-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16080-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16080-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16080-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16080-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16080-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16080-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16080-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16080-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16080-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16080-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16080-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16085-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16085-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16085-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16085-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16085-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16085-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16085-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16085-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16085-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16085-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16085-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16085-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16090-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16090-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16090-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16090-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16090-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16090-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16090-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16090-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16090-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16090-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16090-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16090-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16095-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16095-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16095-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16095-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16095-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16095-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16095-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16095-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16095-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16095-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16095-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16095-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16100-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16100-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16100-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16100-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16100-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16100-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16100-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16100-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16100-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16100-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16100-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16100-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16105-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16105-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16105-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16105-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16105-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16105-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16105-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16105-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16105-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-16105-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-16105-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-16105-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20005-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20005-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20005-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20005-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20005-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20005-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20005-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20005-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20005-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20005-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20005-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20005-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20010-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20010-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20010-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20010-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20010-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20010-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20010-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20010-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20010-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20010-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20010-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20010-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20015-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20015-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20015-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20015-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20015-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20015-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20015-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20015-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20015-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20015-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20015-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20015-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20020-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20020-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20020-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20020-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20020-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20020-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20020-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20020-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20020-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20020-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20020-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20020-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20025-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20025-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20025-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20025-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20025-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20025-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20025-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20025-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20025-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20025-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20025-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20025-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20030-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20030-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20030-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20030-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20030-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20030-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20030-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20030-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20030-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20030-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20030-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20030-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20035-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20035-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20035-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20035-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20035-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20035-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20035-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20035-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20035-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20035-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20035-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20035-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20040-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20040-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20040-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20040-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20040-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20040-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20040-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20040-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20040-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20040-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20040-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20040-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20045-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20045-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20045-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20045-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20045-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20045-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20045-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20045-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20045-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20045-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20045-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20045-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20050-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20050-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20050-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20050-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20050-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20050-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20050-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20050-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20050-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20050-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20050-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20050-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20055-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20055-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20055-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20055-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20055-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20055-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20055-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20055-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20055-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20055-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20055-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20055-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20060-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20060-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20060-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20060-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20060-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20060-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20060-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20060-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20060-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20060-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20060-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20060-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20065-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20065-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20065-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20065-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20065-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20065-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20065-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20065-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20065-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20065-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20065-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20065-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20070-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20070-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20070-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20070-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20070-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20070-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20070-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20070-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20070-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20070-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20070-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20070-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20075-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20075-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20075-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20075-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20075-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20075-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20075-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20075-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20075-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20075-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20075-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20075-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20080-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20080-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20080-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20080-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20080-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20080-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20080-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20080-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20080-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20080-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20080-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20080-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20085-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20085-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20085-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20085-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20085-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20085-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20085-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20085-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20085-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20085-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20085-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20085-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20090-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20090-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20090-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20090-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20090-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20090-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20090-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20090-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20090-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20090-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20090-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20090-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20095-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20095-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20095-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20095-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20095-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20095-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20095-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20095-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20095-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20095-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20095-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20095-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20100-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20100-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20100-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20100-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20100-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20100-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20100-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20100-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20100-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20100-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20100-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20100-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20105-EACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20105-EBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20105-ECBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20105-RACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20105-RBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20105-RCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20105-DACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20105-DBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20105-DCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
ECS-12-20105-LACNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
ECS-12-20105-LBBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
ECS-12-20105-LCBNNNNN		Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)

Electric ActuatorsCKD

1008 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD ECS-12 Electric Slider, Low Dust (Stepping Motorless)

Brand CKD·Electric Actuators

Available part numbers (1008)

ECS-12-05005-EACNNNNN, ECS-12-05005-EBBNNNNN, ECS-12-05005-ECBNNNNN, ECS-12-05005-RACNNNNN, ECS-12-05005-RBBNNNNN, ECS-12-05005-RCBNNNNN, ECS-12-05005-DACNNNNN, ECS-12-05005-DBBNNNNN, ECS-12-05005-DCBNNNNN, ECS-12-05005-LACNNNNN + 998 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ECS-12-05005-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05005-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05005-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05005-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05005-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05005-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05005-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05005-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05005-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05005-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05005-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05005-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05010-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05010-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05010-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05010-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05010-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05010-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05010-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05010-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05010-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05010-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05010-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05010-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05015-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05015-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05015-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05015-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05015-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05015-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05015-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05015-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05015-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05015-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05015-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05015-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05020-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05020-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05020-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05020-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05020-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05020-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05020-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05020-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05020-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05020-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05020-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05020-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05025-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05025-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05025-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05025-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05025-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05025-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05025-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05025-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05025-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05025-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05025-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05025-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05030-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05030-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05030-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05030-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05030-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05030-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05030-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05030-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05030-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05030-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05030-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05030-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05035-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05035-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05035-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05035-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05035-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05035-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05035-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05035-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05035-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05035-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05035-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05035-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05040-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05040-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05040-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05040-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05040-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05040-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05040-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05040-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05040-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05040-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05040-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05040-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05045-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05045-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05045-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05045-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05045-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05045-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05045-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05045-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05045-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05045-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05045-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05045-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05050-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05050-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05050-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05050-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05050-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05050-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05050-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05050-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05050-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05050-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05050-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05050-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05055-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05055-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05055-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05055-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05055-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05055-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05055-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05055-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05055-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05055-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05055-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05055-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05060-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05060-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05060-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05060-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05060-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05060-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05060-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05060-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05060-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05060-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05060-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05060-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05065-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05065-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05065-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05065-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05065-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05065-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05065-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05065-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05065-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05065-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05065-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05065-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05070-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05070-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05070-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05070-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05070-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05070-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05070-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05070-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05070-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05070-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05070-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05070-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05075-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05075-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05075-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05075-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05075-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05075-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05075-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05075-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05075-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05075-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05075-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05075-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05080-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05080-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05080-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05080-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05080-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05080-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05080-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05080-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05080-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05080-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05080-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05080-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05085-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05085-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05085-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05085-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05085-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05085-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05085-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05085-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05085-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05085-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05085-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05085-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05090-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05090-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05090-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05090-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05090-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05090-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05090-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05090-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05090-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05090-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05090-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05090-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05095-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05095-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05095-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05095-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05095-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05095-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05095-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05095-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05095-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05095-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05095-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05095-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05100-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05100-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05100-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05100-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05100-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05100-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05100-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05100-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05100-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05100-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05100-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05100-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05105-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05105-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05105-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05105-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05105-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05105-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05105-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05105-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05105-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-05105-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-05105-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-05105-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10005-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10005-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10005-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10005-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10005-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10005-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10005-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10005-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10005-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10005-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10005-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10005-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10010-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10010-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10010-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10010-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10010-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10010-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10010-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10010-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10010-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10010-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10010-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10010-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10015-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10015-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10015-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10015-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10015-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10015-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10015-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10015-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10015-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10015-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10015-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10015-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10020-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10020-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10020-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10020-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10020-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10020-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10020-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10020-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10020-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10020-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10020-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10020-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10025-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10025-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10025-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10025-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10025-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10025-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10025-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10025-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10025-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10025-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10025-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10025-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10030-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10030-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10030-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10030-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10030-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10030-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10030-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10030-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10030-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10030-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10030-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10030-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10035-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10035-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10035-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10035-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10035-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10035-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10035-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10035-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10035-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10035-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10035-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10035-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10040-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10040-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10040-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10040-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10040-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10040-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10040-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10040-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10040-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10040-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10040-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10040-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10045-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10045-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10045-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10045-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10045-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10045-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10045-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10045-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10045-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10045-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10045-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10045-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10050-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10050-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10050-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10050-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10050-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10050-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10050-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10050-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10050-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10050-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10050-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10050-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10055-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10055-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10055-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10055-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10055-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10055-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10055-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10055-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10055-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10055-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10055-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10055-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10060-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10060-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10060-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10060-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10060-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10060-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10060-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10060-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10060-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10060-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10060-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10060-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10065-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10065-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10065-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10065-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10065-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10065-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10065-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10065-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10065-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10065-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10065-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10065-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10070-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10070-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10070-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10070-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10070-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10070-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10070-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10070-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10070-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10070-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10070-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10070-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10075-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10075-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10075-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10075-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10075-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10075-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10075-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10075-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10075-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10075-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10075-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10075-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10080-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10080-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10080-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10080-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10080-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10080-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10080-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10080-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10080-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10080-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10080-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10080-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10085-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10085-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10085-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10085-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10085-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10085-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10085-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10085-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10085-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10085-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10085-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10085-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10090-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10090-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10090-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10090-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10090-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10090-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10090-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10090-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10090-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10090-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10090-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10090-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10095-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10095-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10095-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10095-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10095-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10095-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10095-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10095-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10095-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10095-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10095-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10095-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10100-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10100-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10100-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10100-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10100-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10100-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10100-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10100-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10100-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10100-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10100-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10100-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10105-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10105-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10105-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10105-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10105-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10105-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10105-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10105-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10105-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-10105-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-10105-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-10105-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16005-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16005-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16005-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16005-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16005-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16005-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16005-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16005-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16005-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16005-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16005-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16005-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16010-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16010-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16010-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16010-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16010-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16010-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16010-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16010-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16010-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16010-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16010-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16010-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16015-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16015-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16015-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16015-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16015-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16015-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16015-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16015-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16015-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16015-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16015-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16015-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16020-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16020-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16020-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16020-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16020-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16020-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16020-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16020-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16020-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16020-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16020-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16020-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16025-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16025-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16025-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16025-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16025-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16025-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16025-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16025-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16025-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16025-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16025-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16025-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16030-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16030-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16030-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16030-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16030-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16030-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16030-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16030-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16030-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16030-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16030-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16030-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16035-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16035-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16035-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16035-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16035-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16035-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16035-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16035-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16035-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16035-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16035-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16035-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16040-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16040-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16040-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16040-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16040-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16040-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16040-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16040-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16040-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16040-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16040-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16040-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16045-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16045-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16045-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16045-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16045-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16045-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16045-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16045-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16045-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16045-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16045-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16045-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16050-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16050-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16050-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16050-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16050-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16050-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16050-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16050-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16050-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16050-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16050-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16050-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16055-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16055-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16055-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16055-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16055-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16055-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16055-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16055-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16055-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16055-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16055-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16055-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16060-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16060-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16060-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16060-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16060-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16060-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16060-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16060-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16060-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16060-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16060-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16060-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16065-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16065-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16065-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16065-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16065-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16065-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16065-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16065-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16065-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16065-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16065-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16065-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16070-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16070-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16070-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16070-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16070-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16070-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16070-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16070-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16070-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16070-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16070-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16070-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16075-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16075-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16075-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16075-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16075-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16075-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16075-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16075-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16075-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16075-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16075-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16075-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16080-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16080-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16080-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16080-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16080-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16080-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16080-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16080-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16080-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16080-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16080-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16080-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16085-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16085-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16085-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16085-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16085-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16085-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16085-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16085-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16085-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16085-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16085-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16085-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16090-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16090-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16090-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16090-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16090-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16090-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16090-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16090-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16090-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16090-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16090-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16090-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16095-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16095-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16095-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16095-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16095-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16095-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16095-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16095-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16095-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16095-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16095-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16095-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16100-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16100-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16100-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16100-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16100-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16100-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16100-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16100-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16100-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16100-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16100-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16100-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16105-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16105-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16105-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16105-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16105-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16105-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16105-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16105-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16105-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-16105-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-16105-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-16105-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 16 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20005-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20005-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20005-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20005-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20005-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20005-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20005-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20005-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20005-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20005-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20005-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20005-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20010-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20010-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20010-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20010-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20010-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20010-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20010-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20010-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20010-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20010-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20010-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20010-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20015-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20015-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20015-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20015-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20015-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20015-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20015-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20015-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20015-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20015-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20015-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20015-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20020-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20020-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20020-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20020-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20020-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20020-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20020-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20020-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20020-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20020-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20020-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20020-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20025-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20025-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20025-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20025-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20025-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20025-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20025-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20025-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20025-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20025-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20025-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20025-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20030-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20030-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20030-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20030-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20030-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20030-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20030-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20030-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20030-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20030-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20030-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20030-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20035-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20035-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20035-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20035-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20035-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20035-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20035-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20035-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20035-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20035-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20035-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20035-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20040-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20040-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20040-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20040-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20040-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20040-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20040-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20040-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20040-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20040-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20040-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20040-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20045-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20045-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20045-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20045-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20045-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20045-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20045-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20045-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20045-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20045-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20045-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20045-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20050-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20050-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20050-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20050-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20050-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20050-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20050-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20050-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20050-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20050-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20050-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20050-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20055-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20055-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20055-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20055-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20055-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20055-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20055-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20055-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20055-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20055-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20055-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20055-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20060-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20060-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20060-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20060-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20060-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20060-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20060-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20060-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20060-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20060-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20060-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20060-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20065-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20065-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20065-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20065-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20065-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20065-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20065-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20065-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20065-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20065-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20065-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20065-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20070-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20070-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20070-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20070-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20070-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20070-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20070-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20070-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20070-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20070-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20070-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20070-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20075-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20075-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20075-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20075-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20075-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20075-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20075-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20075-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20075-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20075-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20075-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20075-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20080-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20080-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20080-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20080-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20080-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20080-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20080-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20080-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20080-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20080-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20080-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20080-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20085-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20085-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20085-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20085-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20085-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20085-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20085-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20085-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20085-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20085-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20085-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20085-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20090-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20090-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20090-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20090-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20090-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20090-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20090-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20090-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20090-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20090-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20090-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20090-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20095-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20095-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20095-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20095-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20095-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20095-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20095-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20095-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20095-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20095-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20095-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20095-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20100-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20100-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20100-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20100-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20100-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20100-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20100-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20100-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20100-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20100-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20100-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20100-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20105-EACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20105-EBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20105-ECBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20105-RACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20105-RBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20105-RCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20105-DACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20105-DBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20105-DCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor: 56 mm sq. (Dyadic Systems)
	ECS-12-20105-LACNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 60 mm sq. (Oriental Motor)
	ECS-12-20105-LBBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (MinebeaMitsumi)
	ECS-12-20105-LCBNNNNN	Size: ECS-12 (102 mm wide) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor: 56 mm sq. (Dyadic Systems)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

CKD ECS-12 Electric Slider, Low Dust (Stepping Motorless)
