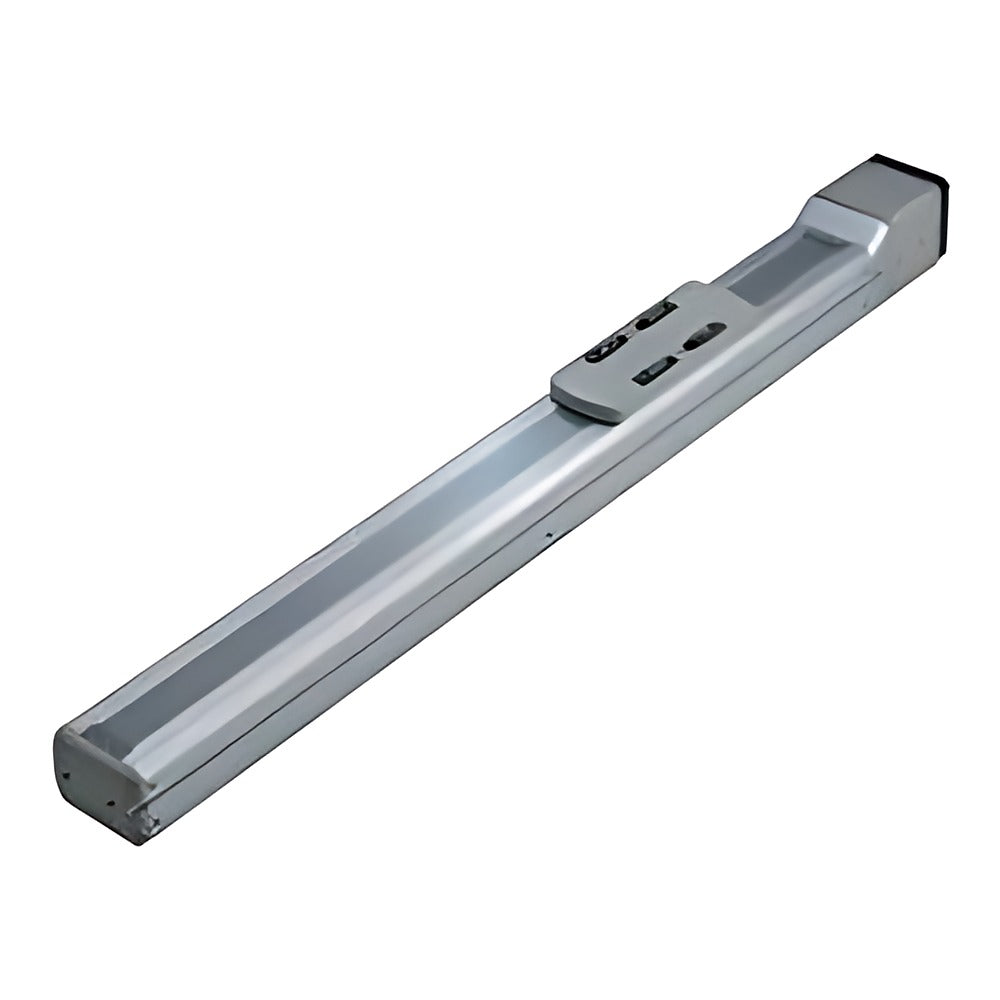

CKD ECS Low-Dust Ball Screw Slider Actuator (Sizes 14-22, 200-750W) - Part 2

CKD ECS series motorless low-dust ball screw slider actuators for 200W to 750W servo motors, body sizes 14, 17 and 22 with strokes 50 to 1500 mm.

Key features

Motorless ball screw slider for clean environments: low dust generation design with a suction port for vacuum evacuation (particle data measured in an ISO Class 4 clean bench)
Customer-supplied AC servo motor; motor mounting spec letter selects the adapter: M (Mitsubishi, Delta, Sanyo, OMRON, Fuji, Rockwell, Siemens), Y (Yaskawa, Keyence), P (Panasonic, Bosch Rexroth, OMRON/Fuji at some sizes), F (FANUC)
Full order code continues after the mounting letter: motor spec (M/Y/P/F) + motor size (1: 100W, 2: 200W, 4: 400W, 8: 750W) + brake (N/B) + home sensor + limit sensors + grease nipple (N/R/L) + positioning pin hole (N/P), e.g. ECS-06-05040-EM1NCBDP-M
Motor mounting directions: E straight, B built-in (sizes 10-22, brake option B only with built-in), R/D/L folded right/down/left
Outer-mounted home and limit photo sensors (customer-adjustable), timing belt/pulley sets, couplings and grease nipples available as options and maintenance parts
ECS-14: 200W/400W; ECS-17: 400W/750W (750W not available with straight mounting E); ECS-22: 750W; max. payload horizontal up to 150 kg

Specifications

Drive	Ball screw, precision grade C7
Motor	Motorless (servo motor supplied by customer)
Repeatability	+/-0.01 mm
Lost motion	0.1 mm or less
Stroke increments	50 mm
Operating environment	0 to 40 C, 35 to 80% RH (no condensation)
Storage environment	-10 to 50 C, 35 to 80% RH
Source	CKD Korea catalog CB-055K-1, p. 281-285, 314-337 (ECS system chart, ordering, ECS-14/17/22)

ECS-17-20095-R		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-20095-D		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-20095-L		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-20100-E		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-20100-B		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-20100-R		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-20100-D		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-20100-L		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-20105-E		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-20105-B		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-20105-R		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-20105-D		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-20105-L		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-20110-E		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1100 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-20110-B		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1100 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-20110-R		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1100 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-20110-D		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1100 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-20110-L		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1100 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-20115-E		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1150 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-20115-B		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1150 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-20115-R		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1150 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-20115-D		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1150 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-20115-L		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1150 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-20120-E		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1200 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-20120-B		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1200 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-20120-R		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1200 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-20120-D		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1200 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-20120-L		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1200 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-20125-E		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1250 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-20125-B		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1250 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-20125-R		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1250 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-20125-D		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1250 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-20125-L		Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1250 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40005-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40005-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40005-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40005-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40005-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40010-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40010-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40010-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40010-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40010-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40015-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40015-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40015-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40015-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40015-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40020-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40020-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40020-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40020-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40020-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40025-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40025-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40025-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40025-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40025-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40030-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40030-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40030-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40030-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40030-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40035-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40035-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40035-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40035-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40035-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40040-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40040-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40040-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40040-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40040-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40045-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40045-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40045-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40045-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40045-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40050-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40050-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40050-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40050-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40050-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40055-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40055-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40055-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40055-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40055-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40060-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40060-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40060-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40060-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40060-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40065-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40065-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40065-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40065-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40065-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40070-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40070-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40070-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40070-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40070-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40075-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40075-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40075-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40075-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40075-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40080-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40080-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40080-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40080-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40080-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40085-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40085-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40085-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40085-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40085-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40090-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40090-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40090-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40090-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40090-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40095-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40095-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40095-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40095-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40095-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40100-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40100-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40100-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40100-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40100-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40105-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40105-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40105-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40105-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40105-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40110-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40110-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40110-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40110-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40110-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40115-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40115-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40115-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40115-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40115-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40120-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40120-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40120-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40120-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40120-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-17-40125-E		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Straight \| Motor size: 400W
ECS-17-40125-B		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
ECS-17-40125-R		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
ECS-17-40125-D		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
ECS-17-40125-L		Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
ECS-22-05005-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05005-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05005-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05005-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05005-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05010-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05010-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05010-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05010-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05010-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05015-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05015-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05015-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05015-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05015-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05020-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05020-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05020-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05020-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05020-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05025-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05025-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05025-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05025-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05025-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05030-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05030-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05030-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05030-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05030-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05035-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05035-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05035-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05035-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05035-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05040-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05040-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05040-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05040-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05040-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05045-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05045-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05045-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05045-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05045-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05050-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05050-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05050-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05050-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05050-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05055-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05055-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05055-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05055-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05055-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05060-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05060-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05060-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05060-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05060-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05065-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05065-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05065-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05065-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05065-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05070-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05070-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05070-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05070-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05070-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05075-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05075-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05075-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05075-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05075-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05080-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05080-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05080-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05080-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05080-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05085-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05085-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05085-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05085-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05085-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05090-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05090-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05090-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05090-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05090-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05095-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05095-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05095-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05095-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05095-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05100-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05100-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05100-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05100-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05100-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05105-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05105-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05105-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05105-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05105-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05110-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1100 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05110-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1100 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05110-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1100 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05110-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1100 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05110-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1100 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05115-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1150 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05115-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1150 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05115-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1150 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05115-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1150 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05115-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1150 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05120-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1200 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05120-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1200 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05120-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1200 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05120-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1200 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05120-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1200 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05125-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1250 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05125-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1250 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05125-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1250 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05125-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1250 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05125-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1250 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05130-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1300 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05130-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1300 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05130-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1300 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05130-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1300 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05130-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1300 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05135-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1350 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05135-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1350 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05135-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1350 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05135-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1350 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05135-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1350 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05140-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1400 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05140-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1400 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05140-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1400 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05140-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1400 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05140-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1400 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05145-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1450 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05145-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1450 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05145-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1450 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05145-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1450 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05145-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1450 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-05150-E		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1500 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-05150-B		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1500 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-05150-R		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1500 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-05150-D		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1500 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-05150-L		Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1500 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10005-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10005-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10005-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10005-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10005-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10010-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10010-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10010-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10010-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10010-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10015-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10015-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10015-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10015-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10015-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10020-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10020-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10020-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10020-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10020-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10025-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10025-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10025-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10025-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10025-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10030-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10030-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10030-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10030-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10030-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10035-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10035-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10035-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10035-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10035-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10040-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10040-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10040-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10040-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10040-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10045-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10045-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10045-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10045-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10045-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10050-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10050-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10050-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10050-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10050-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10055-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10055-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10055-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10055-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10055-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10060-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10060-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10060-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10060-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10060-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10065-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10065-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10065-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10065-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10065-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10070-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10070-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10070-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10070-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10070-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10075-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10075-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10075-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10075-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10075-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10080-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10080-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10080-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10080-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10080-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10085-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10085-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10085-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10085-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10085-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10090-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10090-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10090-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10090-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10090-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10095-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10095-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10095-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10095-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10095-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10100-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10100-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10100-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10100-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10100-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10105-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10105-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10105-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10105-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10105-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10110-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1100 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10110-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1100 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10110-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1100 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10110-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1100 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10110-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1100 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10115-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1150 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10115-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1150 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10115-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1150 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10115-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1150 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10115-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1150 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10120-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1200 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10120-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1200 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10120-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1200 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10120-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1200 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10120-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1200 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10125-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1250 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10125-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1250 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10125-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1250 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10125-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1250 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10125-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1250 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10130-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1300 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10130-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1300 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10130-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1300 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10130-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1300 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10130-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1300 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10135-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1350 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10135-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1350 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10135-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1350 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10135-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1350 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10135-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1350 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10140-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1400 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10140-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1400 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10140-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1400 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10140-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1400 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10140-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1400 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10145-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1450 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10145-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1450 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10145-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1450 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10145-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1450 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10145-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1450 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-10150-E		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1500 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-10150-B		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1500 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-10150-R		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1500 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-10150-D		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1500 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-10150-L		Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1500 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25005-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25005-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 50 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25005-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25005-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25005-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25010-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25010-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 100 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25010-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25010-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25010-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25015-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25015-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 150 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25015-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25015-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25015-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25020-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25020-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 200 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25020-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25020-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25020-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25025-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25025-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 250 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25025-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25025-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25025-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25030-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25030-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 300 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25030-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25030-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25030-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25035-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25035-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 350 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25035-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25035-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25035-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25040-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25040-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 400 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25040-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25040-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25040-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25045-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25045-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 450 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25045-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25045-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25045-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25050-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25050-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 500 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25050-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25050-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25050-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25055-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25055-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 550 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25055-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25055-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25055-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25060-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25060-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 600 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25060-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25060-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25060-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25065-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25065-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 650 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25065-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25065-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25065-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25070-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25070-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 700 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25070-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25070-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25070-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25075-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25075-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 750 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25075-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25075-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25075-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25080-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25080-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 800 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25080-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25080-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25080-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25085-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25085-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 850 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25085-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25085-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25085-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25090-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25090-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 900 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25090-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25090-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25090-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25095-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25095-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 950 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25095-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25095-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25095-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25100-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25100-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1000 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25100-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25100-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25100-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25105-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25105-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1050 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25105-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25105-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25105-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25110-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1100 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25110-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1100 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25110-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1100 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25110-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1100 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25110-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1100 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25115-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1150 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25115-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1150 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25115-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1150 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25115-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1150 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25115-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1150 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25120-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1200 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25120-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1200 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25120-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1200 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25120-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1200 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25120-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1200 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25125-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1250 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25125-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1250 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25125-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1250 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25125-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1250 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25125-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1250 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25130-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1300 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25130-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1300 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25130-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1300 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25130-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1300 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25130-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1300 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25135-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1350 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25135-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1350 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25135-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1350 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25135-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1350 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25135-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1350 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25140-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1400 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25140-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1400 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25140-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1400 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25140-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1400 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25140-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1400 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25145-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1450 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25145-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1450 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25145-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1450 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25145-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1450 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25145-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1450 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-25150-E		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1500 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-25150-B		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1500 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-25150-R		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1500 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-25150-D		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1500 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-25150-L		Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1500 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40005-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40005-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40005-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40005-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40005-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40010-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40010-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40010-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40010-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40010-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40015-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40015-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40015-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40015-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40015-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40020-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40020-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40020-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40020-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40020-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40025-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40025-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40025-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40025-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40025-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40030-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40030-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40030-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40030-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40030-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40035-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40035-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40035-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40035-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40035-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40040-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40040-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40040-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40040-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40040-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40045-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40045-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40045-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40045-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40045-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40050-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40050-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40050-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40050-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40050-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40055-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40055-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40055-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40055-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40055-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40060-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40060-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40060-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40060-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40060-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40065-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40065-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40065-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40065-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40065-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40070-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40070-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40070-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40070-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40070-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40075-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40075-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40075-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40075-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40075-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40080-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40080-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40080-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40080-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40080-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40085-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40085-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40085-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40085-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40085-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40090-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40090-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40090-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40090-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40090-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40095-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40095-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40095-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40095-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40095-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40100-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40100-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40100-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40100-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40100-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40105-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40105-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40105-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40105-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40105-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40110-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40110-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40110-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40110-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40110-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40115-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40115-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40115-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40115-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40115-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40120-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40120-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40120-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40120-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40120-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40125-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40125-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40125-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40125-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40125-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40130-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1300 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40130-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1300 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40130-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1300 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40130-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1300 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40130-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1300 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40135-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1350 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40135-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1350 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40135-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1350 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40135-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1350 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40135-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1350 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40140-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1400 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40140-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1400 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40140-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1400 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40140-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1400 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40140-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1400 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40145-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1450 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40145-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1450 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40145-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1450 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40145-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1450 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40145-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1450 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-22-40150-E		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1500 mm \| Motor mounting: Straight \| Motor size: 750W
ECS-22-40150-B		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1500 mm \| Motor mounting: Built-in \| Motor size: 750W
ECS-22-40150-R		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1500 mm \| Motor mounting: Folded right \| Motor size: 750W
ECS-22-40150-D		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1500 mm \| Motor mounting: Folded down \| Motor size: 750W
ECS-22-40150-L		Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1500 mm \| Motor mounting: Folded left \| Motor size: 750W
ECS-14		Legacy code: Base model \| Body size: 14 (135 mm wide)
ECS-17		Legacy code: Base model \| Body size: 17 (170 mm wide)
ECS-22		Legacy code: Base model \| Body size: 22 (220 mm wide)

Electric ActuatorsCKD

761 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD ECS Low-Dust Ball Screw Slider Actuator (Sizes 14-22, 200-750W) - Part 2

Brand CKD·Electric Actuators

Available part numbers (761)

ECS-17-20095-R, ECS-17-20095-D, ECS-17-20095-L, ECS-17-20100-E, ECS-17-20100-B, ECS-17-20100-R, ECS-17-20100-D, ECS-17-20100-L, ECS-17-20105-E, ECS-17-20105-B + 751 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ECS-17-20095-R	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-20095-D	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-20095-L	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-20100-E	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-20100-B	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-20100-R	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-20100-D	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-20100-L	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-20105-E	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-20105-B	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-20105-R	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-20105-D	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-20105-L	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-20110-E	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1100 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-20110-B	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1100 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-20110-R	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1100 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-20110-D	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1100 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-20110-L	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1100 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-20115-E	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1150 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-20115-B	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1150 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-20115-R	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1150 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-20115-D	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1150 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-20115-L	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1150 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-20120-E	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1200 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-20120-B	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1200 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-20120-R	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1200 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-20120-D	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1200 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-20120-L	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1200 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-20125-E	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1250 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-20125-B	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1250 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-20125-R	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1250 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-20125-D	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1250 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-20125-L	Body size: 17 (170 mm wide) \| Screw lead: 20 mm \| Stroke: 1250 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40005-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40005-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40005-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40005-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40005-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40010-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40010-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40010-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40010-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40010-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40015-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40015-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40015-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40015-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40015-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40020-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40020-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40020-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40020-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40020-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40025-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40025-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40025-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40025-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40025-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40030-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40030-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40030-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40030-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40030-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40035-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40035-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40035-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40035-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40035-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40040-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40040-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40040-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40040-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40040-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40045-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40045-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40045-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40045-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40045-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40050-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40050-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40050-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40050-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40050-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40055-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40055-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40055-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40055-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40055-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40060-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40060-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40060-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40060-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40060-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40065-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40065-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40065-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40065-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40065-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40070-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40070-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40070-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40070-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40070-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40075-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40075-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40075-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40075-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40075-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40080-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40080-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40080-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40080-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40080-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40085-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40085-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40085-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40085-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40085-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40090-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40090-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40090-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40090-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40090-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40095-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40095-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40095-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40095-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40095-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40100-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40100-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40100-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40100-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40100-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40105-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40105-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40105-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40105-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40105-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40110-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40110-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40110-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40110-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40110-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40115-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40115-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40115-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40115-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40115-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40120-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40120-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40120-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40120-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40120-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-17-40125-E	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Straight \| Motor size: 400W
	ECS-17-40125-B	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Built-in \| Motor size: 400W/750W
	ECS-17-40125-R	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Folded right \| Motor size: 400W/750W
	ECS-17-40125-D	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Folded down \| Motor size: 400W/750W
	ECS-17-40125-L	Body size: 17 (170 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Folded left \| Motor size: 400W/750W
	ECS-22-05005-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05005-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05005-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05005-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05005-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05010-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05010-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05010-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05010-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05010-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05015-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05015-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05015-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05015-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05015-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05020-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05020-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05020-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05020-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05020-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05025-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05025-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05025-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05025-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05025-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05030-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05030-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05030-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05030-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05030-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05035-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05035-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05035-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05035-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05035-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05040-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05040-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05040-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05040-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05040-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05045-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05045-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05045-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05045-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05045-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05050-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05050-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05050-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05050-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05050-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05055-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05055-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05055-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05055-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05055-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05060-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05060-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05060-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05060-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05060-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05065-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05065-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05065-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05065-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05065-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05070-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05070-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05070-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05070-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05070-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05075-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05075-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05075-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05075-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05075-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05080-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05080-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05080-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05080-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05080-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05085-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05085-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05085-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05085-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05085-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05090-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05090-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05090-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05090-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05090-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05095-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05095-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05095-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05095-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05095-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05100-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05100-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05100-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05100-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05100-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05105-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05105-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05105-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05105-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05105-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05110-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1100 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05110-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1100 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05110-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1100 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05110-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1100 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05110-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1100 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05115-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1150 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05115-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1150 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05115-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1150 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05115-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1150 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05115-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1150 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05120-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1200 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05120-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1200 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05120-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1200 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05120-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1200 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05120-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1200 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05125-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1250 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05125-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1250 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05125-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1250 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05125-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1250 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05125-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1250 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05130-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1300 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05130-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1300 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05130-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1300 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05130-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1300 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05130-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1300 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05135-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1350 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05135-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1350 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05135-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1350 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05135-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1350 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05135-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1350 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05140-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1400 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05140-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1400 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05140-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1400 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05140-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1400 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05140-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1400 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05145-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1450 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05145-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1450 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05145-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1450 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05145-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1450 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05145-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1450 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-05150-E	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1500 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-05150-B	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1500 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-05150-R	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1500 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-05150-D	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1500 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-05150-L	Body size: 22 (220 mm wide) \| Screw lead: 5 mm \| Stroke: 1500 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10005-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10005-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10005-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10005-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10005-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10010-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10010-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10010-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10010-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10010-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10015-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10015-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10015-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10015-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10015-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10020-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10020-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10020-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10020-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10020-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10025-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10025-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10025-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10025-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10025-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10030-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10030-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10030-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10030-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10030-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10035-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10035-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10035-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10035-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10035-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10040-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10040-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10040-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10040-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10040-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10045-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10045-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10045-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10045-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10045-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10050-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10050-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10050-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10050-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10050-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10055-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10055-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10055-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10055-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10055-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10060-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10060-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10060-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10060-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10060-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10065-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10065-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10065-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10065-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10065-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10070-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10070-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10070-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10070-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10070-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10075-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10075-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10075-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10075-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10075-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10080-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10080-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10080-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10080-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10080-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10085-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10085-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10085-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10085-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10085-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10090-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10090-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10090-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10090-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10090-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10095-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10095-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10095-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10095-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10095-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10100-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10100-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10100-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10100-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10100-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10105-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10105-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10105-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10105-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10105-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10110-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1100 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10110-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1100 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10110-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1100 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10110-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1100 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10110-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1100 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10115-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1150 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10115-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1150 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10115-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1150 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10115-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1150 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10115-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1150 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10120-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1200 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10120-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1200 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10120-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1200 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10120-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1200 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10120-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1200 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10125-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1250 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10125-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1250 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10125-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1250 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10125-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1250 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10125-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1250 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10130-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1300 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10130-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1300 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10130-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1300 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10130-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1300 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10130-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1300 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10135-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1350 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10135-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1350 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10135-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1350 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10135-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1350 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10135-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1350 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10140-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1400 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10140-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1400 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10140-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1400 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10140-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1400 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10140-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1400 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10145-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1450 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10145-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1450 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10145-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1450 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10145-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1450 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10145-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1450 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-10150-E	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1500 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-10150-B	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1500 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-10150-R	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1500 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-10150-D	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1500 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-10150-L	Body size: 22 (220 mm wide) \| Screw lead: 10 mm \| Stroke: 1500 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25005-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25005-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 50 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25005-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25005-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25005-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25010-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25010-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 100 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25010-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25010-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25010-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25015-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25015-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 150 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25015-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25015-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25015-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25020-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25020-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 200 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25020-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25020-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25020-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25025-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25025-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 250 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25025-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25025-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25025-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25030-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25030-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 300 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25030-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25030-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25030-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25035-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25035-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 350 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25035-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25035-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25035-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25040-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25040-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 400 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25040-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25040-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25040-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25045-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25045-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 450 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25045-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25045-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25045-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25050-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25050-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 500 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25050-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25050-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25050-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25055-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25055-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 550 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25055-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25055-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25055-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25060-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25060-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 600 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25060-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25060-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25060-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25065-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25065-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 650 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25065-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25065-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25065-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25070-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25070-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 700 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25070-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25070-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25070-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25075-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25075-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 750 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25075-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25075-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25075-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25080-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25080-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 800 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25080-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25080-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25080-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25085-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25085-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 850 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25085-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25085-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25085-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25090-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25090-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 900 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25090-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25090-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25090-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25095-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25095-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 950 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25095-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25095-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25095-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25100-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25100-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1000 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25100-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25100-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25100-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25105-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25105-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1050 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25105-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25105-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25105-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25110-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1100 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25110-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1100 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25110-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1100 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25110-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1100 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25110-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1100 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25115-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1150 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25115-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1150 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25115-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1150 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25115-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1150 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25115-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1150 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25120-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1200 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25120-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1200 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25120-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1200 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25120-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1200 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25120-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1200 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25125-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1250 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25125-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1250 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25125-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1250 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25125-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1250 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25125-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1250 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25130-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1300 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25130-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1300 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25130-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1300 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25130-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1300 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25130-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1300 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25135-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1350 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25135-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1350 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25135-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1350 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25135-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1350 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25135-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1350 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25140-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1400 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25140-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1400 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25140-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1400 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25140-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1400 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25140-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1400 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25145-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1450 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25145-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1450 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25145-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1450 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25145-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1450 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25145-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1450 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-25150-E	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1500 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-25150-B	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1500 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-25150-R	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1500 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-25150-D	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1500 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-25150-L	Body size: 22 (220 mm wide) \| Screw lead: 25 mm \| Stroke: 1500 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40005-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40005-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40005-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40005-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40005-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 50 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40010-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40010-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40010-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40010-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40010-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 100 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40015-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40015-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40015-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40015-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40015-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 150 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40020-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40020-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40020-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40020-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40020-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 200 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40025-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40025-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40025-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40025-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40025-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 250 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40030-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40030-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40030-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40030-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40030-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 300 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40035-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40035-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40035-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40035-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40035-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 350 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40040-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40040-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40040-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40040-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40040-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 400 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40045-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40045-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40045-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40045-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40045-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 450 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40050-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40050-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40050-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40050-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40050-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 500 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40055-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40055-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40055-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40055-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40055-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 550 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40060-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40060-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40060-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40060-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40060-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 600 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40065-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40065-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40065-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40065-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40065-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 650 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40070-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40070-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40070-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40070-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40070-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 700 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40075-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40075-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40075-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40075-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40075-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 750 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40080-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40080-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40080-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40080-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40080-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 800 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40085-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40085-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40085-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40085-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40085-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 850 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40090-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40090-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40090-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40090-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40090-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 900 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40095-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40095-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40095-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40095-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40095-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 950 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40100-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40100-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40100-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40100-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40100-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1000 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40105-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40105-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40105-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40105-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40105-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1050 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40110-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40110-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40110-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40110-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40110-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1100 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40115-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40115-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40115-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40115-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40115-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1150 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40120-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40120-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40120-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40120-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40120-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1200 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40125-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40125-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40125-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40125-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40125-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1250 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40130-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1300 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40130-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1300 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40130-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1300 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40130-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1300 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40130-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1300 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40135-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1350 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40135-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1350 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40135-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1350 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40135-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1350 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40135-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1350 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40140-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1400 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40140-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1400 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40140-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1400 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40140-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1400 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40140-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1400 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40145-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1450 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40145-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1450 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40145-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1450 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40145-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1450 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40145-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1450 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-22-40150-E	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1500 mm \| Motor mounting: Straight \| Motor size: 750W
	ECS-22-40150-B	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1500 mm \| Motor mounting: Built-in \| Motor size: 750W
	ECS-22-40150-R	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1500 mm \| Motor mounting: Folded right \| Motor size: 750W
	ECS-22-40150-D	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1500 mm \| Motor mounting: Folded down \| Motor size: 750W
	ECS-22-40150-L	Body size: 22 (220 mm wide) \| Screw lead: 40 mm \| Stroke: 1500 mm \| Motor mounting: Folded left \| Motor size: 750W
	ECS-14	Legacy code: Base model \| Body size: 14 (135 mm wide)
	ECS-17	Legacy code: Base model \| Body size: 17 (170 mm wide)
	ECS-22	Legacy code: Base model \| Body size: 22 (220 mm wide)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

CKD ECS Low-Dust Ball Screw Slider Actuator (Sizes 14-22, 200-750W) - Part 2
