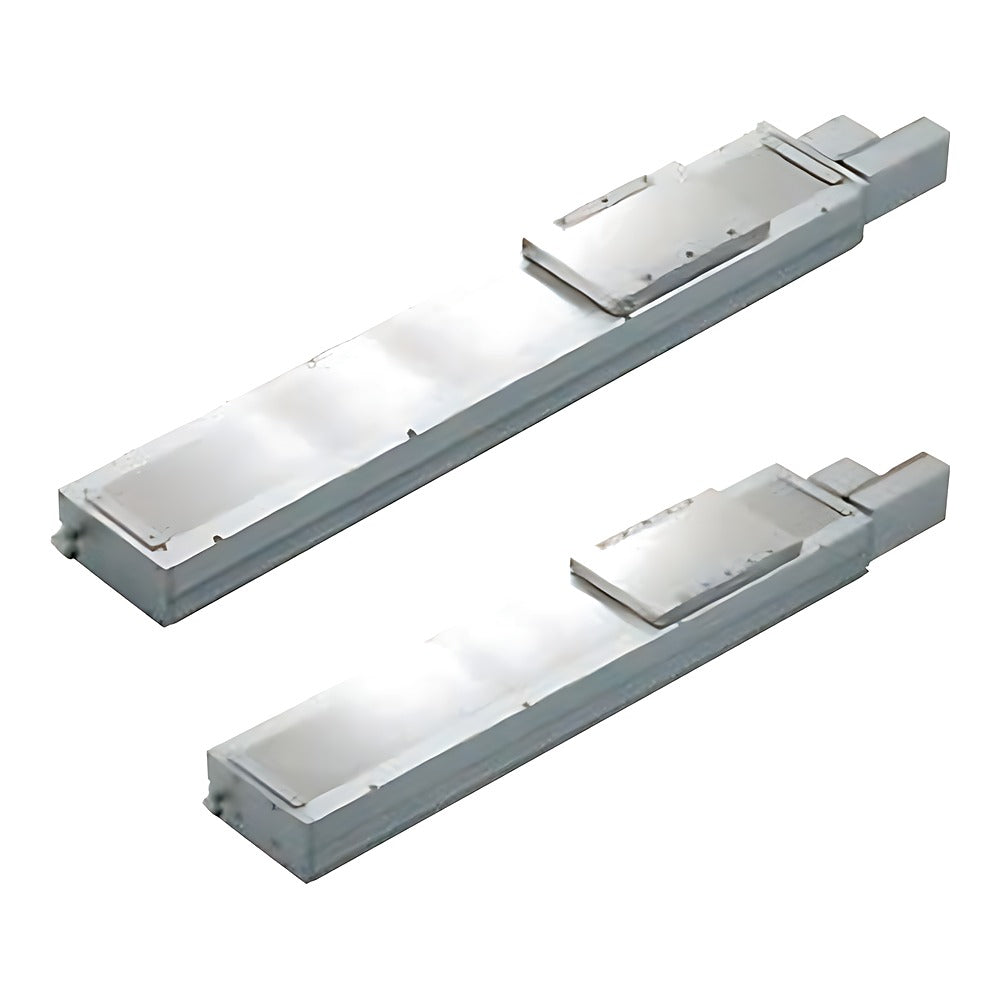

CKD ECV Belt-Drive Slider Actuator, Low Dust (Motorless, 17-22)

CKD ECV low-dust-generation belt-drive slider electric actuator, supplied motorless for customer 400W and 750W servo motors (body sizes 17 and 22).

Key features

Belt-driven slider for clean environments; particle data within ISO class 4-5 range (ECV-05/14/17 test, not guaranteed)
Motorless: actuator and motor mounting parts supplied; servo motors from Mitsubishi, Yaskawa, Panasonic, OMRON, Fuji, FANUC, Siemens etc. by mounting spec M/Y/P/F
Folded motor mounting: U/D for ECV-05/06; R/S/T/L/V/W (right/left, level/upward/downward) for ECV-10 to 22
Strokes in 50 mm steps: 100-800 mm (05/06), 2550 mm (10), 3050 mm (14), 3500 mm (17), 3400 mm (22)
Options as code letters: origin sensor C/D, limit sensors B (set), grease nipple R/L, positioning pin hole P, urethane belt L (10-22)
Max. horizontal payload 3 kg (05/06), 10 kg (10), 25 kg (14), 45 kg (17), 85 kg (22); horizontal mounting only

Specifications

Drive	Timing belt, low dust generation slider
Motor	Motorless; servo motor and driver by customer
Mounting motor spec	M (Y/P/F per motor maker on request)
Drive belt	X standard rubber (L urethane low-dust option)
Max. speed	2000 mm/s (ECV-10: 1600 mm/s)
Repeatability	+/-0.08 mm (05/06), +/-0.04 mm (10-22)
Lost motion	0.2 mm max. (05/06), 0.1 mm max. (10-22)
Ambient	0-40 C, 35-80% RH, no condensation
Sensors / grease nipple / pin hole	N (none) in listed codes
Source	CKD Korea catalog CB-055K-1, p. 409-466

ECV-17-40010-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 100 mm \| Motor mounting: Right folded
ECV-17-40010-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 100 mm \| Motor mounting: Right folded, upward
ECV-17-40010-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 100 mm \| Motor mounting: Right folded, downward
ECV-17-40010-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 100 mm \| Motor mounting: Left folded
ECV-17-40010-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 100 mm \| Motor mounting: Left folded, upward
ECV-17-40010-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 100 mm \| Motor mounting: Left folded, downward
ECV-17-40015-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 150 mm \| Motor mounting: Right folded
ECV-17-40015-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 150 mm \| Motor mounting: Right folded, upward
ECV-17-40015-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 150 mm \| Motor mounting: Right folded, downward
ECV-17-40015-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 150 mm \| Motor mounting: Left folded
ECV-17-40015-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 150 mm \| Motor mounting: Left folded, upward
ECV-17-40015-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 150 mm \| Motor mounting: Left folded, downward
ECV-17-40020-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 200 mm \| Motor mounting: Right folded
ECV-17-40020-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 200 mm \| Motor mounting: Right folded, upward
ECV-17-40020-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 200 mm \| Motor mounting: Right folded, downward
ECV-17-40020-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 200 mm \| Motor mounting: Left folded
ECV-17-40020-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 200 mm \| Motor mounting: Left folded, upward
ECV-17-40020-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 200 mm \| Motor mounting: Left folded, downward
ECV-17-40025-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 250 mm \| Motor mounting: Right folded
ECV-17-40025-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 250 mm \| Motor mounting: Right folded, upward
ECV-17-40025-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 250 mm \| Motor mounting: Right folded, downward
ECV-17-40025-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 250 mm \| Motor mounting: Left folded
ECV-17-40025-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 250 mm \| Motor mounting: Left folded, upward
ECV-17-40025-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 250 mm \| Motor mounting: Left folded, downward
ECV-17-40030-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 300 mm \| Motor mounting: Right folded
ECV-17-40030-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 300 mm \| Motor mounting: Right folded, upward
ECV-17-40030-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 300 mm \| Motor mounting: Right folded, downward
ECV-17-40030-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 300 mm \| Motor mounting: Left folded
ECV-17-40030-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 300 mm \| Motor mounting: Left folded, upward
ECV-17-40030-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 300 mm \| Motor mounting: Left folded, downward
ECV-17-40035-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 350 mm \| Motor mounting: Right folded
ECV-17-40035-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 350 mm \| Motor mounting: Right folded, upward
ECV-17-40035-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 350 mm \| Motor mounting: Right folded, downward
ECV-17-40035-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 350 mm \| Motor mounting: Left folded
ECV-17-40035-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 350 mm \| Motor mounting: Left folded, upward
ECV-17-40035-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 350 mm \| Motor mounting: Left folded, downward
ECV-17-40040-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 400 mm \| Motor mounting: Right folded
ECV-17-40040-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 400 mm \| Motor mounting: Right folded, upward
ECV-17-40040-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 400 mm \| Motor mounting: Right folded, downward
ECV-17-40040-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 400 mm \| Motor mounting: Left folded
ECV-17-40040-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 400 mm \| Motor mounting: Left folded, upward
ECV-17-40040-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 400 mm \| Motor mounting: Left folded, downward
ECV-17-40045-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 450 mm \| Motor mounting: Right folded
ECV-17-40045-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 450 mm \| Motor mounting: Right folded, upward
ECV-17-40045-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 450 mm \| Motor mounting: Right folded, downward
ECV-17-40045-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 450 mm \| Motor mounting: Left folded
ECV-17-40045-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 450 mm \| Motor mounting: Left folded, upward
ECV-17-40045-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 450 mm \| Motor mounting: Left folded, downward
ECV-17-40050-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 500 mm \| Motor mounting: Right folded
ECV-17-40050-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 500 mm \| Motor mounting: Right folded, upward
ECV-17-40050-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 500 mm \| Motor mounting: Right folded, downward
ECV-17-40050-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 500 mm \| Motor mounting: Left folded
ECV-17-40050-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 500 mm \| Motor mounting: Left folded, upward
ECV-17-40050-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 500 mm \| Motor mounting: Left folded, downward
ECV-17-40055-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 550 mm \| Motor mounting: Right folded
ECV-17-40055-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 550 mm \| Motor mounting: Right folded, upward
ECV-17-40055-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 550 mm \| Motor mounting: Right folded, downward
ECV-17-40055-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 550 mm \| Motor mounting: Left folded
ECV-17-40055-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 550 mm \| Motor mounting: Left folded, upward
ECV-17-40055-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 550 mm \| Motor mounting: Left folded, downward
ECV-17-40060-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 600 mm \| Motor mounting: Right folded
ECV-17-40060-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 600 mm \| Motor mounting: Right folded, upward
ECV-17-40060-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 600 mm \| Motor mounting: Right folded, downward
ECV-17-40060-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 600 mm \| Motor mounting: Left folded
ECV-17-40060-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 600 mm \| Motor mounting: Left folded, upward
ECV-17-40060-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 600 mm \| Motor mounting: Left folded, downward
ECV-17-40065-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 650 mm \| Motor mounting: Right folded
ECV-17-40065-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 650 mm \| Motor mounting: Right folded, upward
ECV-17-40065-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 650 mm \| Motor mounting: Right folded, downward
ECV-17-40065-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 650 mm \| Motor mounting: Left folded
ECV-17-40065-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 650 mm \| Motor mounting: Left folded, upward
ECV-17-40065-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 650 mm \| Motor mounting: Left folded, downward
ECV-17-40070-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 700 mm \| Motor mounting: Right folded
ECV-17-40070-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 700 mm \| Motor mounting: Right folded, upward
ECV-17-40070-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 700 mm \| Motor mounting: Right folded, downward
ECV-17-40070-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 700 mm \| Motor mounting: Left folded
ECV-17-40070-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 700 mm \| Motor mounting: Left folded, upward
ECV-17-40070-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 700 mm \| Motor mounting: Left folded, downward
ECV-17-40075-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 750 mm \| Motor mounting: Right folded
ECV-17-40075-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 750 mm \| Motor mounting: Right folded, upward
ECV-17-40075-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 750 mm \| Motor mounting: Right folded, downward
ECV-17-40075-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 750 mm \| Motor mounting: Left folded
ECV-17-40075-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 750 mm \| Motor mounting: Left folded, upward
ECV-17-40075-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 750 mm \| Motor mounting: Left folded, downward
ECV-17-40080-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 800 mm \| Motor mounting: Right folded
ECV-17-40080-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 800 mm \| Motor mounting: Right folded, upward
ECV-17-40080-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 800 mm \| Motor mounting: Right folded, downward
ECV-17-40080-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 800 mm \| Motor mounting: Left folded
ECV-17-40080-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 800 mm \| Motor mounting: Left folded, upward
ECV-17-40080-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 800 mm \| Motor mounting: Left folded, downward
ECV-17-40085-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 850 mm \| Motor mounting: Right folded
ECV-17-40085-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 850 mm \| Motor mounting: Right folded, upward
ECV-17-40085-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 850 mm \| Motor mounting: Right folded, downward
ECV-17-40085-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 850 mm \| Motor mounting: Left folded
ECV-17-40085-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 850 mm \| Motor mounting: Left folded, upward
ECV-17-40085-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 850 mm \| Motor mounting: Left folded, downward
ECV-17-40090-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 900 mm \| Motor mounting: Right folded
ECV-17-40090-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 900 mm \| Motor mounting: Right folded, upward
ECV-17-40090-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 900 mm \| Motor mounting: Right folded, downward
ECV-17-40090-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 900 mm \| Motor mounting: Left folded
ECV-17-40090-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 900 mm \| Motor mounting: Left folded, upward
ECV-17-40090-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 900 mm \| Motor mounting: Left folded, downward
ECV-17-40095-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 950 mm \| Motor mounting: Right folded
ECV-17-40095-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 950 mm \| Motor mounting: Right folded, upward
ECV-17-40095-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 950 mm \| Motor mounting: Right folded, downward
ECV-17-40095-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 950 mm \| Motor mounting: Left folded
ECV-17-40095-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 950 mm \| Motor mounting: Left folded, upward
ECV-17-40095-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 950 mm \| Motor mounting: Left folded, downward
ECV-17-40100-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Right folded
ECV-17-40100-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Right folded, upward
ECV-17-40100-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Right folded, downward
ECV-17-40100-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Left folded
ECV-17-40100-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Left folded, upward
ECV-17-40100-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Left folded, downward
ECV-17-40105-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Right folded
ECV-17-40105-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Right folded, upward
ECV-17-40105-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Right folded, downward
ECV-17-40105-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Left folded
ECV-17-40105-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Left folded, upward
ECV-17-40105-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Left folded, downward
ECV-17-40110-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Right folded
ECV-17-40110-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Right folded, upward
ECV-17-40110-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Right folded, downward
ECV-17-40110-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Left folded
ECV-17-40110-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Left folded, upward
ECV-17-40110-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Left folded, downward
ECV-17-40115-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Right folded
ECV-17-40115-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Right folded, upward
ECV-17-40115-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Right folded, downward
ECV-17-40115-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Left folded
ECV-17-40115-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Left folded, upward
ECV-17-40115-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Left folded, downward
ECV-17-40120-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Right folded
ECV-17-40120-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Right folded, upward
ECV-17-40120-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Right folded, downward
ECV-17-40120-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Left folded
ECV-17-40120-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Left folded, upward
ECV-17-40120-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Left folded, downward
ECV-17-40125-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Right folded
ECV-17-40125-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Right folded, upward
ECV-17-40125-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Right folded, downward
ECV-17-40125-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Left folded
ECV-17-40125-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Left folded, upward
ECV-17-40125-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Left folded, downward
ECV-17-40130-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Right folded
ECV-17-40130-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Right folded, upward
ECV-17-40130-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Right folded, downward
ECV-17-40130-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Left folded
ECV-17-40130-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Left folded, upward
ECV-17-40130-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Left folded, downward
ECV-17-40135-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Right folded
ECV-17-40135-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Right folded, upward
ECV-17-40135-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Right folded, downward
ECV-17-40135-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Left folded
ECV-17-40135-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Left folded, upward
ECV-17-40135-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Left folded, downward
ECV-17-40140-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Right folded
ECV-17-40140-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Right folded, upward
ECV-17-40140-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Right folded, downward
ECV-17-40140-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Left folded
ECV-17-40140-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Left folded, upward
ECV-17-40140-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Left folded, downward
ECV-17-40145-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Right folded
ECV-17-40145-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Right folded, upward
ECV-17-40145-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Right folded, downward
ECV-17-40145-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Left folded
ECV-17-40145-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Left folded, upward
ECV-17-40145-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Left folded, downward
ECV-17-40150-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Right folded
ECV-17-40150-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Right folded, upward
ECV-17-40150-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Right folded, downward
ECV-17-40150-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Left folded
ECV-17-40150-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Left folded, upward
ECV-17-40150-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Left folded, downward
ECV-17-40155-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Right folded
ECV-17-40155-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Right folded, upward
ECV-17-40155-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Right folded, downward
ECV-17-40155-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Left folded
ECV-17-40155-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Left folded, upward
ECV-17-40155-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Left folded, downward
ECV-17-40160-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Right folded
ECV-17-40160-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Right folded, upward
ECV-17-40160-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Right folded, downward
ECV-17-40160-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Left folded
ECV-17-40160-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Left folded, upward
ECV-17-40160-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Left folded, downward
ECV-17-40165-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Right folded
ECV-17-40165-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Right folded, upward
ECV-17-40165-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Right folded, downward
ECV-17-40165-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Left folded
ECV-17-40165-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Left folded, upward
ECV-17-40165-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Left folded, downward
ECV-17-40170-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Right folded
ECV-17-40170-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Right folded, upward
ECV-17-40170-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Right folded, downward
ECV-17-40170-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Left folded
ECV-17-40170-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Left folded, upward
ECV-17-40170-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Left folded, downward
ECV-17-40175-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Right folded
ECV-17-40175-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Right folded, upward
ECV-17-40175-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Right folded, downward
ECV-17-40175-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Left folded
ECV-17-40175-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Left folded, upward
ECV-17-40175-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Left folded, downward
ECV-17-40180-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Right folded
ECV-17-40180-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Right folded, upward
ECV-17-40180-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Right folded, downward
ECV-17-40180-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Left folded
ECV-17-40180-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Left folded, upward
ECV-17-40180-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Left folded, downward
ECV-17-40185-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Right folded
ECV-17-40185-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Right folded, upward
ECV-17-40185-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Right folded, downward
ECV-17-40185-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Left folded
ECV-17-40185-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Left folded, upward
ECV-17-40185-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Left folded, downward
ECV-17-40190-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Right folded
ECV-17-40190-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Right folded, upward
ECV-17-40190-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Right folded, downward
ECV-17-40190-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Left folded
ECV-17-40190-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Left folded, upward
ECV-17-40190-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Left folded, downward
ECV-17-40195-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Right folded
ECV-17-40195-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Right folded, upward
ECV-17-40195-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Right folded, downward
ECV-17-40195-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Left folded
ECV-17-40195-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Left folded, upward
ECV-17-40195-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Left folded, downward
ECV-17-40200-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Right folded
ECV-17-40200-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Right folded, upward
ECV-17-40200-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Right folded, downward
ECV-17-40200-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Left folded
ECV-17-40200-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Left folded, upward
ECV-17-40200-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Left folded, downward
ECV-17-40205-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Right folded
ECV-17-40205-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Right folded, upward
ECV-17-40205-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Right folded, downward
ECV-17-40205-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Left folded
ECV-17-40205-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Left folded, upward
ECV-17-40205-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Left folded, downward
ECV-17-40210-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Right folded
ECV-17-40210-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Right folded, upward
ECV-17-40210-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Right folded, downward
ECV-17-40210-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Left folded
ECV-17-40210-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Left folded, upward
ECV-17-40210-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Left folded, downward
ECV-17-40215-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Right folded
ECV-17-40215-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Right folded, upward
ECV-17-40215-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Right folded, downward
ECV-17-40215-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Left folded
ECV-17-40215-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Left folded, upward
ECV-17-40215-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Left folded, downward
ECV-17-40220-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Right folded
ECV-17-40220-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Right folded, upward
ECV-17-40220-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Right folded, downward
ECV-17-40220-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Left folded
ECV-17-40220-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Left folded, upward
ECV-17-40220-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Left folded, downward
ECV-17-40225-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Right folded
ECV-17-40225-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Right folded, upward
ECV-17-40225-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Right folded, downward
ECV-17-40225-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Left folded
ECV-17-40225-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Left folded, upward
ECV-17-40225-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Left folded, downward
ECV-17-40230-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Right folded
ECV-17-40230-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Right folded, upward
ECV-17-40230-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Right folded, downward
ECV-17-40230-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Left folded
ECV-17-40230-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Left folded, upward
ECV-17-40230-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Left folded, downward
ECV-17-40235-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Right folded
ECV-17-40235-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Right folded, upward
ECV-17-40235-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Right folded, downward
ECV-17-40235-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Left folded
ECV-17-40235-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Left folded, upward
ECV-17-40235-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Left folded, downward
ECV-17-40240-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Right folded
ECV-17-40240-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Right folded, upward
ECV-17-40240-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Right folded, downward
ECV-17-40240-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Left folded
ECV-17-40240-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Left folded, upward
ECV-17-40240-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Left folded, downward
ECV-17-40245-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Right folded
ECV-17-40245-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Right folded, upward
ECV-17-40245-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Right folded, downward
ECV-17-40245-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Left folded
ECV-17-40245-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Left folded, upward
ECV-17-40245-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Left folded, downward
ECV-17-40250-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Right folded
ECV-17-40250-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Right folded, upward
ECV-17-40250-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Right folded, downward
ECV-17-40250-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Left folded
ECV-17-40250-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Left folded, upward
ECV-17-40250-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Left folded, downward
ECV-17-40255-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Right folded
ECV-17-40255-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Right folded, upward
ECV-17-40255-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Right folded, downward
ECV-17-40255-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Left folded
ECV-17-40255-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Left folded, upward
ECV-17-40255-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Left folded, downward
ECV-17-40260-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Right folded
ECV-17-40260-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Right folded, upward
ECV-17-40260-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Right folded, downward
ECV-17-40260-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Left folded
ECV-17-40260-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Left folded, upward
ECV-17-40260-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Left folded, downward
ECV-17-40265-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Right folded
ECV-17-40265-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Right folded, upward
ECV-17-40265-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Right folded, downward
ECV-17-40265-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Left folded
ECV-17-40265-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Left folded, upward
ECV-17-40265-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Left folded, downward
ECV-17-40270-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Right folded
ECV-17-40270-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Right folded, upward
ECV-17-40270-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Right folded, downward
ECV-17-40270-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Left folded
ECV-17-40270-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Left folded, upward
ECV-17-40270-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Left folded, downward
ECV-17-40275-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Right folded
ECV-17-40275-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Right folded, upward
ECV-17-40275-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Right folded, downward
ECV-17-40275-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Left folded
ECV-17-40275-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Left folded, upward
ECV-17-40275-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Left folded, downward
ECV-17-40280-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Right folded
ECV-17-40280-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Right folded, upward
ECV-17-40280-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Right folded, downward
ECV-17-40280-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Left folded
ECV-17-40280-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Left folded, upward
ECV-17-40280-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Left folded, downward
ECV-17-40285-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Right folded
ECV-17-40285-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Right folded, upward
ECV-17-40285-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Right folded, downward
ECV-17-40285-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Left folded
ECV-17-40285-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Left folded, upward
ECV-17-40285-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Left folded, downward
ECV-17-40290-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Right folded
ECV-17-40290-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Right folded, upward
ECV-17-40290-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Right folded, downward
ECV-17-40290-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Left folded
ECV-17-40290-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Left folded, upward
ECV-17-40290-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Left folded, downward
ECV-17-40295-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Right folded
ECV-17-40295-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Right folded, upward
ECV-17-40295-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Right folded, downward
ECV-17-40295-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Left folded
ECV-17-40295-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Left folded, upward
ECV-17-40295-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Left folded, downward
ECV-17-40300-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Right folded
ECV-17-40300-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Right folded, upward
ECV-17-40300-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Right folded, downward
ECV-17-40300-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Left folded
ECV-17-40300-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Left folded, upward
ECV-17-40300-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Left folded, downward
ECV-17-40305-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Right folded
ECV-17-40305-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Right folded, upward
ECV-17-40305-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Right folded, downward
ECV-17-40305-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Left folded
ECV-17-40305-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Left folded, upward
ECV-17-40305-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Left folded, downward
ECV-17-40310-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Right folded
ECV-17-40310-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Right folded, upward
ECV-17-40310-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Right folded, downward
ECV-17-40310-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Left folded
ECV-17-40310-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Left folded, upward
ECV-17-40310-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Left folded, downward
ECV-17-40315-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Right folded
ECV-17-40315-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Right folded, upward
ECV-17-40315-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Right folded, downward
ECV-17-40315-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Left folded
ECV-17-40315-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Left folded, upward
ECV-17-40315-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Left folded, downward
ECV-17-40320-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Right folded
ECV-17-40320-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Right folded, upward
ECV-17-40320-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Right folded, downward
ECV-17-40320-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Left folded
ECV-17-40320-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Left folded, upward
ECV-17-40320-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Left folded, downward
ECV-17-40325-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Right folded
ECV-17-40325-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Right folded, upward
ECV-17-40325-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Right folded, downward
ECV-17-40325-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Left folded
ECV-17-40325-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Left folded, upward
ECV-17-40325-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Left folded, downward
ECV-17-40330-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Right folded
ECV-17-40330-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Right folded, upward
ECV-17-40330-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Right folded, downward
ECV-17-40330-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Left folded
ECV-17-40330-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Left folded, upward
ECV-17-40330-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Left folded, downward
ECV-17-40335-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Right folded
ECV-17-40335-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Right folded, upward
ECV-17-40335-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Right folded, downward
ECV-17-40335-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Left folded
ECV-17-40335-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Left folded, upward
ECV-17-40335-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Left folded, downward
ECV-17-40340-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Right folded
ECV-17-40340-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Right folded, upward
ECV-17-40340-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Right folded, downward
ECV-17-40340-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Left folded
ECV-17-40340-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Left folded, upward
ECV-17-40340-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Left folded, downward
ECV-17-40345-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3450 mm \| Motor mounting: Right folded
ECV-17-40345-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3450 mm \| Motor mounting: Right folded, upward
ECV-17-40345-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3450 mm \| Motor mounting: Right folded, downward
ECV-17-40345-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3450 mm \| Motor mounting: Left folded
ECV-17-40345-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3450 mm \| Motor mounting: Left folded, upward
ECV-17-40345-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3450 mm \| Motor mounting: Left folded, downward
ECV-17-40350-RM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3500 mm \| Motor mounting: Right folded
ECV-17-40350-SM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3500 mm \| Motor mounting: Right folded, upward
ECV-17-40350-TM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3500 mm \| Motor mounting: Right folded, downward
ECV-17-40350-LM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3500 mm \| Motor mounting: Left folded
ECV-17-40350-VM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3500 mm \| Motor mounting: Left folded, upward
ECV-17-40350-WM4XNNNN		Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3500 mm \| Motor mounting: Left folded, downward
ECV-22-40010-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 100 mm \| Motor mounting: Right folded
ECV-22-40010-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 100 mm \| Motor mounting: Right folded, upward
ECV-22-40010-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 100 mm \| Motor mounting: Right folded, downward
ECV-22-40010-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 100 mm \| Motor mounting: Left folded
ECV-22-40010-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 100 mm \| Motor mounting: Left folded, upward
ECV-22-40010-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 100 mm \| Motor mounting: Left folded, downward
ECV-22-40015-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 150 mm \| Motor mounting: Right folded
ECV-22-40015-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 150 mm \| Motor mounting: Right folded, upward
ECV-22-40015-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 150 mm \| Motor mounting: Right folded, downward
ECV-22-40015-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 150 mm \| Motor mounting: Left folded
ECV-22-40015-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 150 mm \| Motor mounting: Left folded, upward
ECV-22-40015-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 150 mm \| Motor mounting: Left folded, downward
ECV-22-40020-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 200 mm \| Motor mounting: Right folded
ECV-22-40020-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 200 mm \| Motor mounting: Right folded, upward
ECV-22-40020-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 200 mm \| Motor mounting: Right folded, downward
ECV-22-40020-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 200 mm \| Motor mounting: Left folded
ECV-22-40020-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 200 mm \| Motor mounting: Left folded, upward
ECV-22-40020-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 200 mm \| Motor mounting: Left folded, downward
ECV-22-40025-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 250 mm \| Motor mounting: Right folded
ECV-22-40025-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 250 mm \| Motor mounting: Right folded, upward
ECV-22-40025-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 250 mm \| Motor mounting: Right folded, downward
ECV-22-40025-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 250 mm \| Motor mounting: Left folded
ECV-22-40025-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 250 mm \| Motor mounting: Left folded, upward
ECV-22-40025-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 250 mm \| Motor mounting: Left folded, downward
ECV-22-40030-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 300 mm \| Motor mounting: Right folded
ECV-22-40030-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 300 mm \| Motor mounting: Right folded, upward
ECV-22-40030-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 300 mm \| Motor mounting: Right folded, downward
ECV-22-40030-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 300 mm \| Motor mounting: Left folded
ECV-22-40030-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 300 mm \| Motor mounting: Left folded, upward
ECV-22-40030-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 300 mm \| Motor mounting: Left folded, downward
ECV-22-40035-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 350 mm \| Motor mounting: Right folded
ECV-22-40035-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 350 mm \| Motor mounting: Right folded, upward
ECV-22-40035-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 350 mm \| Motor mounting: Right folded, downward
ECV-22-40035-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 350 mm \| Motor mounting: Left folded
ECV-22-40035-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 350 mm \| Motor mounting: Left folded, upward
ECV-22-40035-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 350 mm \| Motor mounting: Left folded, downward
ECV-22-40040-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 400 mm \| Motor mounting: Right folded
ECV-22-40040-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 400 mm \| Motor mounting: Right folded, upward
ECV-22-40040-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 400 mm \| Motor mounting: Right folded, downward
ECV-22-40040-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 400 mm \| Motor mounting: Left folded
ECV-22-40040-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 400 mm \| Motor mounting: Left folded, upward
ECV-22-40040-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 400 mm \| Motor mounting: Left folded, downward
ECV-22-40045-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 450 mm \| Motor mounting: Right folded
ECV-22-40045-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 450 mm \| Motor mounting: Right folded, upward
ECV-22-40045-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 450 mm \| Motor mounting: Right folded, downward
ECV-22-40045-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 450 mm \| Motor mounting: Left folded
ECV-22-40045-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 450 mm \| Motor mounting: Left folded, upward
ECV-22-40045-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 450 mm \| Motor mounting: Left folded, downward
ECV-22-40050-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 500 mm \| Motor mounting: Right folded
ECV-22-40050-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 500 mm \| Motor mounting: Right folded, upward
ECV-22-40050-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 500 mm \| Motor mounting: Right folded, downward
ECV-22-40050-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 500 mm \| Motor mounting: Left folded
ECV-22-40050-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 500 mm \| Motor mounting: Left folded, upward
ECV-22-40050-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 500 mm \| Motor mounting: Left folded, downward
ECV-22-40055-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 550 mm \| Motor mounting: Right folded
ECV-22-40055-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 550 mm \| Motor mounting: Right folded, upward
ECV-22-40055-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 550 mm \| Motor mounting: Right folded, downward
ECV-22-40055-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 550 mm \| Motor mounting: Left folded
ECV-22-40055-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 550 mm \| Motor mounting: Left folded, upward
ECV-22-40055-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 550 mm \| Motor mounting: Left folded, downward
ECV-22-40060-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 600 mm \| Motor mounting: Right folded
ECV-22-40060-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 600 mm \| Motor mounting: Right folded, upward
ECV-22-40060-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 600 mm \| Motor mounting: Right folded, downward
ECV-22-40060-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 600 mm \| Motor mounting: Left folded
ECV-22-40060-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 600 mm \| Motor mounting: Left folded, upward
ECV-22-40060-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 600 mm \| Motor mounting: Left folded, downward
ECV-22-40065-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 650 mm \| Motor mounting: Right folded
ECV-22-40065-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 650 mm \| Motor mounting: Right folded, upward
ECV-22-40065-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 650 mm \| Motor mounting: Right folded, downward
ECV-22-40065-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 650 mm \| Motor mounting: Left folded
ECV-22-40065-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 650 mm \| Motor mounting: Left folded, upward
ECV-22-40065-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 650 mm \| Motor mounting: Left folded, downward
ECV-22-40070-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 700 mm \| Motor mounting: Right folded
ECV-22-40070-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 700 mm \| Motor mounting: Right folded, upward
ECV-22-40070-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 700 mm \| Motor mounting: Right folded, downward
ECV-22-40070-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 700 mm \| Motor mounting: Left folded
ECV-22-40070-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 700 mm \| Motor mounting: Left folded, upward
ECV-22-40070-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 700 mm \| Motor mounting: Left folded, downward
ECV-22-40075-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 750 mm \| Motor mounting: Right folded
ECV-22-40075-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 750 mm \| Motor mounting: Right folded, upward
ECV-22-40075-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 750 mm \| Motor mounting: Right folded, downward
ECV-22-40075-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 750 mm \| Motor mounting: Left folded
ECV-22-40075-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 750 mm \| Motor mounting: Left folded, upward
ECV-22-40075-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 750 mm \| Motor mounting: Left folded, downward
ECV-22-40080-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 800 mm \| Motor mounting: Right folded
ECV-22-40080-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 800 mm \| Motor mounting: Right folded, upward
ECV-22-40080-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 800 mm \| Motor mounting: Right folded, downward
ECV-22-40080-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 800 mm \| Motor mounting: Left folded
ECV-22-40080-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 800 mm \| Motor mounting: Left folded, upward
ECV-22-40080-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 800 mm \| Motor mounting: Left folded, downward
ECV-22-40085-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 850 mm \| Motor mounting: Right folded
ECV-22-40085-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 850 mm \| Motor mounting: Right folded, upward
ECV-22-40085-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 850 mm \| Motor mounting: Right folded, downward
ECV-22-40085-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 850 mm \| Motor mounting: Left folded
ECV-22-40085-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 850 mm \| Motor mounting: Left folded, upward
ECV-22-40085-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 850 mm \| Motor mounting: Left folded, downward
ECV-22-40090-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 900 mm \| Motor mounting: Right folded
ECV-22-40090-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 900 mm \| Motor mounting: Right folded, upward
ECV-22-40090-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 900 mm \| Motor mounting: Right folded, downward
ECV-22-40090-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 900 mm \| Motor mounting: Left folded
ECV-22-40090-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 900 mm \| Motor mounting: Left folded, upward
ECV-22-40090-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 900 mm \| Motor mounting: Left folded, downward
ECV-22-40095-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 950 mm \| Motor mounting: Right folded
ECV-22-40095-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 950 mm \| Motor mounting: Right folded, upward
ECV-22-40095-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 950 mm \| Motor mounting: Right folded, downward
ECV-22-40095-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 950 mm \| Motor mounting: Left folded
ECV-22-40095-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 950 mm \| Motor mounting: Left folded, upward
ECV-22-40095-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 950 mm \| Motor mounting: Left folded, downward
ECV-22-40100-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Right folded
ECV-22-40100-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Right folded, upward
ECV-22-40100-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Right folded, downward
ECV-22-40100-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Left folded
ECV-22-40100-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Left folded, upward
ECV-22-40100-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Left folded, downward
ECV-22-40105-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Right folded
ECV-22-40105-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Right folded, upward
ECV-22-40105-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Right folded, downward
ECV-22-40105-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Left folded
ECV-22-40105-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Left folded, upward
ECV-22-40105-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Left folded, downward
ECV-22-40110-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Right folded
ECV-22-40110-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Right folded, upward
ECV-22-40110-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Right folded, downward
ECV-22-40110-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Left folded
ECV-22-40110-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Left folded, upward
ECV-22-40110-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Left folded, downward
ECV-22-40115-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Right folded
ECV-22-40115-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Right folded, upward
ECV-22-40115-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Right folded, downward
ECV-22-40115-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Left folded
ECV-22-40115-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Left folded, upward
ECV-22-40115-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Left folded, downward
ECV-22-40120-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Right folded
ECV-22-40120-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Right folded, upward
ECV-22-40120-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Right folded, downward
ECV-22-40120-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Left folded
ECV-22-40120-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Left folded, upward
ECV-22-40120-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Left folded, downward
ECV-22-40125-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Right folded
ECV-22-40125-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Right folded, upward
ECV-22-40125-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Right folded, downward
ECV-22-40125-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Left folded
ECV-22-40125-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Left folded, upward
ECV-22-40125-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Left folded, downward
ECV-22-40130-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Right folded
ECV-22-40130-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Right folded, upward
ECV-22-40130-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Right folded, downward
ECV-22-40130-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Left folded
ECV-22-40130-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Left folded, upward
ECV-22-40130-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Left folded, downward
ECV-22-40135-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Right folded
ECV-22-40135-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Right folded, upward
ECV-22-40135-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Right folded, downward
ECV-22-40135-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Left folded
ECV-22-40135-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Left folded, upward
ECV-22-40135-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Left folded, downward
ECV-22-40140-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Right folded
ECV-22-40140-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Right folded, upward
ECV-22-40140-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Right folded, downward
ECV-22-40140-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Left folded
ECV-22-40140-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Left folded, upward
ECV-22-40140-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Left folded, downward
ECV-22-40145-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Right folded
ECV-22-40145-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Right folded, upward
ECV-22-40145-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Right folded, downward
ECV-22-40145-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Left folded
ECV-22-40145-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Left folded, upward
ECV-22-40145-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Left folded, downward
ECV-22-40150-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Right folded
ECV-22-40150-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Right folded, upward
ECV-22-40150-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Right folded, downward
ECV-22-40150-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Left folded
ECV-22-40150-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Left folded, upward
ECV-22-40150-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Left folded, downward
ECV-22-40155-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Right folded
ECV-22-40155-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Right folded, upward
ECV-22-40155-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Right folded, downward
ECV-22-40155-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Left folded
ECV-22-40155-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Left folded, upward
ECV-22-40155-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Left folded, downward
ECV-22-40160-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Right folded
ECV-22-40160-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Right folded, upward
ECV-22-40160-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Right folded, downward
ECV-22-40160-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Left folded
ECV-22-40160-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Left folded, upward
ECV-22-40160-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Left folded, downward
ECV-22-40165-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Right folded
ECV-22-40165-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Right folded, upward
ECV-22-40165-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Right folded, downward
ECV-22-40165-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Left folded
ECV-22-40165-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Left folded, upward
ECV-22-40165-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Left folded, downward
ECV-22-40170-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Right folded
ECV-22-40170-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Right folded, upward
ECV-22-40170-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Right folded, downward
ECV-22-40170-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Left folded
ECV-22-40170-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Left folded, upward
ECV-22-40170-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Left folded, downward
ECV-22-40175-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Right folded
ECV-22-40175-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Right folded, upward
ECV-22-40175-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Right folded, downward
ECV-22-40175-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Left folded
ECV-22-40175-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Left folded, upward
ECV-22-40175-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Left folded, downward
ECV-22-40180-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Right folded
ECV-22-40180-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Right folded, upward
ECV-22-40180-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Right folded, downward
ECV-22-40180-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Left folded
ECV-22-40180-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Left folded, upward
ECV-22-40180-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Left folded, downward
ECV-22-40185-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Right folded
ECV-22-40185-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Right folded, upward
ECV-22-40185-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Right folded, downward
ECV-22-40185-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Left folded
ECV-22-40185-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Left folded, upward
ECV-22-40185-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Left folded, downward
ECV-22-40190-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Right folded
ECV-22-40190-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Right folded, upward
ECV-22-40190-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Right folded, downward
ECV-22-40190-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Left folded
ECV-22-40190-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Left folded, upward
ECV-22-40190-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Left folded, downward
ECV-22-40195-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Right folded
ECV-22-40195-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Right folded, upward
ECV-22-40195-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Right folded, downward
ECV-22-40195-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Left folded
ECV-22-40195-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Left folded, upward
ECV-22-40195-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Left folded, downward
ECV-22-40200-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Right folded
ECV-22-40200-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Right folded, upward
ECV-22-40200-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Right folded, downward
ECV-22-40200-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Left folded
ECV-22-40200-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Left folded, upward
ECV-22-40200-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Left folded, downward
ECV-22-40205-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Right folded
ECV-22-40205-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Right folded, upward
ECV-22-40205-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Right folded, downward
ECV-22-40205-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Left folded
ECV-22-40205-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Left folded, upward
ECV-22-40205-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Left folded, downward
ECV-22-40210-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Right folded
ECV-22-40210-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Right folded, upward
ECV-22-40210-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Right folded, downward
ECV-22-40210-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Left folded
ECV-22-40210-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Left folded, upward
ECV-22-40210-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Left folded, downward
ECV-22-40215-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Right folded
ECV-22-40215-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Right folded, upward
ECV-22-40215-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Right folded, downward
ECV-22-40215-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Left folded
ECV-22-40215-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Left folded, upward
ECV-22-40215-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Left folded, downward
ECV-22-40220-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Right folded
ECV-22-40220-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Right folded, upward
ECV-22-40220-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Right folded, downward
ECV-22-40220-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Left folded
ECV-22-40220-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Left folded, upward
ECV-22-40220-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Left folded, downward
ECV-22-40225-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Right folded
ECV-22-40225-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Right folded, upward
ECV-22-40225-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Right folded, downward
ECV-22-40225-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Left folded
ECV-22-40225-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Left folded, upward
ECV-22-40225-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Left folded, downward
ECV-22-40230-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Right folded
ECV-22-40230-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Right folded, upward
ECV-22-40230-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Right folded, downward
ECV-22-40230-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Left folded
ECV-22-40230-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Left folded, upward
ECV-22-40230-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Left folded, downward
ECV-22-40235-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Right folded
ECV-22-40235-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Right folded, upward
ECV-22-40235-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Right folded, downward
ECV-22-40235-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Left folded
ECV-22-40235-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Left folded, upward
ECV-22-40235-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Left folded, downward
ECV-22-40240-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Right folded
ECV-22-40240-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Right folded, upward
ECV-22-40240-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Right folded, downward
ECV-22-40240-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Left folded
ECV-22-40240-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Left folded, upward
ECV-22-40240-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Left folded, downward
ECV-22-40245-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Right folded
ECV-22-40245-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Right folded, upward
ECV-22-40245-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Right folded, downward
ECV-22-40245-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Left folded
ECV-22-40245-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Left folded, upward
ECV-22-40245-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Left folded, downward
ECV-22-40250-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Right folded
ECV-22-40250-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Right folded, upward
ECV-22-40250-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Right folded, downward
ECV-22-40250-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Left folded
ECV-22-40250-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Left folded, upward
ECV-22-40250-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Left folded, downward
ECV-22-40255-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Right folded
ECV-22-40255-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Right folded, upward
ECV-22-40255-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Right folded, downward
ECV-22-40255-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Left folded
ECV-22-40255-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Left folded, upward
ECV-22-40255-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Left folded, downward
ECV-22-40260-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Right folded
ECV-22-40260-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Right folded, upward
ECV-22-40260-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Right folded, downward
ECV-22-40260-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Left folded
ECV-22-40260-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Left folded, upward
ECV-22-40260-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Left folded, downward
ECV-22-40265-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Right folded
ECV-22-40265-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Right folded, upward
ECV-22-40265-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Right folded, downward
ECV-22-40265-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Left folded
ECV-22-40265-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Left folded, upward
ECV-22-40265-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Left folded, downward
ECV-22-40270-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Right folded
ECV-22-40270-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Right folded, upward
ECV-22-40270-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Right folded, downward
ECV-22-40270-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Left folded
ECV-22-40270-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Left folded, upward
ECV-22-40270-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Left folded, downward
ECV-22-40275-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Right folded
ECV-22-40275-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Right folded, upward
ECV-22-40275-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Right folded, downward
ECV-22-40275-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Left folded
ECV-22-40275-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Left folded, upward
ECV-22-40275-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Left folded, downward
ECV-22-40280-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Right folded
ECV-22-40280-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Right folded, upward
ECV-22-40280-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Right folded, downward
ECV-22-40280-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Left folded
ECV-22-40280-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Left folded, upward
ECV-22-40280-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Left folded, downward
ECV-22-40285-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Right folded
ECV-22-40285-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Right folded, upward
ECV-22-40285-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Right folded, downward
ECV-22-40285-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Left folded
ECV-22-40285-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Left folded, upward
ECV-22-40285-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Left folded, downward
ECV-22-40290-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Right folded
ECV-22-40290-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Right folded, upward
ECV-22-40290-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Right folded, downward
ECV-22-40290-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Left folded
ECV-22-40290-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Left folded, upward
ECV-22-40290-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Left folded, downward
ECV-22-40295-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Right folded
ECV-22-40295-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Right folded, upward
ECV-22-40295-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Right folded, downward
ECV-22-40295-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Left folded
ECV-22-40295-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Left folded, upward
ECV-22-40295-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Left folded, downward
ECV-22-40300-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Right folded
ECV-22-40300-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Right folded, upward
ECV-22-40300-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Right folded, downward
ECV-22-40300-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Left folded
ECV-22-40300-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Left folded, upward
ECV-22-40300-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Left folded, downward
ECV-22-40305-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Right folded
ECV-22-40305-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Right folded, upward
ECV-22-40305-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Right folded, downward
ECV-22-40305-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Left folded
ECV-22-40305-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Left folded, upward
ECV-22-40305-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Left folded, downward
ECV-22-40310-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Right folded
ECV-22-40310-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Right folded, upward
ECV-22-40310-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Right folded, downward
ECV-22-40310-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Left folded
ECV-22-40310-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Left folded, upward
ECV-22-40310-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Left folded, downward
ECV-22-40315-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Right folded
ECV-22-40315-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Right folded, upward
ECV-22-40315-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Right folded, downward
ECV-22-40315-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Left folded
ECV-22-40315-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Left folded, upward
ECV-22-40315-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Left folded, downward
ECV-22-40320-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Right folded
ECV-22-40320-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Right folded, upward
ECV-22-40320-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Right folded, downward
ECV-22-40320-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Left folded
ECV-22-40320-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Left folded, upward
ECV-22-40320-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Left folded, downward
ECV-22-40325-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Right folded
ECV-22-40325-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Right folded, upward
ECV-22-40325-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Right folded, downward
ECV-22-40325-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Left folded
ECV-22-40325-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Left folded, upward
ECV-22-40325-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Left folded, downward
ECV-22-40330-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Right folded
ECV-22-40330-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Right folded, upward
ECV-22-40330-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Right folded, downward
ECV-22-40330-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Left folded
ECV-22-40330-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Left folded, upward
ECV-22-40330-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Left folded, downward
ECV-22-40335-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Right folded
ECV-22-40335-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Right folded, upward
ECV-22-40335-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Right folded, downward
ECV-22-40335-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Left folded
ECV-22-40335-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Left folded, upward
ECV-22-40335-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Left folded, downward
ECV-22-40340-RM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Right folded
ECV-22-40340-SM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Right folded, upward
ECV-22-40340-TM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Right folded, downward
ECV-22-40340-LM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Left folded
ECV-22-40340-VM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Left folded, upward
ECV-22-40340-WM8XNNNN		Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Left folded, downward
ECV-17		Legacy code: base model, specify full code \| Size: 17 (170 mm wide, 400W, lead 40)
ECV-22		Legacy code: base model, specify full code \| Size: 22 (220 mm wide, 750W, lead 40)

Electric ActuatorsCKD

818 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD ECV Belt-Drive Slider Actuator, Low Dust (Motorless, 17-22)

Brand CKD·Electric Actuators

Available part numbers (818)

ECV-17-40010-RM4XNNNN, ECV-17-40010-SM4XNNNN, ECV-17-40010-TM4XNNNN, ECV-17-40010-LM4XNNNN, ECV-17-40010-VM4XNNNN, ECV-17-40010-WM4XNNNN, ECV-17-40015-RM4XNNNN, ECV-17-40015-SM4XNNNN, ECV-17-40015-TM4XNNNN, ECV-17-40015-LM4XNNNN + 808 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ECV-17-40010-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 100 mm \| Motor mounting: Right folded
	ECV-17-40010-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 100 mm \| Motor mounting: Right folded, upward
	ECV-17-40010-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 100 mm \| Motor mounting: Right folded, downward
	ECV-17-40010-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 100 mm \| Motor mounting: Left folded
	ECV-17-40010-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 100 mm \| Motor mounting: Left folded, upward
	ECV-17-40010-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 100 mm \| Motor mounting: Left folded, downward
	ECV-17-40015-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 150 mm \| Motor mounting: Right folded
	ECV-17-40015-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 150 mm \| Motor mounting: Right folded, upward
	ECV-17-40015-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 150 mm \| Motor mounting: Right folded, downward
	ECV-17-40015-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 150 mm \| Motor mounting: Left folded
	ECV-17-40015-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 150 mm \| Motor mounting: Left folded, upward
	ECV-17-40015-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 150 mm \| Motor mounting: Left folded, downward
	ECV-17-40020-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 200 mm \| Motor mounting: Right folded
	ECV-17-40020-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 200 mm \| Motor mounting: Right folded, upward
	ECV-17-40020-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 200 mm \| Motor mounting: Right folded, downward
	ECV-17-40020-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 200 mm \| Motor mounting: Left folded
	ECV-17-40020-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 200 mm \| Motor mounting: Left folded, upward
	ECV-17-40020-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 200 mm \| Motor mounting: Left folded, downward
	ECV-17-40025-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 250 mm \| Motor mounting: Right folded
	ECV-17-40025-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 250 mm \| Motor mounting: Right folded, upward
	ECV-17-40025-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 250 mm \| Motor mounting: Right folded, downward
	ECV-17-40025-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 250 mm \| Motor mounting: Left folded
	ECV-17-40025-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 250 mm \| Motor mounting: Left folded, upward
	ECV-17-40025-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 250 mm \| Motor mounting: Left folded, downward
	ECV-17-40030-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 300 mm \| Motor mounting: Right folded
	ECV-17-40030-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 300 mm \| Motor mounting: Right folded, upward
	ECV-17-40030-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 300 mm \| Motor mounting: Right folded, downward
	ECV-17-40030-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 300 mm \| Motor mounting: Left folded
	ECV-17-40030-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 300 mm \| Motor mounting: Left folded, upward
	ECV-17-40030-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 300 mm \| Motor mounting: Left folded, downward
	ECV-17-40035-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 350 mm \| Motor mounting: Right folded
	ECV-17-40035-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 350 mm \| Motor mounting: Right folded, upward
	ECV-17-40035-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 350 mm \| Motor mounting: Right folded, downward
	ECV-17-40035-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 350 mm \| Motor mounting: Left folded
	ECV-17-40035-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 350 mm \| Motor mounting: Left folded, upward
	ECV-17-40035-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 350 mm \| Motor mounting: Left folded, downward
	ECV-17-40040-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 400 mm \| Motor mounting: Right folded
	ECV-17-40040-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 400 mm \| Motor mounting: Right folded, upward
	ECV-17-40040-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 400 mm \| Motor mounting: Right folded, downward
	ECV-17-40040-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 400 mm \| Motor mounting: Left folded
	ECV-17-40040-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 400 mm \| Motor mounting: Left folded, upward
	ECV-17-40040-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 400 mm \| Motor mounting: Left folded, downward
	ECV-17-40045-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 450 mm \| Motor mounting: Right folded
	ECV-17-40045-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 450 mm \| Motor mounting: Right folded, upward
	ECV-17-40045-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 450 mm \| Motor mounting: Right folded, downward
	ECV-17-40045-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 450 mm \| Motor mounting: Left folded
	ECV-17-40045-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 450 mm \| Motor mounting: Left folded, upward
	ECV-17-40045-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 450 mm \| Motor mounting: Left folded, downward
	ECV-17-40050-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 500 mm \| Motor mounting: Right folded
	ECV-17-40050-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 500 mm \| Motor mounting: Right folded, upward
	ECV-17-40050-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 500 mm \| Motor mounting: Right folded, downward
	ECV-17-40050-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 500 mm \| Motor mounting: Left folded
	ECV-17-40050-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 500 mm \| Motor mounting: Left folded, upward
	ECV-17-40050-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 500 mm \| Motor mounting: Left folded, downward
	ECV-17-40055-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 550 mm \| Motor mounting: Right folded
	ECV-17-40055-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 550 mm \| Motor mounting: Right folded, upward
	ECV-17-40055-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 550 mm \| Motor mounting: Right folded, downward
	ECV-17-40055-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 550 mm \| Motor mounting: Left folded
	ECV-17-40055-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 550 mm \| Motor mounting: Left folded, upward
	ECV-17-40055-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 550 mm \| Motor mounting: Left folded, downward
	ECV-17-40060-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 600 mm \| Motor mounting: Right folded
	ECV-17-40060-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 600 mm \| Motor mounting: Right folded, upward
	ECV-17-40060-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 600 mm \| Motor mounting: Right folded, downward
	ECV-17-40060-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 600 mm \| Motor mounting: Left folded
	ECV-17-40060-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 600 mm \| Motor mounting: Left folded, upward
	ECV-17-40060-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 600 mm \| Motor mounting: Left folded, downward
	ECV-17-40065-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 650 mm \| Motor mounting: Right folded
	ECV-17-40065-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 650 mm \| Motor mounting: Right folded, upward
	ECV-17-40065-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 650 mm \| Motor mounting: Right folded, downward
	ECV-17-40065-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 650 mm \| Motor mounting: Left folded
	ECV-17-40065-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 650 mm \| Motor mounting: Left folded, upward
	ECV-17-40065-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 650 mm \| Motor mounting: Left folded, downward
	ECV-17-40070-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 700 mm \| Motor mounting: Right folded
	ECV-17-40070-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 700 mm \| Motor mounting: Right folded, upward
	ECV-17-40070-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 700 mm \| Motor mounting: Right folded, downward
	ECV-17-40070-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 700 mm \| Motor mounting: Left folded
	ECV-17-40070-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 700 mm \| Motor mounting: Left folded, upward
	ECV-17-40070-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 700 mm \| Motor mounting: Left folded, downward
	ECV-17-40075-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 750 mm \| Motor mounting: Right folded
	ECV-17-40075-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 750 mm \| Motor mounting: Right folded, upward
	ECV-17-40075-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 750 mm \| Motor mounting: Right folded, downward
	ECV-17-40075-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 750 mm \| Motor mounting: Left folded
	ECV-17-40075-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 750 mm \| Motor mounting: Left folded, upward
	ECV-17-40075-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 750 mm \| Motor mounting: Left folded, downward
	ECV-17-40080-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 800 mm \| Motor mounting: Right folded
	ECV-17-40080-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 800 mm \| Motor mounting: Right folded, upward
	ECV-17-40080-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 800 mm \| Motor mounting: Right folded, downward
	ECV-17-40080-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 800 mm \| Motor mounting: Left folded
	ECV-17-40080-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 800 mm \| Motor mounting: Left folded, upward
	ECV-17-40080-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 800 mm \| Motor mounting: Left folded, downward
	ECV-17-40085-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 850 mm \| Motor mounting: Right folded
	ECV-17-40085-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 850 mm \| Motor mounting: Right folded, upward
	ECV-17-40085-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 850 mm \| Motor mounting: Right folded, downward
	ECV-17-40085-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 850 mm \| Motor mounting: Left folded
	ECV-17-40085-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 850 mm \| Motor mounting: Left folded, upward
	ECV-17-40085-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 850 mm \| Motor mounting: Left folded, downward
	ECV-17-40090-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 900 mm \| Motor mounting: Right folded
	ECV-17-40090-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 900 mm \| Motor mounting: Right folded, upward
	ECV-17-40090-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 900 mm \| Motor mounting: Right folded, downward
	ECV-17-40090-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 900 mm \| Motor mounting: Left folded
	ECV-17-40090-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 900 mm \| Motor mounting: Left folded, upward
	ECV-17-40090-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 900 mm \| Motor mounting: Left folded, downward
	ECV-17-40095-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 950 mm \| Motor mounting: Right folded
	ECV-17-40095-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 950 mm \| Motor mounting: Right folded, upward
	ECV-17-40095-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 950 mm \| Motor mounting: Right folded, downward
	ECV-17-40095-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 950 mm \| Motor mounting: Left folded
	ECV-17-40095-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 950 mm \| Motor mounting: Left folded, upward
	ECV-17-40095-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 950 mm \| Motor mounting: Left folded, downward
	ECV-17-40100-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Right folded
	ECV-17-40100-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Right folded, upward
	ECV-17-40100-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Right folded, downward
	ECV-17-40100-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Left folded
	ECV-17-40100-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Left folded, upward
	ECV-17-40100-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Left folded, downward
	ECV-17-40105-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Right folded
	ECV-17-40105-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Right folded, upward
	ECV-17-40105-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Right folded, downward
	ECV-17-40105-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Left folded
	ECV-17-40105-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Left folded, upward
	ECV-17-40105-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Left folded, downward
	ECV-17-40110-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Right folded
	ECV-17-40110-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Right folded, upward
	ECV-17-40110-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Right folded, downward
	ECV-17-40110-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Left folded
	ECV-17-40110-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Left folded, upward
	ECV-17-40110-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Left folded, downward
	ECV-17-40115-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Right folded
	ECV-17-40115-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Right folded, upward
	ECV-17-40115-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Right folded, downward
	ECV-17-40115-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Left folded
	ECV-17-40115-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Left folded, upward
	ECV-17-40115-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Left folded, downward
	ECV-17-40120-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Right folded
	ECV-17-40120-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Right folded, upward
	ECV-17-40120-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Right folded, downward
	ECV-17-40120-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Left folded
	ECV-17-40120-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Left folded, upward
	ECV-17-40120-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Left folded, downward
	ECV-17-40125-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Right folded
	ECV-17-40125-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Right folded, upward
	ECV-17-40125-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Right folded, downward
	ECV-17-40125-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Left folded
	ECV-17-40125-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Left folded, upward
	ECV-17-40125-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Left folded, downward
	ECV-17-40130-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Right folded
	ECV-17-40130-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Right folded, upward
	ECV-17-40130-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Right folded, downward
	ECV-17-40130-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Left folded
	ECV-17-40130-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Left folded, upward
	ECV-17-40130-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Left folded, downward
	ECV-17-40135-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Right folded
	ECV-17-40135-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Right folded, upward
	ECV-17-40135-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Right folded, downward
	ECV-17-40135-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Left folded
	ECV-17-40135-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Left folded, upward
	ECV-17-40135-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Left folded, downward
	ECV-17-40140-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Right folded
	ECV-17-40140-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Right folded, upward
	ECV-17-40140-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Right folded, downward
	ECV-17-40140-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Left folded
	ECV-17-40140-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Left folded, upward
	ECV-17-40140-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Left folded, downward
	ECV-17-40145-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Right folded
	ECV-17-40145-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Right folded, upward
	ECV-17-40145-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Right folded, downward
	ECV-17-40145-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Left folded
	ECV-17-40145-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Left folded, upward
	ECV-17-40145-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Left folded, downward
	ECV-17-40150-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Right folded
	ECV-17-40150-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Right folded, upward
	ECV-17-40150-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Right folded, downward
	ECV-17-40150-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Left folded
	ECV-17-40150-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Left folded, upward
	ECV-17-40150-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Left folded, downward
	ECV-17-40155-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Right folded
	ECV-17-40155-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Right folded, upward
	ECV-17-40155-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Right folded, downward
	ECV-17-40155-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Left folded
	ECV-17-40155-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Left folded, upward
	ECV-17-40155-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Left folded, downward
	ECV-17-40160-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Right folded
	ECV-17-40160-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Right folded, upward
	ECV-17-40160-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Right folded, downward
	ECV-17-40160-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Left folded
	ECV-17-40160-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Left folded, upward
	ECV-17-40160-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Left folded, downward
	ECV-17-40165-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Right folded
	ECV-17-40165-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Right folded, upward
	ECV-17-40165-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Right folded, downward
	ECV-17-40165-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Left folded
	ECV-17-40165-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Left folded, upward
	ECV-17-40165-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Left folded, downward
	ECV-17-40170-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Right folded
	ECV-17-40170-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Right folded, upward
	ECV-17-40170-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Right folded, downward
	ECV-17-40170-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Left folded
	ECV-17-40170-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Left folded, upward
	ECV-17-40170-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Left folded, downward
	ECV-17-40175-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Right folded
	ECV-17-40175-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Right folded, upward
	ECV-17-40175-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Right folded, downward
	ECV-17-40175-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Left folded
	ECV-17-40175-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Left folded, upward
	ECV-17-40175-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Left folded, downward
	ECV-17-40180-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Right folded
	ECV-17-40180-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Right folded, upward
	ECV-17-40180-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Right folded, downward
	ECV-17-40180-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Left folded
	ECV-17-40180-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Left folded, upward
	ECV-17-40180-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Left folded, downward
	ECV-17-40185-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Right folded
	ECV-17-40185-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Right folded, upward
	ECV-17-40185-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Right folded, downward
	ECV-17-40185-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Left folded
	ECV-17-40185-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Left folded, upward
	ECV-17-40185-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Left folded, downward
	ECV-17-40190-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Right folded
	ECV-17-40190-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Right folded, upward
	ECV-17-40190-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Right folded, downward
	ECV-17-40190-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Left folded
	ECV-17-40190-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Left folded, upward
	ECV-17-40190-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Left folded, downward
	ECV-17-40195-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Right folded
	ECV-17-40195-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Right folded, upward
	ECV-17-40195-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Right folded, downward
	ECV-17-40195-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Left folded
	ECV-17-40195-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Left folded, upward
	ECV-17-40195-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Left folded, downward
	ECV-17-40200-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Right folded
	ECV-17-40200-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Right folded, upward
	ECV-17-40200-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Right folded, downward
	ECV-17-40200-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Left folded
	ECV-17-40200-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Left folded, upward
	ECV-17-40200-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Left folded, downward
	ECV-17-40205-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Right folded
	ECV-17-40205-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Right folded, upward
	ECV-17-40205-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Right folded, downward
	ECV-17-40205-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Left folded
	ECV-17-40205-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Left folded, upward
	ECV-17-40205-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Left folded, downward
	ECV-17-40210-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Right folded
	ECV-17-40210-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Right folded, upward
	ECV-17-40210-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Right folded, downward
	ECV-17-40210-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Left folded
	ECV-17-40210-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Left folded, upward
	ECV-17-40210-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Left folded, downward
	ECV-17-40215-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Right folded
	ECV-17-40215-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Right folded, upward
	ECV-17-40215-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Right folded, downward
	ECV-17-40215-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Left folded
	ECV-17-40215-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Left folded, upward
	ECV-17-40215-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Left folded, downward
	ECV-17-40220-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Right folded
	ECV-17-40220-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Right folded, upward
	ECV-17-40220-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Right folded, downward
	ECV-17-40220-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Left folded
	ECV-17-40220-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Left folded, upward
	ECV-17-40220-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Left folded, downward
	ECV-17-40225-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Right folded
	ECV-17-40225-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Right folded, upward
	ECV-17-40225-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Right folded, downward
	ECV-17-40225-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Left folded
	ECV-17-40225-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Left folded, upward
	ECV-17-40225-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Left folded, downward
	ECV-17-40230-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Right folded
	ECV-17-40230-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Right folded, upward
	ECV-17-40230-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Right folded, downward
	ECV-17-40230-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Left folded
	ECV-17-40230-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Left folded, upward
	ECV-17-40230-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Left folded, downward
	ECV-17-40235-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Right folded
	ECV-17-40235-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Right folded, upward
	ECV-17-40235-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Right folded, downward
	ECV-17-40235-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Left folded
	ECV-17-40235-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Left folded, upward
	ECV-17-40235-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Left folded, downward
	ECV-17-40240-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Right folded
	ECV-17-40240-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Right folded, upward
	ECV-17-40240-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Right folded, downward
	ECV-17-40240-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Left folded
	ECV-17-40240-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Left folded, upward
	ECV-17-40240-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Left folded, downward
	ECV-17-40245-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Right folded
	ECV-17-40245-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Right folded, upward
	ECV-17-40245-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Right folded, downward
	ECV-17-40245-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Left folded
	ECV-17-40245-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Left folded, upward
	ECV-17-40245-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Left folded, downward
	ECV-17-40250-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Right folded
	ECV-17-40250-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Right folded, upward
	ECV-17-40250-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Right folded, downward
	ECV-17-40250-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Left folded
	ECV-17-40250-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Left folded, upward
	ECV-17-40250-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Left folded, downward
	ECV-17-40255-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Right folded
	ECV-17-40255-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Right folded, upward
	ECV-17-40255-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Right folded, downward
	ECV-17-40255-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Left folded
	ECV-17-40255-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Left folded, upward
	ECV-17-40255-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Left folded, downward
	ECV-17-40260-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Right folded
	ECV-17-40260-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Right folded, upward
	ECV-17-40260-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Right folded, downward
	ECV-17-40260-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Left folded
	ECV-17-40260-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Left folded, upward
	ECV-17-40260-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Left folded, downward
	ECV-17-40265-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Right folded
	ECV-17-40265-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Right folded, upward
	ECV-17-40265-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Right folded, downward
	ECV-17-40265-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Left folded
	ECV-17-40265-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Left folded, upward
	ECV-17-40265-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Left folded, downward
	ECV-17-40270-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Right folded
	ECV-17-40270-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Right folded, upward
	ECV-17-40270-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Right folded, downward
	ECV-17-40270-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Left folded
	ECV-17-40270-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Left folded, upward
	ECV-17-40270-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Left folded, downward
	ECV-17-40275-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Right folded
	ECV-17-40275-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Right folded, upward
	ECV-17-40275-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Right folded, downward
	ECV-17-40275-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Left folded
	ECV-17-40275-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Left folded, upward
	ECV-17-40275-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Left folded, downward
	ECV-17-40280-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Right folded
	ECV-17-40280-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Right folded, upward
	ECV-17-40280-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Right folded, downward
	ECV-17-40280-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Left folded
	ECV-17-40280-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Left folded, upward
	ECV-17-40280-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Left folded, downward
	ECV-17-40285-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Right folded
	ECV-17-40285-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Right folded, upward
	ECV-17-40285-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Right folded, downward
	ECV-17-40285-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Left folded
	ECV-17-40285-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Left folded, upward
	ECV-17-40285-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Left folded, downward
	ECV-17-40290-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Right folded
	ECV-17-40290-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Right folded, upward
	ECV-17-40290-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Right folded, downward
	ECV-17-40290-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Left folded
	ECV-17-40290-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Left folded, upward
	ECV-17-40290-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Left folded, downward
	ECV-17-40295-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Right folded
	ECV-17-40295-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Right folded, upward
	ECV-17-40295-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Right folded, downward
	ECV-17-40295-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Left folded
	ECV-17-40295-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Left folded, upward
	ECV-17-40295-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Left folded, downward
	ECV-17-40300-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Right folded
	ECV-17-40300-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Right folded, upward
	ECV-17-40300-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Right folded, downward
	ECV-17-40300-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Left folded
	ECV-17-40300-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Left folded, upward
	ECV-17-40300-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Left folded, downward
	ECV-17-40305-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Right folded
	ECV-17-40305-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Right folded, upward
	ECV-17-40305-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Right folded, downward
	ECV-17-40305-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Left folded
	ECV-17-40305-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Left folded, upward
	ECV-17-40305-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Left folded, downward
	ECV-17-40310-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Right folded
	ECV-17-40310-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Right folded, upward
	ECV-17-40310-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Right folded, downward
	ECV-17-40310-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Left folded
	ECV-17-40310-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Left folded, upward
	ECV-17-40310-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Left folded, downward
	ECV-17-40315-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Right folded
	ECV-17-40315-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Right folded, upward
	ECV-17-40315-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Right folded, downward
	ECV-17-40315-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Left folded
	ECV-17-40315-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Left folded, upward
	ECV-17-40315-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Left folded, downward
	ECV-17-40320-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Right folded
	ECV-17-40320-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Right folded, upward
	ECV-17-40320-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Right folded, downward
	ECV-17-40320-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Left folded
	ECV-17-40320-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Left folded, upward
	ECV-17-40320-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Left folded, downward
	ECV-17-40325-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Right folded
	ECV-17-40325-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Right folded, upward
	ECV-17-40325-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Right folded, downward
	ECV-17-40325-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Left folded
	ECV-17-40325-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Left folded, upward
	ECV-17-40325-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Left folded, downward
	ECV-17-40330-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Right folded
	ECV-17-40330-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Right folded, upward
	ECV-17-40330-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Right folded, downward
	ECV-17-40330-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Left folded
	ECV-17-40330-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Left folded, upward
	ECV-17-40330-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Left folded, downward
	ECV-17-40335-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Right folded
	ECV-17-40335-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Right folded, upward
	ECV-17-40335-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Right folded, downward
	ECV-17-40335-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Left folded
	ECV-17-40335-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Left folded, upward
	ECV-17-40335-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Left folded, downward
	ECV-17-40340-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Right folded
	ECV-17-40340-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Right folded, upward
	ECV-17-40340-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Right folded, downward
	ECV-17-40340-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Left folded
	ECV-17-40340-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Left folded, upward
	ECV-17-40340-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Left folded, downward
	ECV-17-40345-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3450 mm \| Motor mounting: Right folded
	ECV-17-40345-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3450 mm \| Motor mounting: Right folded, upward
	ECV-17-40345-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3450 mm \| Motor mounting: Right folded, downward
	ECV-17-40345-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3450 mm \| Motor mounting: Left folded
	ECV-17-40345-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3450 mm \| Motor mounting: Left folded, upward
	ECV-17-40345-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3450 mm \| Motor mounting: Left folded, downward
	ECV-17-40350-RM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3500 mm \| Motor mounting: Right folded
	ECV-17-40350-SM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3500 mm \| Motor mounting: Right folded, upward
	ECV-17-40350-TM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3500 mm \| Motor mounting: Right folded, downward
	ECV-17-40350-LM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3500 mm \| Motor mounting: Left folded
	ECV-17-40350-VM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3500 mm \| Motor mounting: Left folded, upward
	ECV-17-40350-WM4XNNNN	Size: 17 (170 mm wide, 400W, lead 40) \| Stroke: 3500 mm \| Motor mounting: Left folded, downward
	ECV-22-40010-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 100 mm \| Motor mounting: Right folded
	ECV-22-40010-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 100 mm \| Motor mounting: Right folded, upward
	ECV-22-40010-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 100 mm \| Motor mounting: Right folded, downward
	ECV-22-40010-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 100 mm \| Motor mounting: Left folded
	ECV-22-40010-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 100 mm \| Motor mounting: Left folded, upward
	ECV-22-40010-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 100 mm \| Motor mounting: Left folded, downward
	ECV-22-40015-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 150 mm \| Motor mounting: Right folded
	ECV-22-40015-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 150 mm \| Motor mounting: Right folded, upward
	ECV-22-40015-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 150 mm \| Motor mounting: Right folded, downward
	ECV-22-40015-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 150 mm \| Motor mounting: Left folded
	ECV-22-40015-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 150 mm \| Motor mounting: Left folded, upward
	ECV-22-40015-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 150 mm \| Motor mounting: Left folded, downward
	ECV-22-40020-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 200 mm \| Motor mounting: Right folded
	ECV-22-40020-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 200 mm \| Motor mounting: Right folded, upward
	ECV-22-40020-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 200 mm \| Motor mounting: Right folded, downward
	ECV-22-40020-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 200 mm \| Motor mounting: Left folded
	ECV-22-40020-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 200 mm \| Motor mounting: Left folded, upward
	ECV-22-40020-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 200 mm \| Motor mounting: Left folded, downward
	ECV-22-40025-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 250 mm \| Motor mounting: Right folded
	ECV-22-40025-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 250 mm \| Motor mounting: Right folded, upward
	ECV-22-40025-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 250 mm \| Motor mounting: Right folded, downward
	ECV-22-40025-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 250 mm \| Motor mounting: Left folded
	ECV-22-40025-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 250 mm \| Motor mounting: Left folded, upward
	ECV-22-40025-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 250 mm \| Motor mounting: Left folded, downward
	ECV-22-40030-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 300 mm \| Motor mounting: Right folded
	ECV-22-40030-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 300 mm \| Motor mounting: Right folded, upward
	ECV-22-40030-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 300 mm \| Motor mounting: Right folded, downward
	ECV-22-40030-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 300 mm \| Motor mounting: Left folded
	ECV-22-40030-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 300 mm \| Motor mounting: Left folded, upward
	ECV-22-40030-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 300 mm \| Motor mounting: Left folded, downward
	ECV-22-40035-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 350 mm \| Motor mounting: Right folded
	ECV-22-40035-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 350 mm \| Motor mounting: Right folded, upward
	ECV-22-40035-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 350 mm \| Motor mounting: Right folded, downward
	ECV-22-40035-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 350 mm \| Motor mounting: Left folded
	ECV-22-40035-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 350 mm \| Motor mounting: Left folded, upward
	ECV-22-40035-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 350 mm \| Motor mounting: Left folded, downward
	ECV-22-40040-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 400 mm \| Motor mounting: Right folded
	ECV-22-40040-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 400 mm \| Motor mounting: Right folded, upward
	ECV-22-40040-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 400 mm \| Motor mounting: Right folded, downward
	ECV-22-40040-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 400 mm \| Motor mounting: Left folded
	ECV-22-40040-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 400 mm \| Motor mounting: Left folded, upward
	ECV-22-40040-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 400 mm \| Motor mounting: Left folded, downward
	ECV-22-40045-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 450 mm \| Motor mounting: Right folded
	ECV-22-40045-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 450 mm \| Motor mounting: Right folded, upward
	ECV-22-40045-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 450 mm \| Motor mounting: Right folded, downward
	ECV-22-40045-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 450 mm \| Motor mounting: Left folded
	ECV-22-40045-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 450 mm \| Motor mounting: Left folded, upward
	ECV-22-40045-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 450 mm \| Motor mounting: Left folded, downward
	ECV-22-40050-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 500 mm \| Motor mounting: Right folded
	ECV-22-40050-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 500 mm \| Motor mounting: Right folded, upward
	ECV-22-40050-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 500 mm \| Motor mounting: Right folded, downward
	ECV-22-40050-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 500 mm \| Motor mounting: Left folded
	ECV-22-40050-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 500 mm \| Motor mounting: Left folded, upward
	ECV-22-40050-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 500 mm \| Motor mounting: Left folded, downward
	ECV-22-40055-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 550 mm \| Motor mounting: Right folded
	ECV-22-40055-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 550 mm \| Motor mounting: Right folded, upward
	ECV-22-40055-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 550 mm \| Motor mounting: Right folded, downward
	ECV-22-40055-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 550 mm \| Motor mounting: Left folded
	ECV-22-40055-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 550 mm \| Motor mounting: Left folded, upward
	ECV-22-40055-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 550 mm \| Motor mounting: Left folded, downward
	ECV-22-40060-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 600 mm \| Motor mounting: Right folded
	ECV-22-40060-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 600 mm \| Motor mounting: Right folded, upward
	ECV-22-40060-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 600 mm \| Motor mounting: Right folded, downward
	ECV-22-40060-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 600 mm \| Motor mounting: Left folded
	ECV-22-40060-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 600 mm \| Motor mounting: Left folded, upward
	ECV-22-40060-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 600 mm \| Motor mounting: Left folded, downward
	ECV-22-40065-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 650 mm \| Motor mounting: Right folded
	ECV-22-40065-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 650 mm \| Motor mounting: Right folded, upward
	ECV-22-40065-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 650 mm \| Motor mounting: Right folded, downward
	ECV-22-40065-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 650 mm \| Motor mounting: Left folded
	ECV-22-40065-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 650 mm \| Motor mounting: Left folded, upward
	ECV-22-40065-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 650 mm \| Motor mounting: Left folded, downward
	ECV-22-40070-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 700 mm \| Motor mounting: Right folded
	ECV-22-40070-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 700 mm \| Motor mounting: Right folded, upward
	ECV-22-40070-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 700 mm \| Motor mounting: Right folded, downward
	ECV-22-40070-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 700 mm \| Motor mounting: Left folded
	ECV-22-40070-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 700 mm \| Motor mounting: Left folded, upward
	ECV-22-40070-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 700 mm \| Motor mounting: Left folded, downward
	ECV-22-40075-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 750 mm \| Motor mounting: Right folded
	ECV-22-40075-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 750 mm \| Motor mounting: Right folded, upward
	ECV-22-40075-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 750 mm \| Motor mounting: Right folded, downward
	ECV-22-40075-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 750 mm \| Motor mounting: Left folded
	ECV-22-40075-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 750 mm \| Motor mounting: Left folded, upward
	ECV-22-40075-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 750 mm \| Motor mounting: Left folded, downward
	ECV-22-40080-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 800 mm \| Motor mounting: Right folded
	ECV-22-40080-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 800 mm \| Motor mounting: Right folded, upward
	ECV-22-40080-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 800 mm \| Motor mounting: Right folded, downward
	ECV-22-40080-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 800 mm \| Motor mounting: Left folded
	ECV-22-40080-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 800 mm \| Motor mounting: Left folded, upward
	ECV-22-40080-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 800 mm \| Motor mounting: Left folded, downward
	ECV-22-40085-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 850 mm \| Motor mounting: Right folded
	ECV-22-40085-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 850 mm \| Motor mounting: Right folded, upward
	ECV-22-40085-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 850 mm \| Motor mounting: Right folded, downward
	ECV-22-40085-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 850 mm \| Motor mounting: Left folded
	ECV-22-40085-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 850 mm \| Motor mounting: Left folded, upward
	ECV-22-40085-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 850 mm \| Motor mounting: Left folded, downward
	ECV-22-40090-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 900 mm \| Motor mounting: Right folded
	ECV-22-40090-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 900 mm \| Motor mounting: Right folded, upward
	ECV-22-40090-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 900 mm \| Motor mounting: Right folded, downward
	ECV-22-40090-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 900 mm \| Motor mounting: Left folded
	ECV-22-40090-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 900 mm \| Motor mounting: Left folded, upward
	ECV-22-40090-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 900 mm \| Motor mounting: Left folded, downward
	ECV-22-40095-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 950 mm \| Motor mounting: Right folded
	ECV-22-40095-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 950 mm \| Motor mounting: Right folded, upward
	ECV-22-40095-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 950 mm \| Motor mounting: Right folded, downward
	ECV-22-40095-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 950 mm \| Motor mounting: Left folded
	ECV-22-40095-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 950 mm \| Motor mounting: Left folded, upward
	ECV-22-40095-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 950 mm \| Motor mounting: Left folded, downward
	ECV-22-40100-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Right folded
	ECV-22-40100-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Right folded, upward
	ECV-22-40100-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Right folded, downward
	ECV-22-40100-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Left folded
	ECV-22-40100-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Left folded, upward
	ECV-22-40100-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1000 mm \| Motor mounting: Left folded, downward
	ECV-22-40105-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Right folded
	ECV-22-40105-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Right folded, upward
	ECV-22-40105-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Right folded, downward
	ECV-22-40105-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Left folded
	ECV-22-40105-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Left folded, upward
	ECV-22-40105-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1050 mm \| Motor mounting: Left folded, downward
	ECV-22-40110-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Right folded
	ECV-22-40110-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Right folded, upward
	ECV-22-40110-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Right folded, downward
	ECV-22-40110-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Left folded
	ECV-22-40110-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Left folded, upward
	ECV-22-40110-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1100 mm \| Motor mounting: Left folded, downward
	ECV-22-40115-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Right folded
	ECV-22-40115-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Right folded, upward
	ECV-22-40115-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Right folded, downward
	ECV-22-40115-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Left folded
	ECV-22-40115-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Left folded, upward
	ECV-22-40115-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1150 mm \| Motor mounting: Left folded, downward
	ECV-22-40120-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Right folded
	ECV-22-40120-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Right folded, upward
	ECV-22-40120-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Right folded, downward
	ECV-22-40120-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Left folded
	ECV-22-40120-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Left folded, upward
	ECV-22-40120-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1200 mm \| Motor mounting: Left folded, downward
	ECV-22-40125-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Right folded
	ECV-22-40125-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Right folded, upward
	ECV-22-40125-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Right folded, downward
	ECV-22-40125-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Left folded
	ECV-22-40125-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Left folded, upward
	ECV-22-40125-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1250 mm \| Motor mounting: Left folded, downward
	ECV-22-40130-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Right folded
	ECV-22-40130-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Right folded, upward
	ECV-22-40130-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Right folded, downward
	ECV-22-40130-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Left folded
	ECV-22-40130-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Left folded, upward
	ECV-22-40130-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1300 mm \| Motor mounting: Left folded, downward
	ECV-22-40135-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Right folded
	ECV-22-40135-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Right folded, upward
	ECV-22-40135-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Right folded, downward
	ECV-22-40135-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Left folded
	ECV-22-40135-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Left folded, upward
	ECV-22-40135-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1350 mm \| Motor mounting: Left folded, downward
	ECV-22-40140-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Right folded
	ECV-22-40140-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Right folded, upward
	ECV-22-40140-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Right folded, downward
	ECV-22-40140-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Left folded
	ECV-22-40140-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Left folded, upward
	ECV-22-40140-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1400 mm \| Motor mounting: Left folded, downward
	ECV-22-40145-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Right folded
	ECV-22-40145-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Right folded, upward
	ECV-22-40145-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Right folded, downward
	ECV-22-40145-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Left folded
	ECV-22-40145-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Left folded, upward
	ECV-22-40145-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1450 mm \| Motor mounting: Left folded, downward
	ECV-22-40150-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Right folded
	ECV-22-40150-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Right folded, upward
	ECV-22-40150-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Right folded, downward
	ECV-22-40150-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Left folded
	ECV-22-40150-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Left folded, upward
	ECV-22-40150-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1500 mm \| Motor mounting: Left folded, downward
	ECV-22-40155-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Right folded
	ECV-22-40155-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Right folded, upward
	ECV-22-40155-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Right folded, downward
	ECV-22-40155-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Left folded
	ECV-22-40155-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Left folded, upward
	ECV-22-40155-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1550 mm \| Motor mounting: Left folded, downward
	ECV-22-40160-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Right folded
	ECV-22-40160-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Right folded, upward
	ECV-22-40160-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Right folded, downward
	ECV-22-40160-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Left folded
	ECV-22-40160-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Left folded, upward
	ECV-22-40160-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1600 mm \| Motor mounting: Left folded, downward
	ECV-22-40165-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Right folded
	ECV-22-40165-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Right folded, upward
	ECV-22-40165-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Right folded, downward
	ECV-22-40165-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Left folded
	ECV-22-40165-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Left folded, upward
	ECV-22-40165-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1650 mm \| Motor mounting: Left folded, downward
	ECV-22-40170-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Right folded
	ECV-22-40170-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Right folded, upward
	ECV-22-40170-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Right folded, downward
	ECV-22-40170-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Left folded
	ECV-22-40170-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Left folded, upward
	ECV-22-40170-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1700 mm \| Motor mounting: Left folded, downward
	ECV-22-40175-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Right folded
	ECV-22-40175-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Right folded, upward
	ECV-22-40175-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Right folded, downward
	ECV-22-40175-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Left folded
	ECV-22-40175-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Left folded, upward
	ECV-22-40175-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1750 mm \| Motor mounting: Left folded, downward
	ECV-22-40180-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Right folded
	ECV-22-40180-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Right folded, upward
	ECV-22-40180-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Right folded, downward
	ECV-22-40180-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Left folded
	ECV-22-40180-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Left folded, upward
	ECV-22-40180-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1800 mm \| Motor mounting: Left folded, downward
	ECV-22-40185-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Right folded
	ECV-22-40185-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Right folded, upward
	ECV-22-40185-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Right folded, downward
	ECV-22-40185-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Left folded
	ECV-22-40185-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Left folded, upward
	ECV-22-40185-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1850 mm \| Motor mounting: Left folded, downward
	ECV-22-40190-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Right folded
	ECV-22-40190-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Right folded, upward
	ECV-22-40190-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Right folded, downward
	ECV-22-40190-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Left folded
	ECV-22-40190-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Left folded, upward
	ECV-22-40190-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1900 mm \| Motor mounting: Left folded, downward
	ECV-22-40195-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Right folded
	ECV-22-40195-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Right folded, upward
	ECV-22-40195-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Right folded, downward
	ECV-22-40195-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Left folded
	ECV-22-40195-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Left folded, upward
	ECV-22-40195-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 1950 mm \| Motor mounting: Left folded, downward
	ECV-22-40200-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Right folded
	ECV-22-40200-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Right folded, upward
	ECV-22-40200-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Right folded, downward
	ECV-22-40200-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Left folded
	ECV-22-40200-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Left folded, upward
	ECV-22-40200-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2000 mm \| Motor mounting: Left folded, downward
	ECV-22-40205-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Right folded
	ECV-22-40205-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Right folded, upward
	ECV-22-40205-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Right folded, downward
	ECV-22-40205-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Left folded
	ECV-22-40205-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Left folded, upward
	ECV-22-40205-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2050 mm \| Motor mounting: Left folded, downward
	ECV-22-40210-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Right folded
	ECV-22-40210-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Right folded, upward
	ECV-22-40210-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Right folded, downward
	ECV-22-40210-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Left folded
	ECV-22-40210-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Left folded, upward
	ECV-22-40210-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2100 mm \| Motor mounting: Left folded, downward
	ECV-22-40215-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Right folded
	ECV-22-40215-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Right folded, upward
	ECV-22-40215-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Right folded, downward
	ECV-22-40215-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Left folded
	ECV-22-40215-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Left folded, upward
	ECV-22-40215-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2150 mm \| Motor mounting: Left folded, downward
	ECV-22-40220-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Right folded
	ECV-22-40220-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Right folded, upward
	ECV-22-40220-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Right folded, downward
	ECV-22-40220-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Left folded
	ECV-22-40220-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Left folded, upward
	ECV-22-40220-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2200 mm \| Motor mounting: Left folded, downward
	ECV-22-40225-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Right folded
	ECV-22-40225-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Right folded, upward
	ECV-22-40225-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Right folded, downward
	ECV-22-40225-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Left folded
	ECV-22-40225-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Left folded, upward
	ECV-22-40225-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2250 mm \| Motor mounting: Left folded, downward
	ECV-22-40230-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Right folded
	ECV-22-40230-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Right folded, upward
	ECV-22-40230-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Right folded, downward
	ECV-22-40230-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Left folded
	ECV-22-40230-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Left folded, upward
	ECV-22-40230-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2300 mm \| Motor mounting: Left folded, downward
	ECV-22-40235-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Right folded
	ECV-22-40235-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Right folded, upward
	ECV-22-40235-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Right folded, downward
	ECV-22-40235-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Left folded
	ECV-22-40235-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Left folded, upward
	ECV-22-40235-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2350 mm \| Motor mounting: Left folded, downward
	ECV-22-40240-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Right folded
	ECV-22-40240-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Right folded, upward
	ECV-22-40240-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Right folded, downward
	ECV-22-40240-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Left folded
	ECV-22-40240-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Left folded, upward
	ECV-22-40240-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2400 mm \| Motor mounting: Left folded, downward
	ECV-22-40245-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Right folded
	ECV-22-40245-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Right folded, upward
	ECV-22-40245-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Right folded, downward
	ECV-22-40245-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Left folded
	ECV-22-40245-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Left folded, upward
	ECV-22-40245-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2450 mm \| Motor mounting: Left folded, downward
	ECV-22-40250-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Right folded
	ECV-22-40250-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Right folded, upward
	ECV-22-40250-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Right folded, downward
	ECV-22-40250-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Left folded
	ECV-22-40250-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Left folded, upward
	ECV-22-40250-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2500 mm \| Motor mounting: Left folded, downward
	ECV-22-40255-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Right folded
	ECV-22-40255-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Right folded, upward
	ECV-22-40255-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Right folded, downward
	ECV-22-40255-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Left folded
	ECV-22-40255-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Left folded, upward
	ECV-22-40255-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2550 mm \| Motor mounting: Left folded, downward
	ECV-22-40260-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Right folded
	ECV-22-40260-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Right folded, upward
	ECV-22-40260-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Right folded, downward
	ECV-22-40260-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Left folded
	ECV-22-40260-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Left folded, upward
	ECV-22-40260-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2600 mm \| Motor mounting: Left folded, downward
	ECV-22-40265-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Right folded
	ECV-22-40265-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Right folded, upward
	ECV-22-40265-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Right folded, downward
	ECV-22-40265-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Left folded
	ECV-22-40265-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Left folded, upward
	ECV-22-40265-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2650 mm \| Motor mounting: Left folded, downward
	ECV-22-40270-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Right folded
	ECV-22-40270-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Right folded, upward
	ECV-22-40270-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Right folded, downward
	ECV-22-40270-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Left folded
	ECV-22-40270-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Left folded, upward
	ECV-22-40270-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2700 mm \| Motor mounting: Left folded, downward
	ECV-22-40275-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Right folded
	ECV-22-40275-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Right folded, upward
	ECV-22-40275-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Right folded, downward
	ECV-22-40275-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Left folded
	ECV-22-40275-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Left folded, upward
	ECV-22-40275-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2750 mm \| Motor mounting: Left folded, downward
	ECV-22-40280-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Right folded
	ECV-22-40280-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Right folded, upward
	ECV-22-40280-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Right folded, downward
	ECV-22-40280-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Left folded
	ECV-22-40280-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Left folded, upward
	ECV-22-40280-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2800 mm \| Motor mounting: Left folded, downward
	ECV-22-40285-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Right folded
	ECV-22-40285-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Right folded, upward
	ECV-22-40285-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Right folded, downward
	ECV-22-40285-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Left folded
	ECV-22-40285-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Left folded, upward
	ECV-22-40285-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2850 mm \| Motor mounting: Left folded, downward
	ECV-22-40290-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Right folded
	ECV-22-40290-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Right folded, upward
	ECV-22-40290-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Right folded, downward
	ECV-22-40290-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Left folded
	ECV-22-40290-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Left folded, upward
	ECV-22-40290-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2900 mm \| Motor mounting: Left folded, downward
	ECV-22-40295-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Right folded
	ECV-22-40295-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Right folded, upward
	ECV-22-40295-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Right folded, downward
	ECV-22-40295-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Left folded
	ECV-22-40295-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Left folded, upward
	ECV-22-40295-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 2950 mm \| Motor mounting: Left folded, downward
	ECV-22-40300-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Right folded
	ECV-22-40300-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Right folded, upward
	ECV-22-40300-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Right folded, downward
	ECV-22-40300-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Left folded
	ECV-22-40300-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Left folded, upward
	ECV-22-40300-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3000 mm \| Motor mounting: Left folded, downward
	ECV-22-40305-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Right folded
	ECV-22-40305-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Right folded, upward
	ECV-22-40305-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Right folded, downward
	ECV-22-40305-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Left folded
	ECV-22-40305-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Left folded, upward
	ECV-22-40305-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3050 mm \| Motor mounting: Left folded, downward
	ECV-22-40310-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Right folded
	ECV-22-40310-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Right folded, upward
	ECV-22-40310-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Right folded, downward
	ECV-22-40310-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Left folded
	ECV-22-40310-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Left folded, upward
	ECV-22-40310-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3100 mm \| Motor mounting: Left folded, downward
	ECV-22-40315-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Right folded
	ECV-22-40315-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Right folded, upward
	ECV-22-40315-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Right folded, downward
	ECV-22-40315-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Left folded
	ECV-22-40315-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Left folded, upward
	ECV-22-40315-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3150 mm \| Motor mounting: Left folded, downward
	ECV-22-40320-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Right folded
	ECV-22-40320-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Right folded, upward
	ECV-22-40320-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Right folded, downward
	ECV-22-40320-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Left folded
	ECV-22-40320-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Left folded, upward
	ECV-22-40320-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3200 mm \| Motor mounting: Left folded, downward
	ECV-22-40325-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Right folded
	ECV-22-40325-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Right folded, upward
	ECV-22-40325-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Right folded, downward
	ECV-22-40325-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Left folded
	ECV-22-40325-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Left folded, upward
	ECV-22-40325-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3250 mm \| Motor mounting: Left folded, downward
	ECV-22-40330-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Right folded
	ECV-22-40330-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Right folded, upward
	ECV-22-40330-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Right folded, downward
	ECV-22-40330-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Left folded
	ECV-22-40330-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Left folded, upward
	ECV-22-40330-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3300 mm \| Motor mounting: Left folded, downward
	ECV-22-40335-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Right folded
	ECV-22-40335-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Right folded, upward
	ECV-22-40335-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Right folded, downward
	ECV-22-40335-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Left folded
	ECV-22-40335-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Left folded, upward
	ECV-22-40335-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3350 mm \| Motor mounting: Left folded, downward
	ECV-22-40340-RM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Right folded
	ECV-22-40340-SM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Right folded, upward
	ECV-22-40340-TM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Right folded, downward
	ECV-22-40340-LM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Left folded
	ECV-22-40340-VM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Left folded, upward
	ECV-22-40340-WM8XNNNN	Size: 22 (220 mm wide, 750W, lead 40) \| Stroke: 3400 mm \| Motor mounting: Left folded, downward
	ECV-17	Legacy code: base model, specify full code \| Size: 17 (170 mm wide, 400W, lead 40)
	ECV-22	Legacy code: base model, specify full code \| Size: 22 (220 mm wide, 750W, lead 40)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

CKD ECV Belt-Drive Slider Actuator, Low Dust (Motorless, 17-22)
