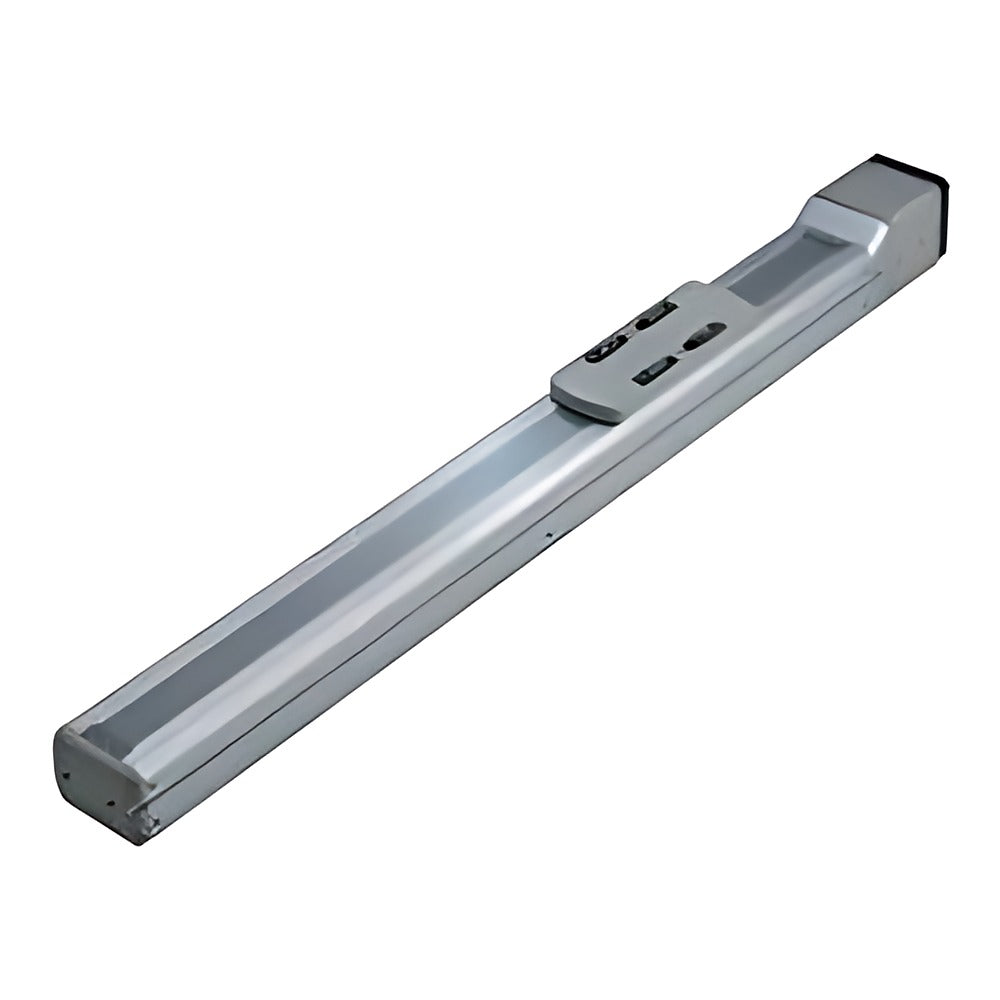

CKD ETS-760F Multi-Axis Actuator (Y-Z)

CKD ETS-760F Multi-Axis Actuator (Y-Z)

CKD ETS-760F motorless Y-Z 2-Axis combination of ETS ball-screw sliders, listed with full order codes by combination direction and both axis strokes.

Key features

  • Pre-engineered 2-axis Y-Z combination: 1st axis ETS-17 (lead 20, 400W, built-in), 2nd axis ETS-14 (lead 10, 400W, built-in, brake)
  • 1st-axis stroke 100-1250 mm, 2nd-axis stroke 50-550 mm, both in 50 mm steps
  • Combination directions F1, F3 set motor and grease-nipple orientation
  • Codes shown with motor flange spec M; replace with Y (Yaskawa/Keyence), P (Panasonic) or O (Omron) as required
  • Brake on the 2nd (vertical) axis is standard (B); home/limit sensors (3 per axis) available by changing the last symbol from N to W
  • Cable carrier assemblies, combination brackets are listed under the ETS Multi-Axis combination parts

Specifications

Series ETS Multi-Axis
Combination Model ETS-760F
Combination Type F: Y-Z
1st Axis ETS-17 (lead 20, 400W, built-in)
2nd Axis ETS-14 (lead 10, 400W, built-in, brake)
Motor Flange Spec (in code) M
Brake (in code) B (2nd axis)
Origin/Limit Sensor (in code) N (none); W = with sensors
Compliance RoHS
Source CKD Korea catalog CB-055K, p. 242-243, 252-255
ETS-760F1-010005-MBN Combination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-010010-MBN Combination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-010015-MBN Combination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-010020-MBN Combination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-010025-MBN Combination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-010030-MBN Combination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-010035-MBN Combination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-010040-MBN Combination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-010045-MBN Combination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-010050-MBN Combination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-010055-MBN Combination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-015005-MBN Combination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-015010-MBN Combination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-015015-MBN Combination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-015020-MBN Combination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-015025-MBN Combination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-015030-MBN Combination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-015035-MBN Combination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-015040-MBN Combination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-015045-MBN Combination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-015050-MBN Combination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-015055-MBN Combination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-020005-MBN Combination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-020010-MBN Combination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-020015-MBN Combination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-020020-MBN Combination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-020025-MBN Combination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-020030-MBN Combination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-020035-MBN Combination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-020040-MBN Combination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-020045-MBN Combination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-020050-MBN Combination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-020055-MBN Combination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-025005-MBN Combination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-025010-MBN Combination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-025015-MBN Combination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-025020-MBN Combination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-025025-MBN Combination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-025030-MBN Combination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-025035-MBN Combination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-025040-MBN Combination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-025045-MBN Combination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-025050-MBN Combination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-025055-MBN Combination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-030005-MBN Combination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-030010-MBN Combination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-030015-MBN Combination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-030020-MBN Combination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-030025-MBN Combination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-030030-MBN Combination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-030035-MBN Combination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-030040-MBN Combination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-030045-MBN Combination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-030050-MBN Combination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-030055-MBN Combination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-035005-MBN Combination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-035010-MBN Combination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-035015-MBN Combination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-035020-MBN Combination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-035025-MBN Combination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-035030-MBN Combination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-035035-MBN Combination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-035040-MBN Combination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-035045-MBN Combination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-035050-MBN Combination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-035055-MBN Combination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-040005-MBN Combination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-040010-MBN Combination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-040015-MBN Combination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-040020-MBN Combination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-040025-MBN Combination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-040030-MBN Combination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-040035-MBN Combination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-040040-MBN Combination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-040045-MBN Combination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-040050-MBN Combination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-040055-MBN Combination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-045005-MBN Combination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-045010-MBN Combination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-045015-MBN Combination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-045020-MBN Combination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-045025-MBN Combination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-045030-MBN Combination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-045035-MBN Combination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-045040-MBN Combination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-045045-MBN Combination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-045050-MBN Combination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-045055-MBN Combination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-050005-MBN Combination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-050010-MBN Combination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-050015-MBN Combination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-050020-MBN Combination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-050025-MBN Combination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-050030-MBN Combination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-050035-MBN Combination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-050040-MBN Combination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-050045-MBN Combination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-050050-MBN Combination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-050055-MBN Combination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-055005-MBN Combination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-055010-MBN Combination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-055015-MBN Combination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-055020-MBN Combination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-055025-MBN Combination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-055030-MBN Combination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-055035-MBN Combination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-055040-MBN Combination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-055045-MBN Combination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-055050-MBN Combination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-055055-MBN Combination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-060005-MBN Combination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-060010-MBN Combination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-060015-MBN Combination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-060020-MBN Combination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-060025-MBN Combination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-060030-MBN Combination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-060035-MBN Combination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-060040-MBN Combination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-060045-MBN Combination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-060050-MBN Combination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-060055-MBN Combination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-065005-MBN Combination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-065010-MBN Combination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-065015-MBN Combination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-065020-MBN Combination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-065025-MBN Combination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-065030-MBN Combination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-065035-MBN Combination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-065040-MBN Combination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-065045-MBN Combination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-065050-MBN Combination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-065055-MBN Combination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-070005-MBN Combination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-070010-MBN Combination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-070015-MBN Combination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-070020-MBN Combination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-070025-MBN Combination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-070030-MBN Combination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-070035-MBN Combination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-070040-MBN Combination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-070045-MBN Combination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-070050-MBN Combination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-070055-MBN Combination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-075005-MBN Combination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-075010-MBN Combination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-075015-MBN Combination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-075020-MBN Combination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-075025-MBN Combination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-075030-MBN Combination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-075035-MBN Combination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-075040-MBN Combination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-075045-MBN Combination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-075050-MBN Combination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-075055-MBN Combination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-080005-MBN Combination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-080010-MBN Combination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-080015-MBN Combination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-080020-MBN Combination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-080025-MBN Combination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-080030-MBN Combination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-080035-MBN Combination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-080040-MBN Combination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-080045-MBN Combination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-080050-MBN Combination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-080055-MBN Combination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-085005-MBN Combination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-085010-MBN Combination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-085015-MBN Combination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-085020-MBN Combination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-085025-MBN Combination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-085030-MBN Combination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-085035-MBN Combination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-085040-MBN Combination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-085045-MBN Combination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-085050-MBN Combination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-085055-MBN Combination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-090005-MBN Combination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-090010-MBN Combination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-090015-MBN Combination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-090020-MBN Combination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-090025-MBN Combination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-090030-MBN Combination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-090035-MBN Combination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-090040-MBN Combination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-090045-MBN Combination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-090050-MBN Combination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-090055-MBN Combination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-095005-MBN Combination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-095010-MBN Combination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-095015-MBN Combination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-095020-MBN Combination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-095025-MBN Combination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-095030-MBN Combination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-095035-MBN Combination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-095040-MBN Combination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-095045-MBN Combination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-095050-MBN Combination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-095055-MBN Combination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-100005-MBN Combination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-100010-MBN Combination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-100015-MBN Combination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-100020-MBN Combination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-100025-MBN Combination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-100030-MBN Combination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-100035-MBN Combination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-100040-MBN Combination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-100045-MBN Combination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-100050-MBN Combination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-100055-MBN Combination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-105005-MBN Combination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-105010-MBN Combination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-105015-MBN Combination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-105020-MBN Combination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-105025-MBN Combination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-105030-MBN Combination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-105035-MBN Combination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-105040-MBN Combination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-105045-MBN Combination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-105050-MBN Combination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-105055-MBN Combination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-110005-MBN Combination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-110010-MBN Combination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-110015-MBN Combination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-110020-MBN Combination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-110025-MBN Combination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-110030-MBN Combination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-110035-MBN Combination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-110040-MBN Combination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-110045-MBN Combination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-110050-MBN Combination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-110055-MBN Combination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-115005-MBN Combination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-115010-MBN Combination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-115015-MBN Combination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-115020-MBN Combination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-115025-MBN Combination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-115030-MBN Combination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-115035-MBN Combination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-115040-MBN Combination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-115045-MBN Combination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-115050-MBN Combination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-115055-MBN Combination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-120005-MBN Combination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-120010-MBN Combination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-120015-MBN Combination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-120020-MBN Combination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-120025-MBN Combination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-120030-MBN Combination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-120035-MBN Combination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-120040-MBN Combination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-120045-MBN Combination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-120050-MBN Combination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-120055-MBN Combination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-125005-MBN Combination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-125010-MBN Combination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-125015-MBN Combination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-125020-MBN Combination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-125025-MBN Combination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-125030-MBN Combination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-125035-MBN Combination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-125040-MBN Combination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-125045-MBN Combination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-125050-MBN Combination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-125055-MBN Combination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-010005-MBN Combination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-010010-MBN Combination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-010015-MBN Combination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-010020-MBN Combination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-010025-MBN Combination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-010030-MBN Combination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-010035-MBN Combination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-010040-MBN Combination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-010045-MBN Combination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-010050-MBN Combination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-010055-MBN Combination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-015005-MBN Combination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-015010-MBN Combination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-015015-MBN Combination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-015020-MBN Combination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-015025-MBN Combination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-015030-MBN Combination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-015035-MBN Combination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-015040-MBN Combination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-015045-MBN Combination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-015050-MBN Combination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-015055-MBN Combination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-020005-MBN Combination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-020010-MBN Combination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-020015-MBN Combination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-020020-MBN Combination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-020025-MBN Combination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-020030-MBN Combination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-020035-MBN Combination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-020040-MBN Combination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-020045-MBN Combination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-020050-MBN Combination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-020055-MBN Combination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-025005-MBN Combination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-025010-MBN Combination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-025015-MBN Combination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-025020-MBN Combination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-025025-MBN Combination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-025030-MBN Combination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-025035-MBN Combination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-025040-MBN Combination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-025045-MBN Combination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-025050-MBN Combination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-025055-MBN Combination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-030005-MBN Combination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-030010-MBN Combination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-030015-MBN Combination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-030020-MBN Combination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-030025-MBN Combination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-030030-MBN Combination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-030035-MBN Combination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-030040-MBN Combination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-030045-MBN Combination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-030050-MBN Combination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-030055-MBN Combination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-035005-MBN Combination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-035010-MBN Combination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-035015-MBN Combination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-035020-MBN Combination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-035025-MBN Combination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-035030-MBN Combination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-035035-MBN Combination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-035040-MBN Combination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-035045-MBN Combination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-035050-MBN Combination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-035055-MBN Combination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-040005-MBN Combination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-040010-MBN Combination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-040015-MBN Combination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-040020-MBN Combination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-040025-MBN Combination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-040030-MBN Combination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-040035-MBN Combination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-040040-MBN Combination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-040045-MBN Combination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-040050-MBN Combination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-040055-MBN Combination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-045005-MBN Combination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-045010-MBN Combination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-045015-MBN Combination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-045020-MBN Combination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-045025-MBN Combination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-045030-MBN Combination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-045035-MBN Combination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-045040-MBN Combination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-045045-MBN Combination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-045050-MBN Combination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-045055-MBN Combination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-050005-MBN Combination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-050010-MBN Combination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-050015-MBN Combination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-050020-MBN Combination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-050025-MBN Combination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-050030-MBN Combination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-050035-MBN Combination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-050040-MBN Combination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-050045-MBN Combination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-050050-MBN Combination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-050055-MBN Combination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-055005-MBN Combination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-055010-MBN Combination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-055015-MBN Combination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-055020-MBN Combination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-055025-MBN Combination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-055030-MBN Combination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-055035-MBN Combination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-055040-MBN Combination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-055045-MBN Combination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-055050-MBN Combination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-055055-MBN Combination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-060005-MBN Combination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-060010-MBN Combination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-060015-MBN Combination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-060020-MBN Combination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-060025-MBN Combination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-060030-MBN Combination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-060035-MBN Combination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-060040-MBN Combination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-060045-MBN Combination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-060050-MBN Combination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-060055-MBN Combination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-065005-MBN Combination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-065010-MBN Combination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-065015-MBN Combination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-065020-MBN Combination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-065025-MBN Combination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-065030-MBN Combination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-065035-MBN Combination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-065040-MBN Combination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-065045-MBN Combination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-065050-MBN Combination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-065055-MBN Combination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-070005-MBN Combination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-070010-MBN Combination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-070015-MBN Combination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-070020-MBN Combination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-070025-MBN Combination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-070030-MBN Combination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-070035-MBN Combination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-070040-MBN Combination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-070045-MBN Combination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-070050-MBN Combination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-070055-MBN Combination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-075005-MBN Combination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-075010-MBN Combination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-075015-MBN Combination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-075020-MBN Combination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-075025-MBN Combination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-075030-MBN Combination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-075035-MBN Combination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-075040-MBN Combination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-075045-MBN Combination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-075050-MBN Combination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-075055-MBN Combination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-080005-MBN Combination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-080010-MBN Combination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-080015-MBN Combination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-080020-MBN Combination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-080025-MBN Combination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-080030-MBN Combination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-080035-MBN Combination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-080040-MBN Combination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-080045-MBN Combination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-080050-MBN Combination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-080055-MBN Combination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-085005-MBN Combination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-085010-MBN Combination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-085015-MBN Combination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-085020-MBN Combination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-085025-MBN Combination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-085030-MBN Combination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-085035-MBN Combination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-085040-MBN Combination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-085045-MBN Combination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-085050-MBN Combination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-085055-MBN Combination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-090005-MBN Combination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-090010-MBN Combination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-090015-MBN Combination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-090020-MBN Combination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-090025-MBN Combination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-090030-MBN Combination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-090035-MBN Combination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-090040-MBN Combination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-090045-MBN Combination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-090050-MBN Combination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-090055-MBN Combination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-095005-MBN Combination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-095010-MBN Combination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-095015-MBN Combination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-095020-MBN Combination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-095025-MBN Combination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-095030-MBN Combination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-095035-MBN Combination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-095040-MBN Combination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-095045-MBN Combination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-095050-MBN Combination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-095055-MBN Combination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-100005-MBN Combination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-100010-MBN Combination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-100015-MBN Combination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-100020-MBN Combination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-100025-MBN Combination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-100030-MBN Combination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-100035-MBN Combination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-100040-MBN Combination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-100045-MBN Combination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-100050-MBN Combination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-100055-MBN Combination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-105005-MBN Combination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-105010-MBN Combination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-105015-MBN Combination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-105020-MBN Combination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-105025-MBN Combination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-105030-MBN Combination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-105035-MBN Combination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-105040-MBN Combination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-105045-MBN Combination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-105050-MBN Combination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-105055-MBN Combination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-110005-MBN Combination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-110010-MBN Combination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-110015-MBN Combination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-110020-MBN Combination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-110025-MBN Combination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-110030-MBN Combination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-110035-MBN Combination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-110040-MBN Combination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-110045-MBN Combination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-110050-MBN Combination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-110055-MBN Combination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-115005-MBN Combination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-115010-MBN Combination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-115015-MBN Combination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-115020-MBN Combination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-115025-MBN Combination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-115030-MBN Combination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-115035-MBN Combination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-115040-MBN Combination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-115045-MBN Combination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-115050-MBN Combination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-115055-MBN Combination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-120005-MBN Combination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-120010-MBN Combination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-120015-MBN Combination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-120020-MBN Combination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-120025-MBN Combination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-120030-MBN Combination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-120035-MBN Combination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-120040-MBN Combination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-120045-MBN Combination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-120050-MBN Combination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-120055-MBN Combination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-125005-MBN Combination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-125010-MBN Combination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-125015-MBN Combination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-125020-MBN Combination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-125025-MBN Combination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-125030-MBN Combination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-125035-MBN Combination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-125040-MBN Combination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-125045-MBN Combination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-125050-MBN Combination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-125055-MBN Combination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1 Legacy code: base combination ETS-760F1 | Combination Direction: F1 | 1st-Axis Stroke: All | 2nd-Axis Stroke: All
ETS-760F3 Legacy code: base combination ETS-760F3 | Combination Direction: F3 | 1st-Axis Stroke: All | 2nd-Axis Stroke: All
Electric ActuatorsCKD
530 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD ETS-760F Multi-Axis Actuator (Y-Z)

Brand CKD·Electric Actuators

Available part numbers (530)

ETS-760F1-010005-MBN, ETS-760F1-010010-MBN, ETS-760F1-010015-MBN, ETS-760F1-010020-MBN, ETS-760F1-010025-MBN, ETS-760F1-010030-MBN, ETS-760F1-010035-MBN, ETS-760F1-010040-MBN, ETS-760F1-010045-MBN, ETS-760F1-010050-MBN + 520 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ETS-760F1-010005-MBNCombination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-010010-MBNCombination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-010015-MBNCombination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-010020-MBNCombination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-010025-MBNCombination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-010030-MBNCombination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-010035-MBNCombination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-010040-MBNCombination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-010045-MBNCombination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-010050-MBNCombination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-010055-MBNCombination Direction: F1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-015005-MBNCombination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-015010-MBNCombination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-015015-MBNCombination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-015020-MBNCombination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-015025-MBNCombination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-015030-MBNCombination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-015035-MBNCombination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-015040-MBNCombination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-015045-MBNCombination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-015050-MBNCombination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-015055-MBNCombination Direction: F1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-020005-MBNCombination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-020010-MBNCombination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-020015-MBNCombination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-020020-MBNCombination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-020025-MBNCombination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-020030-MBNCombination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-020035-MBNCombination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-020040-MBNCombination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-020045-MBNCombination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-020050-MBNCombination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-020055-MBNCombination Direction: F1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-025005-MBNCombination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-025010-MBNCombination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-025015-MBNCombination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-025020-MBNCombination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-025025-MBNCombination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-025030-MBNCombination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-025035-MBNCombination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-025040-MBNCombination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-025045-MBNCombination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-025050-MBNCombination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-025055-MBNCombination Direction: F1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-030005-MBNCombination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-030010-MBNCombination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-030015-MBNCombination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-030020-MBNCombination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-030025-MBNCombination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-030030-MBNCombination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-030035-MBNCombination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-030040-MBNCombination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-030045-MBNCombination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-030050-MBNCombination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-030055-MBNCombination Direction: F1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-035005-MBNCombination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-035010-MBNCombination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-035015-MBNCombination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-035020-MBNCombination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-035025-MBNCombination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-035030-MBNCombination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-035035-MBNCombination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-035040-MBNCombination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-035045-MBNCombination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-035050-MBNCombination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-035055-MBNCombination Direction: F1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-040005-MBNCombination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-040010-MBNCombination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-040015-MBNCombination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-040020-MBNCombination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-040025-MBNCombination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-040030-MBNCombination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-040035-MBNCombination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-040040-MBNCombination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-040045-MBNCombination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-040050-MBNCombination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-040055-MBNCombination Direction: F1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-045005-MBNCombination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-045010-MBNCombination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-045015-MBNCombination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-045020-MBNCombination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-045025-MBNCombination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-045030-MBNCombination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-045035-MBNCombination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-045040-MBNCombination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-045045-MBNCombination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-045050-MBNCombination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-045055-MBNCombination Direction: F1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-050005-MBNCombination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-050010-MBNCombination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-050015-MBNCombination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-050020-MBNCombination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-050025-MBNCombination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-050030-MBNCombination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-050035-MBNCombination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-050040-MBNCombination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-050045-MBNCombination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-050050-MBNCombination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-050055-MBNCombination Direction: F1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-055005-MBNCombination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-055010-MBNCombination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-055015-MBNCombination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-055020-MBNCombination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-055025-MBNCombination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-055030-MBNCombination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-055035-MBNCombination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-055040-MBNCombination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-055045-MBNCombination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-055050-MBNCombination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-055055-MBNCombination Direction: F1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-060005-MBNCombination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-060010-MBNCombination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-060015-MBNCombination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-060020-MBNCombination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-060025-MBNCombination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-060030-MBNCombination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-060035-MBNCombination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-060040-MBNCombination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-060045-MBNCombination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-060050-MBNCombination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-060055-MBNCombination Direction: F1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-065005-MBNCombination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-065010-MBNCombination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-065015-MBNCombination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-065020-MBNCombination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-065025-MBNCombination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-065030-MBNCombination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-065035-MBNCombination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-065040-MBNCombination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-065045-MBNCombination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-065050-MBNCombination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-065055-MBNCombination Direction: F1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-070005-MBNCombination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-070010-MBNCombination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-070015-MBNCombination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-070020-MBNCombination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-070025-MBNCombination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-070030-MBNCombination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-070035-MBNCombination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-070040-MBNCombination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-070045-MBNCombination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-070050-MBNCombination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-070055-MBNCombination Direction: F1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-075005-MBNCombination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-075010-MBNCombination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-075015-MBNCombination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-075020-MBNCombination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-075025-MBNCombination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-075030-MBNCombination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-075035-MBNCombination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-075040-MBNCombination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-075045-MBNCombination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-075050-MBNCombination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-075055-MBNCombination Direction: F1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-080005-MBNCombination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-080010-MBNCombination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-080015-MBNCombination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-080020-MBNCombination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-080025-MBNCombination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-080030-MBNCombination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-080035-MBNCombination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-080040-MBNCombination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-080045-MBNCombination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-080050-MBNCombination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-080055-MBNCombination Direction: F1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-085005-MBNCombination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-085010-MBNCombination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-085015-MBNCombination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-085020-MBNCombination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-085025-MBNCombination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-085030-MBNCombination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-085035-MBNCombination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-085040-MBNCombination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-085045-MBNCombination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-085050-MBNCombination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-085055-MBNCombination Direction: F1 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-090005-MBNCombination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-090010-MBNCombination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-090015-MBNCombination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-090020-MBNCombination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-090025-MBNCombination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-090030-MBNCombination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-090035-MBNCombination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-090040-MBNCombination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-090045-MBNCombination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-090050-MBNCombination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-090055-MBNCombination Direction: F1 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-095005-MBNCombination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-095010-MBNCombination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-095015-MBNCombination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-095020-MBNCombination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-095025-MBNCombination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-095030-MBNCombination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-095035-MBNCombination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-095040-MBNCombination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-095045-MBNCombination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-095050-MBNCombination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-095055-MBNCombination Direction: F1 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-100005-MBNCombination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-100010-MBNCombination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-100015-MBNCombination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-100020-MBNCombination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-100025-MBNCombination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-100030-MBNCombination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-100035-MBNCombination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-100040-MBNCombination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-100045-MBNCombination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-100050-MBNCombination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-100055-MBNCombination Direction: F1 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-105005-MBNCombination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-105010-MBNCombination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-105015-MBNCombination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-105020-MBNCombination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-105025-MBNCombination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-105030-MBNCombination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-105035-MBNCombination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-105040-MBNCombination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-105045-MBNCombination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-105050-MBNCombination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-105055-MBNCombination Direction: F1 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-110005-MBNCombination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-110010-MBNCombination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-110015-MBNCombination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-110020-MBNCombination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-110025-MBNCombination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-110030-MBNCombination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-110035-MBNCombination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-110040-MBNCombination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-110045-MBNCombination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-110050-MBNCombination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-110055-MBNCombination Direction: F1 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-115005-MBNCombination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-115010-MBNCombination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-115015-MBNCombination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-115020-MBNCombination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-115025-MBNCombination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-115030-MBNCombination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-115035-MBNCombination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-115040-MBNCombination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-115045-MBNCombination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-115050-MBNCombination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-115055-MBNCombination Direction: F1 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-120005-MBNCombination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-120010-MBNCombination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-120015-MBNCombination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-120020-MBNCombination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-120025-MBNCombination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-120030-MBNCombination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-120035-MBNCombination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-120040-MBNCombination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-120045-MBNCombination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-120050-MBNCombination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-120055-MBNCombination Direction: F1 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1-125005-MBNCombination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 50 mm
ETS-760F1-125010-MBNCombination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 100 mm
ETS-760F1-125015-MBNCombination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 150 mm
ETS-760F1-125020-MBNCombination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 200 mm
ETS-760F1-125025-MBNCombination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 250 mm
ETS-760F1-125030-MBNCombination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 300 mm
ETS-760F1-125035-MBNCombination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 350 mm
ETS-760F1-125040-MBNCombination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 400 mm
ETS-760F1-125045-MBNCombination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 450 mm
ETS-760F1-125050-MBNCombination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 500 mm
ETS-760F1-125055-MBNCombination Direction: F1 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-010005-MBNCombination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-010010-MBNCombination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-010015-MBNCombination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-010020-MBNCombination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-010025-MBNCombination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-010030-MBNCombination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-010035-MBNCombination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-010040-MBNCombination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-010045-MBNCombination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-010050-MBNCombination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-010055-MBNCombination Direction: F3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-015005-MBNCombination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-015010-MBNCombination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-015015-MBNCombination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-015020-MBNCombination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-015025-MBNCombination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-015030-MBNCombination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-015035-MBNCombination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-015040-MBNCombination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-015045-MBNCombination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-015050-MBNCombination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-015055-MBNCombination Direction: F3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-020005-MBNCombination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-020010-MBNCombination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-020015-MBNCombination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-020020-MBNCombination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-020025-MBNCombination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-020030-MBNCombination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-020035-MBNCombination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-020040-MBNCombination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-020045-MBNCombination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-020050-MBNCombination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-020055-MBNCombination Direction: F3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-025005-MBNCombination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-025010-MBNCombination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-025015-MBNCombination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-025020-MBNCombination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-025025-MBNCombination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-025030-MBNCombination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-025035-MBNCombination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-025040-MBNCombination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-025045-MBNCombination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-025050-MBNCombination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-025055-MBNCombination Direction: F3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-030005-MBNCombination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-030010-MBNCombination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-030015-MBNCombination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-030020-MBNCombination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-030025-MBNCombination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-030030-MBNCombination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-030035-MBNCombination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-030040-MBNCombination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-030045-MBNCombination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-030050-MBNCombination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-030055-MBNCombination Direction: F3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-035005-MBNCombination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-035010-MBNCombination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-035015-MBNCombination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-035020-MBNCombination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-035025-MBNCombination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-035030-MBNCombination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-035035-MBNCombination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-035040-MBNCombination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-035045-MBNCombination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-035050-MBNCombination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-035055-MBNCombination Direction: F3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-040005-MBNCombination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-040010-MBNCombination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-040015-MBNCombination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-040020-MBNCombination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-040025-MBNCombination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-040030-MBNCombination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-040035-MBNCombination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-040040-MBNCombination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-040045-MBNCombination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-040050-MBNCombination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-040055-MBNCombination Direction: F3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-045005-MBNCombination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-045010-MBNCombination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-045015-MBNCombination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-045020-MBNCombination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-045025-MBNCombination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-045030-MBNCombination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-045035-MBNCombination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-045040-MBNCombination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-045045-MBNCombination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-045050-MBNCombination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-045055-MBNCombination Direction: F3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-050005-MBNCombination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-050010-MBNCombination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-050015-MBNCombination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-050020-MBNCombination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-050025-MBNCombination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-050030-MBNCombination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-050035-MBNCombination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-050040-MBNCombination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-050045-MBNCombination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-050050-MBNCombination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-050055-MBNCombination Direction: F3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-055005-MBNCombination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-055010-MBNCombination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-055015-MBNCombination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-055020-MBNCombination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-055025-MBNCombination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-055030-MBNCombination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-055035-MBNCombination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-055040-MBNCombination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-055045-MBNCombination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-055050-MBNCombination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-055055-MBNCombination Direction: F3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-060005-MBNCombination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-060010-MBNCombination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-060015-MBNCombination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-060020-MBNCombination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-060025-MBNCombination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-060030-MBNCombination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-060035-MBNCombination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-060040-MBNCombination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-060045-MBNCombination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-060050-MBNCombination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-060055-MBNCombination Direction: F3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-065005-MBNCombination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-065010-MBNCombination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-065015-MBNCombination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-065020-MBNCombination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-065025-MBNCombination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-065030-MBNCombination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-065035-MBNCombination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-065040-MBNCombination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-065045-MBNCombination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-065050-MBNCombination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-065055-MBNCombination Direction: F3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-070005-MBNCombination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-070010-MBNCombination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-070015-MBNCombination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-070020-MBNCombination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-070025-MBNCombination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-070030-MBNCombination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-070035-MBNCombination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-070040-MBNCombination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-070045-MBNCombination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-070050-MBNCombination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-070055-MBNCombination Direction: F3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-075005-MBNCombination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-075010-MBNCombination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-075015-MBNCombination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-075020-MBNCombination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-075025-MBNCombination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-075030-MBNCombination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-075035-MBNCombination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-075040-MBNCombination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-075045-MBNCombination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-075050-MBNCombination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-075055-MBNCombination Direction: F3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-080005-MBNCombination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-080010-MBNCombination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-080015-MBNCombination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-080020-MBNCombination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-080025-MBNCombination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-080030-MBNCombination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-080035-MBNCombination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-080040-MBNCombination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-080045-MBNCombination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-080050-MBNCombination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-080055-MBNCombination Direction: F3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-085005-MBNCombination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-085010-MBNCombination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-085015-MBNCombination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-085020-MBNCombination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-085025-MBNCombination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-085030-MBNCombination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-085035-MBNCombination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-085040-MBNCombination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-085045-MBNCombination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-085050-MBNCombination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-085055-MBNCombination Direction: F3 | 1st-Axis Stroke: 850 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-090005-MBNCombination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-090010-MBNCombination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-090015-MBNCombination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-090020-MBNCombination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-090025-MBNCombination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-090030-MBNCombination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-090035-MBNCombination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-090040-MBNCombination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-090045-MBNCombination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-090050-MBNCombination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-090055-MBNCombination Direction: F3 | 1st-Axis Stroke: 900 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-095005-MBNCombination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-095010-MBNCombination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-095015-MBNCombination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-095020-MBNCombination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-095025-MBNCombination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-095030-MBNCombination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-095035-MBNCombination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-095040-MBNCombination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-095045-MBNCombination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-095050-MBNCombination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-095055-MBNCombination Direction: F3 | 1st-Axis Stroke: 950 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-100005-MBNCombination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-100010-MBNCombination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-100015-MBNCombination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-100020-MBNCombination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-100025-MBNCombination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-100030-MBNCombination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-100035-MBNCombination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-100040-MBNCombination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-100045-MBNCombination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-100050-MBNCombination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-100055-MBNCombination Direction: F3 | 1st-Axis Stroke: 1000 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-105005-MBNCombination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-105010-MBNCombination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-105015-MBNCombination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-105020-MBNCombination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-105025-MBNCombination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-105030-MBNCombination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-105035-MBNCombination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-105040-MBNCombination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-105045-MBNCombination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-105050-MBNCombination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-105055-MBNCombination Direction: F3 | 1st-Axis Stroke: 1050 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-110005-MBNCombination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-110010-MBNCombination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-110015-MBNCombination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-110020-MBNCombination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-110025-MBNCombination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-110030-MBNCombination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-110035-MBNCombination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-110040-MBNCombination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-110045-MBNCombination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-110050-MBNCombination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-110055-MBNCombination Direction: F3 | 1st-Axis Stroke: 1100 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-115005-MBNCombination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-115010-MBNCombination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-115015-MBNCombination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-115020-MBNCombination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-115025-MBNCombination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-115030-MBNCombination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-115035-MBNCombination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-115040-MBNCombination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-115045-MBNCombination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-115050-MBNCombination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-115055-MBNCombination Direction: F3 | 1st-Axis Stroke: 1150 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-120005-MBNCombination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-120010-MBNCombination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-120015-MBNCombination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-120020-MBNCombination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-120025-MBNCombination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-120030-MBNCombination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-120035-MBNCombination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-120040-MBNCombination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-120045-MBNCombination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-120050-MBNCombination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-120055-MBNCombination Direction: F3 | 1st-Axis Stroke: 1200 mm | 2nd-Axis Stroke: 550 mm
ETS-760F3-125005-MBNCombination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 50 mm
ETS-760F3-125010-MBNCombination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 100 mm
ETS-760F3-125015-MBNCombination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 150 mm
ETS-760F3-125020-MBNCombination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 200 mm
ETS-760F3-125025-MBNCombination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 250 mm
ETS-760F3-125030-MBNCombination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 300 mm
ETS-760F3-125035-MBNCombination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 350 mm
ETS-760F3-125040-MBNCombination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 400 mm
ETS-760F3-125045-MBNCombination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 450 mm
ETS-760F3-125050-MBNCombination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 500 mm
ETS-760F3-125055-MBNCombination Direction: F3 | 1st-Axis Stroke: 1250 mm | 2nd-Axis Stroke: 550 mm
ETS-760F1Legacy code: base combination ETS-760F1 | Combination Direction: F1 | 1st-Axis Stroke: All | 2nd-Axis Stroke: All
ETS-760F3Legacy code: base combination ETS-760F3 | Combination Direction: F3 | 1st-Axis Stroke: All | 2nd-Axis Stroke: All

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
