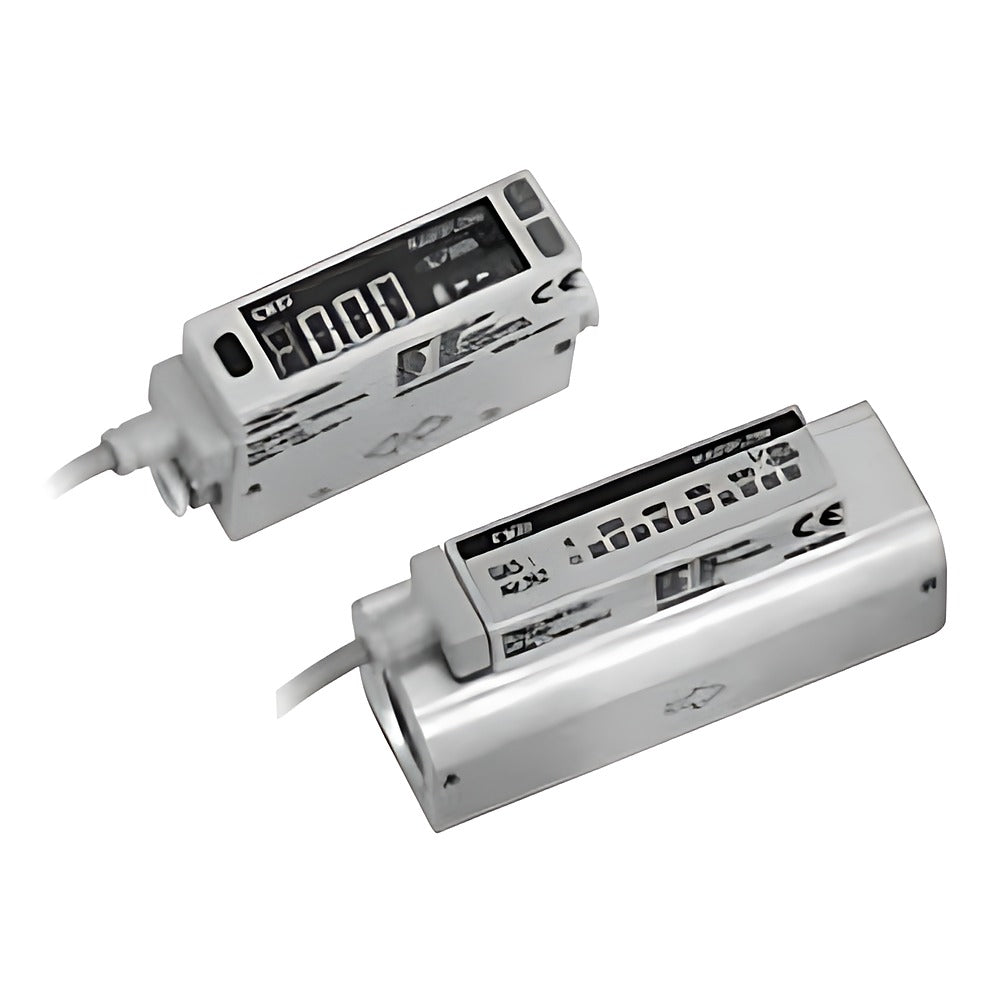

CKD FSM2 Rapiflow Flow Sensor, Remote Display Type (Clean P70/P80)

CKD FSM2 Rapiflow Flow Sensor, Remote Display Type (Clean P70/P80)

CKD FSM2-A Rapiflow display-separated thermal flow sensor with a single analog output (1-5 V or 4-20 mA) for use with the FSM2-D remote display or a PLC, in P70/P80 clean specs.

Key features

  • Sensor body only, one analog output; combine with FSM2-D remote display (V output type required)
  • Full scale 500 mL/min to 1000 L/min, unidirectional or bidirectional
  • Resin push-in, stainless Rc (air/N2, Ar, CO2) and aluminium Rc1/2 bodies
  • Needle valve not available on this type; panel mount kit not selectable
  • Options not multiplied: cable 1/3 m, bracket B, traceability T/K

Specifications

Fluid Clean air, compressed air, N2 (S body also Ar, CO2)
Max. operating pressure 0.7 MPa
Proof pressure 1 MPa
Ambient / fluid temperature 0 to 50°C
Accuracy ±3% F.S.
Response time 50 ms max.
Supply voltage DC12-24V (V output) / DC24V (A output)
Source CKD Korea catalog CB-033S-4, p. 1048-1103
FSM2-AVF005-H04-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR005-H04-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF005-H04-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR005-H04-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF005-H04-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR005-H04-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF005-H04-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR005-H04-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF005-H06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR005-H06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF005-H06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR005-H06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF005-H06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR005-H06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF005-H06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR005-H06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF005-S06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR005-S06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF005-S06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR005-S06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF005-S06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR005-S06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF005-S06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR005-S06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF005-S06AR-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR005-S06AR-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF005-S06AR-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR005-S06AR-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF005-S06AR-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR005-S06AR-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF005-S06AR-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR005-S06AR-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF005-S06C2-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR005-S06C2-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF005-S06C2-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR005-S06C2-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF005-S06C2-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR005-S06C2-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF005-S06C2-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR005-S06C2-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF010-H04-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR010-H04-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF010-H04-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR010-H04-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF010-H04-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR010-H04-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF010-H04-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR010-H04-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF010-H06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR010-H06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF010-H06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR010-H06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF010-H06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR010-H06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF010-H06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR010-H06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF010-S06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR010-S06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF010-S06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR010-S06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF010-S06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR010-S06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF010-S06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR010-S06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF010-S06AR-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR010-S06AR-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF010-S06AR-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR010-S06AR-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF010-S06AR-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR010-S06AR-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF010-S06AR-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR010-S06AR-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF010-S06C2-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR010-S06C2-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF010-S06C2-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR010-S06C2-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF010-S06C2-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR010-S06C2-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF010-S06C2-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR010-S06C2-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF020-H04-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR020-H04-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF020-H04-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR020-H04-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF020-H04-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR020-H04-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF020-H04-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR020-H04-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF020-H06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR020-H06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF020-H06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR020-H06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF020-H06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR020-H06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF020-H06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR020-H06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF020-S06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR020-S06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF020-S06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR020-S06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF020-S06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR020-S06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF020-S06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR020-S06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF020-S06AR-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR020-S06AR-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF020-S06AR-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR020-S06AR-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF020-S06AR-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR020-S06AR-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF020-S06AR-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR020-S06AR-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF020-S06C2-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR020-S06C2-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF020-S06C2-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR020-S06C2-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF020-S06C2-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR020-S06C2-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF020-S06C2-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR020-S06C2-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF050-H04-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR050-H04-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF050-H04-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR050-H04-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF050-H04-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR050-H04-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF050-H04-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR050-H04-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF050-H06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR050-H06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF050-H06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR050-H06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF050-H06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR050-H06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF050-H06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR050-H06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF050-S06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR050-S06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF050-S06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR050-S06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF050-S06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR050-S06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF050-S06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR050-S06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF050-S06AR-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR050-S06AR-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF050-S06AR-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR050-S06AR-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF050-S06AR-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR050-S06AR-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF050-S06AR-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR050-S06AR-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF050-S06C2-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR050-S06C2-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF050-S06C2-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR050-S06C2-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF050-S06C2-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR050-S06C2-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF050-S06C2-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR050-S06C2-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF100-H04-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR100-H04-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF100-H04-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR100-H04-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF100-H04-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR100-H04-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF100-H04-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR100-H04-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF100-H06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR100-H06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF100-H06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR100-H06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF100-H06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR100-H06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF100-H06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR100-H06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF100-S06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR100-S06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF100-S06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR100-S06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF100-S06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR100-S06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF100-S06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR100-S06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF100-S06AR-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR100-S06AR-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF100-S06AR-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR100-S06AR-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF100-S06AR-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR100-S06AR-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF100-S06AR-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR100-S06AR-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF100-S06C2-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR100-S06C2-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF100-S06C2-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR100-S06C2-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF100-S06C2-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR100-S06C2-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF100-S06C2-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR100-S06C2-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF200-H04-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR200-H04-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF200-H04-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR200-H04-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF200-H04-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR200-H04-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF200-H04-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR200-H04-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF200-H06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR200-H06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF200-H06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR200-H06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF200-H06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR200-H06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF200-H06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR200-H06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF200-S06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR200-S06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF200-S06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR200-S06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF200-S06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR200-S06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF200-S06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR200-S06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF200-S06AR-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR200-S06AR-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF200-S06AR-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR200-S06AR-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF200-S06AR-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR200-S06AR-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF200-S06AR-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR200-S06AR-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF200-S06C2-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR200-S06C2-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF200-S06C2-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR200-S06C2-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF200-S06C2-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR200-S06C2-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF200-S06C2-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR200-S06C2-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF500-H06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR500-H06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF500-H06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR500-H06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF500-H06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR500-H06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF500-H06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR500-H06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF500-H08-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR500-H08-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF500-H08-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR500-H08-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF500-S06-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR500-S06-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF500-S06-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR500-S06-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF500-S06-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR500-S06-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF500-S06-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR500-S06-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF500-S06AR-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR500-S06AR-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF500-S06AR-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR500-S06AR-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF500-S06AR-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR500-S06AR-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF500-S06AR-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR500-S06AR-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF500-S08-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR500-S08-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF500-S08-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR500-S08-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF500-S08-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR500-S08-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF500-S08-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR500-S08-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF500-S08AR-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR500-S08AR-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF500-S08AR-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR500-S08AR-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF500-S08AR-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR500-S08AR-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF500-S08AR-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR500-S08AR-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF500-S08C2-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR500-S08C2-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF500-S08C2-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR500-S08C2-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF500-S08C2-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR500-S08C2-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF500-S08C2-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR500-S08C2-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF101-H08-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR101-H08-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF101-H08-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR101-H08-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF101-H10-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR101-H10-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF101-H10-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR101-H10-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF101-S08-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR101-S08-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF101-S08-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR101-S08-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF101-S08-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR101-S08-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF101-S08-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR101-S08-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF101-S08AR-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR101-S08AR-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF101-S08AR-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR101-S08AR-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF101-S08AR-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR101-S08AR-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF101-S08AR-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR101-S08AR-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF101-S08C2-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR101-S08C2-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF101-S08C2-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR101-S08C2-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF101-S08C2-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR101-S08C2-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF101-S08C2-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR101-S08C2-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF201-H08-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 200 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR201-H08-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 200 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF201-H08-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 200 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR201-H08-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 200 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF201-H10-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 200 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR201-H10-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 200 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF201-H10-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 200 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR201-H10-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 200 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF201-S08-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR201-S08-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF201-S08-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR201-S08-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF201-S08-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR201-S08-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF201-S08-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR201-S08-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF501-A15-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR501-A15-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF501-A15-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR501-A15-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF501-A15-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR501-A15-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF501-A15-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR501-A15-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF102-A15-P70 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR102-A15-P70 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF102-A15-P70 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR102-A15-P70 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF102-A15-P80 Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR102-A15-P80 Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF102-A15-P80 Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR102-A15-P80 Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
Flow SensorsCKD
356 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD FSM2 Rapiflow Flow Sensor, Remote Display Type (Clean P70/P80)

Brand CKD·Flow Sensors

Available part numbers (356)

FSM2-AVF005-H04-P70, FSM2-AVR005-H04-P70, FSM2-AAF005-H04-P70, FSM2-AAR005-H04-P70, FSM2-AVF005-H04-P80, FSM2-AVR005-H04-P80, FSM2-AAF005-H04-P80, FSM2-AAR005-H04-P80, FSM2-AVF005-H06-P70, FSM2-AVR005-H06-P70 + 346 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FSM2-AVF005-H04-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR005-H04-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF005-H04-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR005-H04-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF005-H04-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR005-H04-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF005-H04-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR005-H04-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF005-H06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR005-H06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF005-H06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR005-H06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF005-H06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR005-H06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF005-H06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR005-H06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF005-S06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR005-S06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF005-S06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR005-S06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF005-S06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR005-S06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF005-S06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR005-S06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF005-S06AR-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR005-S06AR-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF005-S06AR-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR005-S06AR-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF005-S06AR-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR005-S06AR-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF005-S06AR-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR005-S06AR-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF005-S06C2-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR005-S06C2-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF005-S06C2-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR005-S06C2-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF005-S06C2-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR005-S06C2-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF005-S06C2-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR005-S06C2-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 mL/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF010-H04-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR010-H04-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF010-H04-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR010-H04-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF010-H04-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR010-H04-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF010-H04-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR010-H04-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF010-H06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR010-H06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF010-H06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR010-H06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF010-H06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR010-H06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF010-H06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR010-H06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF010-S06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR010-S06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF010-S06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR010-S06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF010-S06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR010-S06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF010-S06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR010-S06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF010-S06AR-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR010-S06AR-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF010-S06AR-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR010-S06AR-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF010-S06AR-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR010-S06AR-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF010-S06AR-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR010-S06AR-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF010-S06C2-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR010-S06C2-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF010-S06C2-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR010-S06C2-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF010-S06C2-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR010-S06C2-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF010-S06C2-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR010-S06C2-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF020-H04-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR020-H04-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF020-H04-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR020-H04-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF020-H04-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR020-H04-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF020-H04-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR020-H04-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF020-H06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR020-H06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF020-H06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR020-H06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF020-H06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR020-H06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF020-H06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR020-H06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF020-S06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR020-S06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF020-S06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR020-S06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF020-S06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR020-S06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF020-S06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR020-S06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF020-S06AR-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR020-S06AR-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF020-S06AR-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR020-S06AR-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF020-S06AR-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR020-S06AR-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF020-S06AR-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR020-S06AR-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF020-S06C2-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR020-S06C2-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF020-S06C2-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR020-S06C2-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF020-S06C2-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR020-S06C2-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF020-S06C2-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR020-S06C2-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 2 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF050-H04-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR050-H04-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF050-H04-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR050-H04-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF050-H04-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR050-H04-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF050-H04-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR050-H04-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF050-H06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR050-H06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF050-H06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR050-H06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF050-H06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR050-H06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF050-H06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR050-H06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF050-S06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR050-S06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF050-S06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR050-S06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF050-S06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR050-S06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF050-S06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR050-S06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF050-S06AR-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR050-S06AR-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF050-S06AR-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR050-S06AR-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF050-S06AR-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR050-S06AR-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF050-S06AR-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR050-S06AR-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF050-S06C2-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR050-S06C2-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF050-S06C2-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR050-S06C2-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF050-S06C2-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR050-S06C2-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF050-S06C2-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR050-S06C2-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 5 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF100-H04-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR100-H04-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF100-H04-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR100-H04-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF100-H04-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR100-H04-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF100-H04-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR100-H04-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF100-H06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR100-H06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF100-H06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR100-H06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF100-H06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR100-H06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF100-H06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR100-H06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF100-S06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR100-S06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF100-S06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR100-S06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF100-S06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR100-S06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF100-S06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR100-S06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF100-S06AR-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR100-S06AR-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF100-S06AR-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR100-S06AR-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF100-S06AR-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR100-S06AR-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF100-S06AR-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR100-S06AR-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF100-S06C2-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR100-S06C2-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF100-S06C2-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR100-S06C2-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF100-S06C2-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR100-S06C2-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF100-S06C2-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR100-S06C2-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 10 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF200-H04-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR200-H04-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF200-H04-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR200-H04-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF200-H04-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR200-H04-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF200-H04-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR200-H04-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø4 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF200-H06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR200-H06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF200-H06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR200-H06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF200-H06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR200-H06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF200-H06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR200-H06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF200-S06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR200-S06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF200-S06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR200-S06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF200-S06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR200-S06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF200-S06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR200-S06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF200-S06AR-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR200-S06AR-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF200-S06AR-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR200-S06AR-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF200-S06AR-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR200-S06AR-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF200-S06AR-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR200-S06AR-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF200-S06C2-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR200-S06C2-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF200-S06C2-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR200-S06C2-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF200-S06C2-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR200-S06C2-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF200-S06C2-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR200-S06C2-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 20 L/min | Port / body: Rc1/8, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF500-H06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR500-H06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF500-H06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR500-H06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF500-H06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR500-H06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF500-H06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR500-H06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: ø6 push-in, resin | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF500-H08-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR500-H08-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF500-H08-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR500-H08-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF500-S06-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR500-S06-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF500-S06-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR500-S06-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF500-S06-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR500-S06-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF500-S06-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR500-S06-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF500-S06AR-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR500-S06AR-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF500-S06AR-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR500-S06AR-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF500-S06AR-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR500-S06AR-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF500-S06AR-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR500-S06AR-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/8, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF500-S08-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR500-S08-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF500-S08-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR500-S08-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF500-S08-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR500-S08-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF500-S08-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR500-S08-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF500-S08AR-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR500-S08AR-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF500-S08AR-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR500-S08AR-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF500-S08AR-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR500-S08AR-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF500-S08AR-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR500-S08AR-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF500-S08C2-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR500-S08C2-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF500-S08C2-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR500-S08C2-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF500-S08C2-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR500-S08C2-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF500-S08C2-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR500-S08C2-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 50 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF101-H08-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR101-H08-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF101-H08-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR101-H08-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF101-H10-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR101-H10-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF101-H10-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR101-H10-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF101-S08-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR101-S08-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF101-S08-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR101-S08-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF101-S08-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR101-S08-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF101-S08-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR101-S08-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF101-S08AR-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVR101-S08AR-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAF101-S08AR-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AAR101-S08AR-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P70 dust-generation proof
FSM2-AVF101-S08AR-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVR101-S08AR-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAF101-S08AR-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AAR101-S08AR-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: Argon | Clean spec: P80 oil-free
FSM2-AVF101-S08C2-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVR101-S08C2-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAF101-S08C2-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AAR101-S08C2-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P70 dust-generation proof
FSM2-AVF101-S08C2-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVR101-S08C2-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAF101-S08C2-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AAR101-S08C2-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 100 L/min | Port / body: Rc1/4, stainless | Gas: CO2 | Clean spec: P80 oil-free
FSM2-AVF201-H08-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 200 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR201-H08-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 200 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF201-H08-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 200 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR201-H08-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 200 L/min | Port / body: ø8 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF201-H10-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 200 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR201-H10-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 200 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF201-H10-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 200 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR201-H10-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 200 L/min | Port / body: ø10 push-in, resin | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF201-S08-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR201-S08-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF201-S08-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR201-S08-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF201-S08-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR201-S08-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF201-S08-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR201-S08-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 200 L/min | Port / body: Rc1/4, stainless | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF501-A15-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR501-A15-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF501-A15-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR501-A15-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF501-A15-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR501-A15-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF501-A15-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR501-A15-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 500 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVF102-A15-P70Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVR102-A15-P70Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAF102-A15-P70Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AAR102-A15-P70Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P70 dust-generation proof
FSM2-AVF102-A15-P80Analog output: 1-5 V | Direction: Unidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AVR102-A15-P80Analog output: 1-5 V | Direction: Bidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAF102-A15-P80Analog output: 4-20 mA | Direction: Unidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free
FSM2-AAR102-A15-P80Analog output: 4-20 mA | Direction: Bidirectional | Flow range: 1000 L/min | Port / body: Rc1/2, aluminium | Gas: Air/N2 | Clean spec: P80 oil-free

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Sensors →
