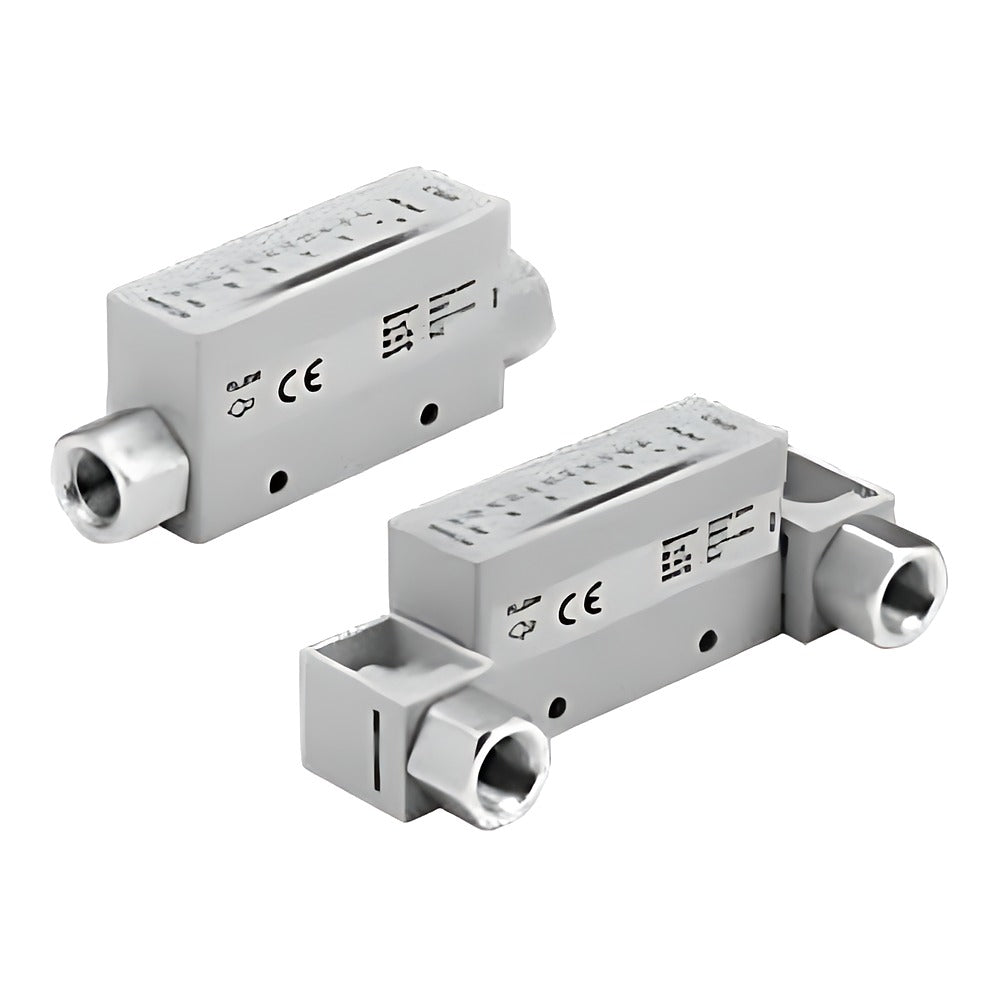

CKD FSM3 Rapiflow Flow Sensor (Bar Display, Resin Body)

CKD FSM3 Rapiflow compact thermal flow sensor (Bar Display, Resin Body) for gases, with full-scale flow ranges from 500 mL/min to 1000 L/min.

Key features

Thermal MEMS flow sensor (platinum sensor chip on silicon) for clean air, compressed air and nitrogen
Full-scale flow ranges from 500 mL/min to 1000 L/min, unidirectional or bidirectional measurement
Resin body with push-in (4-10 mm, 1/4 and 3/8 in), Rc, G and NPT connections, straight or elbow
Compact LED bar display with one analog output; combine with FSM2-D separate display for switch outputs
EXA valve connection fitting (E) option; SI units only (unit 1)
Order code shown with unit 1 (SI units) and valve option N; lead wire, bracket/panel/DIN rail mounting, inspection certificate (R, S) and clean specs P70/P80 are added as suffixes, e.g. -BMR-P80

Specifications

Display	LED bar display
Applicable fluid	Clean dry air, compressed air, nitrogen
Operating pressure	-0.09 to 0.75 MPa
Proof pressure	1 MPa
Accuracy	+/-3% F.S. (repeatability +/-1% F.S.)
Response time	50 ms or less
Power supply	12-24 VDC (J); 24 VDC (K)
Fluid / ambient temperature	0 to 50 C, 90% RH or less
Protection	IP40 equivalent (IEC)
Source	CKD Korea catalog CB-024SK-9, p. 1452-1457

FSM3-B005U1BH1J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005U1BH1K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005U1CH1J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005U1CH1K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005U1HH1J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005U1HH1K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005U1BH2J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005U1BH2K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B005U1CH2J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005U1CH2K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B005U1HH2J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005U1HH2K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B005U1AA1J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005U1AA1K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005U1AA2J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005U1AA2K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B005U1AF1J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005U1AF1K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005U1AF2J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005U1AF2K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B005U1AB1J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005U1AB1K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005U1AB2J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005U1AB2K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B005U1AC1J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005U1AC1K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005U1AC2J1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005U1AC2K1N		Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B005B1BH1J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005B1BH1K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005B1CH1J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005B1CH1K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005B1HH1J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005B1HH1K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005B1BH2J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005B1BH2K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B005B1CH2J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005B1CH2K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B005B1HH2J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005B1HH2K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B005B1AA1J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005B1AA1K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005B1AA2J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005B1AA2K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B005B1AF1J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005B1AF1K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005B1AF2J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005B1AF2K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B005B1AB1J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005B1AB1K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005B1AB2J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005B1AB2K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B005B1AC1J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B005B1AC1K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B005B1AC2J1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B005B1AC2K1N		Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010U1BH1J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010U1BH1K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010U1CH1J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010U1CH1K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010U1HH1J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010U1HH1K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010U1BH2J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010U1BH2K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010U1CH2J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010U1CH2K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010U1HH2J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010U1HH2K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010U1AA1J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010U1AA1K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010U1AA2J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010U1AA2K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010U1AF1J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010U1AF1K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010U1AF2J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010U1AF2K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010U1AB1J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010U1AB1K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010U1AB2J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010U1AB2K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010U1AC1J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010U1AC1K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010U1AC2J1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010U1AC2K1N		Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010B1BH1J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010B1BH1K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010B1CH1J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010B1CH1K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010B1HH1J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010B1HH1K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010B1BH2J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010B1BH2K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010B1CH2J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010B1CH2K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010B1HH2J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010B1HH2K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010B1AA1J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010B1AA1K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010B1AA2J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010B1AA2K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010B1AF1J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010B1AF1K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010B1AF2J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010B1AF2K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010B1AB1J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010B1AB1K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010B1AB2J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010B1AB2K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B010B1AC1J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B010B1AC1K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B010B1AC2J1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B010B1AC2K1N		Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020U1BH1J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020U1BH1K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020U1CH1J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020U1CH1K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020U1HH1J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020U1HH1K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020U1BH2J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020U1BH2K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020U1CH2J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020U1CH2K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020U1HH2J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020U1HH2K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020U1AA1J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020U1AA1K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020U1AA2J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020U1AA2K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020U1AF1J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020U1AF1K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020U1AF2J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020U1AF2K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020U1AB1J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020U1AB1K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020U1AB2J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020U1AB2K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020U1AC1J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020U1AC1K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020U1AC2J1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020U1AC2K1N		Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020B1BH1J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020B1BH1K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020B1CH1J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020B1CH1K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020B1HH1J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020B1HH1K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020B1BH2J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020B1BH2K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020B1CH2J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020B1CH2K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020B1HH2J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020B1HH2K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020B1AA1J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020B1AA1K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020B1AA2J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020B1AA2K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020B1AF1J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020B1AF1K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020B1AF2J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020B1AF2K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020B1AB1J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020B1AB1K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020B1AB2J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020B1AB2K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B020B1AC1J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B020B1AC1K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B020B1AC2J1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B020B1AC2K1N		Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050U1BH1J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050U1BH1K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050U1CH1J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050U1CH1K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050U1HH1J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050U1HH1K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050U1BH2J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050U1BH2K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050U1CH2J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050U1CH2K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050U1HH2J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050U1HH2K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050U1AA1J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050U1AA1K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050U1AA2J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050U1AA2K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050U1AF1J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050U1AF1K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050U1AF2J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050U1AF2K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050U1AB1J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050U1AB1K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050U1AB2J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050U1AB2K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050U1AC1J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050U1AC1K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050U1AC2J1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050U1AC2K1N		Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050B1BH1J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050B1BH1K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050B1CH1J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050B1CH1K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050B1HH1J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050B1HH1K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050B1BH2J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050B1BH2K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050B1CH2J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050B1CH2K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050B1HH2J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050B1HH2K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050B1AA1J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050B1AA1K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050B1AA2J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050B1AA2K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050B1AF1J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050B1AF1K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050B1AF2J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050B1AF2K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050B1AB1J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050B1AB1K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050B1AB2J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050B1AB2K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B050B1AC1J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B050B1AC1K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B050B1AC2J1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B050B1AC2K1N		Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100U1BH1J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100U1BH1K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100U1CH1J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100U1CH1K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100U1HH1J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100U1HH1K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100U1BH2J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100U1BH2K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100U1CH2J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100U1CH2K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100U1HH2J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100U1HH2K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100U1AA1J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100U1AA1K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100U1AA2J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100U1AA2K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100U1AF1J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100U1AF1K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100U1AF2J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100U1AF2K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100U1AB1J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100U1AB1K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100U1AB2J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100U1AB2K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100U1AC1J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100U1AC1K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100U1AC2J1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100U1AC2K1N		Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100B1BH1J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100B1BH1K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100B1CH1J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100B1CH1K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100B1HH1J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100B1HH1K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100B1BH2J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100B1BH2K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100B1CH2J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100B1CH2K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100B1HH2J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100B1HH2K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100B1AA1J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100B1AA1K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100B1AA2J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100B1AA2K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100B1AF1J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100B1AF1K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100B1AF2J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100B1AF2K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100B1AB1J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100B1AB1K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100B1AB2J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100B1AB2K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B100B1AC1J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B100B1AC1K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B100B1AC2J1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B100B1AC2K1N		Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200U1BH1J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200U1BH1K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200U1CH1J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200U1CH1K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200U1HH1J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200U1HH1K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200U1BH2J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200U1BH2K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200U1CH2J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200U1CH2K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200U1HH2J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200U1HH2K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200U1AA1J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200U1AA1K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200U1AA2J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200U1AA2K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200U1AF1J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200U1AF1K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200U1AF2J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200U1AF2K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200U1AB1J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200U1AB1K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200U1AB2J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200U1AB2K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200U1AC1J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200U1AC1K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200U1AC2J1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200U1AC2K1N		Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200B1BH1J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200B1BH1K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200B1CH1J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200B1CH1K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200B1HH1J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200B1HH1K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200B1BH2J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200B1BH2K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200B1CH2J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200B1CH2K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200B1HH2J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200B1HH2K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200B1AA1J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200B1AA1K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200B1AA2J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200B1AA2K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200B1AF1J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200B1AF1K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200B1AF2J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200B1AF2K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200B1AB1J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200B1AB1K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200B1AB2J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200B1AB2K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B200B1AC1J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B200B1AC1K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B200B1AC2J1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B200B1AC2K1N		Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500U1CH1J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500U1CH1K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500U1DH1J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500U1DH1K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500U1HH1J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500U1HH1K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500U1CH2J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500U1CH2K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500U1DH2J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500U1DH2K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500U1HH2J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500U1HH2K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500U1AA1J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500U1AA1K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500U1BA1J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500U1BA1K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500U1AA2J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500U1AA2K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500U1BA2J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500U1BA2K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500U1AF1J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500U1AF1K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500U1BF1J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500U1BF1K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500U1AF2J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500U1AF2K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500U1BF2J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500U1BF2K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500U1AB1J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500U1AB1K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500U1BB1J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500U1BB1K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500U1AB2J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500U1AB2K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500U1BB2J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500U1BB2K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500U1AC1J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500U1AC1K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500U1BC1J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500U1BC1K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500U1AC2J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500U1AC2K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500U1BC2J1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500U1BC2K1N		Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500B1CH1J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500B1CH1K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500B1DH1J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500B1DH1K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500B1HH1J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500B1HH1K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500B1CH2J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500B1CH2K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500B1DH2J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500B1DH2K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500B1HH2J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500B1HH2K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500B1AA1J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500B1AA1K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500B1BA1J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500B1BA1K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500B1AA2J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500B1AA2K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500B1BA2J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500B1BA2K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500B1AF1J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500B1AF1K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500B1BF1J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500B1BF1K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500B1AF2J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500B1AF2K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500B1BF2J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500B1BF2K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500B1AB1J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500B1AB1K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500B1BB1J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500B1BB1K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500B1AB2J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500B1AB2K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500B1BB2J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500B1BB2K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500B1AC1J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500B1AC1K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500B1BC1J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B500B1BC1K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B500B1AC2J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500B1AC2K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B500B1BC2J1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B500B1BC2K1N		Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101U1DH1J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101U1DH1K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101U1EH1J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101U1EH1K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101U1JH1J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101U1JH1K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101U1DH2J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101U1DH2K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101U1EH2J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101U1EH2K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101U1JH2J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101U1JH2K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101U1BA1J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101U1BA1K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101U1BA2J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101U1BA2K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101U1BF1J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101U1BF1K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101U1BF2J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101U1BF2K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101U1BB1J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101U1BB1K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101U1BB2J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101U1BB2K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101U1BC1J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101U1BC1K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101U1BC2J1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101U1BC2K1N		Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101B1DH1J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101B1DH1K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101B1EH1J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101B1EH1K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101B1JH1J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101B1JH1K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101B1DH2J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101B1DH2K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101B1EH2J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101B1EH2K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101B1JH2J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101B1JH2K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101B1BA1J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101B1BA1K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101B1BA2J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101B1BA2K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101B1BF1J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101B1BF1K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101B1BF2J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101B1BF2K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101B1BB1J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101B1BB1K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101B1BB2J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101B1BB2K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B101B1BC1J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B101B1BC1K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B101B1BC2J1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B101B1BC2K1N		Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201U1DH1J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201U1DH1K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201U1EH1J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201U1EH1K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201U1JH1J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201U1JH1K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201U1DH2J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201U1DH2K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201U1EH2J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201U1EH2K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201U1JH2J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201U1JH2K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201U1BA1J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201U1BA1K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201U1BA2J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201U1BA2K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201U1BF1J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201U1BF1K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201U1BF2J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201U1BF2K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201U1BB1J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201U1BB1K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201U1BB2J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201U1BB2K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201U1BC1J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201U1BC1K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201U1BC2J1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201U1BC2K1N		Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201B1DH1J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201B1DH1K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201B1EH1J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201B1EH1K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201B1JH1J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201B1JH1K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201B1DH2J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201B1DH2K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201B1EH2J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201B1EH2K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201B1JH2J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201B1JH2K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201B1BA1J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201B1BA1K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201B1BA2J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201B1BA2K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201B1BF1J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201B1BF1K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201B1BF2J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201B1BF2K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201B1BB1J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201B1BB1K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201B1BB2J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201B1BB2K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B201B1BC1J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B201B1BC1K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B201B1BC2J1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
FSM3-B201B1BC2K1N		Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
FSM3-B501U1CA1J1N		Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B501U1CA1K1N		Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B501U1CF1J1N		Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B501U1CF1K1N		Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B501U1CB1J1N		Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B501U1CB1K1N		Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B501U1CC1J1N		Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B501U1CC1K1N		Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B501B1CA1J1N		Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B501B1CA1K1N		Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B501B1CF1J1N		Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B501B1CF1K1N		Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B501B1CB1J1N		Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B501B1CB1K1N		Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B501B1CC1J1N		Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B501B1CC1K1N		Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B102U1CA1J1N		Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B102U1CA1K1N		Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B102U1CF1J1N		Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B102U1CF1K1N		Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B102U1CB1J1N		Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B102U1CB1K1N		Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B102U1CC1J1N		Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B102U1CC1K1N		Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B102B1CA1J1N		Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B102B1CA1K1N		Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B102B1CF1J1N		Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B102B1CF1K1N		Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B102B1CB1J1N		Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B102B1CB1K1N		Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
FSM3-B102B1CC1J1N		Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
FSM3-B102B1CC1K1N		Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1

Flow SensorsCKD

568 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD FSM3 Rapiflow Flow Sensor (Bar Display, Resin Body)

Brand CKD·Flow Sensors

Available part numbers (568)

FSM3-B005U1BH1J1N, FSM3-B005U1BH1K1N, FSM3-B005U1CH1J1N, FSM3-B005U1CH1K1N, FSM3-B005U1HH1J1N, FSM3-B005U1HH1K1N, FSM3-B005U1BH2J1N, FSM3-B005U1BH2K1N, FSM3-B005U1CH2J1N, FSM3-B005U1CH2K1N + 558 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	FSM3-B005U1BH1J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005U1BH1K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005U1CH1J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005U1CH1K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005U1HH1J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005U1HH1K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005U1BH2J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005U1BH2K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B005U1CH2J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005U1CH2K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B005U1HH2J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005U1HH2K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B005U1AA1J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005U1AA1K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005U1AA2J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005U1AA2K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B005U1AF1J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005U1AF1K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005U1AF2J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005U1AF2K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B005U1AB1J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005U1AB1K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005U1AB2J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005U1AB2K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B005U1AC1J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005U1AC1K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005U1AC2J1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005U1AC2K1N	Flow range: 500 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B005B1BH1J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005B1BH1K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005B1CH1J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005B1CH1K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005B1HH1J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005B1HH1K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005B1BH2J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005B1BH2K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B005B1CH2J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005B1CH2K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B005B1HH2J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005B1HH2K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B005B1AA1J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005B1AA1K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005B1AA2J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005B1AA2K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B005B1AF1J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005B1AF1K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005B1AF2J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005B1AF2K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B005B1AB1J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005B1AB1K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005B1AB2J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005B1AB2K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B005B1AC1J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B005B1AC1K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B005B1AC2J1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B005B1AC2K1N	Flow range: 500 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010U1BH1J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010U1BH1K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010U1CH1J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010U1CH1K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010U1HH1J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010U1HH1K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010U1BH2J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010U1BH2K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010U1CH2J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010U1CH2K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010U1HH2J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010U1HH2K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010U1AA1J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010U1AA1K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010U1AA2J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010U1AA2K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010U1AF1J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010U1AF1K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010U1AF2J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010U1AF2K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010U1AB1J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010U1AB1K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010U1AB2J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010U1AB2K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010U1AC1J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010U1AC1K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010U1AC2J1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010U1AC2K1N	Flow range: 1000 mL/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010B1BH1J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010B1BH1K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010B1CH1J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010B1CH1K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010B1HH1J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010B1HH1K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010B1BH2J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010B1BH2K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010B1CH2J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010B1CH2K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010B1HH2J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010B1HH2K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010B1AA1J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010B1AA1K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010B1AA2J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010B1AA2K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010B1AF1J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010B1AF1K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010B1AF2J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010B1AF2K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010B1AB1J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010B1AB1K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010B1AB2J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010B1AB2K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B010B1AC1J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B010B1AC1K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B010B1AC2J1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B010B1AC2K1N	Flow range: 1000 mL/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020U1BH1J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020U1BH1K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020U1CH1J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020U1CH1K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020U1HH1J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020U1HH1K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020U1BH2J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020U1BH2K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020U1CH2J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020U1CH2K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020U1HH2J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020U1HH2K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020U1AA1J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020U1AA1K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020U1AA2J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020U1AA2K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020U1AF1J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020U1AF1K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020U1AF2J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020U1AF2K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020U1AB1J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020U1AB1K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020U1AB2J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020U1AB2K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020U1AC1J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020U1AC1K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020U1AC2J1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020U1AC2K1N	Flow range: 2 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020B1BH1J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020B1BH1K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020B1CH1J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020B1CH1K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020B1HH1J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020B1HH1K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020B1BH2J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020B1BH2K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020B1CH2J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020B1CH2K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020B1HH2J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020B1HH2K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020B1AA1J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020B1AA1K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020B1AA2J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020B1AA2K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020B1AF1J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020B1AF1K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020B1AF2J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020B1AF2K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020B1AB1J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020B1AB1K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020B1AB2J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020B1AB2K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B020B1AC1J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B020B1AC1K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B020B1AC2J1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B020B1AC2K1N	Flow range: 2 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050U1BH1J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050U1BH1K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050U1CH1J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050U1CH1K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050U1HH1J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050U1HH1K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050U1BH2J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050U1BH2K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050U1CH2J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050U1CH2K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050U1HH2J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050U1HH2K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050U1AA1J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050U1AA1K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050U1AA2J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050U1AA2K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050U1AF1J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050U1AF1K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050U1AF2J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050U1AF2K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050U1AB1J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050U1AB1K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050U1AB2J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050U1AB2K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050U1AC1J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050U1AC1K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050U1AC2J1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050U1AC2K1N	Flow range: 5 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050B1BH1J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050B1BH1K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050B1CH1J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050B1CH1K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050B1HH1J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050B1HH1K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050B1BH2J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050B1BH2K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050B1CH2J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050B1CH2K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050B1HH2J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050B1HH2K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050B1AA1J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050B1AA1K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050B1AA2J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050B1AA2K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050B1AF1J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050B1AF1K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050B1AF2J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050B1AF2K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050B1AB1J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050B1AB1K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050B1AB2J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050B1AB2K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B050B1AC1J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B050B1AC1K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B050B1AC2J1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B050B1AC2K1N	Flow range: 5 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100U1BH1J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100U1BH1K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100U1CH1J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100U1CH1K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100U1HH1J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100U1HH1K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100U1BH2J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100U1BH2K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100U1CH2J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100U1CH2K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100U1HH2J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100U1HH2K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100U1AA1J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100U1AA1K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100U1AA2J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100U1AA2K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100U1AF1J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100U1AF1K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100U1AF2J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100U1AF2K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100U1AB1J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100U1AB1K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100U1AB2J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100U1AB2K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100U1AC1J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100U1AC1K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100U1AC2J1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100U1AC2K1N	Flow range: 10 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100B1BH1J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100B1BH1K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100B1CH1J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100B1CH1K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100B1HH1J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100B1HH1K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100B1BH2J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100B1BH2K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100B1CH2J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100B1CH2K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100B1HH2J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100B1HH2K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100B1AA1J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100B1AA1K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100B1AA2J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100B1AA2K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100B1AF1J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100B1AF1K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100B1AF2J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100B1AF2K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100B1AB1J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100B1AB1K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100B1AB2J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100B1AB2K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B100B1AC1J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B100B1AC1K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B100B1AC2J1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B100B1AC2K1N	Flow range: 10 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200U1BH1J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200U1BH1K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200U1CH1J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200U1CH1K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200U1HH1J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200U1HH1K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200U1BH2J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200U1BH2K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200U1CH2J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200U1CH2K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200U1HH2J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200U1HH2K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200U1AA1J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200U1AA1K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200U1AA2J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200U1AA2K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200U1AF1J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200U1AF1K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200U1AF2J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200U1AF2K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200U1AB1J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200U1AB1K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200U1AB2J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200U1AB2K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200U1AC1J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200U1AC1K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200U1AC2J1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200U1AC2K1N	Flow range: 20 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200B1BH1J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200B1BH1K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200B1CH1J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200B1CH1K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200B1HH1J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200B1HH1K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200B1BH2J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200B1BH2K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 4 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200B1CH2J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200B1CH2K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200B1HH2J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200B1HH2K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200B1AA1J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200B1AA1K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200B1AA2J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200B1AA2K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200B1AF1J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200B1AF1K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200B1AF2J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200B1AF2K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200B1AB1J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200B1AB1K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200B1AB2J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200B1AB2K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B200B1AC1J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B200B1AC1K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B200B1AC2J1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B200B1AC2K1N	Flow range: 20 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500U1CH1J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500U1CH1K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500U1DH1J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500U1DH1K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500U1HH1J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500U1HH1K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500U1CH2J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500U1CH2K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500U1DH2J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500U1DH2K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500U1HH2J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500U1HH2K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500U1AA1J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500U1AA1K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500U1BA1J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500U1BA1K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500U1AA2J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500U1AA2K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500U1BA2J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500U1BA2K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500U1AF1J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500U1AF1K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500U1BF1J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500U1BF1K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500U1AF2J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500U1AF2K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500U1BF2J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500U1BF2K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500U1AB1J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500U1AB1K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500U1BB1J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500U1BB1K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500U1AB2J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500U1AB2K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500U1BB2J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500U1BB2K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500U1AC1J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500U1AC1K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500U1BC1J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500U1BC1K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500U1AC2J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500U1AC2K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500U1BC2J1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500U1BC2K1N	Flow range: 50 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500B1CH1J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500B1CH1K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500B1DH1J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500B1DH1K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500B1HH1J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500B1HH1K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500B1CH2J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500B1CH2K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 6 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500B1DH2J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500B1DH2K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500B1HH2J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500B1HH2K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 1/4 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500B1AA1J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500B1AA1K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500B1BA1J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500B1BA1K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500B1AA2J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500B1AA2K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500B1BA2J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500B1BA2K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500B1AF1J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500B1AF1K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500B1BF1J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500B1BF1K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500B1AF2J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500B1AF2K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500B1BF2J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500B1BF2K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500B1AB1J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500B1AB1K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500B1BB1J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500B1BB1K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500B1AB2J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500B1AB2K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/8 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500B1BB2J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500B1BB2K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500B1AC1J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500B1AC1K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500B1BC1J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B500B1BC1K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B500B1AC2J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500B1AC2K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/8 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B500B1BC2J1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B500B1BC2K1N	Flow range: 50 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101U1DH1J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101U1DH1K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101U1EH1J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101U1EH1K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101U1JH1J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101U1JH1K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101U1DH2J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101U1DH2K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101U1EH2J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101U1EH2K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101U1JH2J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101U1JH2K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101U1BA1J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101U1BA1K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101U1BA2J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101U1BA2K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101U1BF1J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101U1BF1K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101U1BF2J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101U1BF2K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101U1BB1J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101U1BB1K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101U1BB2J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101U1BB2K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101U1BC1J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101U1BC1K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101U1BC2J1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101U1BC2K1N	Flow range: 100 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101B1DH1J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101B1DH1K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101B1EH1J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101B1EH1K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101B1JH1J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101B1JH1K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101B1DH2J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101B1DH2K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101B1EH2J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101B1EH2K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101B1JH2J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101B1JH2K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101B1BA1J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101B1BA1K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101B1BA2J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101B1BA2K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101B1BF1J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101B1BF1K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101B1BF2J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101B1BF2K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101B1BB1J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101B1BB1K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101B1BB2J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101B1BB2K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B101B1BC1J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B101B1BC1K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B101B1BC2J1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B101B1BC2K1N	Flow range: 100 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201U1DH1J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201U1DH1K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201U1EH1J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201U1EH1K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201U1JH1J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201U1JH1K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201U1DH2J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201U1DH2K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201U1EH2J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201U1EH2K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201U1JH2J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201U1JH2K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201U1BA1J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201U1BA1K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201U1BA2J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201U1BA2K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201U1BF1J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201U1BF1K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201U1BF2J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201U1BF2K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201U1BB1J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201U1BB1K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201U1BB2J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201U1BB2K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201U1BC1J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201U1BC1K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201U1BC2J1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201U1BC2K1N	Flow range: 200 L/min \| Flow direction: Unidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201B1DH1J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201B1DH1K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201B1EH1J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201B1EH1K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201B1JH1J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201B1JH1K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201B1DH2J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201B1DH2K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 8 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201B1EH2J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201B1EH2K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 10 mm tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201B1JH2J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201B1JH2K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Push-in, 3/8 in tube \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201B1BA1J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201B1BA1K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201B1BA2J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201B1BA2K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: Rc1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201B1BF1J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201B1BF1K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201B1BF2J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201B1BF2K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (ISO 16030) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201B1BB1J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201B1BB1K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201B1BB2J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201B1BB2K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: G1/4 (JIS B 2351-1 O-ring) \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B201B1BC1J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B201B1BC1K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B201B1BC2J1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 1-5V x 1
	FSM3-B201B1BC2K1N	Flow range: 200 L/min \| Flow direction: Bidirectional \| Connection: NPT1/4 \| Piping: Elbow \| Output: Analog 4-20mA x 1
	FSM3-B501U1CA1J1N	Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B501U1CA1K1N	Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B501U1CF1J1N	Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B501U1CF1K1N	Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B501U1CB1J1N	Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B501U1CB1K1N	Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B501U1CC1J1N	Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B501U1CC1K1N	Flow range: 500 L/min \| Flow direction: Unidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B501B1CA1J1N	Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B501B1CA1K1N	Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B501B1CF1J1N	Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B501B1CF1K1N	Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B501B1CB1J1N	Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B501B1CB1K1N	Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B501B1CC1J1N	Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B501B1CC1K1N	Flow range: 500 L/min \| Flow direction: Bidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B102U1CA1J1N	Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B102U1CA1K1N	Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B102U1CF1J1N	Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B102U1CF1K1N	Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B102U1CB1J1N	Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B102U1CB1K1N	Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B102U1CC1J1N	Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B102U1CC1K1N	Flow range: 1000 L/min \| Flow direction: Unidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B102B1CA1J1N	Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B102B1CA1K1N	Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: Rc1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B102B1CF1J1N	Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B102B1CF1K1N	Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (ISO 16030) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B102B1CB1J1N	Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B102B1CB1K1N	Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: G1/2 (JIS B 2351-1 O-ring) \| Piping: Straight \| Output: Analog 4-20mA x 1
	FSM3-B102B1CC1J1N	Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 1-5V x 1
	FSM3-B102B1CC1K1N	Flow range: 1000 L/min \| Flow direction: Bidirectional \| Connection: NPT1/2 \| Piping: Straight \| Output: Analog 4-20mA x 1

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Sensors →

Item added to your cart

CKD FSM3 Rapiflow Flow Sensor (Bar Display, Resin Body)
