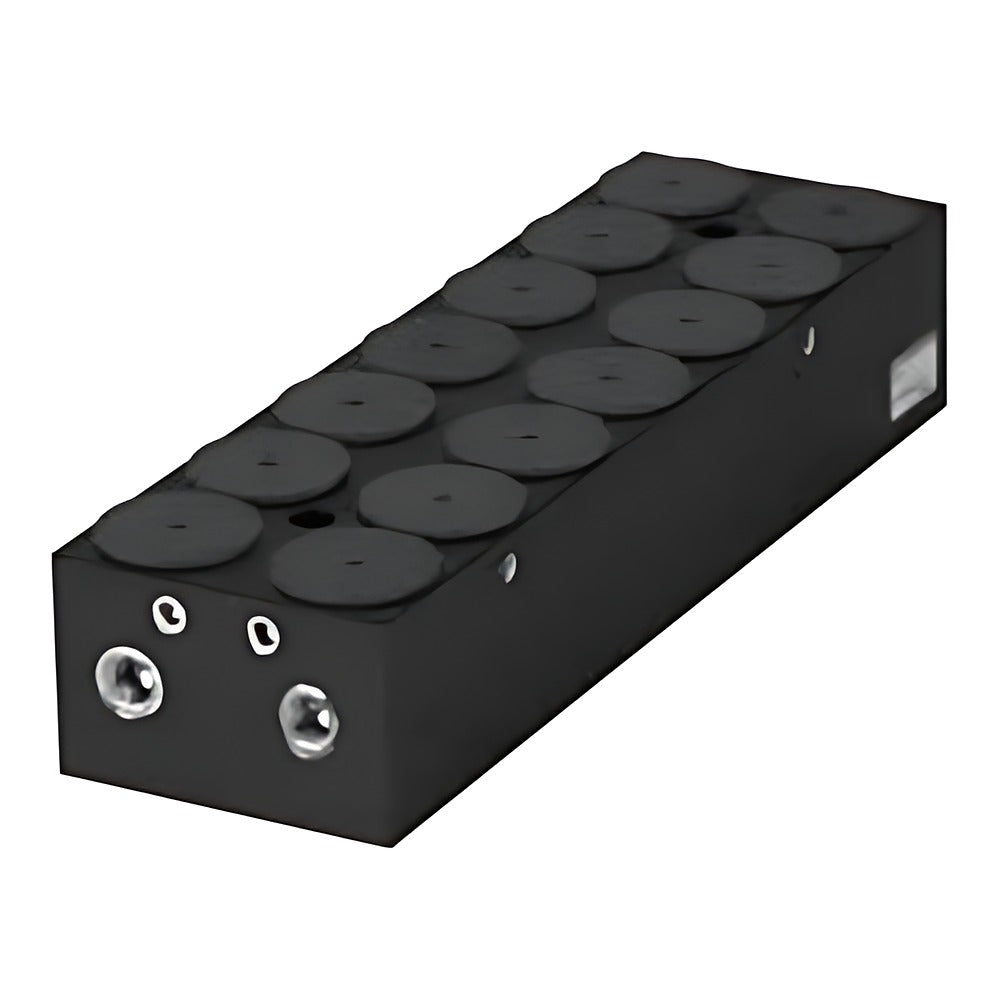

CKD GFM-P Float Star Precision Floating Stage (Made to Order)

CKD Float Star GFM-P precision floating stage that combines positive and negative pressure to hold glass at 30 um for inspection and process stations.

Key features

Floating amount 30 +/-6 um with flatness 12 um or less at 30 um floating
Floating face 250 x 76 mm with 14 carbon-graphite porous pads
Positive pressure ports 2 x M5, vacuum port dia. 50
Bracket kit GFM-P-B (bracket, O-ring, 4 hex socket bolts) available
Made-to-order product

Specifications

Fluid	Clean compressed air (class 1.1.1-1.6.2)
Operating pressure (positive)	0-0.2 MPa
Operating pressure (negative)	-50 to 0 kPa
Air consumption	Approx. 2-3 L/min
Size	250 x 76 x 50 mm
Mass	Approx. 2.2 kg
Ambient temperature	5-40 C
Source	CKD Korea catalog CB-024SK-9, p. 1162-1170

GFM-P		Item: Precision floating stage \| Floating face: 250 x 76 mm
GFM-P-B		Item: Bracket kit \| Floating face: -

Non-Contact ConveyorsCKD

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GFM-P Float Star Precision Floating Stage (Made to Order)

Brand CKD·Non-Contact Conveyors

Available part numbers (2)

GFM-P, GFM-P-B
