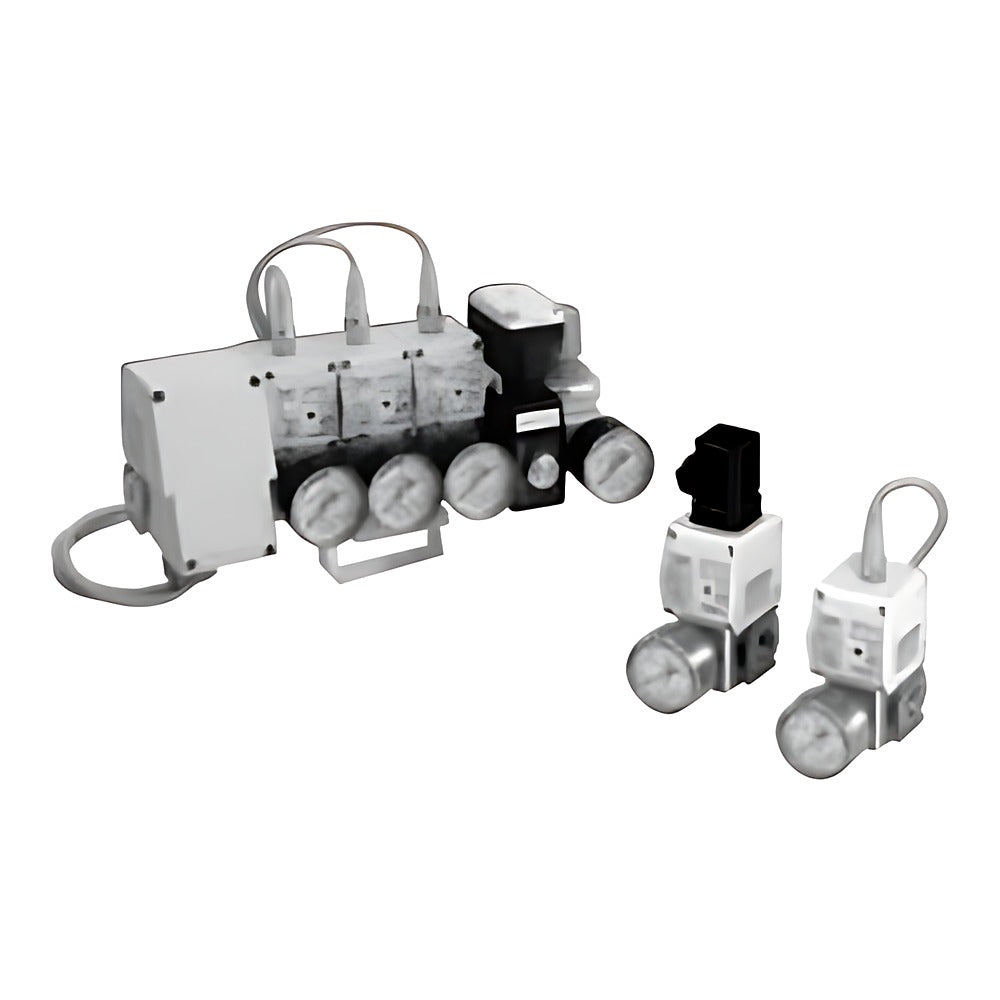

CKD GPS3 Digital Gap Switch (Seating Confirmation, Single)

CKD GPS3 Digital Gap Switch (Seating Confirmation, Single)

CKD GPS3 digital gap switch that confirms workpiece seating by measuring the air gap at a nozzle, with digital display and 2-point output.

Key features

  • Digital display of reference value, two thresholds, output status, pressure and clogging alarm
  • High-accuracy 2-point output for fine and coarse seating checks with one unit
  • Short range (0.02-0.15 mm) and wide range (0.03-0.4 mm) types; NPN, PNP or IO-Link
  • Mounting dimensions compatible with GPS2; manifold and unit versions available
  • Options (not expanded): T display off at shipment, D 5 m straight/elbow cable, J no cable, B bracket, KA unit-switching (export) display

Specifications

Fluid Clean air (5 um filtered, no oil)
Operating pressure 50-200 kPa
Proof pressure 600 kPa
Detection nozzle Single-hole dia. 1.5 mm
Power supply DC24 V +/-10%
Output rating DC30 V, 100 mA
Protection IP67 equivalent
Wiring M12 connector, 4-pin
Ports Supply Rc1/8, detection one-touch 6 mm
Code format GPS3-<range><output>
Source CKD Korea catalog CB-024SK-9, p. 1305-1311
GPS3-N Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2
GPS3-P Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2
GPS3-L Detection range: 0.03-0.4 mm (wide) | Output: IO-Link
GPS3-EN Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2
GPS3-EP Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2
GPS3-EL Detection range: 0.02-0.15 mm (short) | Output: IO-Link
Pneumatic SensorsCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GPS3 Digital Gap Switch (Seating Confirmation, Single)

Brand CKD·Pneumatic Sensors

Available part numbers (6)

GPS3-N, GPS3-P, GPS3-L, GPS3-EN, GPS3-EP, GPS3-EL

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GPS3-NDetection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2
GPS3-PDetection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2
GPS3-LDetection range: 0.03-0.4 mm (wide) | Output: IO-Link
GPS3-ENDetection range: 0.02-0.15 mm (short) | Output: NPN open collector x2
GPS3-EPDetection range: 0.02-0.15 mm (short) | Output: PNP open collector x2
GPS3-ELDetection range: 0.02-0.15 mm (short) | Output: IO-Link
