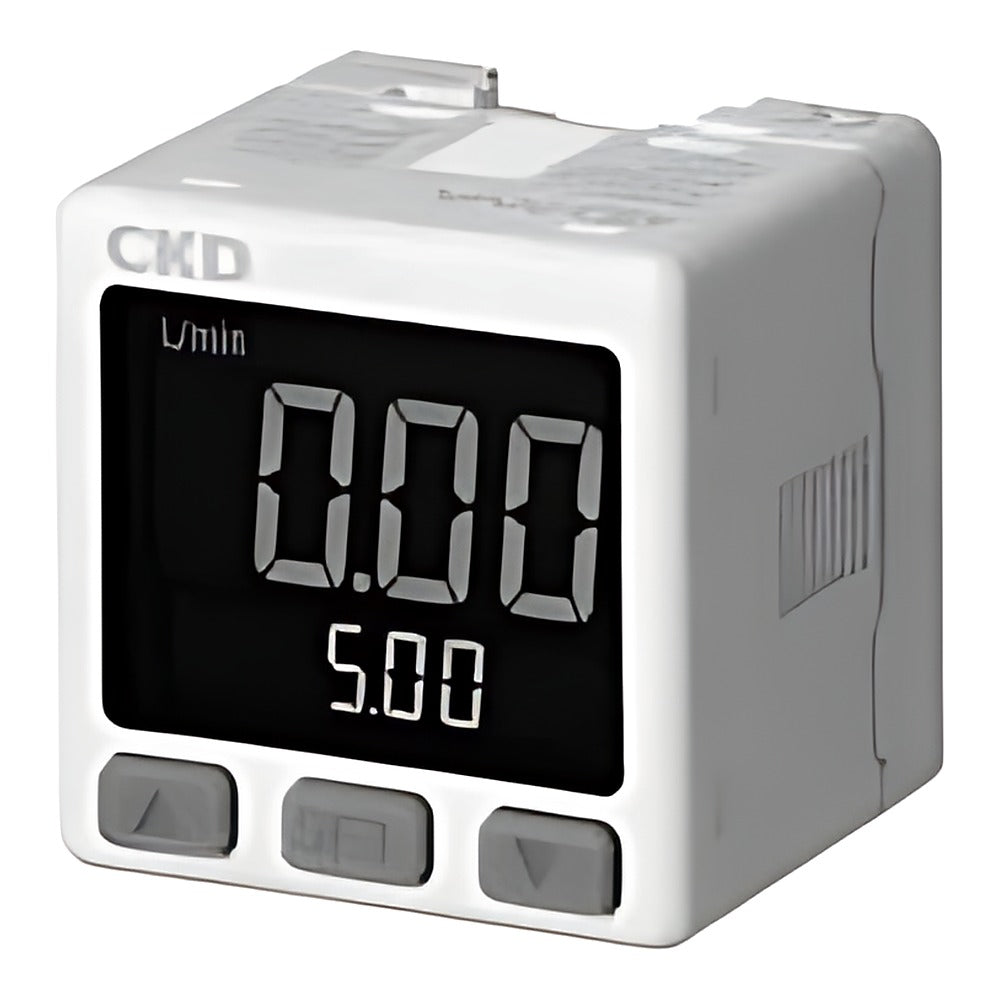

CKD MD Multi Monitor for Flow and Pressure Sensors

CKD MD Multi Monitor for Flow and Pressure Sensors

CKD MD multi monitor that displays and converts the 1-5 V analog signal of CKD flow and pressure sensors into two switch outputs and an analog output.

Key features

  • Accepts 1-5 V sensor input from FSM-V, PPE, PPD3-A, WFK3000 or WFC sensors
  • 2 NPN or 2 PNP switch outputs plus 1-5 V or 4-20 mA analog output
  • 2-colour main display with sub display; scaling function; units MPa, kPa, mL/min, L/min, m3/min
  • Response time 2.5 ms or less with selectable anti-chattering
  • Supplied with 5-core connector cable 2 m and e-con sensor connector; brackets and panel adapter as options

Specifications

Power supply 12 to 24 VDC +/-10%
Current consumption 40 mA or less (no load)
Sensor input 1-5 V
Sensor supply current Max. 100 mA
Display accuracy +/-1% F.S. +/-1 digit
Protection IP40
Ambient temperature 0 to 50 C
Mass Approx. 67 g (2 m lead)
Source CKD Korea catalog CB-024SK-9, p. 1424-1428
MD-NVA Item: Multi monitor | Switch output: 2 x NPN switch output | Analog output: Voltage 1-5 V | Sensor: FSM-V, PPE, PPD3-A
MD-NVB Item: Multi monitor | Switch output: 2 x NPN switch output | Analog output: Voltage 1-5 V | Sensor: WFK3000
MD-NVC Item: Multi monitor | Switch output: 2 x NPN switch output | Analog output: Voltage 1-5 V | Sensor: WFC
MD-NAA Item: Multi monitor | Switch output: 2 x NPN switch output | Analog output: Current 4-20 mA | Sensor: FSM-V, PPE, PPD3-A
MD-NAB Item: Multi monitor | Switch output: 2 x NPN switch output | Analog output: Current 4-20 mA | Sensor: WFK3000
MD-NAC Item: Multi monitor | Switch output: 2 x NPN switch output | Analog output: Current 4-20 mA | Sensor: WFC
MD-PVA Item: Multi monitor | Switch output: 2 x PNP switch output | Analog output: Voltage 1-5 V | Sensor: FSM-V, PPE, PPD3-A
MD-PVB Item: Multi monitor | Switch output: 2 x PNP switch output | Analog output: Voltage 1-5 V | Sensor: WFK3000
MD-PVC Item: Multi monitor | Switch output: 2 x PNP switch output | Analog output: Voltage 1-5 V | Sensor: WFC
MD-PAA Item: Multi monitor | Switch output: 2 x PNP switch output | Analog output: Current 4-20 mA | Sensor: FSM-V, PPE, PPD3-A
MD-PAB Item: Multi monitor | Switch output: 2 x PNP switch output | Analog output: Current 4-20 mA | Sensor: WFK3000
MD-PAC Item: Multi monitor | Switch output: 2 x PNP switch output | Analog output: Current 4-20 mA | Sensor: WFC
MD-KD Item: Option: Parallel mounting bracket | Switch output: - | Analog output: - | Sensor: -
MD-KL Item: Option: L-shaped mounting bracket | Switch output: - | Analog output: - | Sensor: -
MD-KHS Item: Option: Panel adapter | Switch output: - | Analog output: - | Sensor: -
MD-KHSCB Item: Option: Panel adapter + front cover | Switch output: - | Analog output: - | Sensor: -
MD-C2 Item: Option: 5-core connector cable 2 m | Switch output: - | Analog output: - | Sensor: -
