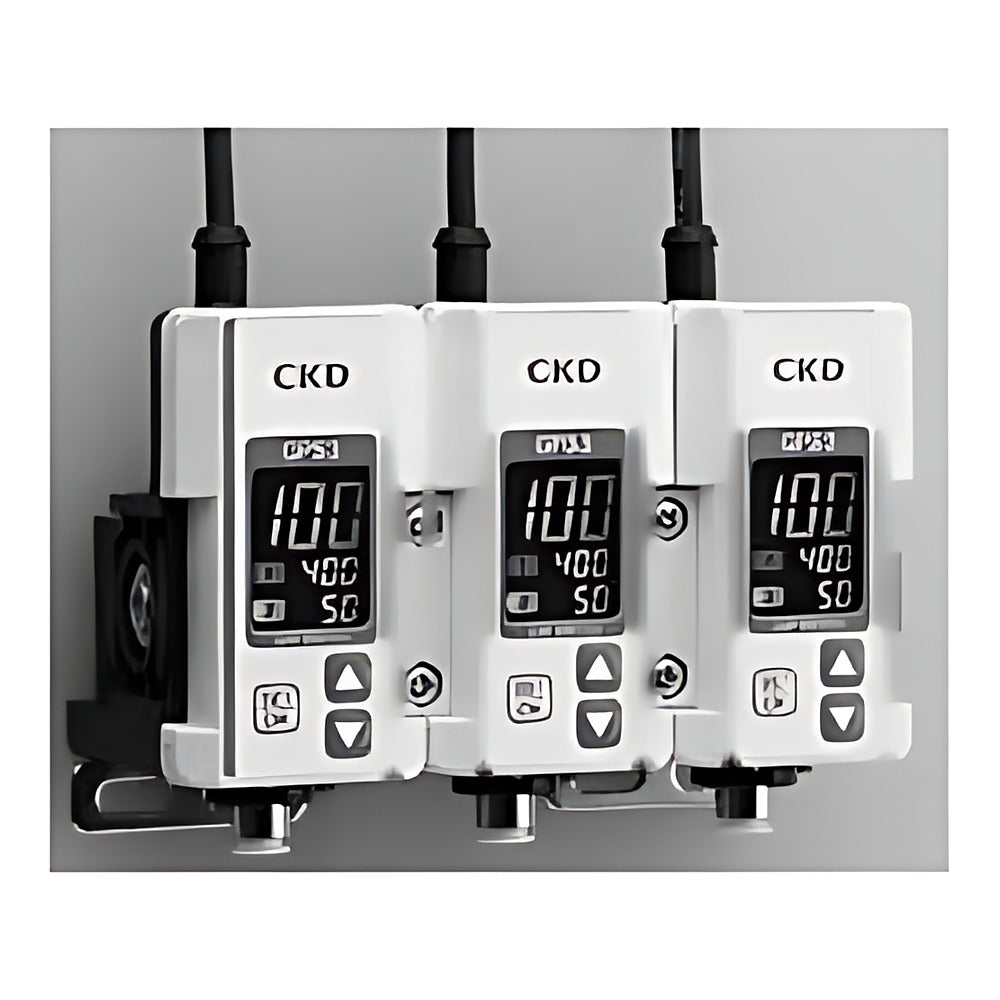

CKD MGPS3 Digital Gap Switch Manifold (2-6 Stations)

CKD MGPS3 Digital Gap Switch Manifold (2-6 Stations)

CKD MGPS3 manifold of 2 to 6 GPS3 digital gap switches sharing a common Rc1/8 supply.

Key features

  • 2-6 GPS3 stations on one manifold with common supply port
  • Same performance as GPS3 single unit (short or wide detection range)
  • NPN, PNP open collector (2 outputs) or IO-Link communication
  • Station pitch 43 mm
  • Options (not expanded): T display off at shipment, D 5 m straight/elbow cable, J no cable, B bracket, KA unit-switching (export) display

Specifications

Fluid Clean air (5 um filtered, no oil)
Operating pressure 50-200 kPa
Proof pressure 600 kPa
Detection nozzle Single-hole dia. 1.5 mm
Power supply DC24 V +/-10%
Output rating DC30 V, 100 mA
Protection IP67 equivalent
Wiring M12 connector, 4-pin
Ports Supply Rc1/8, detection one-touch 6 mm
Code format MGPS3-<stations><range><output>
Source CKD Korea catalog CB-024SK-9, p. 1312-1312
MGPS3-2N Stations: 2 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2
MGPS3-2P Stations: 2 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2
MGPS3-2L Stations: 2 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link
MGPS3-2EN Stations: 2 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2
MGPS3-2EP Stations: 2 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2
MGPS3-2EL Stations: 2 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link
MGPS3-3N Stations: 3 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2
MGPS3-3P Stations: 3 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2
MGPS3-3L Stations: 3 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link
MGPS3-3EN Stations: 3 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2
MGPS3-3EP Stations: 3 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2
MGPS3-3EL Stations: 3 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link
MGPS3-4N Stations: 4 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2
MGPS3-4P Stations: 4 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2
MGPS3-4L Stations: 4 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link
MGPS3-4EN Stations: 4 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2
MGPS3-4EP Stations: 4 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2
MGPS3-4EL Stations: 4 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link
MGPS3-5N Stations: 5 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2
MGPS3-5P Stations: 5 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2
MGPS3-5L Stations: 5 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link
MGPS3-5EN Stations: 5 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2
MGPS3-5EP Stations: 5 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2
MGPS3-5EL Stations: 5 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link
MGPS3-6N Stations: 6 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2
MGPS3-6P Stations: 6 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2
MGPS3-6L Stations: 6 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link
MGPS3-6EN Stations: 6 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2
MGPS3-6EP Stations: 6 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2
MGPS3-6EL Stations: 6 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link
