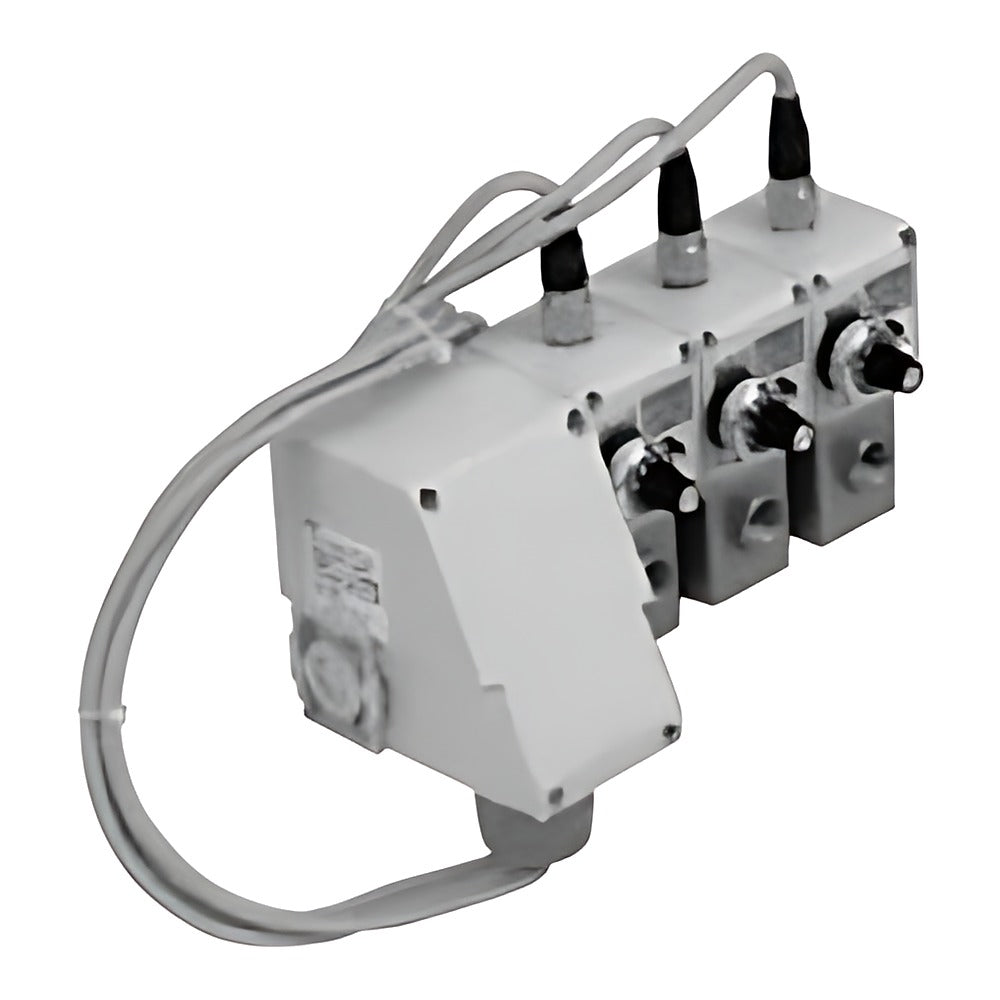

CKD MHPS Contact Confirmation Switch Manifold (2-5 Stations)

CKD MHPS Contact Confirmation Switch Manifold (2-5 Stations)

CKD MHPS manifold of 2 to 5 HPS contact confirmation switches for multi-point close-contact checks.

Key features

  • 2-5 HPS stations on one manifold
  • Junction box at left/right end (TL/TR, CTL/CTR) or between stations (T1-T4)
  • Orifice dia. 0.5/0.7/1.0 mm; NPN or PNP; green or yellow lamp
  • Protection IP66 (T), IP67 (CT, C), IP64 (F)
  • Options (not expanded): B bracket, G2/GW2 gauge
  • Connector cable versions C1/C3/C5 (1/3/5 m cable attached) ordered by replacing C0; not listed separately

Specifications

Fluid Clean compressed air (no oil)
Power supply DC10.2-26.4 V
Output rating DC30 V, 100 mA, NPN/PNP
Ambient temperature 5-60 C
Protection IP67 (connector), IP64 (DIN box)
Ports Detect Rc1/8, supply Rc1/4, gauge Rc1/4
Detection nozzle Single-hole dia. 1.5 mm
Code format MHPS-<orifice>-<stn><out><lamp><wiring>
Source CKD Korea catalog CB-024SK-9, p. 1350-1352
MHPS-05-2NGF Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-2NGC0 Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-2NGCTL Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-2NGCTR Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-2NGTL Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-2NGTR Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-2NGT1 Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-2NYF Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-2NYC0 Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-2NYCTL Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-2NYCTR Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-2NYTL Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-2NYTR Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-2NYT1 Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-2PGF Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-2PGC0 Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-2PGCTL Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-2PGCTR Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-2PGTL Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-2PGTR Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-2PGT1 Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-2PYF Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-2PYC0 Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-2PYCTL Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-2PYCTR Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-2PYTL Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-2PYTR Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-2PYT1 Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-3NGF Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-3NGC0 Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-3NGCTL Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-3NGCTR Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-3NGTL Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-3NGTR Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-3NGT1 Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-3NGT2 Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-05-3NYF Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-3NYC0 Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-3NYCTL Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-3NYCTR Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-3NYTL Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-3NYTR Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-3NYT1 Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-3NYT2 Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-05-3PGF Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-3PGC0 Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-3PGCTL Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-3PGCTR Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-3PGTL Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-3PGTR Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-3PGT1 Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-3PGT2 Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-05-3PYF Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-3PYC0 Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-3PYCTL Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-3PYCTR Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-3PYTL Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-3PYTR Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-3PYT1 Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-3PYT2 Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-05-4NGF Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-4NGC0 Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-4NGCTL Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-4NGCTR Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-4NGTL Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-4NGTR Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-4NGT1 Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-4NGT2 Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-05-4NGT3 Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-05-4NYF Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-4NYC0 Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-4NYCTL Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-4NYCTR Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-4NYTL Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-4NYTR Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-4NYT1 Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-4NYT2 Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-05-4NYT3 Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-05-4PGF Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-4PGC0 Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-4PGCTL Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-4PGCTR Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-4PGTL Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-4PGTR Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-4PGT1 Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-4PGT2 Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-05-4PGT3 Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-05-4PYF Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-4PYC0 Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-4PYCTL Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-4PYCTR Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-4PYTL Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-4PYTR Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-4PYT1 Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-4PYT2 Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-05-4PYT3 Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-05-5NGF Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-5NGC0 Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-5NGCTL Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-5NGCTR Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-5NGTL Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-5NGTR Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-5NGT1 Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-5NGT2 Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-05-5NGT3 Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-05-5NGT4 Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 4
MHPS-05-5NYF Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-5NYC0 Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-5NYCTL Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-5NYCTR Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-5NYTL Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-5NYTR Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-5NYT1 Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-5NYT2 Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-05-5NYT3 Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-05-5NYT4 Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 4
MHPS-05-5PGF Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-5PGC0 Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-5PGCTL Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-5PGCTR Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-5PGTL Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-5PGTR Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-5PGT1 Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-5PGT2 Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-05-5PGT3 Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-05-5PGT4 Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 4
MHPS-05-5PYF Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-5PYC0 Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-5PYCTL Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-5PYCTR Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-5PYTL Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-5PYTR Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-5PYT1 Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-5PYT2 Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-05-5PYT3 Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-05-5PYT4 Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 4
MHPS-07-2NGF Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-2NGC0 Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-2NGCTL Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-2NGCTR Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-2NGTL Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-2NGTR Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-2NGT1 Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-2NYF Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-2NYC0 Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-2NYCTL Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-2NYCTR Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-2NYTL Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-2NYTR Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-2NYT1 Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-2PGF Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-2PGC0 Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-2PGCTL Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-2PGCTR Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-2PGTL Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-2PGTR Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-2PGT1 Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-2PYF Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-2PYC0 Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-2PYCTL Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-2PYCTR Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-2PYTL Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-2PYTR Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-2PYT1 Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-3NGF Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-3NGC0 Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-3NGCTL Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-3NGCTR Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-3NGTL Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-3NGTR Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-3NGT1 Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-3NGT2 Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-07-3NYF Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-3NYC0 Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-3NYCTL Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-3NYCTR Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-3NYTL Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-3NYTR Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-3NYT1 Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-3NYT2 Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-07-3PGF Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-3PGC0 Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-3PGCTL Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-3PGCTR Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-3PGTL Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-3PGTR Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-3PGT1 Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-3PGT2 Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-07-3PYF Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-3PYC0 Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-3PYCTL Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-3PYCTR Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-3PYTL Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-3PYTR Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-3PYT1 Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-3PYT2 Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-07-4NGF Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-4NGC0 Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-4NGCTL Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-4NGCTR Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-4NGTL Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-4NGTR Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-4NGT1 Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-4NGT2 Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-07-4NGT3 Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-07-4NYF Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-4NYC0 Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-4NYCTL Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-4NYCTR Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-4NYTL Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-4NYTR Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-4NYT1 Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-4NYT2 Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-07-4NYT3 Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-07-4PGF Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-4PGC0 Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-4PGCTL Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-4PGCTR Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-4PGTL Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-4PGTR Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-4PGT1 Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-4PGT2 Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-07-4PGT3 Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-07-4PYF Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-4PYC0 Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-4PYCTL Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-4PYCTR Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-4PYTL Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-4PYTR Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-4PYT1 Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-4PYT2 Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-07-4PYT3 Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-07-5NGF Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-5NGC0 Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-5NGCTL Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-5NGCTR Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-5NGTL Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-5NGTR Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-5NGT1 Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-5NGT2 Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-07-5NGT3 Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-07-5NGT4 Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 4
MHPS-07-5NYF Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-5NYC0 Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-5NYCTL Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-5NYCTR Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-5NYTL Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-5NYTR Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-5NYT1 Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-5NYT2 Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-07-5NYT3 Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-07-5NYT4 Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 4
MHPS-07-5PGF Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-5PGC0 Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-5PGCTL Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-5PGCTR Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-5PGTL Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-5PGTR Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-5PGT1 Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-5PGT2 Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-07-5PGT3 Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-07-5PGT4 Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 4
MHPS-07-5PYF Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-5PYC0 Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-5PYCTL Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-5PYCTR Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-5PYTL Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-5PYTR Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-5PYT1 Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-5PYT2 Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-07-5PYT3 Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-07-5PYT4 Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 4
MHPS-10-2NGF Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-2NGC0 Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-2NGCTL Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-2NGCTR Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-2NGTL Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-2NGTR Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-2NGT1 Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-2NYF Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-2NYC0 Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-2NYCTL Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-2NYCTR Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-2NYTL Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-2NYTR Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-2NYT1 Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-2PGF Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-2PGC0 Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-2PGCTL Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-2PGCTR Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-2PGTL Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-2PGTR Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-2PGT1 Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-2PYF Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-2PYC0 Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-2PYCTL Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-2PYCTR Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-2PYTL Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-2PYTR Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-2PYT1 Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-3NGF Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-3NGC0 Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-3NGCTL Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-3NGCTR Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-3NGTL Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-3NGTR Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-3NGT1 Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-3NGT2 Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-10-3NYF Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-3NYC0 Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-3NYCTL Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-3NYCTR Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-3NYTL Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-3NYTR Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-3NYT1 Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-3NYT2 Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-10-3PGF Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-3PGC0 Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-3PGCTL Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-3PGCTR Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-3PGTL Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-3PGTR Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-3PGT1 Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-3PGT2 Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-10-3PYF Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-3PYC0 Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-3PYCTL Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-3PYCTR Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-3PYTL Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-3PYTR Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-3PYT1 Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-3PYT2 Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-10-4NGF Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-4NGC0 Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-4NGCTL Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-4NGCTR Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-4NGTL Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-4NGTR Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-4NGT1 Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-4NGT2 Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-10-4NGT3 Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-10-4NYF Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-4NYC0 Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-4NYCTL Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-4NYCTR Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-4NYTL Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-4NYTR Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-4NYT1 Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-4NYT2 Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-10-4NYT3 Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-10-4PGF Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-4PGC0 Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-4PGCTL Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-4PGCTR Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-4PGTL Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-4PGTR Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-4PGT1 Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-4PGT2 Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-10-4PGT3 Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-10-4PYF Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-4PYC0 Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-4PYCTL Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-4PYCTR Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-4PYTL Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-4PYTR Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-4PYT1 Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-4PYT2 Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-10-4PYT3 Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-10-5NGF Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-5NGC0 Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-5NGCTL Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-5NGCTR Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-5NGTL Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-5NGTR Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-5NGT1 Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-5NGT2 Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-10-5NGT3 Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-10-5NGT4 Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 4
MHPS-10-5NYF Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-5NYC0 Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-5NYCTL Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-5NYCTR Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-5NYTL Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-5NYTR Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-5NYT1 Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-5NYT2 Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-10-5NYT3 Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-10-5NYT4 Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 4
MHPS-10-5PGF Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-5PGC0 Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-5PGCTL Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-5PGCTR Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-5PGTL Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-5PGTR Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-5PGT1 Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-5PGT2 Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-10-5PGT3 Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-10-5PGT4 Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 4
MHPS-10-5PYF Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-5PYC0 Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-5PYCTL Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-5PYCTR Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-5PYTL Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-5PYTR Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-5PYT1 Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-5PYT2 Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-10-5PYT3 Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-10-5PYT4 Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 4
Pneumatic SensorsCKD
408 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MHPS Contact Confirmation Switch Manifold (2-5 Stations)

Brand CKD·Pneumatic Sensors

Available part numbers (408)

MHPS-05-2NGF, MHPS-05-2NGC0, MHPS-05-2NGCTL, MHPS-05-2NGCTR, MHPS-05-2NGTL, MHPS-05-2NGTR, MHPS-05-2NGT1, MHPS-05-2NYF, MHPS-05-2NYC0, MHPS-05-2NYCTL + 398 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MHPS-05-2NGFOrifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-2NGC0Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-2NGCTLOrifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-2NGCTROrifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-2NGTLOrifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-2NGTROrifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-2NGT1Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-2NYFOrifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-2NYC0Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-2NYCTLOrifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-2NYCTROrifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-2NYTLOrifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-2NYTROrifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-2NYT1Orifice: dia. 0.5 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-2PGFOrifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-2PGC0Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-2PGCTLOrifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-2PGCTROrifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-2PGTLOrifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-2PGTROrifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-2PGT1Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-2PYFOrifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-2PYC0Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-2PYCTLOrifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-2PYCTROrifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-2PYTLOrifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-2PYTROrifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-2PYT1Orifice: dia. 0.5 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-3NGFOrifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-3NGC0Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-3NGCTLOrifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-3NGCTROrifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-3NGTLOrifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-3NGTROrifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-3NGT1Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-3NGT2Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-05-3NYFOrifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-3NYC0Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-3NYCTLOrifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-3NYCTROrifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-3NYTLOrifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-3NYTROrifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-3NYT1Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-3NYT2Orifice: dia. 0.5 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-05-3PGFOrifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-3PGC0Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-3PGCTLOrifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-3PGCTROrifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-3PGTLOrifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-3PGTROrifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-3PGT1Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-3PGT2Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-05-3PYFOrifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-3PYC0Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-3PYCTLOrifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-3PYCTROrifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-3PYTLOrifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-3PYTROrifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-3PYT1Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-3PYT2Orifice: dia. 0.5 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-05-4NGFOrifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-4NGC0Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-4NGCTLOrifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-4NGCTROrifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-4NGTLOrifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-4NGTROrifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-4NGT1Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-4NGT2Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-05-4NGT3Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-05-4NYFOrifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-4NYC0Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-4NYCTLOrifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-4NYCTROrifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-4NYTLOrifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-4NYTROrifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-4NYT1Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-4NYT2Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-05-4NYT3Orifice: dia. 0.5 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-05-4PGFOrifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-4PGC0Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-4PGCTLOrifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-4PGCTROrifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-4PGTLOrifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-4PGTROrifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-4PGT1Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-4PGT2Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-05-4PGT3Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-05-4PYFOrifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-4PYC0Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-4PYCTLOrifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-4PYCTROrifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-4PYTLOrifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-4PYTROrifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-4PYT1Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-4PYT2Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-05-4PYT3Orifice: dia. 0.5 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-05-5NGFOrifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-5NGC0Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-5NGCTLOrifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-5NGCTROrifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-5NGTLOrifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-5NGTROrifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-5NGT1Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-5NGT2Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-05-5NGT3Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-05-5NGT4Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 4
MHPS-05-5NYFOrifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-5NYC0Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-5NYCTLOrifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-5NYCTROrifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-5NYTLOrifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-5NYTROrifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-5NYT1Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-5NYT2Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-05-5NYT3Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-05-5NYT4Orifice: dia. 0.5 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 4
MHPS-05-5PGFOrifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-05-5PGC0Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-05-5PGCTLOrifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-05-5PGCTROrifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-05-5PGTLOrifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-05-5PGTROrifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-05-5PGT1Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-05-5PGT2Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-05-5PGT3Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-05-5PGT4Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 4
MHPS-05-5PYFOrifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-05-5PYC0Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-05-5PYCTLOrifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-05-5PYCTROrifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-05-5PYTLOrifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-05-5PYTROrifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-05-5PYT1Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-05-5PYT2Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-05-5PYT3Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-05-5PYT4Orifice: dia. 0.5 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 4
MHPS-07-2NGFOrifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-2NGC0Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-2NGCTLOrifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-2NGCTROrifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-2NGTLOrifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-2NGTROrifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-2NGT1Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-2NYFOrifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-2NYC0Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-2NYCTLOrifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-2NYCTROrifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-2NYTLOrifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-2NYTROrifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-2NYT1Orifice: dia. 0.7 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-2PGFOrifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-2PGC0Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-2PGCTLOrifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-2PGCTROrifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-2PGTLOrifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-2PGTROrifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-2PGT1Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-2PYFOrifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-2PYC0Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-2PYCTLOrifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-2PYCTROrifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-2PYTLOrifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-2PYTROrifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-2PYT1Orifice: dia. 0.7 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-3NGFOrifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-3NGC0Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-3NGCTLOrifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-3NGCTROrifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-3NGTLOrifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-3NGTROrifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-3NGT1Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-3NGT2Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-07-3NYFOrifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-3NYC0Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-3NYCTLOrifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-3NYCTROrifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-3NYTLOrifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-3NYTROrifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-3NYT1Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-3NYT2Orifice: dia. 0.7 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-07-3PGFOrifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-3PGC0Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-3PGCTLOrifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-3PGCTROrifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-3PGTLOrifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-3PGTROrifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-3PGT1Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-3PGT2Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-07-3PYFOrifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-3PYC0Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-3PYCTLOrifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-3PYCTROrifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-3PYTLOrifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-3PYTROrifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-3PYT1Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-3PYT2Orifice: dia. 0.7 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-07-4NGFOrifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-4NGC0Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-4NGCTLOrifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-4NGCTROrifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-4NGTLOrifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-4NGTROrifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-4NGT1Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-4NGT2Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-07-4NGT3Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-07-4NYFOrifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-4NYC0Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-4NYCTLOrifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-4NYCTROrifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-4NYTLOrifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-4NYTROrifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-4NYT1Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-4NYT2Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-07-4NYT3Orifice: dia. 0.7 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-07-4PGFOrifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-4PGC0Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-4PGCTLOrifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-4PGCTROrifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-4PGTLOrifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-4PGTROrifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-4PGT1Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-4PGT2Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-07-4PGT3Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-07-4PYFOrifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-4PYC0Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-4PYCTLOrifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-4PYCTROrifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-4PYTLOrifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-4PYTROrifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-4PYT1Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-4PYT2Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-07-4PYT3Orifice: dia. 0.7 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-07-5NGFOrifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-5NGC0Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-5NGCTLOrifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-5NGCTROrifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-5NGTLOrifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-5NGTROrifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-5NGT1Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-5NGT2Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-07-5NGT3Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-07-5NGT4Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 4
MHPS-07-5NYFOrifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-5NYC0Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-5NYCTLOrifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-5NYCTROrifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-5NYTLOrifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-5NYTROrifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-5NYT1Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-5NYT2Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-07-5NYT3Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-07-5NYT4Orifice: dia. 0.7 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 4
MHPS-07-5PGFOrifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-07-5PGC0Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-07-5PGCTLOrifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-07-5PGCTROrifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-07-5PGTLOrifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-07-5PGTROrifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-07-5PGT1Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-07-5PGT2Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-07-5PGT3Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-07-5PGT4Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 4
MHPS-07-5PYFOrifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-07-5PYC0Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-07-5PYCTLOrifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-07-5PYCTROrifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-07-5PYTLOrifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-07-5PYTROrifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-07-5PYT1Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-07-5PYT2Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-07-5PYT3Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-07-5PYT4Orifice: dia. 0.7 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 4
MHPS-10-2NGFOrifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-2NGC0Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-2NGCTLOrifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-2NGCTROrifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-2NGTLOrifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-2NGTROrifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-2NGT1Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-2NYFOrifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-2NYC0Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-2NYCTLOrifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-2NYCTROrifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-2NYTLOrifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-2NYTROrifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-2NYT1Orifice: dia. 1.0 mm | Stations: 2 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-2PGFOrifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-2PGC0Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-2PGCTLOrifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-2PGCTROrifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-2PGTLOrifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-2PGTROrifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-2PGT1Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-2PYFOrifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-2PYC0Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-2PYCTLOrifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-2PYCTROrifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-2PYTLOrifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-2PYTROrifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-2PYT1Orifice: dia. 1.0 mm | Stations: 2 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-3NGFOrifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-3NGC0Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-3NGCTLOrifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-3NGCTROrifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-3NGTLOrifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-3NGTROrifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-3NGT1Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-3NGT2Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-10-3NYFOrifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-3NYC0Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-3NYCTLOrifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-3NYCTROrifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-3NYTLOrifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-3NYTROrifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-3NYT1Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-3NYT2Orifice: dia. 1.0 mm | Stations: 3 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-10-3PGFOrifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-3PGC0Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-3PGCTLOrifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-3PGCTROrifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-3PGTLOrifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-3PGTROrifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-3PGT1Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-3PGT2Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-10-3PYFOrifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-3PYC0Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-3PYCTLOrifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-3PYCTROrifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-3PYTLOrifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-3PYTROrifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-3PYT1Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-3PYT2Orifice: dia. 1.0 mm | Stations: 3 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-10-4NGFOrifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-4NGC0Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-4NGCTLOrifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-4NGCTROrifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-4NGTLOrifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-4NGTROrifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-4NGT1Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-4NGT2Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-10-4NGT3Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-10-4NYFOrifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-4NYC0Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-4NYCTLOrifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-4NYCTROrifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-4NYTLOrifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-4NYTROrifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-4NYT1Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-4NYT2Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-10-4NYT3Orifice: dia. 1.0 mm | Stations: 4 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-10-4PGFOrifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-4PGC0Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-4PGCTLOrifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-4PGCTROrifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-4PGTLOrifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-4PGTROrifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-4PGT1Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-4PGT2Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-10-4PGT3Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-10-4PYFOrifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-4PYC0Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-4PYCTLOrifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-4PYCTROrifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-4PYTLOrifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-4PYTROrifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-4PYT1Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-4PYT2Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-10-4PYT3Orifice: dia. 1.0 mm | Stations: 4 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-10-5NGFOrifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-5NGC0Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-5NGCTLOrifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-5NGCTROrifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-5NGTLOrifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-5NGTROrifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-5NGT1Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-5NGT2Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-10-5NGT3Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-10-5NGT4Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 4
MHPS-10-5NYFOrifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-5NYC0Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-5NYCTLOrifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-5NYCTROrifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-5NYTLOrifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-5NYTROrifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-5NYT1Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-5NYT2Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-10-5NYT3Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-10-5NYT4Orifice: dia. 1.0 mm | Stations: 5 | Output: NPN open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 4
MHPS-10-5PGFOrifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: DIN terminal box (Pg11)
MHPS-10-5PGC0Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector, no cable
MHPS-10-5PGCTLOrifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, left
MHPS-10-5PGCTROrifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Connector junction box, right
MHPS-10-5PGTLOrifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, left
MHPS-10-5PGTROrifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, right
MHPS-10-5PGT1Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 1
MHPS-10-5PGT2Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 2
MHPS-10-5PGT3Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 3
MHPS-10-5PGT4Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Green | Wiring: Lead-wire junction box, pos. 4
MHPS-10-5PYFOrifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: DIN terminal box (Pg11)
MHPS-10-5PYC0Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector, no cable
MHPS-10-5PYCTLOrifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, left
MHPS-10-5PYCTROrifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Connector junction box, right
MHPS-10-5PYTLOrifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, left
MHPS-10-5PYTROrifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, right
MHPS-10-5PYT1Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 1
MHPS-10-5PYT2Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 2
MHPS-10-5PYT3Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 3
MHPS-10-5PYT4Orifice: dia. 1.0 mm | Stations: 5 | Output: PNP open collector | Lamp: Yellow | Wiring: Lead-wire junction box, pos. 4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Sensors →
