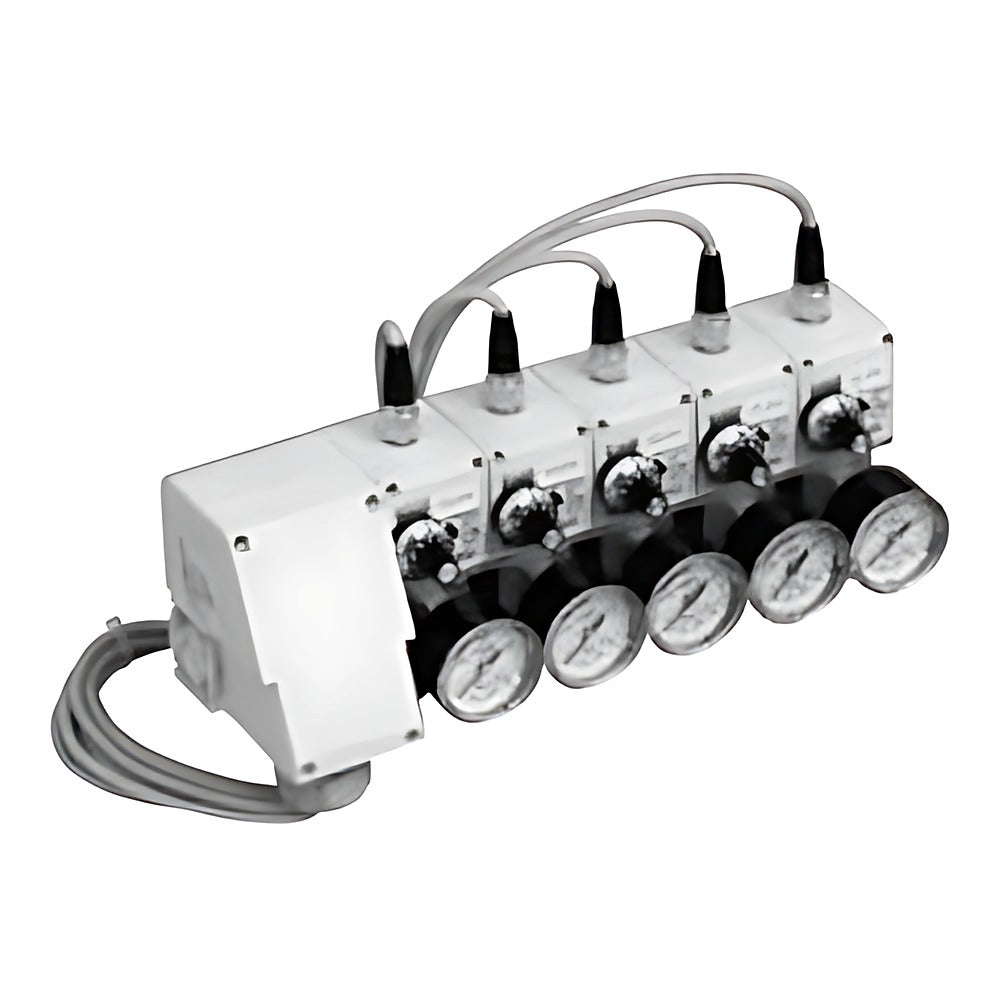

CKD MTLPS Tool Breakage Detection Switch Manifold (2-5 Stations)

CKD MTLPS Tool Breakage Detection Switch Manifold (2-5 Stations)

CKD MTLPS manifold of 2 to 5 TLPS cutting tool breakage detection switches.

Key features

  • 2-5 TLPS stations on one manifold
  • Junction box at left/right end or between stations (T1-T4)
  • NPN or PNP output, yellow lamp
  • Used with TLPS-J opposed nozzles (ordered separately)
  • Options (not expanded): B bracket, G2/GW2 gauge
  • Connector cable versions C1/C3/C5 (1/3/5 m cable attached) ordered by replacing C0; not listed separately

Specifications

Fluid Clean compressed air (no oil)
Orifice dia. 0.3 mm, opposed nozzle
Detectable tool dia. 0.3-30 mm
Power supply DC10.2-26.4 V
Lamp Yellow (lit on breakage)
Protection IP67 (connector), IP64 (DIN box)
Code format MTLPS-03-<stn><out>Y<wiring>
Source CKD Korea catalog CB-024SK-9, p. 1364-1366
MTLPS-03-2NYF Stations: 2 | Output: NPN open collector | Wiring: DIN terminal box (Pg11)
MTLPS-03-2NYC0 Stations: 2 | Output: NPN open collector | Wiring: Connector, no cable
MTLPS-03-2NYCTL Stations: 2 | Output: NPN open collector | Wiring: Connector junction box, left
MTLPS-03-2NYCTR Stations: 2 | Output: NPN open collector | Wiring: Connector junction box, right
MTLPS-03-2NYTL Stations: 2 | Output: NPN open collector | Wiring: Lead-wire junction box, left
MTLPS-03-2NYTR Stations: 2 | Output: NPN open collector | Wiring: Lead-wire junction box, right
MTLPS-03-2NYT1 Stations: 2 | Output: NPN open collector | Wiring: Lead-wire junction box, pos. 1
MTLPS-03-2PYF Stations: 2 | Output: PNP open collector | Wiring: DIN terminal box (Pg11)
MTLPS-03-2PYC0 Stations: 2 | Output: PNP open collector | Wiring: Connector, no cable
MTLPS-03-2PYCTL Stations: 2 | Output: PNP open collector | Wiring: Connector junction box, left
MTLPS-03-2PYCTR Stations: 2 | Output: PNP open collector | Wiring: Connector junction box, right
MTLPS-03-2PYTL Stations: 2 | Output: PNP open collector | Wiring: Lead-wire junction box, left
MTLPS-03-2PYTR Stations: 2 | Output: PNP open collector | Wiring: Lead-wire junction box, right
MTLPS-03-2PYT1 Stations: 2 | Output: PNP open collector | Wiring: Lead-wire junction box, pos. 1
MTLPS-03-3NYF Stations: 3 | Output: NPN open collector | Wiring: DIN terminal box (Pg11)
MTLPS-03-3NYC0 Stations: 3 | Output: NPN open collector | Wiring: Connector, no cable
MTLPS-03-3NYCTL Stations: 3 | Output: NPN open collector | Wiring: Connector junction box, left
MTLPS-03-3NYCTR Stations: 3 | Output: NPN open collector | Wiring: Connector junction box, right
MTLPS-03-3NYTL Stations: 3 | Output: NPN open collector | Wiring: Lead-wire junction box, left
MTLPS-03-3NYTR Stations: 3 | Output: NPN open collector | Wiring: Lead-wire junction box, right
MTLPS-03-3NYT1 Stations: 3 | Output: NPN open collector | Wiring: Lead-wire junction box, pos. 1
MTLPS-03-3NYT2 Stations: 3 | Output: NPN open collector | Wiring: Lead-wire junction box, pos. 2
MTLPS-03-3PYF Stations: 3 | Output: PNP open collector | Wiring: DIN terminal box (Pg11)
MTLPS-03-3PYC0 Stations: 3 | Output: PNP open collector | Wiring: Connector, no cable
MTLPS-03-3PYCTL Stations: 3 | Output: PNP open collector | Wiring: Connector junction box, left
MTLPS-03-3PYCTR Stations: 3 | Output: PNP open collector | Wiring: Connector junction box, right
MTLPS-03-3PYTL Stations: 3 | Output: PNP open collector | Wiring: Lead-wire junction box, left
MTLPS-03-3PYTR Stations: 3 | Output: PNP open collector | Wiring: Lead-wire junction box, right
MTLPS-03-3PYT1 Stations: 3 | Output: PNP open collector | Wiring: Lead-wire junction box, pos. 1
MTLPS-03-3PYT2 Stations: 3 | Output: PNP open collector | Wiring: Lead-wire junction box, pos. 2
MTLPS-03-4NYF Stations: 4 | Output: NPN open collector | Wiring: DIN terminal box (Pg11)
MTLPS-03-4NYC0 Stations: 4 | Output: NPN open collector | Wiring: Connector, no cable
MTLPS-03-4NYCTL Stations: 4 | Output: NPN open collector | Wiring: Connector junction box, left
MTLPS-03-4NYCTR Stations: 4 | Output: NPN open collector | Wiring: Connector junction box, right
MTLPS-03-4NYTL Stations: 4 | Output: NPN open collector | Wiring: Lead-wire junction box, left
MTLPS-03-4NYTR Stations: 4 | Output: NPN open collector | Wiring: Lead-wire junction box, right
MTLPS-03-4NYT1 Stations: 4 | Output: NPN open collector | Wiring: Lead-wire junction box, pos. 1
MTLPS-03-4NYT2 Stations: 4 | Output: NPN open collector | Wiring: Lead-wire junction box, pos. 2
MTLPS-03-4NYT3 Stations: 4 | Output: NPN open collector | Wiring: Lead-wire junction box, pos. 3
MTLPS-03-4PYF Stations: 4 | Output: PNP open collector | Wiring: DIN terminal box (Pg11)
MTLPS-03-4PYC0 Stations: 4 | Output: PNP open collector | Wiring: Connector, no cable
MTLPS-03-4PYCTL Stations: 4 | Output: PNP open collector | Wiring: Connector junction box, left
MTLPS-03-4PYCTR Stations: 4 | Output: PNP open collector | Wiring: Connector junction box, right
MTLPS-03-4PYTL Stations: 4 | Output: PNP open collector | Wiring: Lead-wire junction box, left
MTLPS-03-4PYTR Stations: 4 | Output: PNP open collector | Wiring: Lead-wire junction box, right
MTLPS-03-4PYT1 Stations: 4 | Output: PNP open collector | Wiring: Lead-wire junction box, pos. 1
MTLPS-03-4PYT2 Stations: 4 | Output: PNP open collector | Wiring: Lead-wire junction box, pos. 2
MTLPS-03-4PYT3 Stations: 4 | Output: PNP open collector | Wiring: Lead-wire junction box, pos. 3
MTLPS-03-5NYF Stations: 5 | Output: NPN open collector | Wiring: DIN terminal box (Pg11)
MTLPS-03-5NYC0 Stations: 5 | Output: NPN open collector | Wiring: Connector, no cable
MTLPS-03-5NYCTL Stations: 5 | Output: NPN open collector | Wiring: Connector junction box, left
MTLPS-03-5NYCTR Stations: 5 | Output: NPN open collector | Wiring: Connector junction box, right
MTLPS-03-5NYTL Stations: 5 | Output: NPN open collector | Wiring: Lead-wire junction box, left
MTLPS-03-5NYTR Stations: 5 | Output: NPN open collector | Wiring: Lead-wire junction box, right
MTLPS-03-5NYT1 Stations: 5 | Output: NPN open collector | Wiring: Lead-wire junction box, pos. 1
MTLPS-03-5NYT2 Stations: 5 | Output: NPN open collector | Wiring: Lead-wire junction box, pos. 2
MTLPS-03-5NYT3 Stations: 5 | Output: NPN open collector | Wiring: Lead-wire junction box, pos. 3
MTLPS-03-5NYT4 Stations: 5 | Output: NPN open collector | Wiring: Lead-wire junction box, pos. 4
MTLPS-03-5PYF Stations: 5 | Output: PNP open collector | Wiring: DIN terminal box (Pg11)
MTLPS-03-5PYC0 Stations: 5 | Output: PNP open collector | Wiring: Connector, no cable
MTLPS-03-5PYCTL Stations: 5 | Output: PNP open collector | Wiring: Connector junction box, left
MTLPS-03-5PYCTR Stations: 5 | Output: PNP open collector | Wiring: Connector junction box, right
MTLPS-03-5PYTL Stations: 5 | Output: PNP open collector | Wiring: Lead-wire junction box, left
MTLPS-03-5PYTR Stations: 5 | Output: PNP open collector | Wiring: Lead-wire junction box, right
MTLPS-03-5PYT1 Stations: 5 | Output: PNP open collector | Wiring: Lead-wire junction box, pos. 1
MTLPS-03-5PYT2 Stations: 5 | Output: PNP open collector | Wiring: Lead-wire junction box, pos. 2
MTLPS-03-5PYT3 Stations: 5 | Output: PNP open collector | Wiring: Lead-wire junction box, pos. 3
MTLPS-03-5PYT4 Stations: 5 | Output: PNP open collector | Wiring: Lead-wire junction box, pos. 4
Pneumatic SensorsCKD
68 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MTLPS Tool Breakage Detection Switch Manifold (2-5 Stations)

Brand CKD·Pneumatic Sensors

Available part numbers (68)

MTLPS-03-2NYF, MTLPS-03-2NYC0, MTLPS-03-2NYCTL, MTLPS-03-2NYCTR, MTLPS-03-2NYTL, MTLPS-03-2NYTR, MTLPS-03-2NYT1, MTLPS-03-2PYF, MTLPS-03-2PYC0, MTLPS-03-2PYCTL + 58 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
