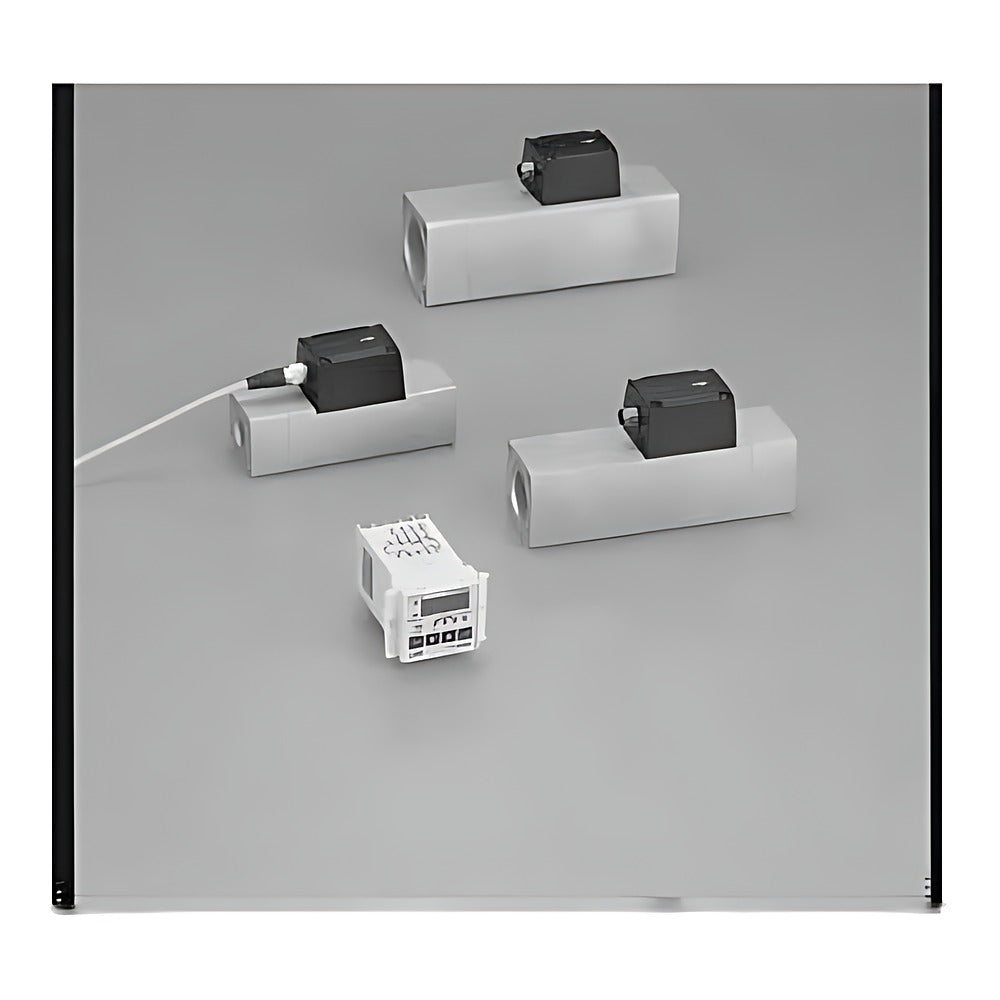

CKD PFD FLUEREX Separate-Display Flow Sensor (Compressed Air)

CKD PFD FLUEREX Separate-Display Flow Sensor (Compressed Air)

CKD FLUEREX PFD flow sensor for compressed air and nitrogen with separate sensor and monitor, measuring 25 L/min up to 16 m3/min(normal) with Rc3/8 to Rc2 ports.

Key features

  • Overall accuracy +/-4% F.S.; no compensation needed for pressure or temperature changes
  • Displays flow converted to standard condition (0 C, 101.3 kPa)
  • Instantaneous/integrated flow 4-digit LED display, integrated pulse output
  • 2 switch outputs (NPN or PNP) and analog output 0-5 V (options 4-20 mA, 1-5 V, 0-10 V)
  • Product = sensor + monitor + 3 m cable; spare parts PFD-C3/CW cables, PFD-B/B1 brackets

Specifications

Fluid Clean compressed air, nitrogen
Operating pressure 0.1 to 1.0 MPa
Proof pressure 1.5 MPa
Fluid temperature 0 to 40 C
Ambient temperature 0 to 50 C
Power supply 24 VDC
Pressure loss 0.015 MPa or less
Response time 2.5 s or less
Protection IP64 equivalent (sensor)
Source CKD Korea catalog CB-024SK-9, p. 1599-1621
PFD-501-10N0 Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: NPN x2 | Analog out: 0-5 VDC (std) | Bracket: None
PFD-501-10N0-B Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: NPN x2 | Analog out: 0-5 VDC (std) | Bracket: Bracket attached
PFD-501-10N1 Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: NPN x2 | Analog out: 4-20 mA | Bracket: None
PFD-501-10N1-B Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: NPN x2 | Analog out: 4-20 mA | Bracket: Bracket attached
PFD-501-10N2 Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: NPN x2 | Analog out: 1-5 VDC | Bracket: None
PFD-501-10N2-B Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: NPN x2 | Analog out: 1-5 VDC | Bracket: Bracket attached
PFD-501-10N3 Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: NPN x2 | Analog out: 0-10 VDC | Bracket: None
PFD-501-10N3-B Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: NPN x2 | Analog out: 0-10 VDC | Bracket: Bracket attached
PFD-501-10P0 Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: PNP x2 | Analog out: 0-5 VDC (std) | Bracket: None
PFD-501-10P0-B Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: PNP x2 | Analog out: 0-5 VDC (std) | Bracket: Bracket attached
PFD-501-10P1 Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: PNP x2 | Analog out: 4-20 mA | Bracket: None
PFD-501-10P1-B Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: PNP x2 | Analog out: 4-20 mA | Bracket: Bracket attached
PFD-501-10P2 Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: PNP x2 | Analog out: 1-5 VDC | Bracket: None
PFD-501-10P2-B Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: PNP x2 | Analog out: 1-5 VDC | Bracket: Bracket attached
PFD-501-10P3 Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: PNP x2 | Analog out: 0-10 VDC | Bracket: None
PFD-501-10P3-B Range: 25-500 L/min(normal) | Port: Rc3/8 | Switch out: PNP x2 | Analog out: 0-10 VDC | Bracket: Bracket attached
PFD-102-15N0 Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: NPN x2 | Analog out: 0-5 VDC (std) | Bracket: None
PFD-102-15N0-B Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: NPN x2 | Analog out: 0-5 VDC (std) | Bracket: Bracket attached
PFD-102-15N1 Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: NPN x2 | Analog out: 4-20 mA | Bracket: None
PFD-102-15N1-B Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: NPN x2 | Analog out: 4-20 mA | Bracket: Bracket attached
PFD-102-15N2 Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: NPN x2 | Analog out: 1-5 VDC | Bracket: None
PFD-102-15N2-B Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: NPN x2 | Analog out: 1-5 VDC | Bracket: Bracket attached
PFD-102-15N3 Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: NPN x2 | Analog out: 0-10 VDC | Bracket: None
PFD-102-15N3-B Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: NPN x2 | Analog out: 0-10 VDC | Bracket: Bracket attached
PFD-102-15P0 Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: PNP x2 | Analog out: 0-5 VDC (std) | Bracket: None
PFD-102-15P0-B Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: PNP x2 | Analog out: 0-5 VDC (std) | Bracket: Bracket attached
PFD-102-15P1 Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: PNP x2 | Analog out: 4-20 mA | Bracket: None
PFD-102-15P1-B Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: PNP x2 | Analog out: 4-20 mA | Bracket: Bracket attached
PFD-102-15P2 Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: PNP x2 | Analog out: 1-5 VDC | Bracket: None
PFD-102-15P2-B Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: PNP x2 | Analog out: 1-5 VDC | Bracket: Bracket attached
PFD-102-15P3 Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: PNP x2 | Analog out: 0-10 VDC | Bracket: None
PFD-102-15P3-B Range: 50-1000 L/min(normal) | Port: Rc1/2 | Switch out: PNP x2 | Analog out: 0-10 VDC | Bracket: Bracket attached
PFD-202-20N0 Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: NPN x2 | Analog out: 0-5 VDC (std) | Bracket: None
PFD-202-20N0-B Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: NPN x2 | Analog out: 0-5 VDC (std) | Bracket: Bracket attached
PFD-202-20N1 Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: NPN x2 | Analog out: 4-20 mA | Bracket: None
PFD-202-20N1-B Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: NPN x2 | Analog out: 4-20 mA | Bracket: Bracket attached
PFD-202-20N2 Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: NPN x2 | Analog out: 1-5 VDC | Bracket: None
PFD-202-20N2-B Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: NPN x2 | Analog out: 1-5 VDC | Bracket: Bracket attached
PFD-202-20N3 Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: NPN x2 | Analog out: 0-10 VDC | Bracket: None
PFD-202-20N3-B Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: NPN x2 | Analog out: 0-10 VDC | Bracket: Bracket attached
PFD-202-20P0 Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: PNP x2 | Analog out: 0-5 VDC (std) | Bracket: None
PFD-202-20P0-B Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: PNP x2 | Analog out: 0-5 VDC (std) | Bracket: Bracket attached
PFD-202-20P1 Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: PNP x2 | Analog out: 4-20 mA | Bracket: None
PFD-202-20P1-B Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: PNP x2 | Analog out: 4-20 mA | Bracket: Bracket attached
PFD-202-20P2 Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: PNP x2 | Analog out: 1-5 VDC | Bracket: None
PFD-202-20P2-B Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: PNP x2 | Analog out: 1-5 VDC | Bracket: Bracket attached
PFD-202-20P3 Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: PNP x2 | Analog out: 0-10 VDC | Bracket: None
PFD-202-20P3-B Range: 100-2000 L/min(normal) | Port: Rc3/4 | Switch out: PNP x2 | Analog out: 0-10 VDC | Bracket: Bracket attached
PFD-402-25N0 Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: NPN x2 | Analog out: 0-5 VDC (std) | Bracket: None
PFD-402-25N0-B Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: NPN x2 | Analog out: 0-5 VDC (std) | Bracket: Bracket attached
PFD-402-25N1 Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: NPN x2 | Analog out: 4-20 mA | Bracket: None
PFD-402-25N1-B Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: NPN x2 | Analog out: 4-20 mA | Bracket: Bracket attached
PFD-402-25N2 Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: NPN x2 | Analog out: 1-5 VDC | Bracket: None
PFD-402-25N2-B Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: NPN x2 | Analog out: 1-5 VDC | Bracket: Bracket attached
PFD-402-25N3 Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: NPN x2 | Analog out: 0-10 VDC | Bracket: None
PFD-402-25N3-B Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: NPN x2 | Analog out: 0-10 VDC | Bracket: Bracket attached
PFD-402-25P0 Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: PNP x2 | Analog out: 0-5 VDC (std) | Bracket: None
PFD-402-25P0-B Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: PNP x2 | Analog out: 0-5 VDC (std) | Bracket: Bracket attached
PFD-402-25P1 Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: PNP x2 | Analog out: 4-20 mA | Bracket: None
PFD-402-25P1-B Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: PNP x2 | Analog out: 4-20 mA | Bracket: Bracket attached
PFD-402-25P2 Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: PNP x2 | Analog out: 1-5 VDC | Bracket: None
PFD-402-25P2-B Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: PNP x2 | Analog out: 1-5 VDC | Bracket: Bracket attached
PFD-402-25P3 Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: PNP x2 | Analog out: 0-10 VDC | Bracket: None
PFD-402-25P3-B Range: 200-4000 L/min(normal) | Port: Rc1 | Switch out: PNP x2 | Analog out: 0-10 VDC | Bracket: Bracket attached
PFD-802-40N0 Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: NPN x2 | Analog out: 0-5 VDC (std) | Bracket: None
PFD-802-40N0-B Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: NPN x2 | Analog out: 0-5 VDC (std) | Bracket: Bracket attached
PFD-802-40N1 Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: NPN x2 | Analog out: 4-20 mA | Bracket: None
PFD-802-40N1-B Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: NPN x2 | Analog out: 4-20 mA | Bracket: Bracket attached
PFD-802-40N2 Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: NPN x2 | Analog out: 1-5 VDC | Bracket: None
PFD-802-40N2-B Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: NPN x2 | Analog out: 1-5 VDC | Bracket: Bracket attached
PFD-802-40N3 Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: NPN x2 | Analog out: 0-10 VDC | Bracket: None
PFD-802-40N3-B Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: NPN x2 | Analog out: 0-10 VDC | Bracket: Bracket attached
PFD-802-40P0 Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: PNP x2 | Analog out: 0-5 VDC (std) | Bracket: None
PFD-802-40P0-B Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: PNP x2 | Analog out: 0-5 VDC (std) | Bracket: Bracket attached
PFD-802-40P1 Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: PNP x2 | Analog out: 4-20 mA | Bracket: None
PFD-802-40P1-B Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: PNP x2 | Analog out: 4-20 mA | Bracket: Bracket attached
PFD-802-40P2 Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: PNP x2 | Analog out: 1-5 VDC | Bracket: None
PFD-802-40P2-B Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: PNP x2 | Analog out: 1-5 VDC | Bracket: Bracket attached
PFD-802-40P3 Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: PNP x2 | Analog out: 0-10 VDC | Bracket: None
PFD-802-40P3-B Range: 400-8000 L/min(normal) | Port: Rc1-1/2 | Switch out: PNP x2 | Analog out: 0-10 VDC | Bracket: Bracket attached
PFD-163-50N0 Range: 0.8-16 m3/min(normal) | Port: Rc2 | Switch out: NPN x2 | Analog out: 0-5 VDC (std) | Bracket: None
PFD-163-50N1 Range: 0.8-16 m3/min(normal) | Port: Rc2 | Switch out: NPN x2 | Analog out: 4-20 mA | Bracket: None
PFD-163-50N2 Range: 0.8-16 m3/min(normal) | Port: Rc2 | Switch out: NPN x2 | Analog out: 1-5 VDC | Bracket: None
PFD-163-50N3 Range: 0.8-16 m3/min(normal) | Port: Rc2 | Switch out: NPN x2 | Analog out: 0-10 VDC | Bracket: None
PFD-163-50P0 Range: 0.8-16 m3/min(normal) | Port: Rc2 | Switch out: PNP x2 | Analog out: 0-5 VDC (std) | Bracket: None
PFD-163-50P1 Range: 0.8-16 m3/min(normal) | Port: Rc2 | Switch out: PNP x2 | Analog out: 4-20 mA | Bracket: None
PFD-163-50P2 Range: 0.8-16 m3/min(normal) | Port: Rc2 | Switch out: PNP x2 | Analog out: 1-5 VDC | Bracket: None
PFD-163-50P3 Range: 0.8-16 m3/min(normal) | Port: Rc2 | Switch out: PNP x2 | Analog out: 0-10 VDC | Bracket: None
Flow SensorsCKD
88 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD PFD FLUEREX Separate-Display Flow Sensor (Compressed Air)

Brand CKD·Flow Sensors

Available part numbers (88)

PFD-501-10N0, PFD-501-10N0-B, PFD-501-10N1, PFD-501-10N1-B, PFD-501-10N2, PFD-501-10N2-B, PFD-501-10N3, PFD-501-10N3-B, PFD-501-10P0, PFD-501-10P0-B + 78 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
