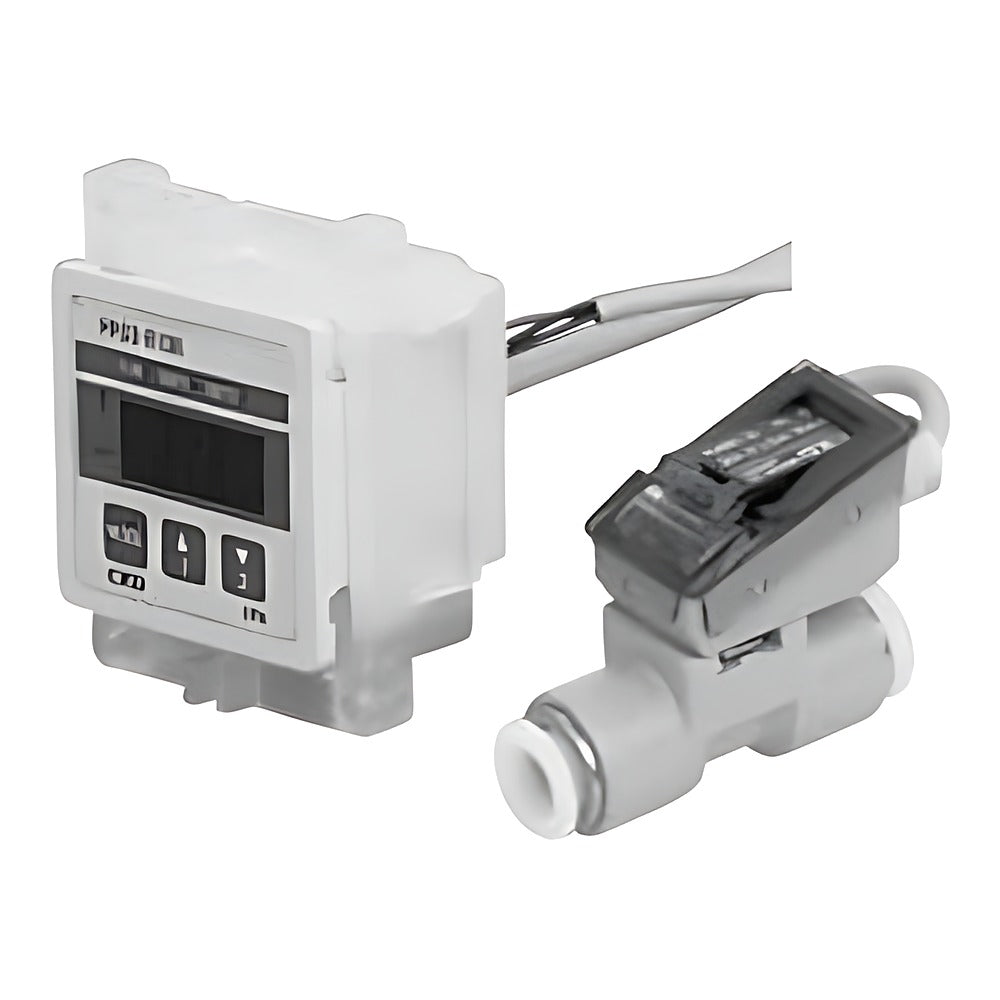

CKD PPD3/PPD3-S Digital Pressure Switch (Sensor-Separated)

CKD PPD3/PPD3-S Digital Pressure Switch (Sensor-Separated)

CKD PPD3 and PPD3-S sensor-separated digital pressure switches with a remote sensor head (semiconductor or stainless diaphragm) wired to a display unit.

Key features

  • Sensor type PPD3 (semiconductor) or PPD3-S (stainless diaphragm)
  • Ranges -100 to 980 / 300 / 100 kPa; NPN or PNP 2 outputs + 1-5 V analog
  • PPD3 sensor ports R1/8, 6 mm one-touch or 6 mm plug; PPD3-S sensor Rc1/8
  • Display unit and sensor unit also available separately
  • Sensor cable 3-core 3 m; display IP40, sensor IP65 equivalent
  • Bracket kits PPD3-KL-D/KD-D/KHS-D; clean-room versions P7/P8/P9

Specifications

Display 3-digit LED, 1 kPa resolution
Supply voltage 12-24 VDC +/-10 %
Current consumption 60 mA or less
Switch output current 50 mA or less
Analog output 1-5 V +/-0.1 V
Ambient temperature 0-50 C
Lead wire Display 5-core 1 m; sensor 3-core 3 m
Source CKD Korea catalog CB-024SK-9, p. 1248-1257
PPD3-R10NAD-6 Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 980 kPa | Output: NPN 2 + analog 1-5 V | Port: R1/8
PPD3-R10NAD-H6 Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 980 kPa | Output: NPN 2 + analog 1-5 V | Port: 6 mm one-touch
PPD3-R10NAD-H6-B Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 980 kPa | Output: NPN 2 + analog 1-5 V | Port: 6 mm plug
PPD3-R10PAD-6 Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 980 kPa | Output: PNP 2 + analog 1-5 V | Port: R1/8
PPD3-R10PAD-H6 Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 980 kPa | Output: PNP 2 + analog 1-5 V | Port: 6 mm one-touch
PPD3-R10PAD-H6-B Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 980 kPa | Output: PNP 2 + analog 1-5 V | Port: 6 mm plug
PPD3-R03NAD-6 Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 300 kPa | Output: NPN 2 + analog 1-5 V | Port: R1/8
PPD3-R03NAD-H6 Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 300 kPa | Output: NPN 2 + analog 1-5 V | Port: 6 mm one-touch
PPD3-R03NAD-H6-B Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 300 kPa | Output: NPN 2 + analog 1-5 V | Port: 6 mm plug
PPD3-R03PAD-6 Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 300 kPa | Output: PNP 2 + analog 1-5 V | Port: R1/8
PPD3-R03PAD-H6 Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 300 kPa | Output: PNP 2 + analog 1-5 V | Port: 6 mm one-touch
PPD3-R03PAD-H6-B Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 300 kPa | Output: PNP 2 + analog 1-5 V | Port: 6 mm plug
PPD3-R01NAD-6 Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 100 kPa | Output: NPN 2 + analog 1-5 V | Port: R1/8
PPD3-R01NAD-H6 Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 100 kPa | Output: NPN 2 + analog 1-5 V | Port: 6 mm one-touch
PPD3-R01NAD-H6-B Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 100 kPa | Output: NPN 2 + analog 1-5 V | Port: 6 mm plug
PPD3-R01PAD-6 Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 100 kPa | Output: PNP 2 + analog 1-5 V | Port: R1/8
PPD3-R01PAD-H6 Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 100 kPa | Output: PNP 2 + analog 1-5 V | Port: 6 mm one-touch
PPD3-R01PAD-H6-B Item: Display + sensor set | Sensor: Semiconductor sensor | Range: -100 to 100 kPa | Output: PNP 2 + analog 1-5 V | Port: 6 mm plug
PPD3-R10NAD Item: Display unit only | Sensor: Semiconductor sensor | Range: -100 to 980 kPa | Output: NPN 2 + analog 1-5 V | Port: -
PPD3-R10PAD Item: Display unit only | Sensor: Semiconductor sensor | Range: -100 to 980 kPa | Output: PNP 2 + analog 1-5 V | Port: -
PPD3-R03NAD Item: Display unit only | Sensor: Semiconductor sensor | Range: -100 to 300 kPa | Output: NPN 2 + analog 1-5 V | Port: -
PPD3-R03PAD Item: Display unit only | Sensor: Semiconductor sensor | Range: -100 to 300 kPa | Output: PNP 2 + analog 1-5 V | Port: -
PPD3-R01NAD Item: Display unit only | Sensor: Semiconductor sensor | Range: -100 to 100 kPa | Output: NPN 2 + analog 1-5 V | Port: -
PPD3-R01PAD Item: Display unit only | Sensor: Semiconductor sensor | Range: -100 to 100 kPa | Output: PNP 2 + analog 1-5 V | Port: -
PPD3-R10A-6 Item: Sensor unit only | Sensor: Semiconductor sensor | Range: -100 to 980 kPa | Output: Sensor signal | Port: R1/8
PPD3-R10A-H6 Item: Sensor unit only | Sensor: Semiconductor sensor | Range: -100 to 980 kPa | Output: Sensor signal | Port: 6 mm one-touch
PPD3-R10A-H6-B Item: Sensor unit only | Sensor: Semiconductor sensor | Range: -100 to 980 kPa | Output: Sensor signal | Port: 6 mm plug
PPD3-R03A-6 Item: Sensor unit only | Sensor: Semiconductor sensor | Range: -100 to 300 kPa | Output: Sensor signal | Port: R1/8
PPD3-R03A-H6 Item: Sensor unit only | Sensor: Semiconductor sensor | Range: -100 to 300 kPa | Output: Sensor signal | Port: 6 mm one-touch
PPD3-R03A-H6-B Item: Sensor unit only | Sensor: Semiconductor sensor | Range: -100 to 300 kPa | Output: Sensor signal | Port: 6 mm plug
PPD3-R01A-6 Item: Sensor unit only | Sensor: Semiconductor sensor | Range: -100 to 100 kPa | Output: Sensor signal | Port: R1/8
PPD3-R01A-H6 Item: Sensor unit only | Sensor: Semiconductor sensor | Range: -100 to 100 kPa | Output: Sensor signal | Port: 6 mm one-touch
PPD3-R01A-H6-B Item: Sensor unit only | Sensor: Semiconductor sensor | Range: -100 to 100 kPa | Output: Sensor signal | Port: 6 mm plug
PPD3-S-R10NAD-6B Item: Display + sensor set | Sensor: SS diaphragm sensor | Range: -100 to 980 kPa | Output: NPN 2 + analog 1-5 V | Port: Rc1/8
PPD3-S-R10PAD-6B Item: Display + sensor set | Sensor: SS diaphragm sensor | Range: -100 to 980 kPa | Output: PNP 2 + analog 1-5 V | Port: Rc1/8
PPD3-S-R03NAD-6B Item: Display + sensor set | Sensor: SS diaphragm sensor | Range: -100 to 300 kPa | Output: NPN 2 + analog 1-5 V | Port: Rc1/8
PPD3-S-R03PAD-6B Item: Display + sensor set | Sensor: SS diaphragm sensor | Range: -100 to 300 kPa | Output: PNP 2 + analog 1-5 V | Port: Rc1/8
PPD3-S-R01NAD-6B Item: Display + sensor set | Sensor: SS diaphragm sensor | Range: -100 to 100 kPa | Output: NPN 2 + analog 1-5 V | Port: Rc1/8
PPD3-S-R01PAD-6B Item: Display + sensor set | Sensor: SS diaphragm sensor | Range: -100 to 100 kPa | Output: PNP 2 + analog 1-5 V | Port: Rc1/8
PPD3-S-R10NAD Item: Display unit only | Sensor: SS diaphragm sensor | Range: -100 to 980 kPa | Output: NPN 2 + analog 1-5 V | Port: -
PPD3-S-R10PAD Item: Display unit only | Sensor: SS diaphragm sensor | Range: -100 to 980 kPa | Output: PNP 2 + analog 1-5 V | Port: -
PPD3-S-R03NAD Item: Display unit only | Sensor: SS diaphragm sensor | Range: -100 to 300 kPa | Output: NPN 2 + analog 1-5 V | Port: -
PPD3-S-R03PAD Item: Display unit only | Sensor: SS diaphragm sensor | Range: -100 to 300 kPa | Output: PNP 2 + analog 1-5 V | Port: -
PPD3-S-R01NAD Item: Display unit only | Sensor: SS diaphragm sensor | Range: -100 to 100 kPa | Output: NPN 2 + analog 1-5 V | Port: -
PPD3-S-R01PAD Item: Display unit only | Sensor: SS diaphragm sensor | Range: -100 to 100 kPa | Output: PNP 2 + analog 1-5 V | Port: -
PPD3-S-R10A-6B Item: Sensor unit only | Sensor: SS diaphragm sensor | Range: -100 to 980 kPa | Output: Sensor signal | Port: Rc1/8
PPD3-S-R03A-6B Item: Sensor unit only | Sensor: SS diaphragm sensor | Range: -100 to 300 kPa | Output: Sensor signal | Port: Rc1/8
PPD3-S-R01A-6B Item: Sensor unit only | Sensor: SS diaphragm sensor | Range: -100 to 100 kPa | Output: Sensor signal | Port: Rc1/8
PPD3-KL-D Item: Bracket kit (separated type) | Sensor: - | Range: - | Output: - | Port: Single-side foot (L)
PPD3-KD-D Item: Bracket kit (separated type) | Sensor: - | Range: - | Output: - | Port: Both-side foot (flat)
PPD3-KHS-D Item: Bracket kit (separated type) | Sensor: - | Range: - | Output: - | Port: Panel mount set with cover
