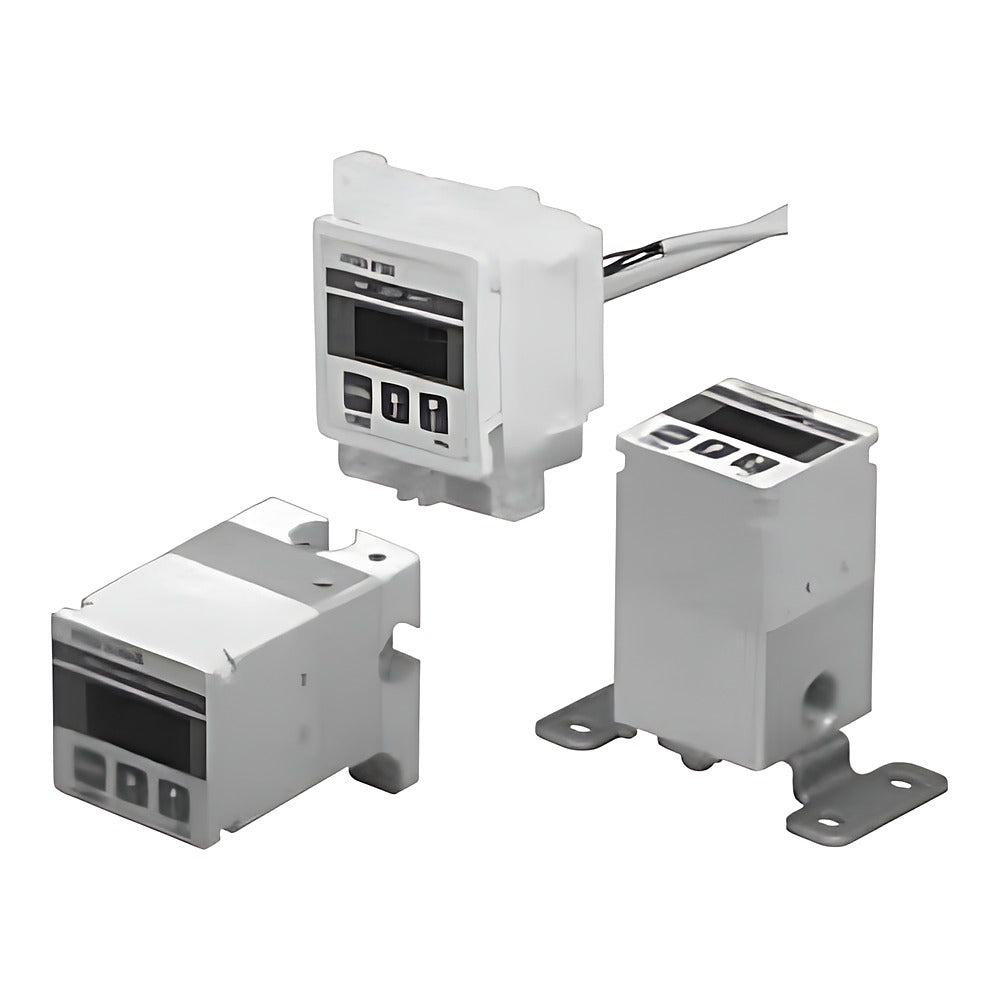

CKD PPD3-S Digital Pressure Switch (Sensor-Integrated, SS Diaphragm)

CKD PPD3-S Digital Pressure Switch (Sensor-Integrated, SS Diaphragm)

CKD PPD3-S sensor-integrated digital pressure switch with stainless steel diaphragm sensor for pressure, vacuum and seating confirmation on air lines with moisture or drain.

Key features

  • Stainless diaphragm sensor; air, non-corrosive gas and compressed air with moisture/drain
  • Ranges -100 to 980 kPa, -100 to 300 kPa and -100 to 100 kPa
  • NPN/PNP 2 outputs or 1 output + 1-5 V analog
  • Ports: Rc1/8 (6B), Rc1/8 through (6T), 6 mm one-touch (6HD, 6HT)
  • Peak hold, forced switch and pressure readout functions; clean-room versions P7/P8/P9
  • Mounting brackets/kits ordered separately (PPD3-KL/KD/KHS/KC)

Specifications

Display 3-digit LED, 1 kPa resolution
Supply voltage 12-24 VDC +/-10 %
Current consumption 50 mA or less
Switch output current 50 mA or less
Response time Approx. 5 ms
Protection IP65 equivalent
Ambient temperature 0-50 C
Lead wire 4-core 0.3 mm2, 1 m
Source CKD Korea catalog CB-024SK-9, p. 1244-1247
PPD3-S-R10N-6B Range: -100 to 980 kPa | Output: NPN 2 outputs | Port: Rc1/8, rear/bottom
PPD3-S-R10N-6T Range: -100 to 980 kPa | Output: NPN 2 outputs | Port: Rc1/8 through port
PPD3-S-R10N-6HD Range: -100 to 980 kPa | Output: NPN 2 outputs | Port: 6 mm one-touch, bottom
PPD3-S-R10N-6HT Range: -100 to 980 kPa | Output: NPN 2 outputs | Port: 6 mm one-touch x2, through
PPD3-S-R10P-6B Range: -100 to 980 kPa | Output: PNP 2 outputs | Port: Rc1/8, rear/bottom
PPD3-S-R10P-6T Range: -100 to 980 kPa | Output: PNP 2 outputs | Port: Rc1/8 through port
PPD3-S-R10P-6HD Range: -100 to 980 kPa | Output: PNP 2 outputs | Port: 6 mm one-touch, bottom
PPD3-S-R10P-6HT Range: -100 to 980 kPa | Output: PNP 2 outputs | Port: 6 mm one-touch x2, through
PPD3-S-R10NA-6B Range: -100 to 980 kPa | Output: NPN 1 + analog 1-5 V | Port: Rc1/8, rear/bottom
PPD3-S-R10NA-6T Range: -100 to 980 kPa | Output: NPN 1 + analog 1-5 V | Port: Rc1/8 through port
PPD3-S-R10NA-6HD Range: -100 to 980 kPa | Output: NPN 1 + analog 1-5 V | Port: 6 mm one-touch, bottom
PPD3-S-R10NA-6HT Range: -100 to 980 kPa | Output: NPN 1 + analog 1-5 V | Port: 6 mm one-touch x2, through
PPD3-S-R10PA-6B Range: -100 to 980 kPa | Output: PNP 1 + analog 1-5 V | Port: Rc1/8, rear/bottom
PPD3-S-R10PA-6T Range: -100 to 980 kPa | Output: PNP 1 + analog 1-5 V | Port: Rc1/8 through port
PPD3-S-R10PA-6HD Range: -100 to 980 kPa | Output: PNP 1 + analog 1-5 V | Port: 6 mm one-touch, bottom
PPD3-S-R10PA-6HT Range: -100 to 980 kPa | Output: PNP 1 + analog 1-5 V | Port: 6 mm one-touch x2, through
PPD3-S-R03N-6B Range: -100 to 300 kPa | Output: NPN 2 outputs | Port: Rc1/8, rear/bottom
PPD3-S-R03N-6T Range: -100 to 300 kPa | Output: NPN 2 outputs | Port: Rc1/8 through port
PPD3-S-R03N-6HD Range: -100 to 300 kPa | Output: NPN 2 outputs | Port: 6 mm one-touch, bottom
PPD3-S-R03N-6HT Range: -100 to 300 kPa | Output: NPN 2 outputs | Port: 6 mm one-touch x2, through
PPD3-S-R03P-6B Range: -100 to 300 kPa | Output: PNP 2 outputs | Port: Rc1/8, rear/bottom
PPD3-S-R03P-6T Range: -100 to 300 kPa | Output: PNP 2 outputs | Port: Rc1/8 through port
PPD3-S-R03P-6HD Range: -100 to 300 kPa | Output: PNP 2 outputs | Port: 6 mm one-touch, bottom
PPD3-S-R03P-6HT Range: -100 to 300 kPa | Output: PNP 2 outputs | Port: 6 mm one-touch x2, through
PPD3-S-R03NA-6B Range: -100 to 300 kPa | Output: NPN 1 + analog 1-5 V | Port: Rc1/8, rear/bottom
PPD3-S-R03NA-6T Range: -100 to 300 kPa | Output: NPN 1 + analog 1-5 V | Port: Rc1/8 through port
PPD3-S-R03NA-6HD Range: -100 to 300 kPa | Output: NPN 1 + analog 1-5 V | Port: 6 mm one-touch, bottom
PPD3-S-R03NA-6HT Range: -100 to 300 kPa | Output: NPN 1 + analog 1-5 V | Port: 6 mm one-touch x2, through
PPD3-S-R03PA-6B Range: -100 to 300 kPa | Output: PNP 1 + analog 1-5 V | Port: Rc1/8, rear/bottom
PPD3-S-R03PA-6T Range: -100 to 300 kPa | Output: PNP 1 + analog 1-5 V | Port: Rc1/8 through port
PPD3-S-R03PA-6HD Range: -100 to 300 kPa | Output: PNP 1 + analog 1-5 V | Port: 6 mm one-touch, bottom
PPD3-S-R03PA-6HT Range: -100 to 300 kPa | Output: PNP 1 + analog 1-5 V | Port: 6 mm one-touch x2, through
PPD3-S-R01N-6B Range: -100 to 100 kPa | Output: NPN 2 outputs | Port: Rc1/8, rear/bottom
PPD3-S-R01N-6T Range: -100 to 100 kPa | Output: NPN 2 outputs | Port: Rc1/8 through port
PPD3-S-R01N-6HD Range: -100 to 100 kPa | Output: NPN 2 outputs | Port: 6 mm one-touch, bottom
PPD3-S-R01N-6HT Range: -100 to 100 kPa | Output: NPN 2 outputs | Port: 6 mm one-touch x2, through
PPD3-S-R01P-6B Range: -100 to 100 kPa | Output: PNP 2 outputs | Port: Rc1/8, rear/bottom
PPD3-S-R01P-6T Range: -100 to 100 kPa | Output: PNP 2 outputs | Port: Rc1/8 through port
PPD3-S-R01P-6HD Range: -100 to 100 kPa | Output: PNP 2 outputs | Port: 6 mm one-touch, bottom
PPD3-S-R01P-6HT Range: -100 to 100 kPa | Output: PNP 2 outputs | Port: 6 mm one-touch x2, through
PPD3-S-R01NA-6B Range: -100 to 100 kPa | Output: NPN 1 + analog 1-5 V | Port: Rc1/8, rear/bottom
PPD3-S-R01NA-6T Range: -100 to 100 kPa | Output: NPN 1 + analog 1-5 V | Port: Rc1/8 through port
PPD3-S-R01NA-6HD Range: -100 to 100 kPa | Output: NPN 1 + analog 1-5 V | Port: 6 mm one-touch, bottom
PPD3-S-R01NA-6HT Range: -100 to 100 kPa | Output: NPN 1 + analog 1-5 V | Port: 6 mm one-touch x2, through
PPD3-S-R01PA-6B Range: -100 to 100 kPa | Output: PNP 1 + analog 1-5 V | Port: Rc1/8, rear/bottom
PPD3-S-R01PA-6T Range: -100 to 100 kPa | Output: PNP 1 + analog 1-5 V | Port: Rc1/8 through port
PPD3-S-R01PA-6HD Range: -100 to 100 kPa | Output: PNP 1 + analog 1-5 V | Port: 6 mm one-touch, bottom
PPD3-S-R01PA-6HT Range: -100 to 100 kPa | Output: PNP 1 + analog 1-5 V | Port: 6 mm one-touch x2, through
PPD3-KL Range: Bracket kit | Output: - | Port: Single-side foot (L)
PPD3-KD Range: Bracket kit | Output: - | Port: Both-side foot (flat)
PPD3-KHS Range: Bracket kit | Output: - | Port: Panel mount set with cover
PPD3-KC Range: Bracket kit | Output: - | Port: Operation protective cover
