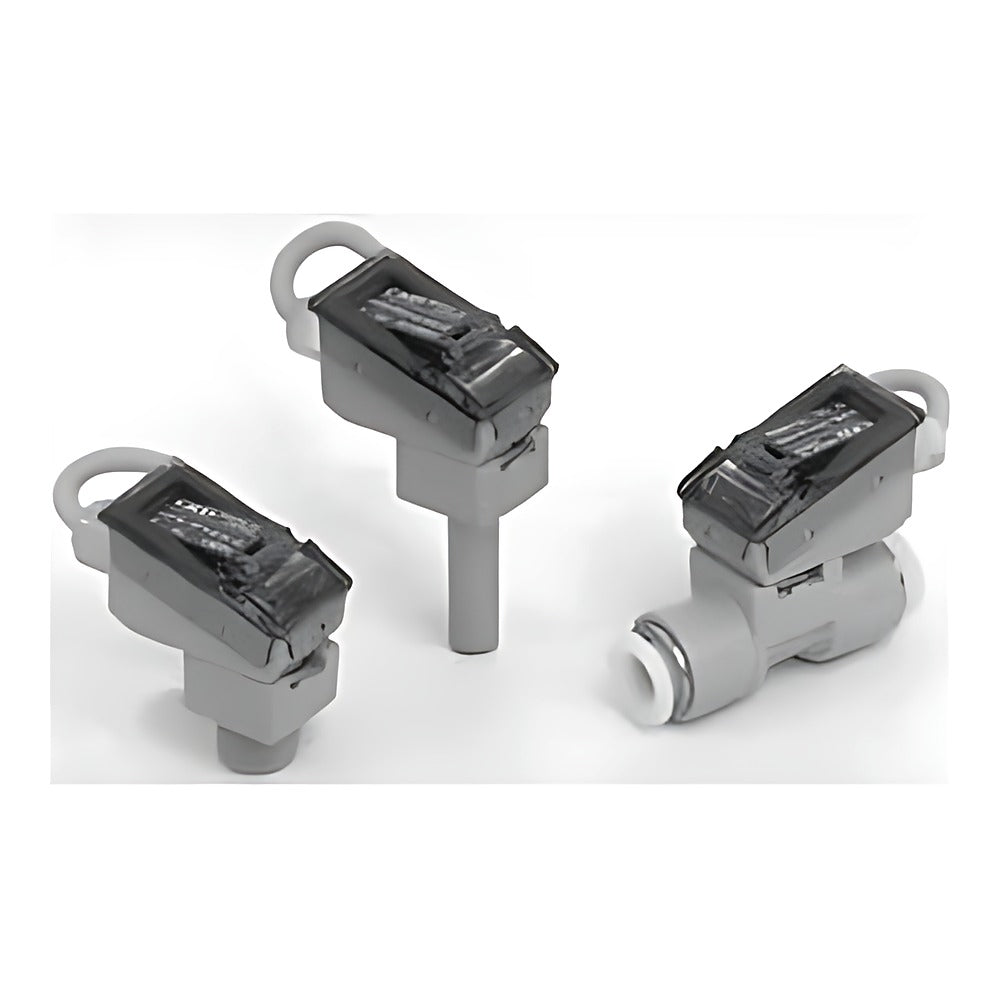

CKD PPE-A Compact Pressure Sensor (1-5 V Analog Output)

CKD PPE-A compact semiconductor pressure sensor giving a 1-5 V analog output proportional to applied pressure for air and vacuum.

Key features

1-5 V analog output (output impedance 1 kOhm); linearity +/-0.3 % F.S.
Ranges V01 (0 to -100 kPa), P01 (0 to 100 kPa), P10 (0 to 1 MPa)
Port: R1/8, 6 mm plug or 6 mm one-touch inline
Green power LED; reverse connection and load short protection
Clean-room versions P70/P80

Specifications

Fluid	Air, non-corrosive gas
Supply voltage	12-24 VDC +/-10 %
Current consumption	10 mA or less
Accuracy	+/-1 % F.S.
Protection	IP65 equivalent
Lead wire	3-core 3 m
Ambient temperature	0-50 C
Source	CKD Korea catalog CB-024SK-9, p. 1275-1277

PPE-V01A-6		Range: 0 to -100 kPa \| Port: R1/8
PPE-V01A-H6-B		Range: 0 to -100 kPa \| Port: 6 mm plug
PPE-V01A-H6		Range: 0 to -100 kPa \| Port: 6 mm one-touch x2 inline
PPE-P01A-6		Range: 0 to 100 kPa \| Port: R1/8
PPE-P01A-H6-B		Range: 0 to 100 kPa \| Port: 6 mm plug
PPE-P01A-H6		Range: 0 to 100 kPa \| Port: 6 mm one-touch x2 inline
PPE-P10A-6		Range: 0 to 1 MPa \| Port: R1/8
PPE-P10A-H6-B		Range: 0 to 1 MPa \| Port: 6 mm plug
PPE-P10A-H6		Range: 0 to 1 MPa \| Port: 6 mm one-touch x2 inline

Pressure SensorsCKD

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD PPE-A Compact Pressure Sensor (1-5 V Analog Output)

Brand CKD·Pressure Sensors

Available part numbers (9)

PPE-V01A-6, PPE-V01A-H6-B, PPE-V01A-H6, PPE-P01A-6, PPE-P01A-H6-B, PPE-P01A-H6, PPE-P10A-6, PPE-P10A-H6-B, PPE-P10A-H6

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
