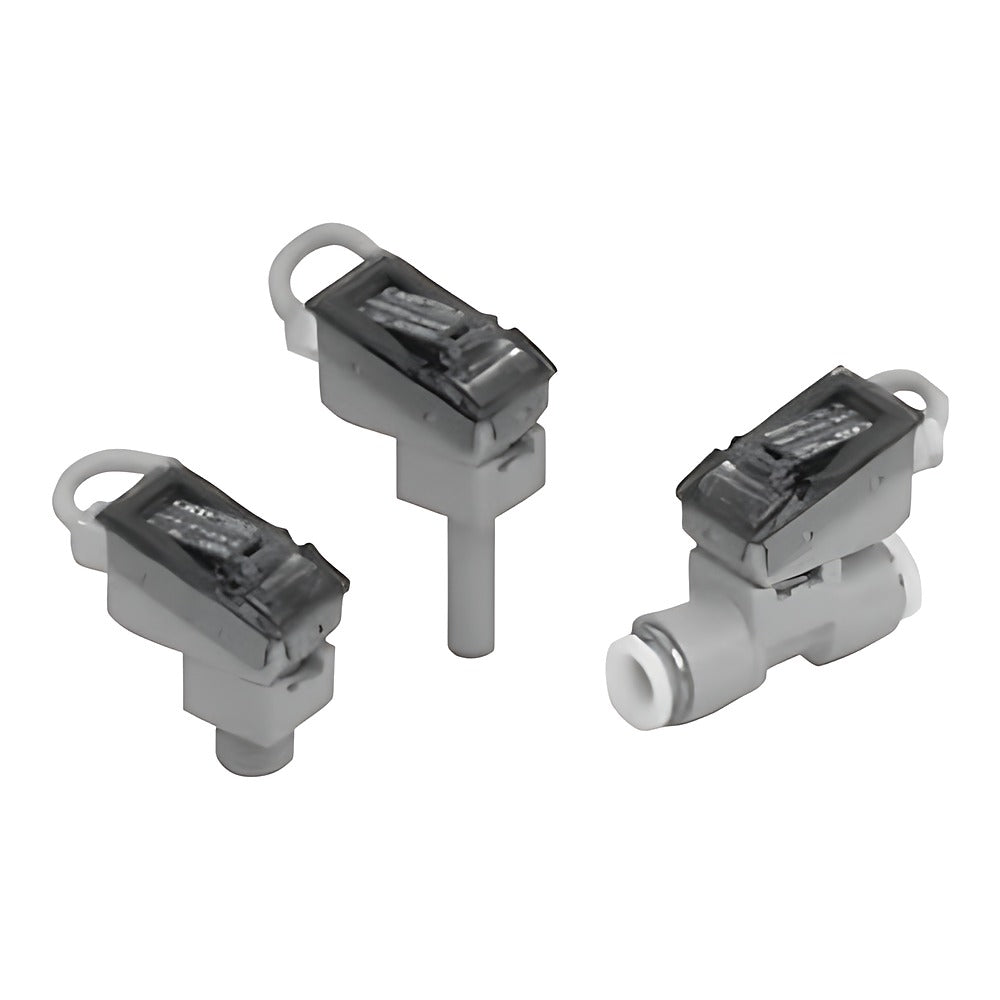

CKD PPE Compact Electronic Pressure Switch (2-Wire)

CKD PPE Compact Electronic Pressure Switch (2-Wire)

CKD PPE compact trimmer-set electronic pressure switch with semiconductor sensor and 2-wire output for air and vacuum lines.

Key features

  • Semiconductor pressure sensor for high accuracy and fast response
  • 2-wire output works with sink or source PLC inputs; reverse connection/overcurrent protection
  • Ranges V01 (-101.3 to 0 kPa), P01 (0 to 100 kPa), P10 (0 to 1 MPa); colour-coded nameplates
  • Port: R1/8, 6 mm plug or 6 mm one-touch inline
  • Vacuum type withstands 0.6 MPa; clean versions P70/P80

Specifications

Fluid Air, non-corrosive gas
Load voltage 10-30 VDC
Load current 5-50 mA
Repeatability +/-1 % F.S.
Protection IP65 equivalent
Lead wire 2-core 3 m
Ambient temperature 0-50 C
Source CKD Korea catalog CB-024SK-9, p. 1272-1274
PPE-V01-6 Range: -101.3 to 0 kPa | Port: R1/8
PPE-V01-H6-B Range: -101.3 to 0 kPa | Port: 6 mm plug
PPE-V01-H6 Range: -101.3 to 0 kPa | Port: 6 mm one-touch x2 inline
PPE-P01-6 Range: 0 to 100 kPa | Port: R1/8
PPE-P01-H6-B Range: 0 to 100 kPa | Port: 6 mm plug
PPE-P01-H6 Range: 0 to 100 kPa | Port: 6 mm one-touch x2 inline
PPE-P10-6 Range: 0 to 1 MPa | Port: R1/8
PPE-P10-H6-B Range: 0 to 1 MPa | Port: 6 mm plug
PPE-P10-H6 Range: 0 to 1 MPa | Port: 6 mm one-touch x2 inline
Pressure SwitchesCKD
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD PPE Compact Electronic Pressure Switch (2-Wire)

Brand CKD·Pressure Switches

Available part numbers (9)

PPE-V01-6, PPE-V01-H6-B, PPE-V01-H6, PPE-P01-6, PPE-P01-H6-B, PPE-P01-H6, PPE-P10-6, PPE-P10-H6-B, PPE-P10-H6

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PPE-V01-6Range: -101.3 to 0 kPa | Port: R1/8
PPE-V01-H6-BRange: -101.3 to 0 kPa | Port: 6 mm plug
PPE-V01-H6Range: -101.3 to 0 kPa | Port: 6 mm one-touch x2 inline
PPE-P01-6Range: 0 to 100 kPa | Port: R1/8
PPE-P01-H6-BRange: 0 to 100 kPa | Port: 6 mm plug
PPE-P01-H6Range: 0 to 100 kPa | Port: 6 mm one-touch x2 inline
PPE-P10-6Range: 0 to 1 MPa | Port: R1/8
PPE-P10-H6-BRange: 0 to 1 MPa | Port: 6 mm plug
PPE-P10-H6Range: 0 to 1 MPa | Port: 6 mm one-touch x2 inline
