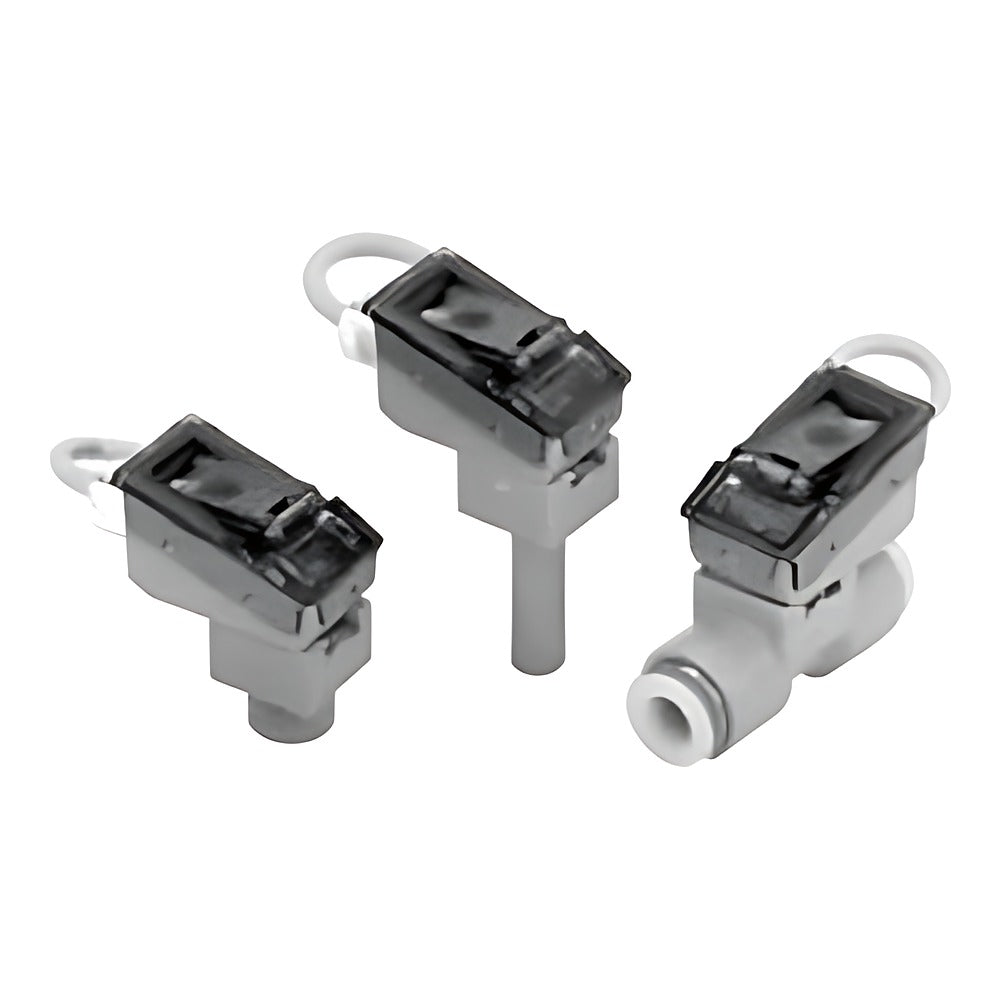

CKD PPE Compact Electronic Pressure Switch (Clean P70/P80)

CKD PPE Compact Electronic Pressure Switch (Clean P70/P80)

CKD PPE compact 2-wire semiconductor pressure switch (Perfect Pressure Switch) for air and vacuum in P70 and P80 clean specifications.

Key features

  • Diffused semiconductor sensor for high accuracy and reliability; ±1% F.S. repeatability
  • 2-wire type usable with sink or source PLC inputs; reverse-connection and over-current protection
  • V01 vacuum type withstands 0.6 MPa; nameplate colour by range (red/green/blue)
  • Piping: R1/8, ø6 plug or inline with two ø6 push-in fittings
  • Yellow LED on ON; IP65 equivalent; 3 m lead standard

Specifications

Fluid Air, non-corrosive gas
Load voltage DC10-30V
Load current 5-50 mA
Hysteresis 3% F.S. max.
Ambient temperature 0 to 50°C
Protection IP65 equivalent
Source CKD Korea catalog CB-033S-4, p. 1019-1020
PPE-V01-6-P70 Pressure range: -101.3 to 0 kPa | Piping: R1/8 | Clean spec: P70 dust-generation proof
PPE-V01-6-P80 Pressure range: -101.3 to 0 kPa | Piping: R1/8 | Clean spec: P80 oil-free
PPE-V01-H6-B-P70 Pressure range: -101.3 to 0 kPa | Piping: ø6 plug | Clean spec: P70 dust-generation proof
PPE-V01-H6-B-P80 Pressure range: -101.3 to 0 kPa | Piping: ø6 plug | Clean spec: P80 oil-free
PPE-V01-H6-P70 Pressure range: -101.3 to 0 kPa | Piping: ø6 push-in x2 inline | Clean spec: P70 dust-generation proof
PPE-V01-H6-P80 Pressure range: -101.3 to 0 kPa | Piping: ø6 push-in x2 inline | Clean spec: P80 oil-free
PPE-P01-6-P70 Pressure range: 0 to 100 kPa | Piping: R1/8 | Clean spec: P70 dust-generation proof
PPE-P01-6-P80 Pressure range: 0 to 100 kPa | Piping: R1/8 | Clean spec: P80 oil-free
PPE-P01-H6-B-P70 Pressure range: 0 to 100 kPa | Piping: ø6 plug | Clean spec: P70 dust-generation proof
PPE-P01-H6-B-P80 Pressure range: 0 to 100 kPa | Piping: ø6 plug | Clean spec: P80 oil-free
PPE-P01-H6-P70 Pressure range: 0 to 100 kPa | Piping: ø6 push-in x2 inline | Clean spec: P70 dust-generation proof
PPE-P01-H6-P80 Pressure range: 0 to 100 kPa | Piping: ø6 push-in x2 inline | Clean spec: P80 oil-free
PPE-P10-6-P70 Pressure range: 0 to 1 MPa | Piping: R1/8 | Clean spec: P70 dust-generation proof
PPE-P10-6-P80 Pressure range: 0 to 1 MPa | Piping: R1/8 | Clean spec: P80 oil-free
PPE-P10-H6-B-P70 Pressure range: 0 to 1 MPa | Piping: ø6 plug | Clean spec: P70 dust-generation proof
PPE-P10-H6-B-P80 Pressure range: 0 to 1 MPa | Piping: ø6 plug | Clean spec: P80 oil-free
PPE-P10-H6-P70 Pressure range: 0 to 1 MPa | Piping: ø6 push-in x2 inline | Clean spec: P70 dust-generation proof
PPE-P10-H6-P80 Pressure range: 0 to 1 MPa | Piping: ø6 push-in x2 inline | Clean spec: P80 oil-free
Pressure SwitchesCKD
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD PPE Compact Electronic Pressure Switch (Clean P70/P80)

Brand CKD·Pressure Switches

Available part numbers (18)

PPE-V01-6-P70, PPE-V01-6-P80, PPE-V01-H6-B-P70, PPE-V01-H6-B-P80, PPE-V01-H6-P70, PPE-V01-H6-P80, PPE-P01-6-P70, PPE-P01-6-P80, PPE-P01-H6-B-P70, PPE-P01-H6-B-P80 + 8 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PPE-V01-6-P70Pressure range: -101.3 to 0 kPa | Piping: R1/8 | Clean spec: P70 dust-generation proof
PPE-V01-6-P80Pressure range: -101.3 to 0 kPa | Piping: R1/8 | Clean spec: P80 oil-free
PPE-V01-H6-B-P70Pressure range: -101.3 to 0 kPa | Piping: ø6 plug | Clean spec: P70 dust-generation proof
PPE-V01-H6-B-P80Pressure range: -101.3 to 0 kPa | Piping: ø6 plug | Clean spec: P80 oil-free
PPE-V01-H6-P70Pressure range: -101.3 to 0 kPa | Piping: ø6 push-in x2 inline | Clean spec: P70 dust-generation proof
PPE-V01-H6-P80Pressure range: -101.3 to 0 kPa | Piping: ø6 push-in x2 inline | Clean spec: P80 oil-free
PPE-P01-6-P70Pressure range: 0 to 100 kPa | Piping: R1/8 | Clean spec: P70 dust-generation proof
PPE-P01-6-P80Pressure range: 0 to 100 kPa | Piping: R1/8 | Clean spec: P80 oil-free
PPE-P01-H6-B-P70Pressure range: 0 to 100 kPa | Piping: ø6 plug | Clean spec: P70 dust-generation proof
PPE-P01-H6-B-P80Pressure range: 0 to 100 kPa | Piping: ø6 plug | Clean spec: P80 oil-free
PPE-P01-H6-P70Pressure range: 0 to 100 kPa | Piping: ø6 push-in x2 inline | Clean spec: P70 dust-generation proof
PPE-P01-H6-P80Pressure range: 0 to 100 kPa | Piping: ø6 push-in x2 inline | Clean spec: P80 oil-free
PPE-P10-6-P70Pressure range: 0 to 1 MPa | Piping: R1/8 | Clean spec: P70 dust-generation proof
PPE-P10-6-P80Pressure range: 0 to 1 MPa | Piping: R1/8 | Clean spec: P80 oil-free
PPE-P10-H6-B-P70Pressure range: 0 to 1 MPa | Piping: ø6 plug | Clean spec: P70 dust-generation proof
PPE-P10-H6-B-P80Pressure range: 0 to 1 MPa | Piping: ø6 plug | Clean spec: P80 oil-free
PPE-P10-H6-P70Pressure range: 0 to 1 MPa | Piping: ø6 push-in x2 inline | Clean spec: P70 dust-generation proof
PPE-P10-H6-P80Pressure range: 0 to 1 MPa | Piping: ø6 push-in x2 inline | Clean spec: P80 oil-free
