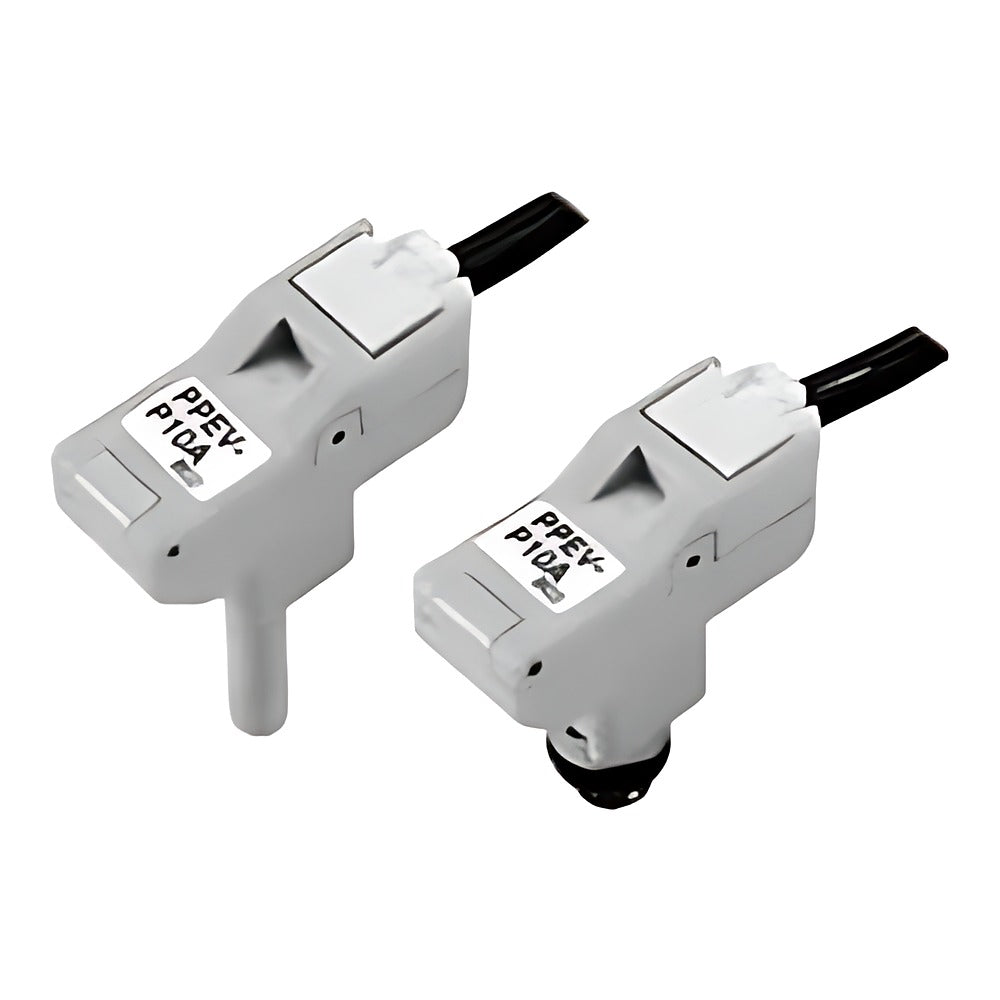

CKD PPEV-A Compact Electronic Pressure Sensor (1-5 V Analog Output)

CKD PPEV-A Compact Electronic Pressure Sensor (1-5 V Analog Output)

CKD PPEV-A compact semiconductor pressure sensor for positive pressure or vacuum with a 1-5 V analog output proportional to pressure.

Key features

  • Diffused semiconductor pressure sensor for high accuracy and reliability
  • 10 mm wide body; connector-type wiring allows sensor replacement without rewiring
  • Positive pressure (0-1 MPa) and vacuum (-100-0 kPa) types
  • Plug-in dia. 4/6 mm or M5 thread connection
  • Combines with 4GR and 3QR valve series for output and suction confirmation

Specifications

Fluid Compressed air
Supply voltage DC10.8-30.0 V
Current consumption 5 mA (DC24V, no load)
Analog output 1-5 V, linearity +/-0.5% F.S.
Proof pressure 1.5 MPa (P10A) / 0.5 MPa (V01A)
Ambient temperature 0-55 C
Wiring Connector, 1000 mm cable
Indicator None
Code format PPEV-<range>-<port>
Source CKD Korea catalog CB-024SK-9, p. 1278-1280
PPEV-P10A-H4-B Pressure range: 0 to 1 MPa | Port: Plug-in dia. 4 mm
PPEV-P10A-H6-B Pressure range: 0 to 1 MPa | Port: Plug-in dia. 6 mm
PPEV-P10A-M5 Pressure range: 0 to 1 MPa | Port: M5 thread
PPEV-V01A-H4-B Pressure range: -100 to 0 kPa | Port: Plug-in dia. 4 mm
PPEV-V01A-H6-B Pressure range: -100 to 0 kPa | Port: Plug-in dia. 6 mm
PPEV-V01A-M5 Pressure range: -100 to 0 kPa | Port: M5 thread
Pressure SensorsCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD PPEV-A Compact Electronic Pressure Sensor (1-5 V Analog Output)

Brand CKD·Pressure Sensors

Available part numbers (6)

PPEV-P10A-H4-B, PPEV-P10A-H6-B, PPEV-P10A-M5, PPEV-V01A-H4-B, PPEV-V01A-H6-B, PPEV-V01A-M5
