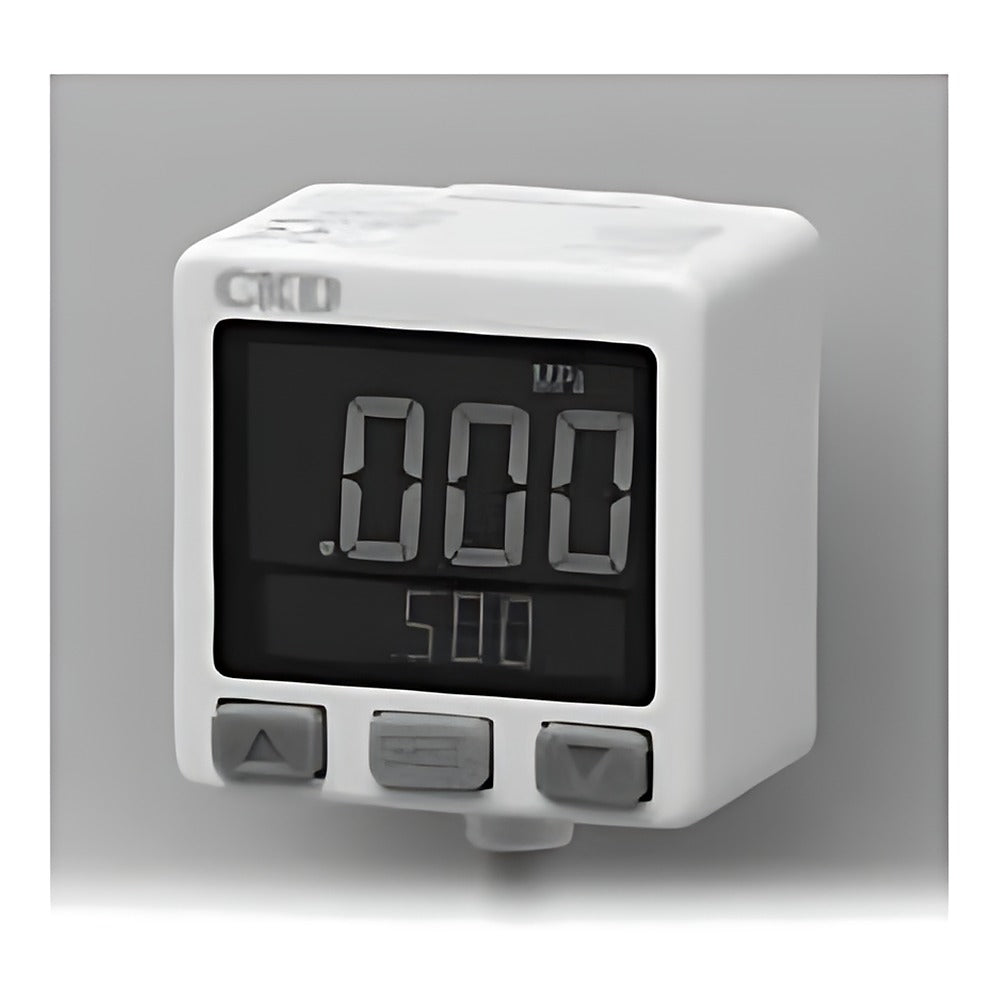

CKD PPR Digital Pressure Sensor for Modular F.R.L Regulators

CKD PPR digital pressure sensor that mounts directly on SELEX modular F.R.L regulators via a dedicated adapter.

Key features

Twin display shows current value and setting simultaneously
3-colour display (red/green/orange) linked to output ON/OFF
Key lock and energy-saving display-off mode
Compact mounting with dedicated adapter (adapter, pin, 2 screws, 2 O-rings supplied)
One-point, hysteresis and window comparator modes

Specifications

Rated pressure	0.000-1.000 MPa
Proof pressure	1.5 MPa
Fluid	Compressed air
Power supply	DC12-24 V +/-10%
Switch output	125 mA max, 1 point
Accuracy	+/-2% F.S. +/-1 digit
Protection	IP40
Lead wire	Oil-resistant cable, 2 m
Code format	PPR-<output>-<series>
Source	CKD Korea catalog CB-024SK-9, p. 1284-1285

PPR-N-1		Output: NPN transistor, 1 pt \| For regulator: 1000 series
PPR-N-2		Output: NPN transistor, 1 pt \| For regulator: 2000 series
PPR-N-3		Output: NPN transistor, 1 pt \| For regulator: 3000-8000 series, CXU30-D4
PPR-N-4		Output: NPN transistor, 1 pt \| For regulator: CXU10-D4
PPR-P-1		Output: PNP transistor, 1 pt \| For regulator: 1000 series
PPR-P-2		Output: PNP transistor, 1 pt \| For regulator: 2000 series
PPR-P-3		Output: PNP transistor, 1 pt \| For regulator: 3000-8000 series, CXU30-D4
PPR-P-4		Output: PNP transistor, 1 pt \| For regulator: CXU10-D4

Pressure SwitchesCKD

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD PPR Digital Pressure Sensor for Modular F.R.L Regulators

Brand CKD·Pressure Switches

Available part numbers (8)

PPR-N-1, PPR-N-2, PPR-N-3, PPR-N-4, PPR-P-1, PPR-P-2, PPR-P-3, PPR-P-4

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	PPR-N-1	Output: NPN transistor, 1 pt \| For regulator: 1000 series
	PPR-N-2	Output: NPN transistor, 1 pt \| For regulator: 2000 series
	PPR-N-3	Output: NPN transistor, 1 pt \| For regulator: 3000-8000 series, CXU30-D4
	PPR-N-4	Output: NPN transistor, 1 pt \| For regulator: CXU10-D4
	PPR-P-1	Output: PNP transistor, 1 pt \| For regulator: 1000 series
	PPR-P-2	Output: PNP transistor, 1 pt \| For regulator: 2000 series
	PPR-P-3	Output: PNP transistor, 1 pt \| For regulator: 3000-8000 series, CXU30-D4
	PPR-P-4	Output: PNP transistor, 1 pt \| For regulator: CXU10-D4
