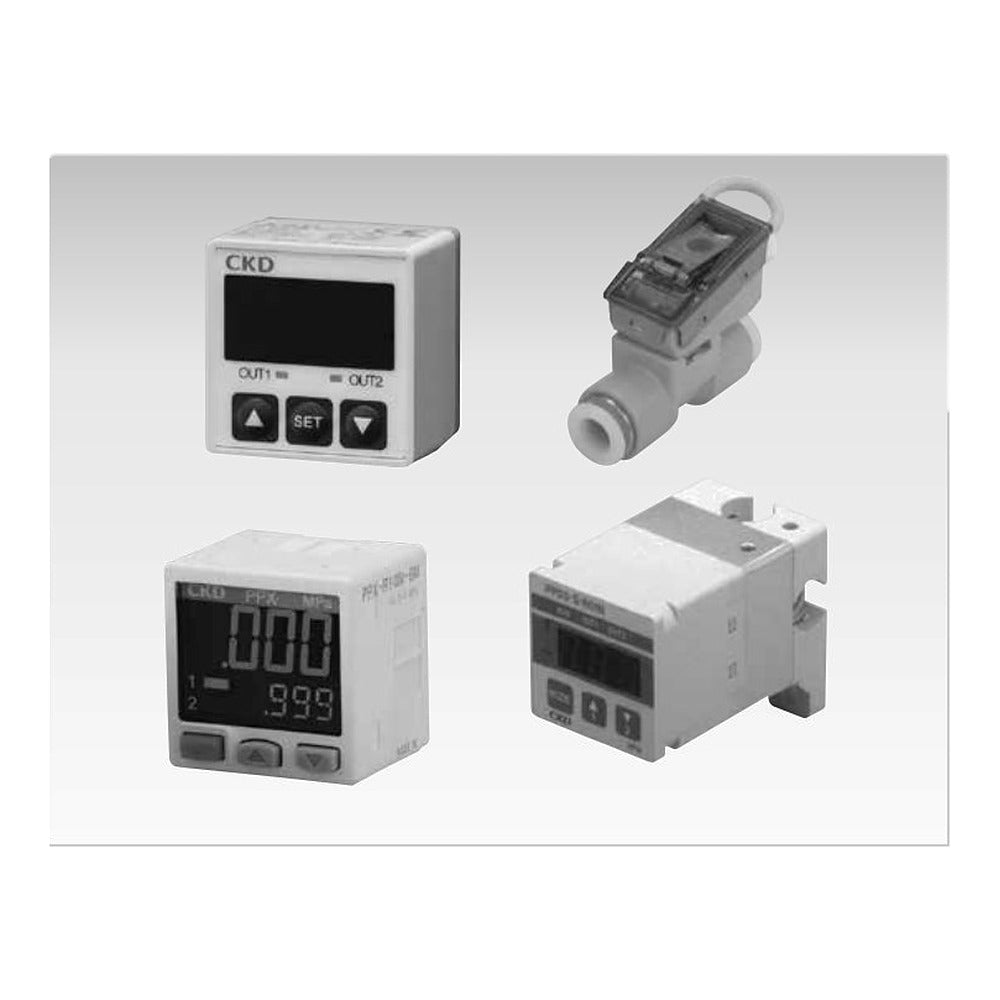

CKD PPX Digital Pressure Sensor (Standard/High-Function/IO-Link)

CKD PPX Digital Pressure Sensor (Standard/High-Function/IO-Link)

CKD PPX digital pressure sensors with dual 4-digit 3-colour LCD for gauge pressure or vacuum, in standard, high-function (analog/external input) and IO-Link types.

Key features

  • Pressure ranges R01 (-100.0 to 100.0 kPa) and R10 (-0.100 to 1.000 MPa)
  • Standard: NPN/PNP 2 switch outputs; high function: 1 output + 1-5 V/4-20 mA analog or external input
  • IO-Link type (PC): PNP + IO-Link V1.1 COM3, process data 4 byte
  • EASY, hysteresis and window comparator modes; response 2.5-5000 ms; copy function
  • Ports R1/8, NPT1/8 or G1/8 with M5 female; KA = overseas unit switching version
  • Options: connector cables, mounting bracket, panel adapter, front cover

Specifications

Pressure type Gauge pressure
Fluid Air, non-corrosive gas
Supply voltage 12-24 VDC +/-10 %
Proof pressure 500 kPa (R01), 1.5 MPa (R10)
Display 4+4 digit 3-colour LCD
Protection IP40
Ambient temperature -10 to 50 C
Mass Approx. 40 g
Source CKD Korea catalog CB-024SK-9, p. 1213-1243
PPX-R01N-6M Type: Standard | Range: -100.0 to 100.0 kPa | Output: NPN 2 outputs | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Japan domestic
PPX-R01N-6M-J Type: Standard | Range: -100.0 to 100.0 kPa | Output: NPN 2 outputs | Port: R1/8 + M5 | Cable: Without cable | Unit: Japan domestic
PPX-R01P-6M Type: Standard | Range: -100.0 to 100.0 kPa | Output: PNP 2 outputs | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Japan domestic
PPX-R01P-6M-J Type: Standard | Range: -100.0 to 100.0 kPa | Output: PNP 2 outputs | Port: R1/8 + M5 | Cable: Without cable | Unit: Japan domestic
PPX-R01NH-6M Type: High function | Range: -100.0 to 100.0 kPa | Output: NPN 1 + analog/ext. input | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Japan domestic
PPX-R01PH-6M Type: High function | Range: -100.0 to 100.0 kPa | Output: PNP 1 + analog/ext. input | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Japan domestic
PPX-R10N-6M Type: Standard | Range: -0.100 to 1.000 MPa | Output: NPN 2 outputs | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Japan domestic
PPX-R10N-6M-J Type: Standard | Range: -0.100 to 1.000 MPa | Output: NPN 2 outputs | Port: R1/8 + M5 | Cable: Without cable | Unit: Japan domestic
PPX-R10P-6M Type: Standard | Range: -0.100 to 1.000 MPa | Output: PNP 2 outputs | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Japan domestic
PPX-R10P-6M-J Type: Standard | Range: -0.100 to 1.000 MPa | Output: PNP 2 outputs | Port: R1/8 + M5 | Cable: Without cable | Unit: Japan domestic
PPX-R10NH-6M Type: High function | Range: -0.100 to 1.000 MPa | Output: NPN 1 + analog/ext. input | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Japan domestic
PPX-R10PH-6M Type: High function | Range: -0.100 to 1.000 MPa | Output: PNP 1 + analog/ext. input | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Japan domestic
PPX-R01N-6M-KA Type: Standard | Range: -100.0 to 100.0 kPa | Output: NPN 2 outputs | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R01N-6M-J-KA Type: Standard | Range: -100.0 to 100.0 kPa | Output: NPN 2 outputs | Port: R1/8 + M5 | Cable: Without cable | Unit: Unit switching (KA)
PPX-R10N-6M-KA Type: Standard | Range: -0.100 to 1.000 MPa | Output: NPN 2 outputs | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R10N-6M-J-KA Type: Standard | Range: -0.100 to 1.000 MPa | Output: NPN 2 outputs | Port: R1/8 + M5 | Cable: Without cable | Unit: Unit switching (KA)
PPX-R01NH-6M-KA Type: High function | Range: -100.0 to 100.0 kPa | Output: NPN 1 + analog/ext. input | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R10NH-6M-KA Type: High function | Range: -0.100 to 1.000 MPa | Output: NPN 1 + analog/ext. input | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R01P-6G-KA Type: Standard | Range: -100.0 to 100.0 kPa | Output: PNP 2 outputs | Port: G1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R01P-6G-J-KA Type: Standard | Range: -100.0 to 100.0 kPa | Output: PNP 2 outputs | Port: G1/8 + M5 | Cable: Without cable | Unit: Unit switching (KA)
PPX-R10P-6G-KA Type: Standard | Range: -0.100 to 1.000 MPa | Output: PNP 2 outputs | Port: G1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R10P-6G-J-KA Type: Standard | Range: -0.100 to 1.000 MPa | Output: PNP 2 outputs | Port: G1/8 + M5 | Cable: Without cable | Unit: Unit switching (KA)
PPX-R01PH-6G-KA Type: High function | Range: -100.0 to 100.0 kPa | Output: PNP 1 + analog/ext. input | Port: G1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R10PH-6G-KA Type: High function | Range: -0.100 to 1.000 MPa | Output: PNP 1 + analog/ext. input | Port: G1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R01N-6N-KA Type: Standard | Range: -100.0 to 100.0 kPa | Output: NPN 2 outputs | Port: NPT1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R01N-6N-J-KA Type: Standard | Range: -100.0 to 100.0 kPa | Output: NPN 2 outputs | Port: NPT1/8 + M5 | Cable: Without cable | Unit: Unit switching (KA)
PPX-R01P-6N-KA Type: Standard | Range: -100.0 to 100.0 kPa | Output: PNP 2 outputs | Port: NPT1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R01P-6N-J-KA Type: Standard | Range: -100.0 to 100.0 kPa | Output: PNP 2 outputs | Port: NPT1/8 + M5 | Cable: Without cable | Unit: Unit switching (KA)
PPX-R10N-6N-KA Type: Standard | Range: -0.100 to 1.000 MPa | Output: NPN 2 outputs | Port: NPT1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R10N-6N-J-KA Type: Standard | Range: -0.100 to 1.000 MPa | Output: NPN 2 outputs | Port: NPT1/8 + M5 | Cable: Without cable | Unit: Unit switching (KA)
PPX-R10P-6N-KA Type: Standard | Range: -0.100 to 1.000 MPa | Output: PNP 2 outputs | Port: NPT1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R10P-6N-J-KA Type: Standard | Range: -0.100 to 1.000 MPa | Output: PNP 2 outputs | Port: NPT1/8 + M5 | Cable: Without cable | Unit: Unit switching (KA)
PPX-R01NH-6N-KA Type: High function | Range: -100.0 to 100.0 kPa | Output: NPN 1 + analog/ext. input | Port: NPT1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R01PH-6N-KA Type: High function | Range: -100.0 to 100.0 kPa | Output: PNP 1 + analog/ext. input | Port: NPT1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R10NH-6N-KA Type: High function | Range: -0.100 to 1.000 MPa | Output: NPN 1 + analog/ext. input | Port: NPT1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R10PH-6N-KA Type: High function | Range: -0.100 to 1.000 MPa | Output: PNP 1 + analog/ext. input | Port: NPT1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R01PC-6M Type: IO-Link | Range: -100.0 to 100.0 kPa | Output: PNP + IO-Link | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Japan domestic
PPX-R01PC-6M-KA Type: IO-Link | Range: -100.0 to 100.0 kPa | Output: PNP + IO-Link | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R01PC-6N-KA Type: IO-Link | Range: -100.0 to 100.0 kPa | Output: PNP + IO-Link | Port: NPT1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R01PC-6G-KA Type: IO-Link | Range: -100.0 to 100.0 kPa | Output: PNP + IO-Link | Port: G1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R10PC-6M Type: IO-Link | Range: -0.100 to 1.000 MPa | Output: PNP + IO-Link | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Japan domestic
PPX-R10PC-6M-KA Type: IO-Link | Range: -0.100 to 1.000 MPa | Output: PNP + IO-Link | Port: R1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R10PC-6N-KA Type: IO-Link | Range: -0.100 to 1.000 MPa | Output: PNP + IO-Link | Port: NPT1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-R10PC-6G-KA Type: IO-Link | Range: -0.100 to 1.000 MPa | Output: PNP + IO-Link | Port: G1/8 + M5 | Cable: 2 m connector cable | Unit: Unit switching (KA)
PPX-C1 Type: Option part | Range: All | Output: All | Port: All | Cable: Connector cable 1 m | Unit: -
PPX-C2 Type: Option part | Range: All | Output: All | Port: All | Cable: Connector cable 2 m | Unit: -
PPX-C3 Type: Option part | Range: All | Output: All | Port: All | Cable: Connector cable 3 m | Unit: -
PPX-C5 Type: Option part | Range: All | Output: All | Port: All | Cable: Connector cable 5 m | Unit: -
PPX-CN Type: Option part | Range: All | Output: All | Port: All | Cable: Connector set (x10) | Unit: -
PPX-KL Type: Option part | Range: All | Output: All | Port: All | Cable: Mounting bracket | Unit: -
PPX-KHS Type: Option part | Range: All | Output: All | Port: All | Cable: Panel mounting adapter | Unit: -
PPX-KCB Type: Option part | Range: All | Output: All | Port: All | Cable: Front protective cover | Unit: -
PPX-CN1 Type: Option part | Range: All | Output: All | Port: All | Cable: M12 cable 1 m (IO-Link) | Unit: -
PPX-CN2 Type: Option part | Range: All | Output: All | Port: All | Cable: M12 cable 2 m (IO-Link) | Unit: -
PPX-CN3 Type: Option part | Range: All | Output: All | Port: All | Cable: M12 cable 3 m (IO-Link) | Unit: -
