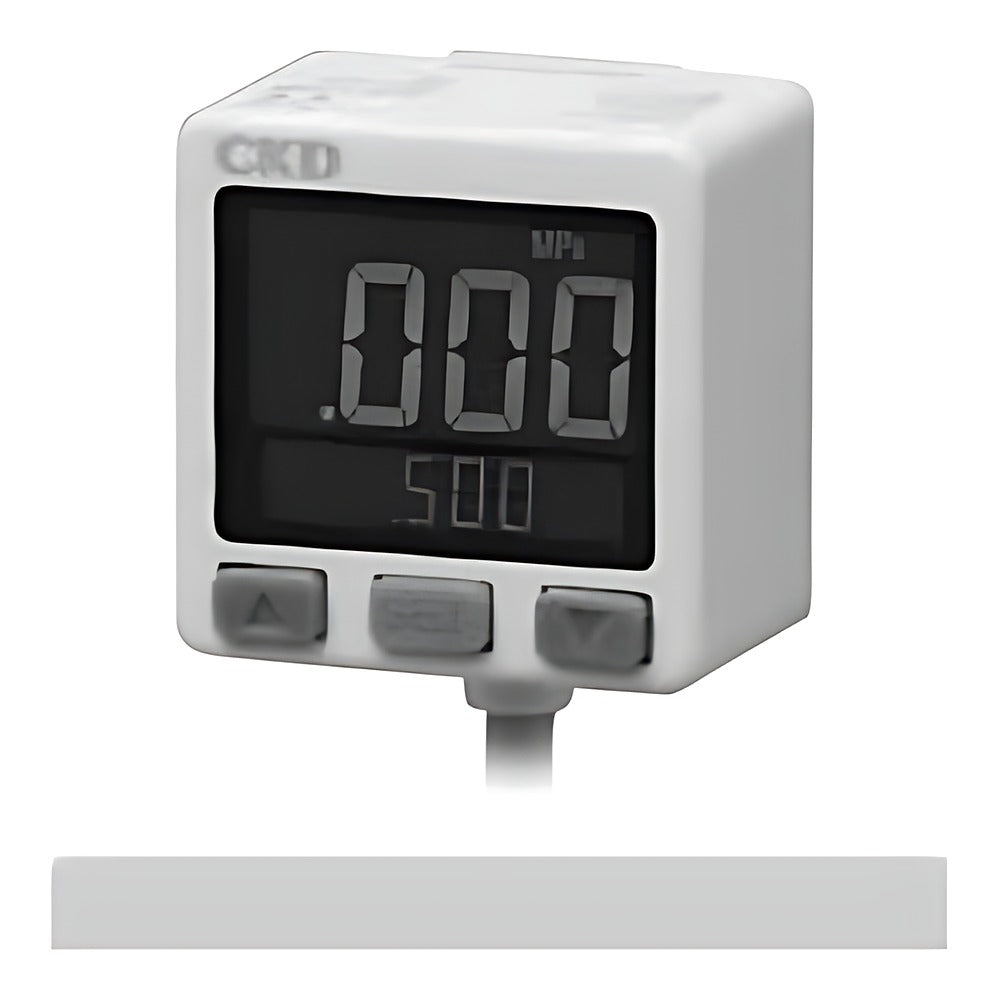

CKD PSW Electronic Pressure Switch (Discontinued)

CKD PSW high-accuracy electronic pressure switch using a semiconductor pressure sensor, discontinued October 2021.

Key features

Fast 10 ms response
No moving parts for long life and high reliability
Multi-turn trimmer for setting with built-in operation indicator
Accuracy +/-3% F.S.; NPN open collector switch output plus 1-5 V analog output
Production ended October 2021 (catalog notice)

Specifications

Sensing element	Diffused semiconductor sensor
Fluid	Air, non-corrosive gas
Switch output	NPN open collector, 30 V 80 mA
Analog output	DC1-5 V
Power supply	DC11-26 V, 30 mA
Hysteresis	2% F.S. or less
Pressure port	M5
Lead wire	1.5 m shielded
Code format	PSW-<range>
Source	CKD Korea catalog CB-024SK-9, p. 1282-1283

PSW-P01		Rated pressure: 0 to 100 kPa
PSW-P10		Rated pressure: 0 to 1 MPa
PSW-V01		Rated pressure: 0 to -100 kPa

Pressure SwitchesCKD

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD PSW Electronic Pressure Switch (Discontinued)

Brand CKD·Pressure Switches

Available part numbers (3)

PSW-P01, PSW-P10, PSW-V01

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
