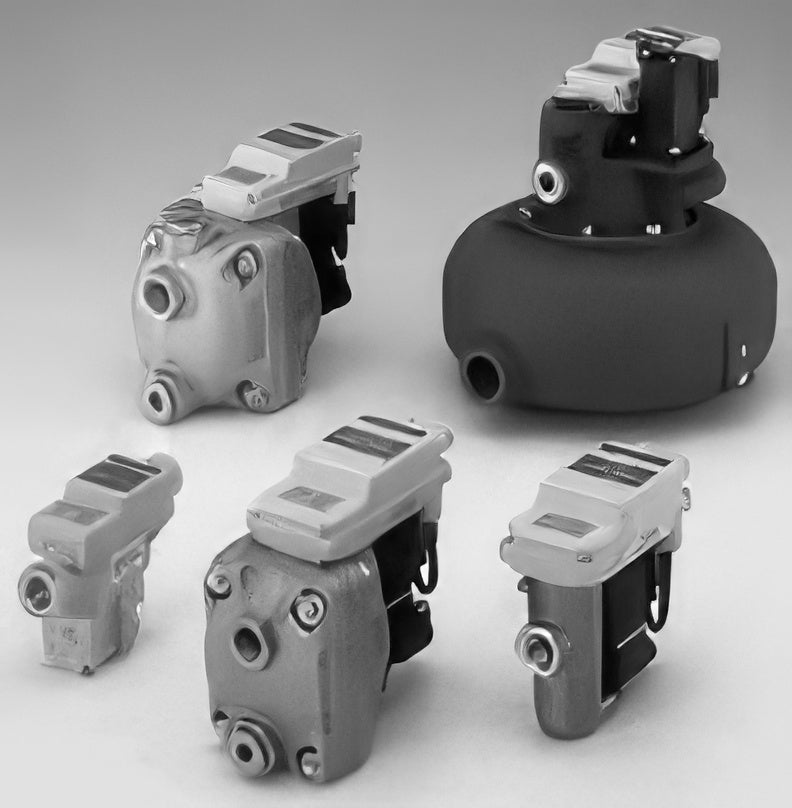

CKD Super Drain DB1000/DB3000 Series (Level-Sensing Electronic Drain)

CKD Super Drain DB1000/DB3000 Series (Level-Sensing Electronic Drain)

Electronic zero-loss drain valve with a highly reliable liquid level sensor; the valve opens only when the tank is full, minimising compressed air loss.

Key features

  • Alarm mode with red LED and alarm output if drain is not discharged
  • DB1000 is for oil-lubricated compressors, DB3000 for oil-free compressors (also usable with oil-lubricated)
  • Covers compressor discharge flows from 2.5 to 1000 m3/min (ANR)

Specifications

Working pressure (MPa) 0.08-1.6
DB3003D-15 Compressor type: Oil-free | Compressor flow (m3/min ANR): 2.5 | Dryer flow (m3/min ANR): 5 | Ref. compressor capacity (kW): 22 | Inlet: G1/2 | Outlet: 8 mm hose fitting or G1/4 | Power supply: AC95-240 V | Working pressure (MPa): 0.08-1.6 | Mass (kg): 0.8
DB1006E-15-AC200V Compressor type: Oil-lubricated | Compressor flow (m3/min ANR): 4.5 | Dryer flow (m3/min ANR): 9 | Ref. compressor capacity (kW): 55 | Inlet: G1/2 | Outlet: 10 mm hose fitting or G3/8 | Power supply: AC200 V | Working pressure (MPa): 0.08-1.6 | Mass (kg): 0.8
DB3006E-15-AC200V Compressor type: Oil-free | Compressor flow (m3/min ANR): 4.5 | Dryer flow (m3/min ANR): 9 | Ref. compressor capacity (kW): 55 | Inlet: G1/2 | Outlet: 10 mm hose fitting or G3/8 | Power supply: AC200 V | Working pressure (MPa): 0.08-1.6 | Mass (kg): 0.8
DB1024-15-AC200V Compressor type: Oil-lubricated | Compressor flow (m3/min ANR): 20 | Dryer flow (m3/min ANR): 40 | Ref. compressor capacity (kW): 240 | Inlet: G1/2 | Outlet: 13 mm hose fitting or G1/2 | Power supply: AC200 V | Working pressure (MPa): 0.08-1.6 | Mass (kg): 2.0
DB3024-15-AC200V Compressor type: Oil-free | Compressor flow (m3/min ANR): 20 | Dryer flow (m3/min ANR): 40 | Ref. compressor capacity (kW): 240 | Inlet: G1/2 | Outlet: 13 mm hose fitting or G1/2 | Power supply: AC200 V | Working pressure (MPa): 0.08-1.6 | Mass (kg): 2.0
DB1090D-20-AC200V Compressor type: Oil-lubricated | Compressor flow (m3/min ANR): 90 | Dryer flow (m3/min ANR): 180 | Ref. compressor capacity (kW): 900 | Inlet: G3/4 | Outlet: 13 mm hose fitting or G1/2 | Power supply: AC200 V | Working pressure (MPa): 0.08-1.6 | Mass (kg): 2.9
DB3090D-20-AC200V Compressor type: Oil-free | Compressor flow (m3/min ANR): 90 | Dryer flow (m3/min ANR): 180 | Ref. compressor capacity (kW): 900 | Inlet: G3/4 | Outlet: 13 mm hose fitting or G1/2 | Power supply: AC200 V | Working pressure (MPa): 0.08-1.6 | Mass (kg): 2.9
DB3700-20-AC200V Compressor type: Oil-free | Compressor flow (m3/min ANR): 1000 | Dryer flow (m3/min ANR): 2000 | Ref. compressor capacity (kW): 7000 | Inlet: G3/4, G1 | Outlet: G1/2 | Power supply: AC200 V | Working pressure (MPa): 0.08-1.6 | Mass (kg): 5.9
