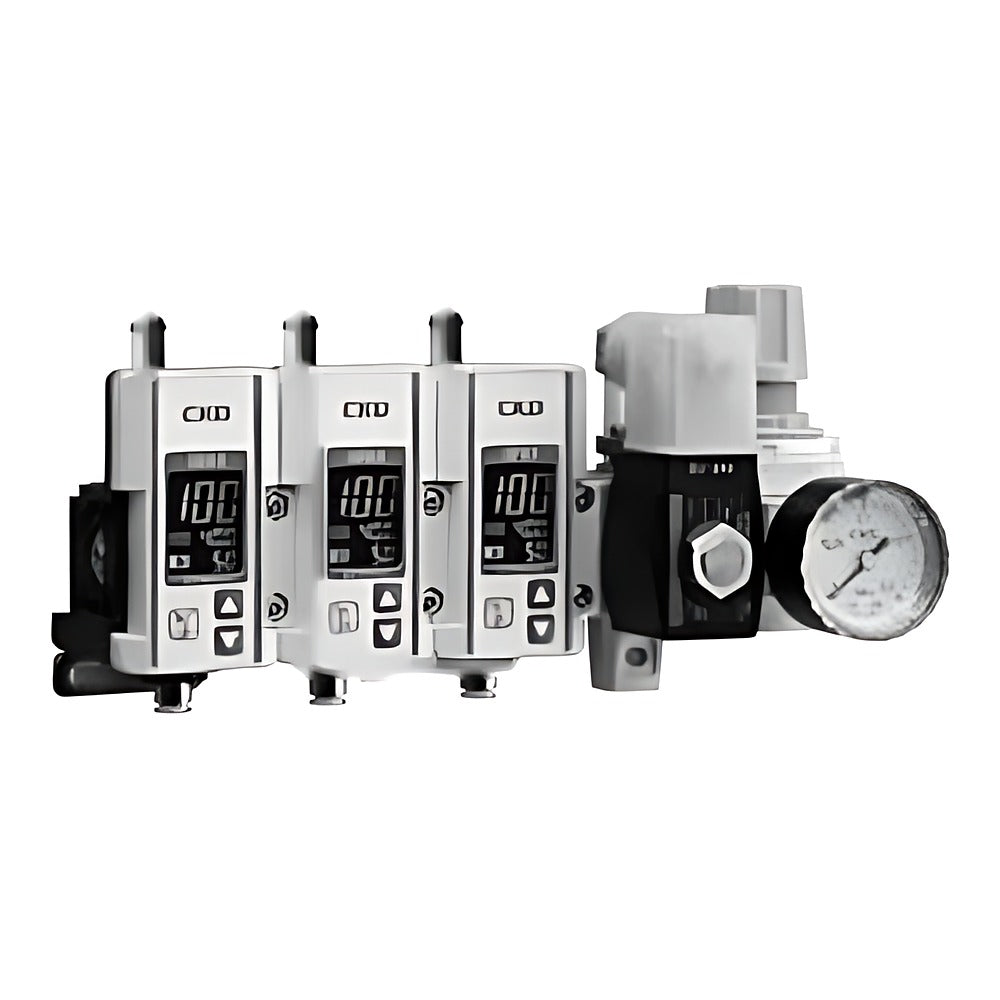

CKD UGPS3 Digital Gap Switch Unit (with Valve and Regulator)

CKD UGPS3 Digital Gap Switch Unit (with Valve and Regulator)

CKD UGPS3 general-purpose unit combining 1-6 GPS3 digital gap switches with a needle-equipped solenoid valve and pressure regulator.

Key features

  • Assembled with R1000 low-pressure regulator and GPS2-AB3X-2H-FL-DC24V needle solenoid valve
  • 1-6 gap switch stations; regulator/valve assembled on right or left
  • Short or wide detection range; NPN, PNP or IO-Link
  • Supply port Rc1/4 on the unit
  • Options (not expanded): T display off, D/J cable, KA unit-switching display

Specifications

Fluid Clean air (5 um filtered, no oil)
Operating pressure 50-200 kPa
Proof pressure 600 kPa
Detection nozzle Single-hole dia. 1.5 mm
Power supply DC24 V +/-10%
Output rating DC30 V, 100 mA
Protection IP67 equivalent
Wiring M12 connector, 4-pin
Ports Supply Rc1/4, detection one-touch 6 mm
Code format UGPS3-<stations><range><output><side>
Source CKD Korea catalog CB-024SK-9, p. 1313-1313
UGPS3-1NR Stations: 1 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-1NL Stations: 1 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-1PR Stations: 1 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-1PL Stations: 1 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-1LR Stations: 1 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link | Regulator/valve side: Right (supply right)
UGPS3-1LL Stations: 1 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link | Regulator/valve side: Left (supply left)
UGPS3-1ENR Stations: 1 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-1ENL Stations: 1 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-1EPR Stations: 1 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-1EPL Stations: 1 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-1ELR Stations: 1 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link | Regulator/valve side: Right (supply right)
UGPS3-1ELL Stations: 1 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link | Regulator/valve side: Left (supply left)
UGPS3-2NR Stations: 2 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-2NL Stations: 2 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-2PR Stations: 2 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-2PL Stations: 2 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-2LR Stations: 2 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link | Regulator/valve side: Right (supply right)
UGPS3-2LL Stations: 2 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link | Regulator/valve side: Left (supply left)
UGPS3-2ENR Stations: 2 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-2ENL Stations: 2 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-2EPR Stations: 2 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-2EPL Stations: 2 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-2ELR Stations: 2 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link | Regulator/valve side: Right (supply right)
UGPS3-2ELL Stations: 2 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link | Regulator/valve side: Left (supply left)
UGPS3-3NR Stations: 3 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-3NL Stations: 3 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-3PR Stations: 3 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-3PL Stations: 3 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-3LR Stations: 3 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link | Regulator/valve side: Right (supply right)
UGPS3-3LL Stations: 3 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link | Regulator/valve side: Left (supply left)
UGPS3-3ENR Stations: 3 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-3ENL Stations: 3 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-3EPR Stations: 3 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-3EPL Stations: 3 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-3ELR Stations: 3 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link | Regulator/valve side: Right (supply right)
UGPS3-3ELL Stations: 3 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link | Regulator/valve side: Left (supply left)
UGPS3-4NR Stations: 4 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-4NL Stations: 4 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-4PR Stations: 4 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-4PL Stations: 4 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-4LR Stations: 4 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link | Regulator/valve side: Right (supply right)
UGPS3-4LL Stations: 4 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link | Regulator/valve side: Left (supply left)
UGPS3-4ENR Stations: 4 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-4ENL Stations: 4 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-4EPR Stations: 4 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-4EPL Stations: 4 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-4ELR Stations: 4 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link | Regulator/valve side: Right (supply right)
UGPS3-4ELL Stations: 4 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link | Regulator/valve side: Left (supply left)
UGPS3-5NR Stations: 5 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-5NL Stations: 5 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-5PR Stations: 5 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-5PL Stations: 5 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-5LR Stations: 5 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link | Regulator/valve side: Right (supply right)
UGPS3-5LL Stations: 5 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link | Regulator/valve side: Left (supply left)
UGPS3-5ENR Stations: 5 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-5ENL Stations: 5 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-5EPR Stations: 5 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-5EPL Stations: 5 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-5ELR Stations: 5 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link | Regulator/valve side: Right (supply right)
UGPS3-5ELL Stations: 5 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link | Regulator/valve side: Left (supply left)
UGPS3-6NR Stations: 6 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-6NL Stations: 6 | Detection range: 0.03-0.4 mm (wide) | Output: NPN open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-6PR Stations: 6 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-6PL Stations: 6 | Detection range: 0.03-0.4 mm (wide) | Output: PNP open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-6LR Stations: 6 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link | Regulator/valve side: Right (supply right)
UGPS3-6LL Stations: 6 | Detection range: 0.03-0.4 mm (wide) | Output: IO-Link | Regulator/valve side: Left (supply left)
UGPS3-6ENR Stations: 6 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-6ENL Stations: 6 | Detection range: 0.02-0.15 mm (short) | Output: NPN open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-6EPR Stations: 6 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2 | Regulator/valve side: Right (supply right)
UGPS3-6EPL Stations: 6 | Detection range: 0.02-0.15 mm (short) | Output: PNP open collector x2 | Regulator/valve side: Left (supply left)
UGPS3-6ELR Stations: 6 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link | Regulator/valve side: Right (supply right)
UGPS3-6ELL Stations: 6 | Detection range: 0.02-0.15 mm (short) | Output: IO-Link | Regulator/valve side: Left (supply left)
Pneumatic SensorsCKD
72 product codes available in this family
