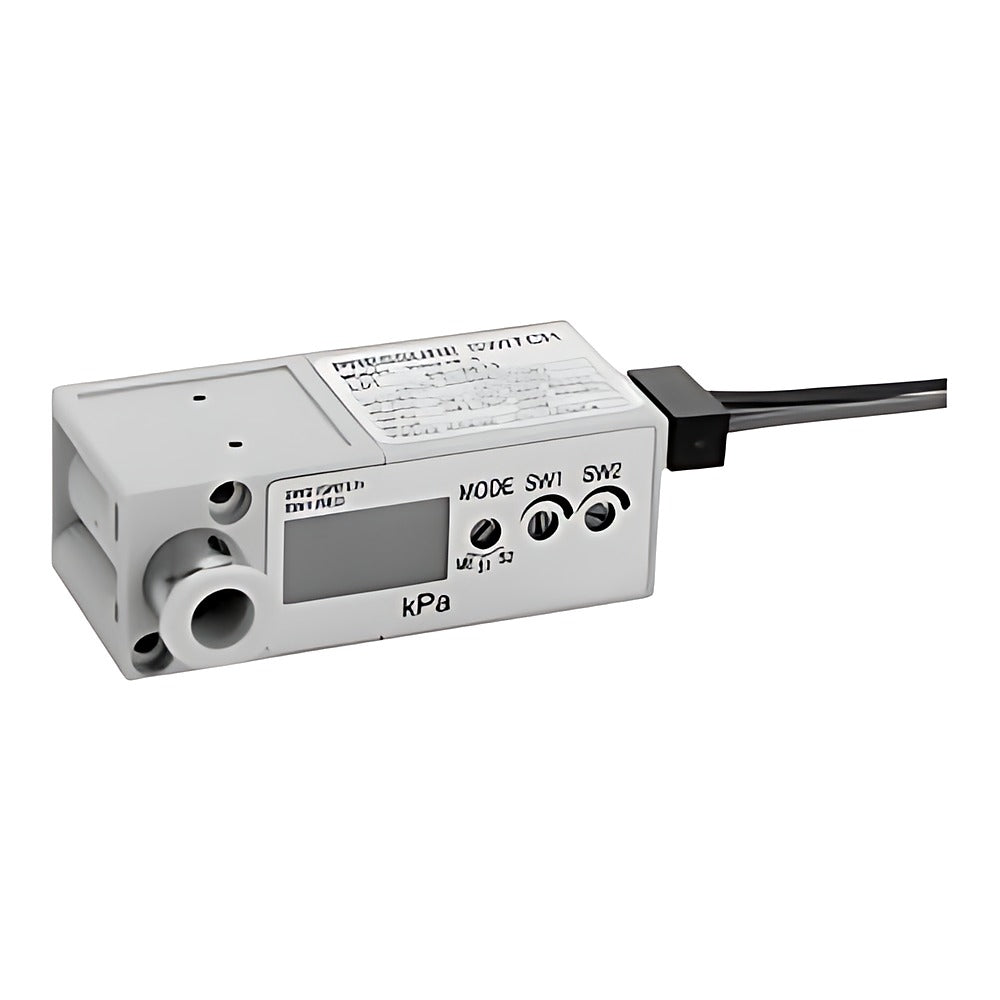

CKD VSUS Digital Vacuum Pressure Switch (M5, 4-8 mm, Direct)

CKD VSUS Digital Vacuum Pressure Switch (M5, 4-8 mm, Direct)

The CKD SELVACS VSUS vacuum pressure switch shows set and applied pressure on a digital display and offers two switch outputs or one switch plus analog output.

Key features

  • Digital display of set pressure and applied pressure
  • NPN or PNP; 2 switch outputs (W) or 1 output + analog (A)
  • Connector wiring for easy layout
  • Push-in 4/6/8 mm, M5 female thread or direct mount connection
  • Semiconductor sensing for stable accuracy

Specifications

Operating pressure -100 to 0 kPa
Set pressure -99 to 0 kPa
Proof pressure 0.2 MPa
Power supply 12 to 24 VDC +/-10%
Current consumption 40 mA or less
Operating temperature 0 to 50 C
Protection IP40 equivalent
Sensing element Diffused semiconductor
Source CKD Korea catalog CC-796K-5, p. 619-624
VSUS-NW-4 Output type: NPN | Output: 2 switch outputs | Connection: 4 mm push-in
VSUS-NW-6 Output type: NPN | Output: 2 switch outputs | Connection: 6 mm push-in
VSUS-NW-8 Output type: NPN | Output: 2 switch outputs | Connection: 8 mm push-in
VSUS-NW-M5 Output type: NPN | Output: 2 switch outputs | Connection: M5x0.8 female
VSUS-NW-F Output type: NPN | Output: 2 switch outputs | Connection: Direct mount
VSUS-NA-4 Output type: NPN | Output: 1 switch + analog out | Connection: 4 mm push-in
VSUS-NA-6 Output type: NPN | Output: 1 switch + analog out | Connection: 6 mm push-in
VSUS-NA-8 Output type: NPN | Output: 1 switch + analog out | Connection: 8 mm push-in
VSUS-NA-M5 Output type: NPN | Output: 1 switch + analog out | Connection: M5x0.8 female
VSUS-NA-F Output type: NPN | Output: 1 switch + analog out | Connection: Direct mount
VSUS-PW-4 Output type: PNP | Output: 2 switch outputs | Connection: 4 mm push-in
VSUS-PW-6 Output type: PNP | Output: 2 switch outputs | Connection: 6 mm push-in
VSUS-PW-8 Output type: PNP | Output: 2 switch outputs | Connection: 8 mm push-in
VSUS-PW-M5 Output type: PNP | Output: 2 switch outputs | Connection: M5x0.8 female
VSUS-PW-F Output type: PNP | Output: 2 switch outputs | Connection: Direct mount
VSUS-PA-4 Output type: PNP | Output: 1 switch + analog out | Connection: 4 mm push-in
VSUS-PA-6 Output type: PNP | Output: 1 switch + analog out | Connection: 6 mm push-in
VSUS-PA-8 Output type: PNP | Output: 1 switch + analog out | Connection: 8 mm push-in
VSUS-PA-M5 Output type: PNP | Output: 1 switch + analog out | Connection: M5x0.8 female
VSUS-PA-F Output type: PNP | Output: 1 switch + analog out | Connection: Direct mount
Pressure SwitchesCKD
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD VSUS Digital Vacuum Pressure Switch (M5, 4-8 mm, Direct)

Brand CKD·Pressure Switches

Available part numbers (20)

VSUS-NW-4, VSUS-NW-6, VSUS-NW-8, VSUS-NW-M5, VSUS-NW-F, VSUS-NA-4, VSUS-NA-6, VSUS-NA-8, VSUS-NA-M5, VSUS-NA-F + 10 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VSUS-NW-4Output type: NPN | Output: 2 switch outputs | Connection: 4 mm push-in
VSUS-NW-6Output type: NPN | Output: 2 switch outputs | Connection: 6 mm push-in
VSUS-NW-8Output type: NPN | Output: 2 switch outputs | Connection: 8 mm push-in
VSUS-NW-M5Output type: NPN | Output: 2 switch outputs | Connection: M5x0.8 female
VSUS-NW-FOutput type: NPN | Output: 2 switch outputs | Connection: Direct mount
VSUS-NA-4Output type: NPN | Output: 1 switch + analog out | Connection: 4 mm push-in
VSUS-NA-6Output type: NPN | Output: 1 switch + analog out | Connection: 6 mm push-in
VSUS-NA-8Output type: NPN | Output: 1 switch + analog out | Connection: 8 mm push-in
VSUS-NA-M5Output type: NPN | Output: 1 switch + analog out | Connection: M5x0.8 female
VSUS-NA-FOutput type: NPN | Output: 1 switch + analog out | Connection: Direct mount
VSUS-PW-4Output type: PNP | Output: 2 switch outputs | Connection: 4 mm push-in
VSUS-PW-6Output type: PNP | Output: 2 switch outputs | Connection: 6 mm push-in
VSUS-PW-8Output type: PNP | Output: 2 switch outputs | Connection: 8 mm push-in
VSUS-PW-M5Output type: PNP | Output: 2 switch outputs | Connection: M5x0.8 female
VSUS-PW-FOutput type: PNP | Output: 2 switch outputs | Connection: Direct mount
VSUS-PA-4Output type: PNP | Output: 1 switch + analog out | Connection: 4 mm push-in
VSUS-PA-6Output type: PNP | Output: 1 switch + analog out | Connection: 6 mm push-in
VSUS-PA-8Output type: PNP | Output: 1 switch + analog out | Connection: 8 mm push-in
VSUS-PA-M5Output type: PNP | Output: 1 switch + analog out | Connection: M5x0.8 female
VSUS-PA-FOutput type: PNP | Output: 1 switch + analog out | Connection: Direct mount
