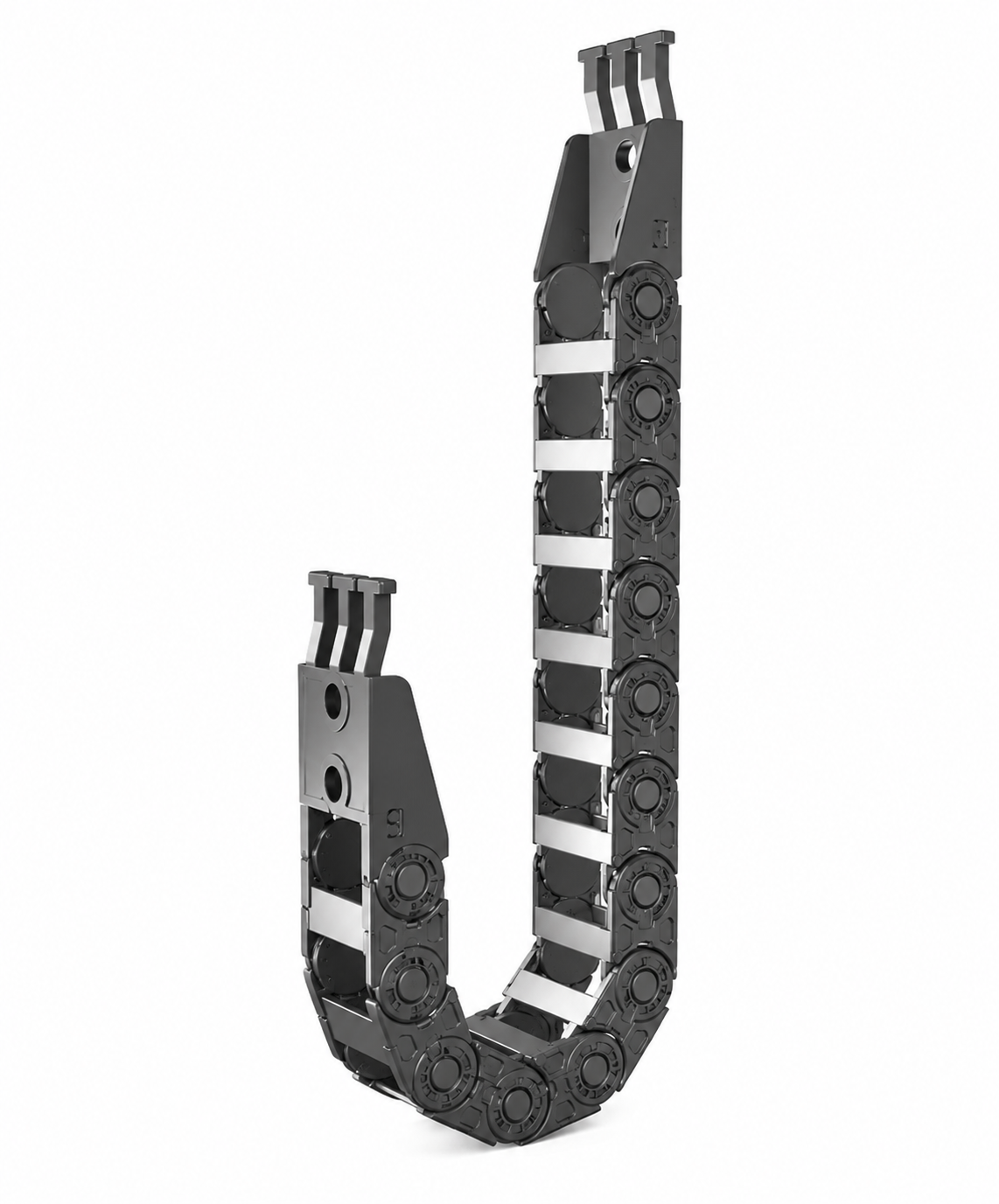

CP System CPS030 Mini Chain Cable Carrier (Pitch 30mm)

CP System CPS030 Mini Chain Cable Carrier (Pitch 30mm)

CPS Mini Chain CPS030 cable carrier (cable chain / drag chain).

Key features

  • Material: CPS-Amide (PA6+G.F)
  • Noise level: 40dB (DIN EN 61672-1)
  • Speed: 6 m/s
  • Acceleration: 15 m/s2
  • Temperature: -30C ~ +130C
  • Special production: ESD, UV

Specifications

Series CPS Mini Chain
Model CPS030
Pitch 30 mm
Inner Height 19 mm
Outer Height 26 mm
Material CPS-Amide (PA6+G.F)
Temp -30 ~ +130 C
Cert CE, ATEX(Ex), RoHS2
Length & dividers made-to-order
CPS030.15.R38/B1 CPS030 cable carrier, inner width 15mm, R38, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B1 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R38/B2 CPS030 cable carrier, inner width 15mm, R38, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B2 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R38/B3 CPS030 cable carrier, inner width 15mm, R38, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B3 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R48/B1 CPS030 cable carrier, inner width 15mm, R48, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B1 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R48/B2 CPS030 cable carrier, inner width 15mm, R48, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B2 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R48/B3 CPS030 cable carrier, inner width 15mm, R48, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B3 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R75/B1 CPS030 cable carrier, inner width 15mm, R75, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B1 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R75/B2 CPS030 cable carrier, inner width 15mm, R75, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B2 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R75/B3 CPS030 cable carrier, inner width 15mm, R75, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B3 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R100/B1 CPS030 cable carrier, inner width 15mm, R100, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B1 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R100/B2 CPS030 cable carrier, inner width 15mm, R100, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B2 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R100/B3 CPS030 cable carrier, inner width 15mm, R100, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B3 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R38/B1 CPS030 cable carrier, inner width 25mm, R38, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B1 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R38/B2 CPS030 cable carrier, inner width 25mm, R38, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B2 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R38/B3 CPS030 cable carrier, inner width 25mm, R38, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B3 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R48/B1 CPS030 cable carrier, inner width 25mm, R48, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B1 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R48/B2 CPS030 cable carrier, inner width 25mm, R48, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B2 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R48/B3 CPS030 cable carrier, inner width 25mm, R48, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B3 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R75/B1 CPS030 cable carrier, inner width 25mm, R75, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B1 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R75/B2 CPS030 cable carrier, inner width 25mm, R75, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B2 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R75/B3 CPS030 cable carrier, inner width 25mm, R75, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B3 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R100/B1 CPS030 cable carrier, inner width 25mm, R100, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B1 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R100/B2 CPS030 cable carrier, inner width 25mm, R100, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B2 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R100/B3 CPS030 cable carrier, inner width 25mm, R100, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B3 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R38/B1 CPS030 cable carrier, inner width 35mm, R38, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B1 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R38/B2 CPS030 cable carrier, inner width 35mm, R38, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B2 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R38/B3 CPS030 cable carrier, inner width 35mm, R38, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B3 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R48/B1 CPS030 cable carrier, inner width 35mm, R48, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B1 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R48/B2 CPS030 cable carrier, inner width 35mm, R48, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B2 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R48/B3 CPS030 cable carrier, inner width 35mm, R48, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B3 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R75/B1 CPS030 cable carrier, inner width 35mm, R75, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B1 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R75/B2 CPS030 cable carrier, inner width 35mm, R75, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B2 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R75/B3 CPS030 cable carrier, inner width 35mm, R75, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B3 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R100/B1 CPS030 cable carrier, inner width 35mm, R100, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B1 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R100/B2 CPS030 cable carrier, inner width 35mm, R100, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B2 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R100/B3 CPS030 cable carrier, inner width 35mm, R100, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B3 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R38/B1 CPS030 cable carrier, inner width 50mm, R38, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B1 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R38/B2 CPS030 cable carrier, inner width 50mm, R38, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B2 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R38/B3 CPS030 cable carrier, inner width 50mm, R38, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B3 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R48/B1 CPS030 cable carrier, inner width 50mm, R48, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B1 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R48/B2 CPS030 cable carrier, inner width 50mm, R48, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B2 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R48/B3 CPS030 cable carrier, inner width 50mm, R48, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B3 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R75/B1 CPS030 cable carrier, inner width 50mm, R75, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B1 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R75/B2 CPS030 cable carrier, inner width 50mm, R75, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B2 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R75/B3 CPS030 cable carrier, inner width 50mm, R75, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B3 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R100/B1 CPS030 cable carrier, inner width 50mm, R100, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B1 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R100/B2 CPS030 cable carrier, inner width 50mm, R100, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B2 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R100/B3 CPS030 cable carrier, inner width 50mm, R100, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B3 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
Cable CarriersCP System
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System CPS030 Mini Chain Cable Carrier (Pitch 30mm)

Brand CP System·Cable Carriers

Available part numbers (48)

CPS030.15.R38/B1, CPS030.15.R38/B2, CPS030.15.R38/B3, CPS030.15.R48/B1, CPS030.15.R48/B2, CPS030.15.R48/B3, CPS030.15.R75/B1, CPS030.15.R75/B2, CPS030.15.R75/B3, CPS030.15.R100/B1 + 38 more — see full table ↓

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CPS030.15.R38/B1CPS030 cable carrier, inner width 15mm, R38, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B1 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R38/B2CPS030 cable carrier, inner width 15mm, R38, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B2 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R38/B3CPS030 cable carrier, inner width 15mm, R38, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B3 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R48/B1CPS030 cable carrier, inner width 15mm, R48, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B1 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R48/B2CPS030 cable carrier, inner width 15mm, R48, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B2 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R48/B3CPS030 cable carrier, inner width 15mm, R48, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B3 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R75/B1CPS030 cable carrier, inner width 15mm, R75, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B1 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R75/B2CPS030 cable carrier, inner width 15mm, R75, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B2 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R75/B3CPS030 cable carrier, inner width 15mm, R75, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B3 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R100/B1CPS030 cable carrier, inner width 15mm, R100, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B1 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R100/B2CPS030 cable carrier, inner width 15mm, R100, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B2 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.15.R100/B3CPS030 cable carrier, inner width 15mm, R100, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B3 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R38/B1CPS030 cable carrier, inner width 25mm, R38, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B1 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R38/B2CPS030 cable carrier, inner width 25mm, R38, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B2 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R38/B3CPS030 cable carrier, inner width 25mm, R38, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B3 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R48/B1CPS030 cable carrier, inner width 25mm, R48, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B1 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R48/B2CPS030 cable carrier, inner width 25mm, R48, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B2 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R48/B3CPS030 cable carrier, inner width 25mm, R48, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B3 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R75/B1CPS030 cable carrier, inner width 25mm, R75, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B1 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R75/B2CPS030 cable carrier, inner width 25mm, R75, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B2 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R75/B3CPS030 cable carrier, inner width 25mm, R75, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B3 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R100/B1CPS030 cable carrier, inner width 25mm, R100, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B1 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R100/B2CPS030 cable carrier, inner width 25mm, R100, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B2 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.25.R100/B3CPS030 cable carrier, inner width 25mm, R100, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B3 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R38/B1CPS030 cable carrier, inner width 35mm, R38, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B1 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R38/B2CPS030 cable carrier, inner width 35mm, R38, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B2 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R38/B3CPS030 cable carrier, inner width 35mm, R38, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B3 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R48/B1CPS030 cable carrier, inner width 35mm, R48, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B1 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R48/B2CPS030 cable carrier, inner width 35mm, R48, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B2 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R48/B3CPS030 cable carrier, inner width 35mm, R48, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B3 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R75/B1CPS030 cable carrier, inner width 35mm, R75, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B1 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R75/B2CPS030 cable carrier, inner width 35mm, R75, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B2 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R75/B3CPS030 cable carrier, inner width 35mm, R75, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B3 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R100/B1CPS030 cable carrier, inner width 35mm, R100, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B1 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R100/B2CPS030 cable carrier, inner width 35mm, R100, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B2 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.35.R100/B3CPS030 cable carrier, inner width 35mm, R100, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B3 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R38/B1CPS030 cable carrier, inner width 50mm, R38, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B1 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R38/B2CPS030 cable carrier, inner width 50mm, R38, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B2 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R38/B3CPS030 cable carrier, inner width 50mm, R38, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B3 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R48/B1CPS030 cable carrier, inner width 50mm, R48, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B1 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R48/B2CPS030 cable carrier, inner width 50mm, R48, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B2 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R48/B3CPS030 cable carrier, inner width 50mm, R48, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B3 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R75/B1CPS030 cable carrier, inner width 50mm, R75, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B1 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R75/B2CPS030 cable carrier, inner width 50mm, R75, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B2 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R75/B3CPS030 cable carrier, inner width 50mm, R75, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B3 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R100/B1CPS030 cable carrier, inner width 50mm, R100, bracket B1 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B1 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R100/B2CPS030 cable carrier, inner width 50mm, R100, bracket B2 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B2 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
CPS030.50.R100/B3CPS030 cable carrier, inner width 50mm, R100, bracket B3 | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B3 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order
