CP System CPS048S Mini Chain Cable Carrier System (RFQ)

CP System CPS048S Mini Chain Cable Carrier System (RFQ)

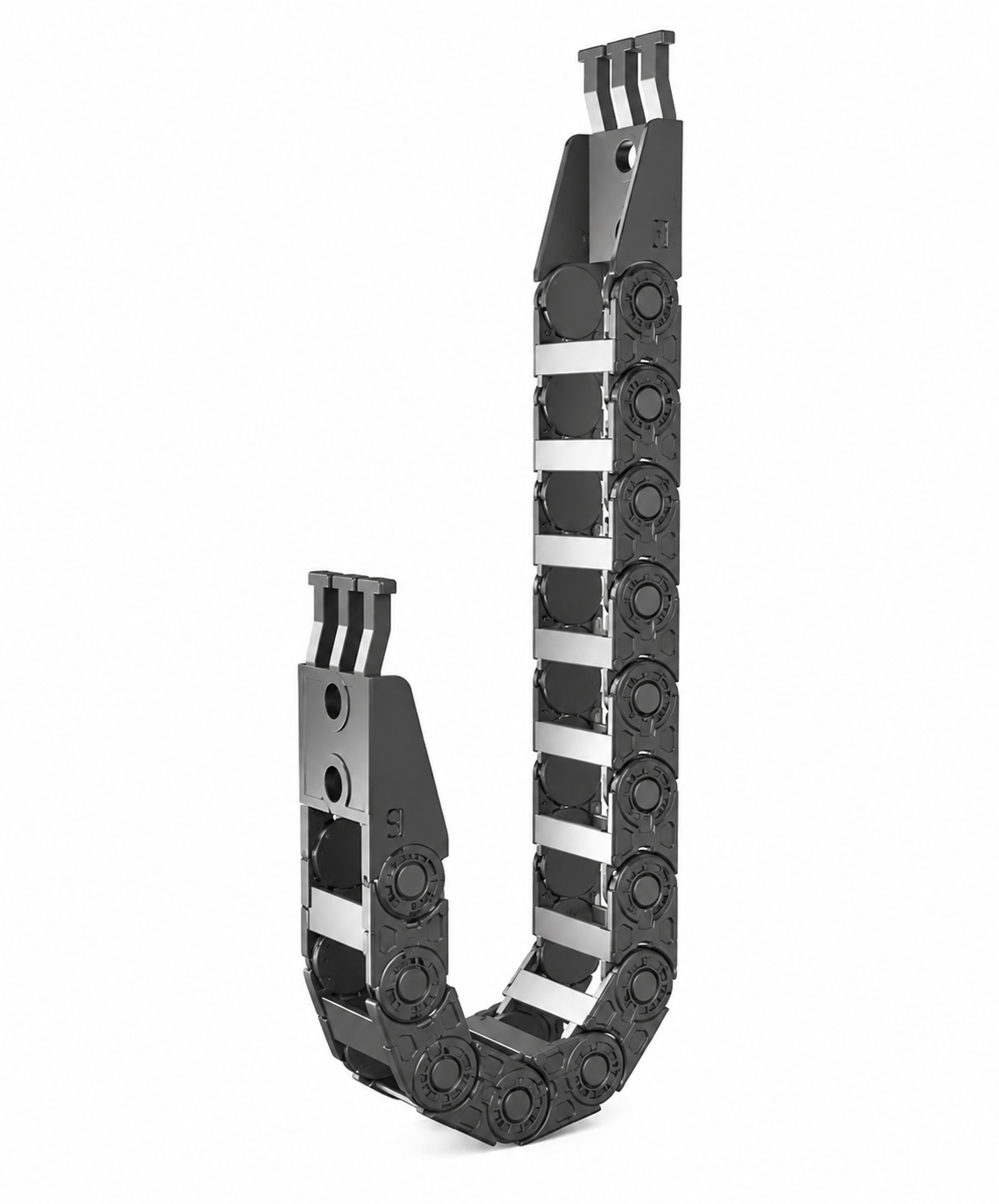

CPS Mini Chain CPS048S system-type cable carrier with guide channel and System Tie Wrap (STW) for long unsupported travel.

Key features

  • Material: CPS-Amide (PA6+G.F)
  • Noise level: 40dB (DIN EN 61672-1)
  • Speed: 6 m/s
  • Acceleration: 15 m/s2
  • Temperature: -30C ~ +130C
  • Special production: ESD, UV

Specifications

Series CPS Mini Chain (System)
Model CPS048S
Outer Width 66 mm
Bending Radius 150 mm
Loop Length (Lp) 964 mm
Loop Projection (LF) 395 mm
Moving Height (H) 145 mm
Weight 1.17 kg/m
Bracket B1/B2/B3
Guide Channel Housing A/A1/B
Material CPS-Amide (PA6+G.F)
Temp -30 ~ +130 C
CPS048S.R150 CPS048S system cable carrier, R150, guide channel (made-to-order) | Series: CPS Mini Chain (System) | Model: CPS048S | Outer Width: 66 mm | Bending Radius: 150 mm | Loop Length (Lp): 964 mm | Loop Projection (LF): 395 mm | Moving Height (H): 145 mm | Weight: 1.17 kg/m | Bracket: B1/B2/B3 | Guide Channel: Housing A/A1/B | System Tie Wrap (STW) | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Inside width / length / dividers / channel: made-to-order (RFQ)
Cable CarriersCP System
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System CPS048S Mini Chain Cable Carrier System (RFQ)

Brand CP System·Cable Carriers

Available part numbers (1)

CPS048S.R150

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CPS048S.R150CPS048S system cable carrier, R150, guide channel (made-to-order) | Series: CPS Mini Chain (System) | Model: CPS048S | Outer Width: 66 mm | Bending Radius: 150 mm | Loop Length (Lp): 964 mm | Loop Projection (LF): 395 mm | Moving Height (H): 145 mm | Weight: 1.17 kg/m | Bracket: B1/B2/B3 | Guide Channel: Housing A/A1/B | System Tie Wrap (STW) | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Inside width / length / dividers / channel: made-to-order (RFQ)
