CP System RV020CR Revolving Chain (Inner C 16-77 mm)

CP System RV020CR Revolving Chain (Inner C 16-77 mm)

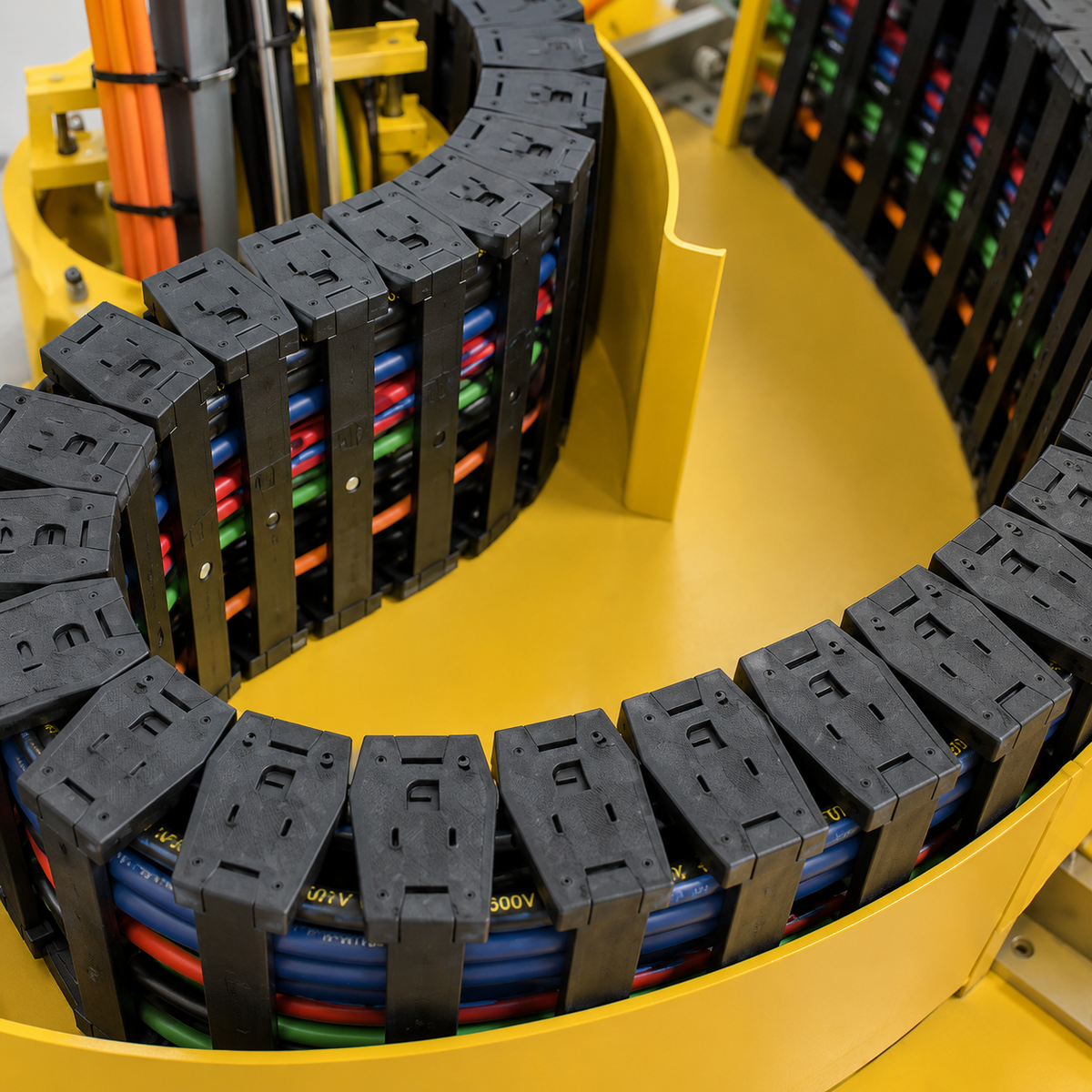

CP SYSTEM RV020CR Revolving Chain — patented rotating cable carrier that automatically controls bending and reverse-bending radius for rotating machines and robots, including continuous motion over 360 degrees.

Key features

  • Freely adjustable bending radius in 1mm units; low dust and low noise via the patented side-band connection
  • Inner chamber C 16-77 mm

Specifications

Model RV020CR
Pitch 20 mm
B 28 mm
D(D1) 22 mm
Mounting Holes 2-Ø5.2 (M5)
Bending Radius freely adjustable per 1mm
Install Type A min distance L 130 mm / min reverse bending R 40 mm
Install Type B min distance L 150 mm / min reverse bending R 30 mm
Free End Bracket moving / fixing / front-point (select)
Divider not applicable
Separator not applicable
Stopper not applicable
RV020CR.16 RV020CR revolving chain, inner C16 | Model: RV020CR | Pitch: 20 mm | Inner C: 16 mm | Outer Width A: 30 mm | B: 28 mm | D(D1): 22 mm | Mounting Holes: 2-Ø5.2 (M5) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 130 mm / min reverse bending R 40 mm | Install Type B: min distance L 150 mm / min reverse bending R 30 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: not applicable | Separator: not applicable | Stopper: not applicable | Length: made-to-order
RV020CR.27 RV020CR revolving chain, inner C27 | Model: RV020CR | Pitch: 20 mm | Inner C: 27 mm | Outer Width A: 41 mm | B: 28 mm | D(D1): 22 mm | Mounting Holes: 2-Ø5.2 (M5) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 130 mm / min reverse bending R 40 mm | Install Type B: min distance L 150 mm / min reverse bending R 30 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: not applicable | Separator: not applicable | Stopper: not applicable | Length: made-to-order
RV020CR.37 RV020CR revolving chain, inner C37 | Model: RV020CR | Pitch: 20 mm | Inner C: 37 mm | Outer Width A: 51 mm | B: 28 mm | D(D1): 22 mm | Mounting Holes: 2-Ø5.2 (M5) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 130 mm / min reverse bending R 40 mm | Install Type B: min distance L 150 mm / min reverse bending R 30 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: not applicable | Separator: not applicable | Stopper: not applicable | Length: made-to-order
RV020CR.47 RV020CR revolving chain, inner C47 | Model: RV020CR | Pitch: 20 mm | Inner C: 47 mm | Outer Width A: 61 mm | B: 28 mm | D(D1): 22 mm | Mounting Holes: 2-Ø5.2 (M5) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 130 mm / min reverse bending R 40 mm | Install Type B: min distance L 150 mm / min reverse bending R 30 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: not applicable | Separator: not applicable | Stopper: not applicable | Length: made-to-order
RV020CR.67 RV020CR revolving chain, inner C67 | Model: RV020CR | Pitch: 20 mm | Inner C: 67 mm | Outer Width A: 81 mm | B: 28 mm | D(D1): 22 mm | Mounting Holes: 2-Ø5.2 (M5) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 130 mm / min reverse bending R 40 mm | Install Type B: min distance L 150 mm / min reverse bending R 30 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: not applicable | Separator: not applicable | Stopper: not applicable | Length: made-to-order
RV020CR.77 RV020CR revolving chain, inner C77 | Model: RV020CR | Pitch: 20 mm | Inner C: 77 mm | Outer Width A: 91 mm | B: 28 mm | D(D1): 22 mm | Mounting Holes: 2-Ø5.2 (M5) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 130 mm / min reverse bending R 40 mm | Install Type B: min distance L 150 mm / min reverse bending R 30 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: not applicable | Separator: not applicable | Stopper: not applicable | Length: made-to-order
Cable CarriersCP System
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System RV020CR Revolving Chain (Inner C 16-77 mm)

Brand CP System·Cable Carriers

Available part numbers (6)

RV020CR.16, RV020CR.27, RV020CR.37, RV020CR.47, RV020CR.67, RV020CR.77

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RV020CR.16RV020CR revolving chain, inner C16 | Model: RV020CR | Pitch: 20 mm | Inner C: 16 mm | Outer Width A: 30 mm | B: 28 mm | D(D1): 22 mm | Mounting Holes: 2-Ø5.2 (M5) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 130 mm / min reverse bending R 40 mm | Install Type B: min distance L 150 mm / min reverse bending R 30 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: not applicable | Separator: not applicable | Stopper: not applicable | Length: made-to-order
RV020CR.27RV020CR revolving chain, inner C27 | Model: RV020CR | Pitch: 20 mm | Inner C: 27 mm | Outer Width A: 41 mm | B: 28 mm | D(D1): 22 mm | Mounting Holes: 2-Ø5.2 (M5) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 130 mm / min reverse bending R 40 mm | Install Type B: min distance L 150 mm / min reverse bending R 30 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: not applicable | Separator: not applicable | Stopper: not applicable | Length: made-to-order
RV020CR.37RV020CR revolving chain, inner C37 | Model: RV020CR | Pitch: 20 mm | Inner C: 37 mm | Outer Width A: 51 mm | B: 28 mm | D(D1): 22 mm | Mounting Holes: 2-Ø5.2 (M5) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 130 mm / min reverse bending R 40 mm | Install Type B: min distance L 150 mm / min reverse bending R 30 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: not applicable | Separator: not applicable | Stopper: not applicable | Length: made-to-order
RV020CR.47RV020CR revolving chain, inner C47 | Model: RV020CR | Pitch: 20 mm | Inner C: 47 mm | Outer Width A: 61 mm | B: 28 mm | D(D1): 22 mm | Mounting Holes: 2-Ø5.2 (M5) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 130 mm / min reverse bending R 40 mm | Install Type B: min distance L 150 mm / min reverse bending R 30 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: not applicable | Separator: not applicable | Stopper: not applicable | Length: made-to-order
RV020CR.67RV020CR revolving chain, inner C67 | Model: RV020CR | Pitch: 20 mm | Inner C: 67 mm | Outer Width A: 81 mm | B: 28 mm | D(D1): 22 mm | Mounting Holes: 2-Ø5.2 (M5) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 130 mm / min reverse bending R 40 mm | Install Type B: min distance L 150 mm / min reverse bending R 30 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: not applicable | Separator: not applicable | Stopper: not applicable | Length: made-to-order
RV020CR.77RV020CR revolving chain, inner C77 | Model: RV020CR | Pitch: 20 mm | Inner C: 77 mm | Outer Width A: 91 mm | B: 28 mm | D(D1): 22 mm | Mounting Holes: 2-Ø5.2 (M5) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 130 mm / min reverse bending R 40 mm | Install Type B: min distance L 150 mm / min reverse bending R 30 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: not applicable | Separator: not applicable | Stopper: not applicable | Length: made-to-order
