CP System RV060CR Revolving Chain (Inner C 75-400 mm)

CP System RV060CR Revolving Chain (Inner C 75-400 mm)

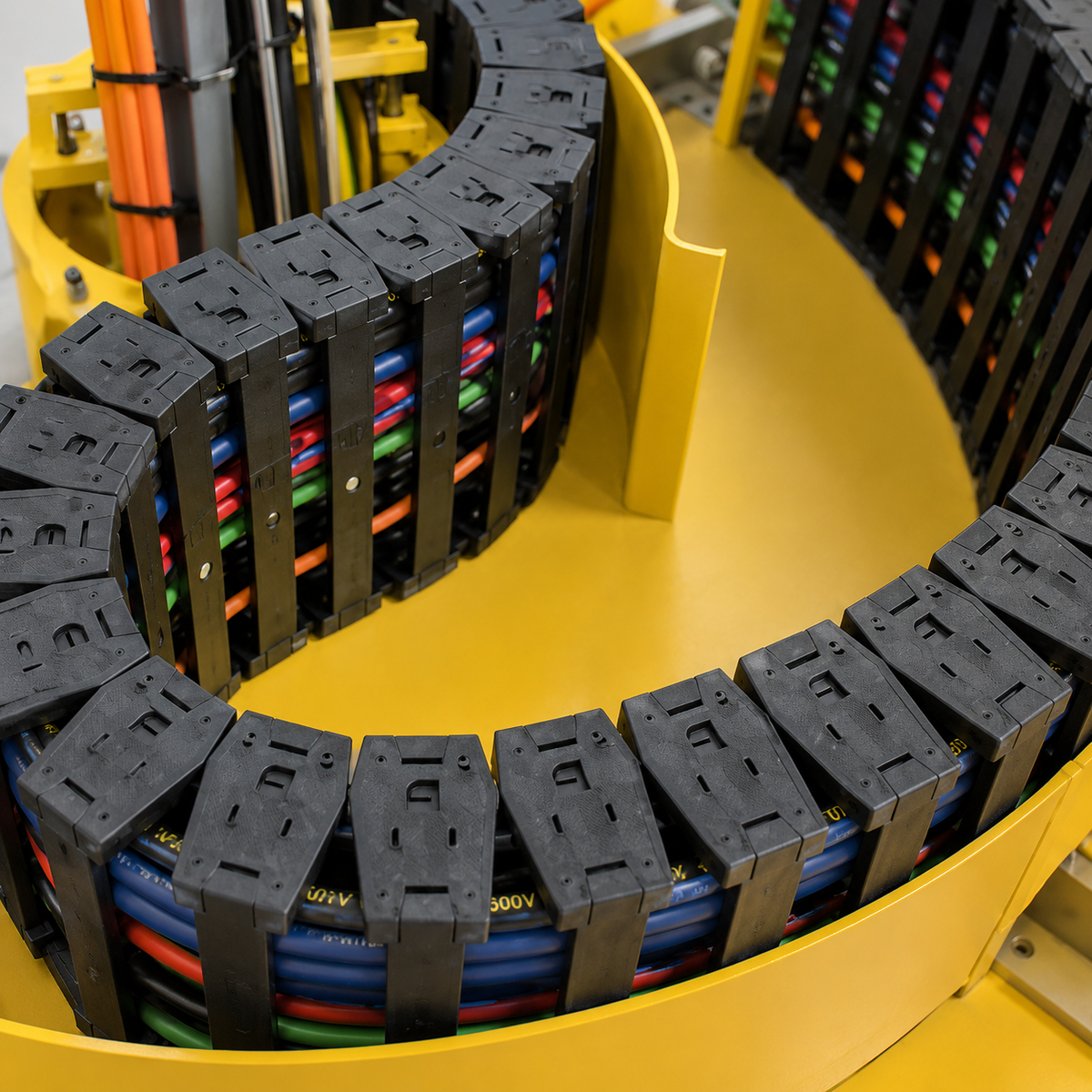

CP SYSTEM RV060CR Revolving Chain — patented rotating cable carrier that automatically controls bending and reverse-bending radius for rotating machines and robots, including continuous motion over 360 degrees.

Key features

  • Freely adjustable bending radius in 1mm units; low dust and low noise via the patented side-band connection
  • Inner chamber C 75-400 mm

Specifications

Model RV060CR
Pitch 60 mm
Mounting Holes 4-Ø8.5 (M8)
Bending Radius freely adjustable per 1mm
Install Type A min distance L 400 mm / min reverse bending R 165 mm
Install Type B min distance L 485 mm / min reverse bending R 120 mm
Free End Bracket moving / fixing / front-point (select)
Divider sb-DV060
Separator S-SP/400
Stopper ST-M1/M2/S1/S2 (L 5/10/15/20)
Length made-to-order
RV060CR.75 RV060CR revolving chain, inner C75 | Model: RV060CR | Pitch: 60 mm | Inner C: 75 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.100 RV060CR revolving chain, inner C100 | Model: RV060CR | Pitch: 60 mm | Inner C: 100 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.125 RV060CR revolving chain, inner C125 | Model: RV060CR | Pitch: 60 mm | Inner C: 125 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.150 RV060CR revolving chain, inner C150 | Model: RV060CR | Pitch: 60 mm | Inner C: 150 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.175 RV060CR revolving chain, inner C175 | Model: RV060CR | Pitch: 60 mm | Inner C: 175 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.190 RV060CR revolving chain, inner C190 | Model: RV060CR | Pitch: 60 mm | Inner C: 190 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.200 RV060CR revolving chain, inner C200 | Model: RV060CR | Pitch: 60 mm | Inner C: 200 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.240 RV060CR revolving chain, inner C240 | Model: RV060CR | Pitch: 60 mm | Inner C: 240 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.250 RV060CR revolving chain, inner C250 | Model: RV060CR | Pitch: 60 mm | Inner C: 250 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.300 RV060CR revolving chain, inner C300 | Model: RV060CR | Pitch: 60 mm | Inner C: 300 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.350 RV060CR revolving chain, inner C350 | Model: RV060CR | Pitch: 60 mm | Inner C: 350 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.400 RV060CR revolving chain, inner C400 | Model: RV060CR | Pitch: 60 mm | Inner C: 400 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
Cable CarriersCP System
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System RV060CR Revolving Chain (Inner C 75-400 mm)

Brand CP System·Cable Carriers

Available part numbers (12)

RV060CR.75, RV060CR.100, RV060CR.125, RV060CR.150, RV060CR.175, RV060CR.190, RV060CR.200, RV060CR.240, RV060CR.250, RV060CR.300 + 2 more — see full table ↓

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RV060CR.75RV060CR revolving chain, inner C75 | Model: RV060CR | Pitch: 60 mm | Inner C: 75 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.100RV060CR revolving chain, inner C100 | Model: RV060CR | Pitch: 60 mm | Inner C: 100 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.125RV060CR revolving chain, inner C125 | Model: RV060CR | Pitch: 60 mm | Inner C: 125 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.150RV060CR revolving chain, inner C150 | Model: RV060CR | Pitch: 60 mm | Inner C: 150 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.175RV060CR revolving chain, inner C175 | Model: RV060CR | Pitch: 60 mm | Inner C: 175 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.190RV060CR revolving chain, inner C190 | Model: RV060CR | Pitch: 60 mm | Inner C: 190 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.200RV060CR revolving chain, inner C200 | Model: RV060CR | Pitch: 60 mm | Inner C: 200 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.240RV060CR revolving chain, inner C240 | Model: RV060CR | Pitch: 60 mm | Inner C: 240 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.250RV060CR revolving chain, inner C250 | Model: RV060CR | Pitch: 60 mm | Inner C: 250 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.300RV060CR revolving chain, inner C300 | Model: RV060CR | Pitch: 60 mm | Inner C: 300 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.350RV060CR revolving chain, inner C350 | Model: RV060CR | Pitch: 60 mm | Inner C: 350 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
RV060CR.400RV060CR revolving chain, inner C400 | Model: RV060CR | Pitch: 60 mm | Inner C: 400 mm | Mounting Holes: 4-Ø8.5 (M8) | Bending Radius: freely adjustable per 1mm | Install Type A: min distance L 400 mm / min reverse bending R 165 mm | Install Type B: min distance L 485 mm / min reverse bending R 120 mm | Free End Bracket: moving / fixing / front-point (select) | Divider: sb-DV060 | Separator: S-SP/400 | Stopper: ST-M1/M2/S1/S2 (L 5/10/15/20) | Length: made-to-order
