• CP System Shift Chain ST044ERS Enclosed Roller Skid Type Cable Carrier (Pitch 44, Inside Width 35-100mm, BR R70-R150)
1 1

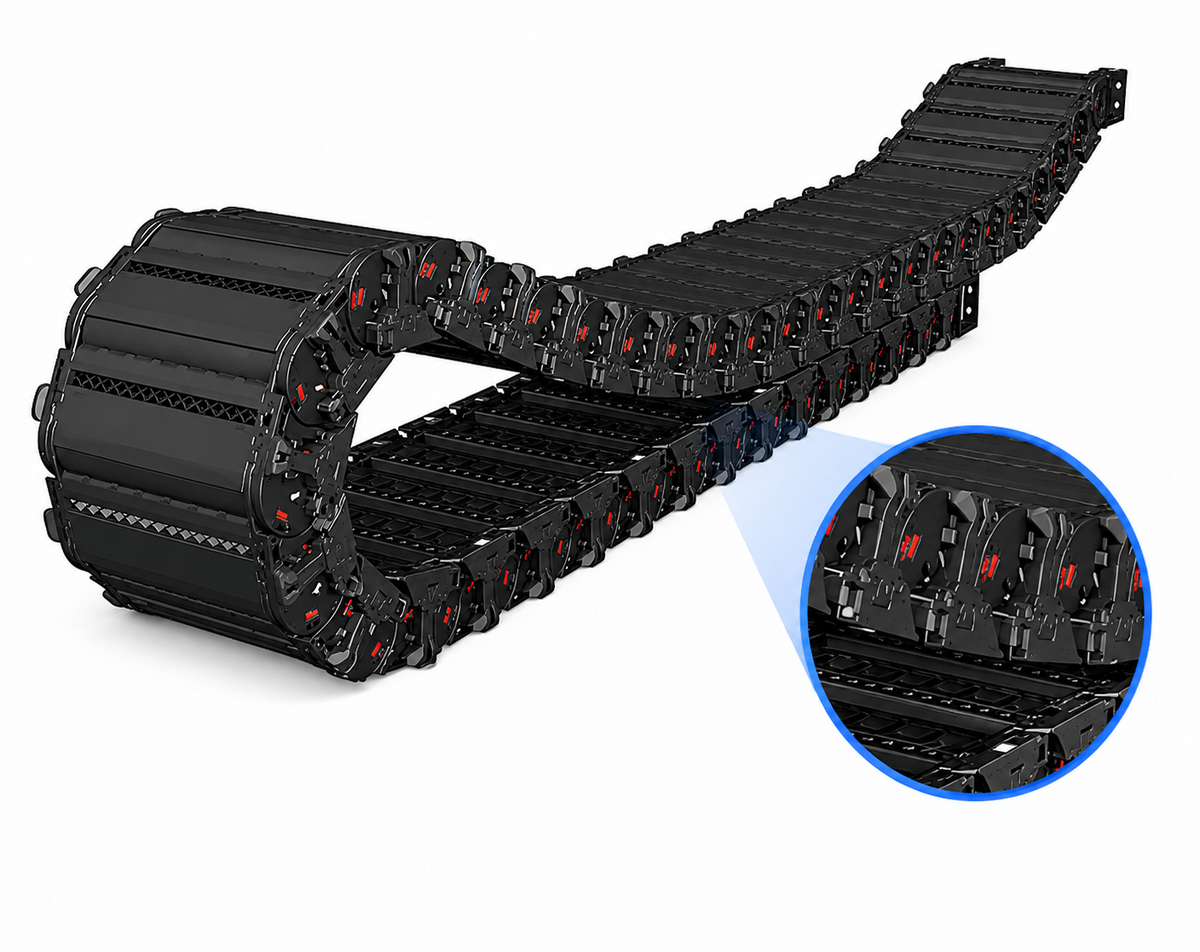

CP System Shift Chain ST044ERS Enclosed Roller Skid Type Cable Carrier (Pitch 44, Inside Width 35-100mm, BR R70-R150)

CP System Shift Chain ST044ERS Enclosed Roller Skid Type Cable Carrier (Pitch 44, Inside Width 35-100mm, BR R70-R150)

Shift Chain Enclosed Roller Skid Type ST044ERS, combining a Steel Plate enclosure with protruding rollers and a skid side band for fast, low-friction long-distance travel in protected conditions.

Key features

  • Bending Radius is determined by each interchangeable 'BR' unit inserted into the side band
  • Pitch 44mm
  • Inside width 35-100mm; bending radius R70-R150
  • Material CPS-Amide (PA6+G.F)
  • Max speed 6 m/s, acceleration 12 m/s². Temperature -30 to +130℃. ESD/UV available
  • Bracket: Free End Bracket (FEB)

Specifications

Model ST044ERS
Type Enclosed Roller Skid (ERS)
Pitch 44mm
Outer Height (B) 40.5mm
Inner Height (D) 24.5mm
Material CPS-Amide (PA6+G.F)
Max Speed 6 m/s
Max Acceleration 12 m/s²
Temperature -30 ~ +130℃
Special Production ESD, UV (optional)
Roller applied every 2 or 4 links (made-to-order)
Bracket Free End Bracket (FEB) (made-to-order)
ST044ERS.35.R70 Shift Chain Enclosed Roller Skid ST044ERS, inside width 35mm, bending radius R70mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 73mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.35.R90 Shift Chain Enclosed Roller Skid ST044ERS, inside width 35mm, bending radius R90mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 73mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.35.R120 Shift Chain Enclosed Roller Skid ST044ERS, inside width 35mm, bending radius R120mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 73mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.35.R150 Shift Chain Enclosed Roller Skid ST044ERS, inside width 35mm, bending radius R150mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 73mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.55.R70 Shift Chain Enclosed Roller Skid ST044ERS, inside width 55mm, bending radius R70mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 93mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.55.R90 Shift Chain Enclosed Roller Skid ST044ERS, inside width 55mm, bending radius R90mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 93mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.55.R120 Shift Chain Enclosed Roller Skid ST044ERS, inside width 55mm, bending radius R120mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 93mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.55.R150 Shift Chain Enclosed Roller Skid ST044ERS, inside width 55mm, bending radius R150mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 93mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.75.R70 Shift Chain Enclosed Roller Skid ST044ERS, inside width 75mm, bending radius R70mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 113mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.75.R90 Shift Chain Enclosed Roller Skid ST044ERS, inside width 75mm, bending radius R90mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 113mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.75.R120 Shift Chain Enclosed Roller Skid ST044ERS, inside width 75mm, bending radius R120mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 113mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.75.R150 Shift Chain Enclosed Roller Skid ST044ERS, inside width 75mm, bending radius R150mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 113mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.100.R70 Shift Chain Enclosed Roller Skid ST044ERS, inside width 100mm, bending radius R70mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.100.R90 Shift Chain Enclosed Roller Skid ST044ERS, inside width 100mm, bending radius R90mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.100.R120 Shift Chain Enclosed Roller Skid ST044ERS, inside width 100mm, bending radius R120mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.100.R150 Shift Chain Enclosed Roller Skid ST044ERS, inside width 100mm, bending radius R150mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
Cable CarriersCP System
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Shift Chain ST044ERS Enclosed Roller Skid Type Cable Carrier (Pitch 44, Inside Width 35-100mm, BR R70-R150)

Brand CP System·Cable Carriers

Available part numbers (16)

ST044ERS.35.R70, ST044ERS.35.R90, ST044ERS.35.R120, ST044ERS.35.R150, ST044ERS.55.R70, ST044ERS.55.R90, ST044ERS.55.R120, ST044ERS.55.R150, ST044ERS.75.R70, ST044ERS.75.R90 + 6 more — see full table ↓

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST044ERS.35.R70Shift Chain Enclosed Roller Skid ST044ERS, inside width 35mm, bending radius R70mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 73mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.35.R90Shift Chain Enclosed Roller Skid ST044ERS, inside width 35mm, bending radius R90mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 73mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.35.R120Shift Chain Enclosed Roller Skid ST044ERS, inside width 35mm, bending radius R120mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 73mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.35.R150Shift Chain Enclosed Roller Skid ST044ERS, inside width 35mm, bending radius R150mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 73mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.55.R70Shift Chain Enclosed Roller Skid ST044ERS, inside width 55mm, bending radius R70mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 93mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.55.R90Shift Chain Enclosed Roller Skid ST044ERS, inside width 55mm, bending radius R90mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 93mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.55.R120Shift Chain Enclosed Roller Skid ST044ERS, inside width 55mm, bending radius R120mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 93mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.55.R150Shift Chain Enclosed Roller Skid ST044ERS, inside width 55mm, bending radius R150mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 93mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.75.R70Shift Chain Enclosed Roller Skid ST044ERS, inside width 75mm, bending radius R70mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 113mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.75.R90Shift Chain Enclosed Roller Skid ST044ERS, inside width 75mm, bending radius R90mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 113mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.75.R120Shift Chain Enclosed Roller Skid ST044ERS, inside width 75mm, bending radius R120mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 113mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.75.R150Shift Chain Enclosed Roller Skid ST044ERS, inside width 75mm, bending radius R150mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 113mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.100.R70Shift Chain Enclosed Roller Skid ST044ERS, inside width 100mm, bending radius R70mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.100.R90Shift Chain Enclosed Roller Skid ST044ERS, inside width 100mm, bending radius R90mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.100.R120Shift Chain Enclosed Roller Skid ST044ERS, inside width 100mm, bending radius R120mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044ERS.100.R150Shift Chain Enclosed Roller Skid ST044ERS, inside width 100mm, bending radius R150mm | Model: ST044ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 40.5mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Free End Bracket (FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
