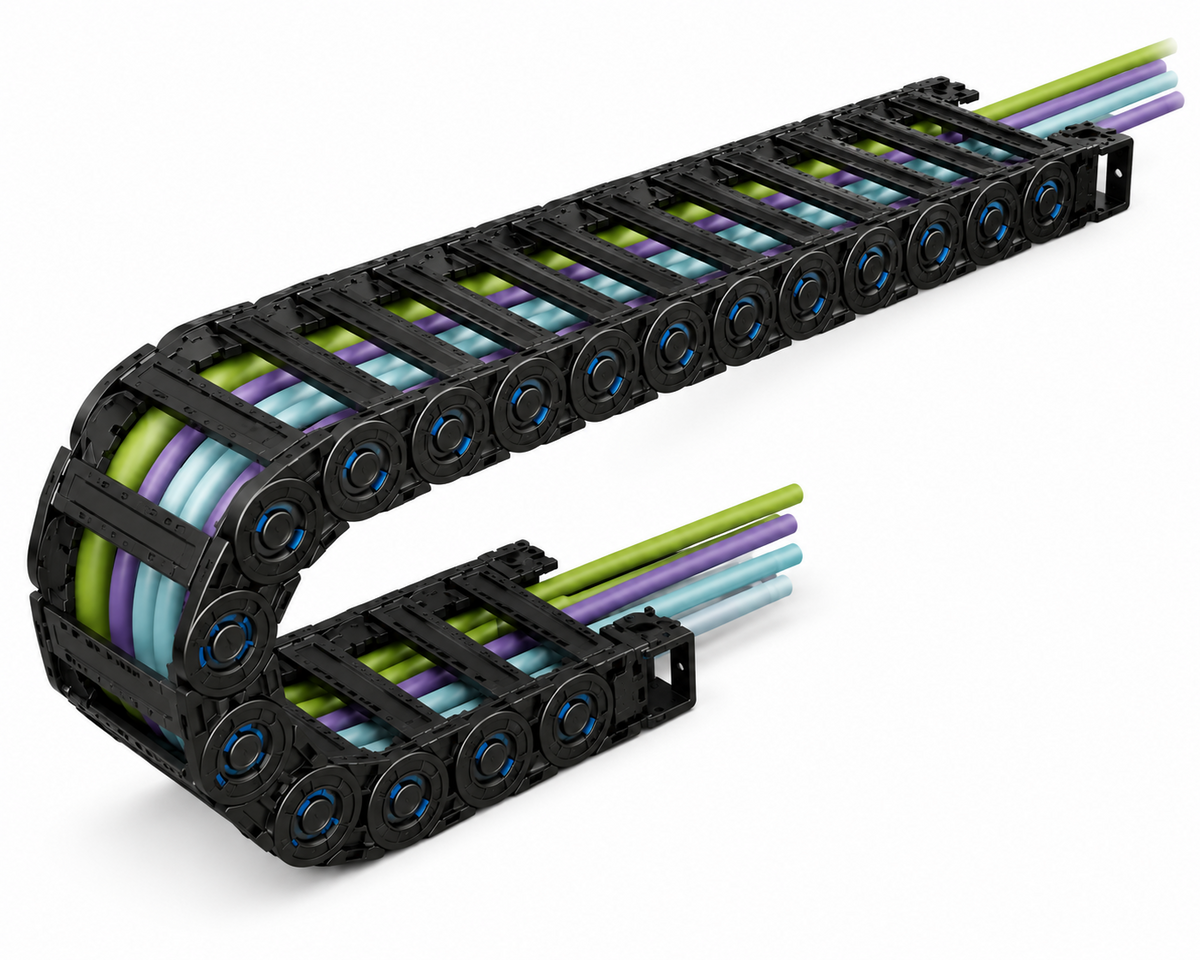

CP System Shift Chain ST044N Normal Type Cable Carrier (Pitch 44, Inside Width 35-200mm, BR R50-R150)

CP System Shift Chain ST044N Normal Type Cable Carrier (Pitch 44, Inside Width 35-200mm, BR R50-R150)

Shift Chain Normal Type ST044N, next-generation cable & hose carrier succeeding CPS mini Chain.

Key features

  • Bending Radius value is determined according to each different interchangeable 'BR' unit inserted into the side band, offering improved unsupported length with 6 supporting sections
  • Pitch 44mm
  • Inside width 35-200mm; bending radius R50-R150
  • Material CPS-Amide (PA6+G.F)
  • Max speed 6 m/s, acceleration 12 m/s². Temperature -30 to +130℃. ESD/UV available
  • Bracket: FEB (Free End) + EB type, B1/B2/B3

Specifications

Model ST044N
Type Normal (N)
Pitch 44mm
Outer Height (B) 38mm
Inner Height (D) 26mm
Material CPS-Amide (PA6+G.F)
Max Speed 6 m/s
Max Acceleration 12 m/s²
Temperature -30 ~ +130℃
Special Production ESD, UV (optional)
Bracket FEB (Free End) + EB type, B1/B2/B3 (made-to-order)
Length made-to-order
ST044N.35.R50 Shift Chain Normal ST044N, inside width 35mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 56mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 0.93 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.35.R70 Shift Chain Normal ST044N, inside width 35mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 56mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 0.93 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.35.R90 Shift Chain Normal ST044N, inside width 35mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 56mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 0.93 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.35.R120 Shift Chain Normal ST044N, inside width 35mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 56mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 0.93 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.35.R150 Shift Chain Normal ST044N, inside width 35mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 56mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 0.93 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.50.R50 Shift Chain Normal ST044N, inside width 50mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 71mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 0.97 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.50.R70 Shift Chain Normal ST044N, inside width 50mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 71mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 0.97 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.50.R90 Shift Chain Normal ST044N, inside width 50mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 71mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 0.97 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.50.R120 Shift Chain Normal ST044N, inside width 50mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 71mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 0.97 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.50.R150 Shift Chain Normal ST044N, inside width 50mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 71mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 0.97 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.55.R50 Shift Chain Normal ST044N, inside width 55mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 76mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.00 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.55.R70 Shift Chain Normal ST044N, inside width 55mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 76mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.00 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.55.R90 Shift Chain Normal ST044N, inside width 55mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 76mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.00 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.55.R120 Shift Chain Normal ST044N, inside width 55mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 76mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.00 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.55.R150 Shift Chain Normal ST044N, inside width 55mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 76mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.00 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.75.R50 Shift Chain Normal ST044N, inside width 75mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 96mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.75.R70 Shift Chain Normal ST044N, inside width 75mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 96mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.75.R90 Shift Chain Normal ST044N, inside width 75mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 96mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.75.R120 Shift Chain Normal ST044N, inside width 75mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 96mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.75.R150 Shift Chain Normal ST044N, inside width 75mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 96mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.100.R50 Shift Chain Normal ST044N, inside width 100mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 121mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.100.R70 Shift Chain Normal ST044N, inside width 100mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 121mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.100.R90 Shift Chain Normal ST044N, inside width 100mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 121mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.100.R120 Shift Chain Normal ST044N, inside width 100mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 121mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.100.R150 Shift Chain Normal ST044N, inside width 100mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 121mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.125.R50 Shift Chain Normal ST044N, inside width 125mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 146mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.30 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.125.R70 Shift Chain Normal ST044N, inside width 125mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 146mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.30 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.125.R90 Shift Chain Normal ST044N, inside width 125mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 146mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.30 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.125.R120 Shift Chain Normal ST044N, inside width 125mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 146mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.30 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.125.R150 Shift Chain Normal ST044N, inside width 125mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 146mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.30 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.150.R50 Shift Chain Normal ST044N, inside width 150mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 171mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.150.R70 Shift Chain Normal ST044N, inside width 150mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 171mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.150.R90 Shift Chain Normal ST044N, inside width 150mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 171mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.150.R120 Shift Chain Normal ST044N, inside width 150mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 171mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.150.R150 Shift Chain Normal ST044N, inside width 150mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 171mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.175.R50 Shift Chain Normal ST044N, inside width 175mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 196mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.78 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.175.R70 Shift Chain Normal ST044N, inside width 175mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 196mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.78 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.175.R90 Shift Chain Normal ST044N, inside width 175mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 196mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.78 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.175.R120 Shift Chain Normal ST044N, inside width 175mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 196mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.78 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.175.R150 Shift Chain Normal ST044N, inside width 175mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 196mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.78 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.200.R50 Shift Chain Normal ST044N, inside width 200mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 221mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.94 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.200.R70 Shift Chain Normal ST044N, inside width 200mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 221mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.94 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.200.R90 Shift Chain Normal ST044N, inside width 200mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 221mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.94 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.200.R120 Shift Chain Normal ST044N, inside width 200mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 221mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.94 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.200.R150 Shift Chain Normal ST044N, inside width 200mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 221mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.94 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
Cable CarriersCP System
45 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Shift Chain ST044N Normal Type Cable Carrier (Pitch 44, Inside Width 35-200mm, BR R50-R150)

Brand CP System·Cable Carriers

Available part numbers (45)

ST044N.35.R50, ST044N.35.R70, ST044N.35.R90, ST044N.35.R120, ST044N.35.R150, ST044N.50.R50, ST044N.50.R70, ST044N.50.R90, ST044N.50.R120, ST044N.50.R150 + 35 more — see full table ↓

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST044N.35.R50Shift Chain Normal ST044N, inside width 35mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 56mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 0.93 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.35.R70Shift Chain Normal ST044N, inside width 35mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 56mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 0.93 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.35.R90Shift Chain Normal ST044N, inside width 35mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 56mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 0.93 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.35.R120Shift Chain Normal ST044N, inside width 35mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 56mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 0.93 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.35.R150Shift Chain Normal ST044N, inside width 35mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 56mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 0.93 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.50.R50Shift Chain Normal ST044N, inside width 50mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 71mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 0.97 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.50.R70Shift Chain Normal ST044N, inside width 50mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 71mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 0.97 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.50.R90Shift Chain Normal ST044N, inside width 50mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 71mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 0.97 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.50.R120Shift Chain Normal ST044N, inside width 50mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 71mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 0.97 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.50.R150Shift Chain Normal ST044N, inside width 50mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 71mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 0.97 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.55.R50Shift Chain Normal ST044N, inside width 55mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 76mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.00 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.55.R70Shift Chain Normal ST044N, inside width 55mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 76mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.00 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.55.R90Shift Chain Normal ST044N, inside width 55mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 76mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.00 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.55.R120Shift Chain Normal ST044N, inside width 55mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 76mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.00 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.55.R150Shift Chain Normal ST044N, inside width 55mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 76mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.00 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.75.R50Shift Chain Normal ST044N, inside width 75mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 96mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.75.R70Shift Chain Normal ST044N, inside width 75mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 96mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.75.R90Shift Chain Normal ST044N, inside width 75mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 96mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.75.R120Shift Chain Normal ST044N, inside width 75mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 96mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.75.R150Shift Chain Normal ST044N, inside width 75mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 96mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.100.R50Shift Chain Normal ST044N, inside width 100mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 121mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.100.R70Shift Chain Normal ST044N, inside width 100mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 121mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.100.R90Shift Chain Normal ST044N, inside width 100mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 121mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.100.R120Shift Chain Normal ST044N, inside width 100mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 121mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.100.R150Shift Chain Normal ST044N, inside width 100mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 121mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.125.R50Shift Chain Normal ST044N, inside width 125mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 146mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.30 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.125.R70Shift Chain Normal ST044N, inside width 125mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 146mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.30 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.125.R90Shift Chain Normal ST044N, inside width 125mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 146mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.30 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.125.R120Shift Chain Normal ST044N, inside width 125mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 146mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.30 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.125.R150Shift Chain Normal ST044N, inside width 125mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 146mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.30 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.150.R50Shift Chain Normal ST044N, inside width 150mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 171mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.150.R70Shift Chain Normal ST044N, inside width 150mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 171mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.150.R90Shift Chain Normal ST044N, inside width 150mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 171mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.150.R120Shift Chain Normal ST044N, inside width 150mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 171mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.150.R150Shift Chain Normal ST044N, inside width 150mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 171mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.175.R50Shift Chain Normal ST044N, inside width 175mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 196mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.78 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.175.R70Shift Chain Normal ST044N, inside width 175mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 196mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.78 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.175.R90Shift Chain Normal ST044N, inside width 175mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 196mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.78 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.175.R120Shift Chain Normal ST044N, inside width 175mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 196mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.78 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.175.R150Shift Chain Normal ST044N, inside width 175mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 196mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.78 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.200.R50Shift Chain Normal ST044N, inside width 200mm, bending radius R50mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 221mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 50mm | Weight: 1.94 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.200.R70Shift Chain Normal ST044N, inside width 200mm, bending radius R70mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 221mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.94 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.200.R90Shift Chain Normal ST044N, inside width 200mm, bending radius R90mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 221mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.94 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.200.R120Shift Chain Normal ST044N, inside width 200mm, bending radius R120mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 221mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.94 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044N.200.R150Shift Chain Normal ST044N, inside width 200mm, bending radius R150mm | Model: ST044N | Type: Normal (N) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 221mm | Outer Height (B): 38mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.94 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + EB type, B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
