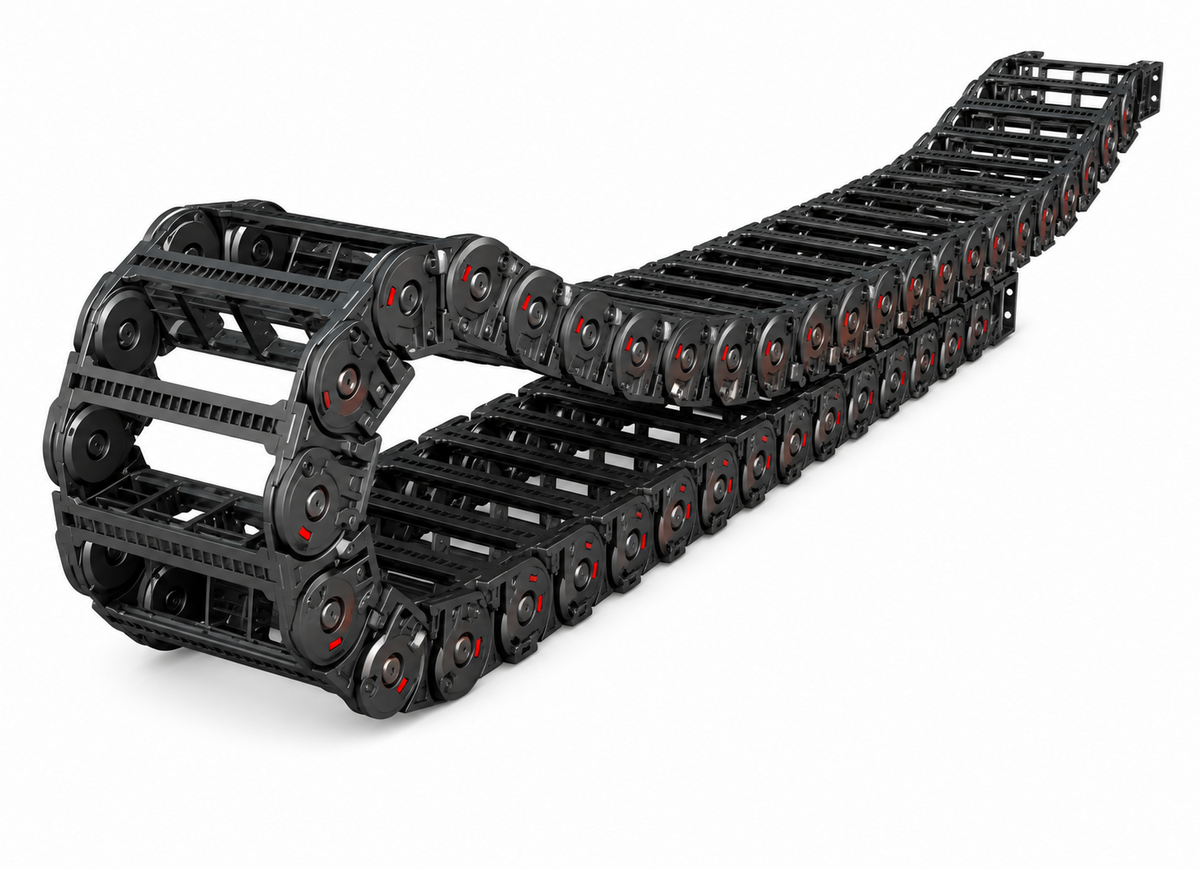

CP System Shift Chain ST044S Skid Type Cable Carrier (Pitch 44, Inside Width 35-200mm, BR R70-R150)

CP System Shift Chain ST044S Skid Type Cable Carrier (Pitch 44, Inside Width 35-200mm, BR R70-R150)

Shift Chain Skid Type ST044S, cable & hose carrier with skid applied to the side band for long-travel applications.

Key features

  • Bending Radius is determined by each interchangeable 'BR' unit inserted into the side band
  • Pitch 44mm
  • Inside width 35-200mm; bending radius R70-R150
  • Material CPS-Amide (PA6+G.F)
  • Max speed 6 m/s, acceleration 12 m/s². Temperature -30 to +130℃. ESD/UV available
  • Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3

Specifications

Model ST044S
Type Skid (S)
Pitch 44mm
Outer Height (B) 38mm
Inner Height (D) 24.5mm
Material CPS-Amide (PA6+G.F)
Max Speed 6 m/s
Max Acceleration 12 m/s²
Temperature -30 ~ +130℃
Special Production ESD, UV (optional)
Bracket FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order)
Length made-to-order
ST044S.35.R70 Shift Chain Skid ST044S, inside width 35mm, bending radius R70mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 74mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.03 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.35.R90 Shift Chain Skid ST044S, inside width 35mm, bending radius R90mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 74mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.03 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.35.R120 Shift Chain Skid ST044S, inside width 35mm, bending radius R120mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 74mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.03 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.35.R150 Shift Chain Skid ST044S, inside width 35mm, bending radius R150mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 74mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.03 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.50.R70 Shift Chain Skid ST044S, inside width 50mm, bending radius R70mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 89mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.08 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.50.R90 Shift Chain Skid ST044S, inside width 50mm, bending radius R90mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 89mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.08 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.50.R120 Shift Chain Skid ST044S, inside width 50mm, bending radius R120mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 89mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.08 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.50.R150 Shift Chain Skid ST044S, inside width 50mm, bending radius R150mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 89mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.08 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.55.R70 Shift Chain Skid ST044S, inside width 55mm, bending radius R70mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 94mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.10 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.55.R90 Shift Chain Skid ST044S, inside width 55mm, bending radius R90mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 94mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.10 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.55.R120 Shift Chain Skid ST044S, inside width 55mm, bending radius R120mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 94mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.10 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.55.R150 Shift Chain Skid ST044S, inside width 55mm, bending radius R150mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 94mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.10 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.75.R70 Shift Chain Skid ST044S, inside width 75mm, bending radius R70mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 114mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.75.R90 Shift Chain Skid ST044S, inside width 75mm, bending radius R90mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 114mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.75.R120 Shift Chain Skid ST044S, inside width 75mm, bending radius R120mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 114mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.75.R150 Shift Chain Skid ST044S, inside width 75mm, bending radius R150mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 114mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.100.R70 Shift Chain Skid ST044S, inside width 100mm, bending radius R70mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 139mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.26 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.100.R90 Shift Chain Skid ST044S, inside width 100mm, bending radius R90mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 139mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.26 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.100.R120 Shift Chain Skid ST044S, inside width 100mm, bending radius R120mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 139mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.26 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.100.R150 Shift Chain Skid ST044S, inside width 100mm, bending radius R150mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 139mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.26 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.125.R70 Shift Chain Skid ST044S, inside width 125mm, bending radius R70mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 164mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.40 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.125.R90 Shift Chain Skid ST044S, inside width 125mm, bending radius R90mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 164mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.40 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.125.R120 Shift Chain Skid ST044S, inside width 125mm, bending radius R120mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 164mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.40 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.125.R150 Shift Chain Skid ST044S, inside width 125mm, bending radius R150mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 164mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.40 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.150.R70 Shift Chain Skid ST044S, inside width 150mm, bending radius R70mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 189mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.52 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.150.R90 Shift Chain Skid ST044S, inside width 150mm, bending radius R90mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 189mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.52 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.150.R120 Shift Chain Skid ST044S, inside width 150mm, bending radius R120mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 189mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.52 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.150.R150 Shift Chain Skid ST044S, inside width 150mm, bending radius R150mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 189mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.52 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.175.R70 Shift Chain Skid ST044S, inside width 175mm, bending radius R70mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 214mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.81 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.175.R90 Shift Chain Skid ST044S, inside width 175mm, bending radius R90mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 214mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.81 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.175.R120 Shift Chain Skid ST044S, inside width 175mm, bending radius R120mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 214mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.81 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.175.R150 Shift Chain Skid ST044S, inside width 175mm, bending radius R150mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 214mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.81 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.200.R70 Shift Chain Skid ST044S, inside width 200mm, bending radius R70mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 239mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Weight: 1.98 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.200.R90 Shift Chain Skid ST044S, inside width 200mm, bending radius R90mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 239mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Weight: 1.98 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.200.R120 Shift Chain Skid ST044S, inside width 200mm, bending radius R120mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 239mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 120mm | Weight: 1.98 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST044S.200.R150 Shift Chain Skid ST044S, inside width 200mm, bending radius R150mm | Model: ST044S | Type: Skid (S) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 239mm | Outer Height (B): 38mm | Inner Height (D): 24.5mm | Bending Radius (R): 150mm | Weight: 1.98 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
Cable CarriersCP System
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Shift Chain ST044S Skid Type Cable Carrier (Pitch 44, Inside Width 35-200mm, BR R70-R150)

Brand CP System·Cable Carriers

Available part numbers (36)

ST044S.35.R70, ST044S.35.R90, ST044S.35.R120, ST044S.35.R150, ST044S.50.R70, ST044S.50.R90, ST044S.50.R120, ST044S.50.R150, ST044S.55.R70, ST044S.55.R90 + 26 more — see full table ↓

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
